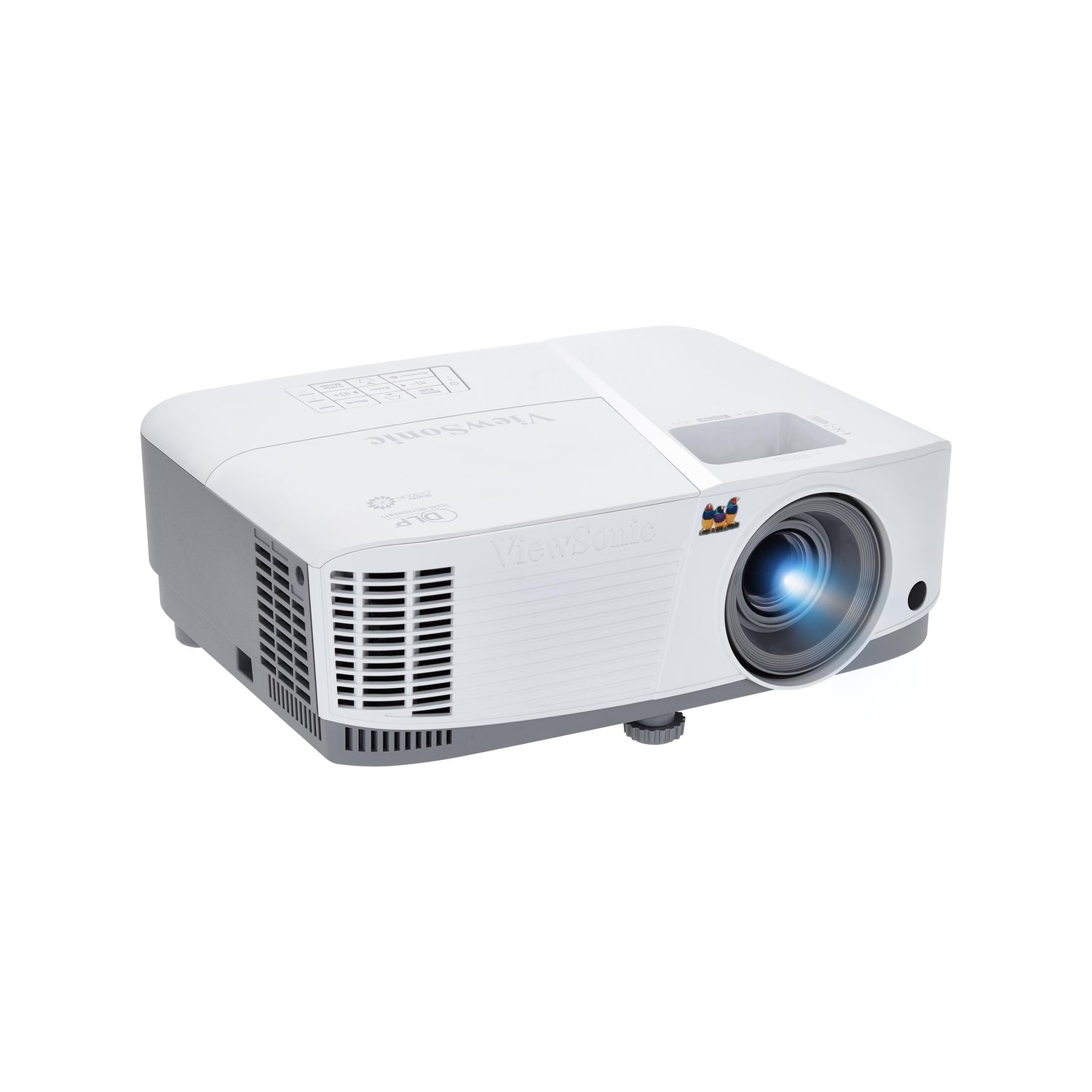

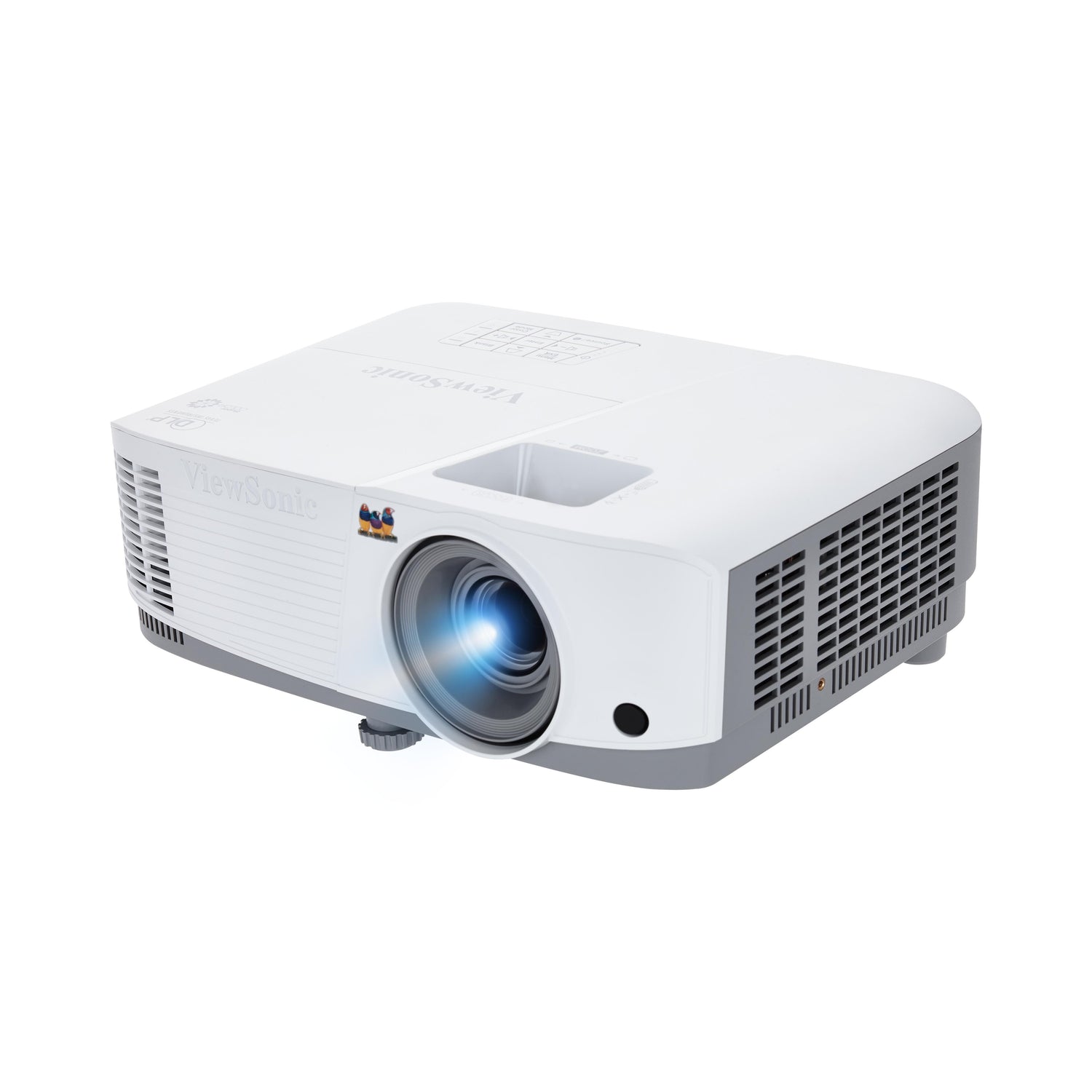

ViewSonic SP6 4,800 ANSI Lumens XGA Business Projector
PRODUCT DESCRIPTION
ViewSonic SP6 4,800 ANSI Lumens XGA Business Projector - 3 Years Local Warranty
High Brightness at an Entry-Level Price
The ViewSonic SP6 delivers 4,800 ANSI lumens at native 1024 x 768 (XGA) resolution with a 25,000:1 contrast ratio (SuperEco mode), making it a practical choice for bright classrooms, training rooms and meeting rooms.
Accurate Colour
ViewSonic SuperColor technology and five preset colour modes (Brightest, Presentation, Standard, Photo, Movie) adapt the picture to the room and content.
Presenter-Friendly
A presentation timer, blank timer, auto power off and vertical keystone (±40°) help keep sessions on track; HDMI supports 3D Blu-ray content.
Low Running Cost
The 190 W lamp is rated up to 15,000 hours in SuperEco mode (5,000 hours Normal).
Need projectors for several meeting rooms or classrooms? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic SP6 Datasheet — Technical Specifications
General
| Product Name | ViewSonic SP6 4,800 ANSI Lumens XGA Business Projector |
| Model | SP6 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); lamp 1 year or 1,000 hours, whichever comes first |
Optical
| Projection System | 0.55" XGA |
| Native Resolution | 1024 x 768 (XGA) |
| Brightness | 4,800 ANSI lumens |
| Contrast Ratio | 25,000:1 (SuperEco mode) |
| Display Colour | 1.07 billion colours |
| Light Source | 190 W lamp |
| Lamp Life | 5,000 hours (Normal); 15,000 hours (SuperEco) |
| Lens | F=2.56–2.68, f=22–24.1 mm |
| Throw Ratio | 1.96–2.15 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 1.19–13.11 m (100" at 3.98 m) |
| Projection Offset | 120% ±5% |
| Keystone | ±40° vertical |
| Input Lag | 16 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to Full HD (1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

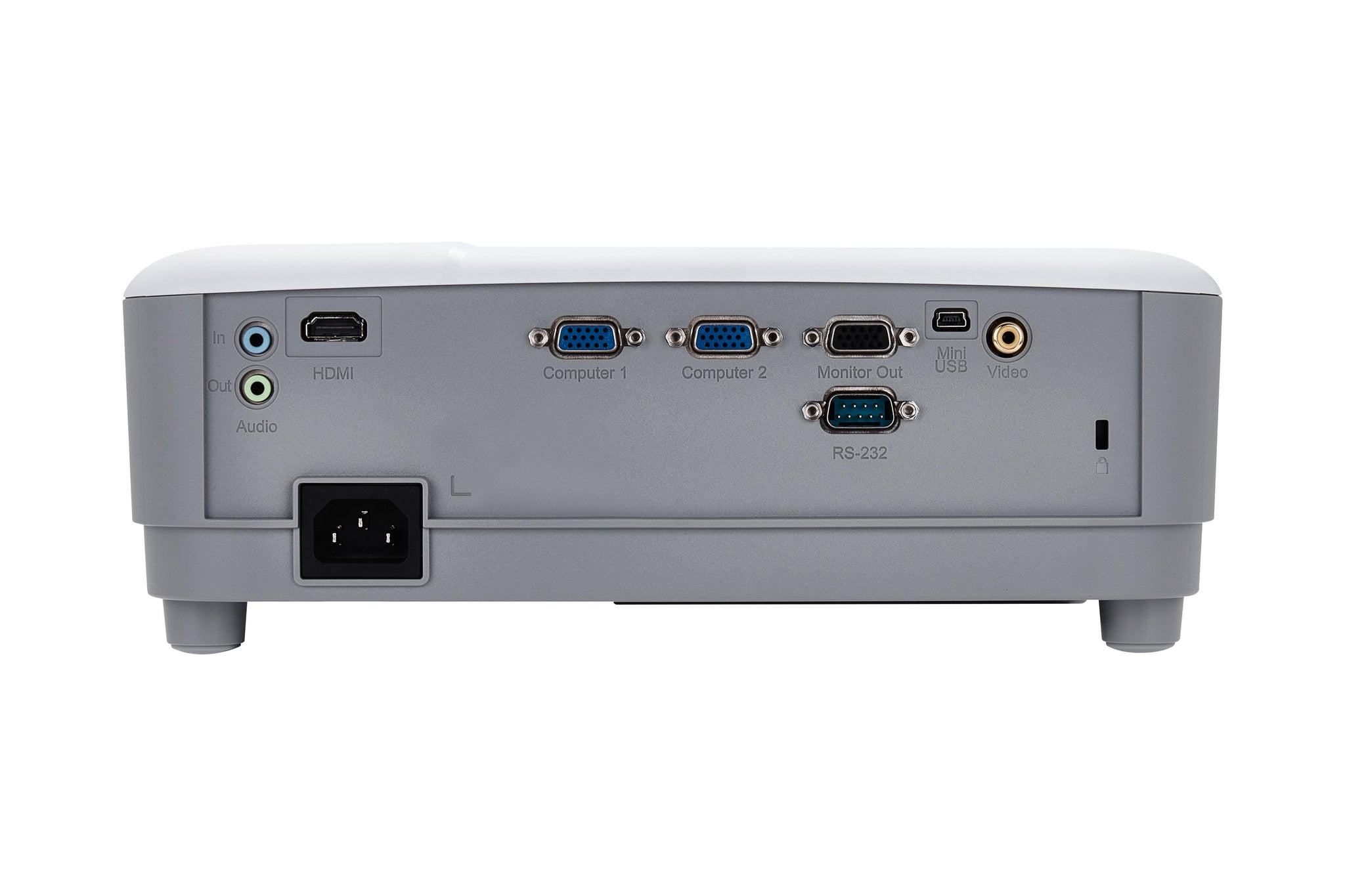

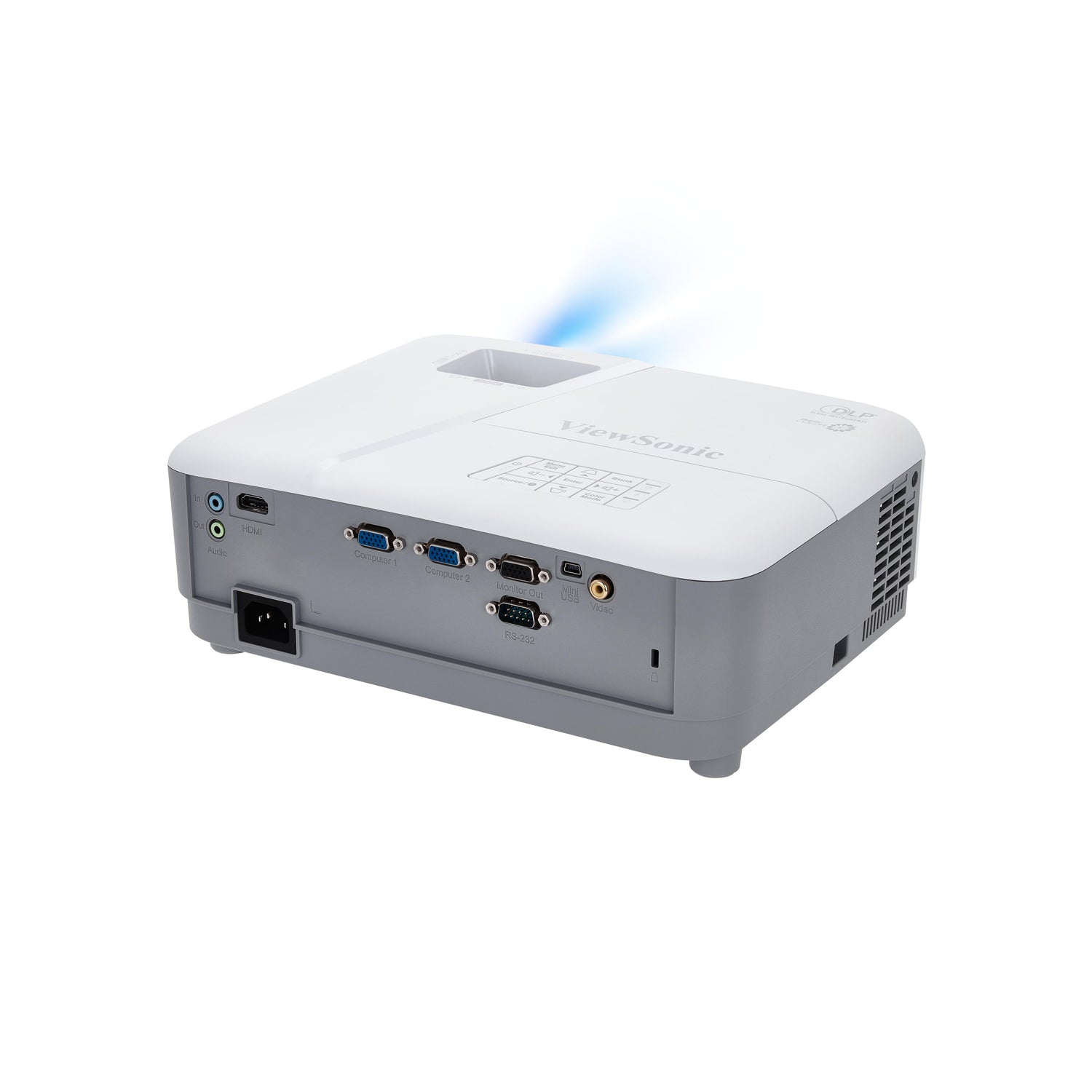

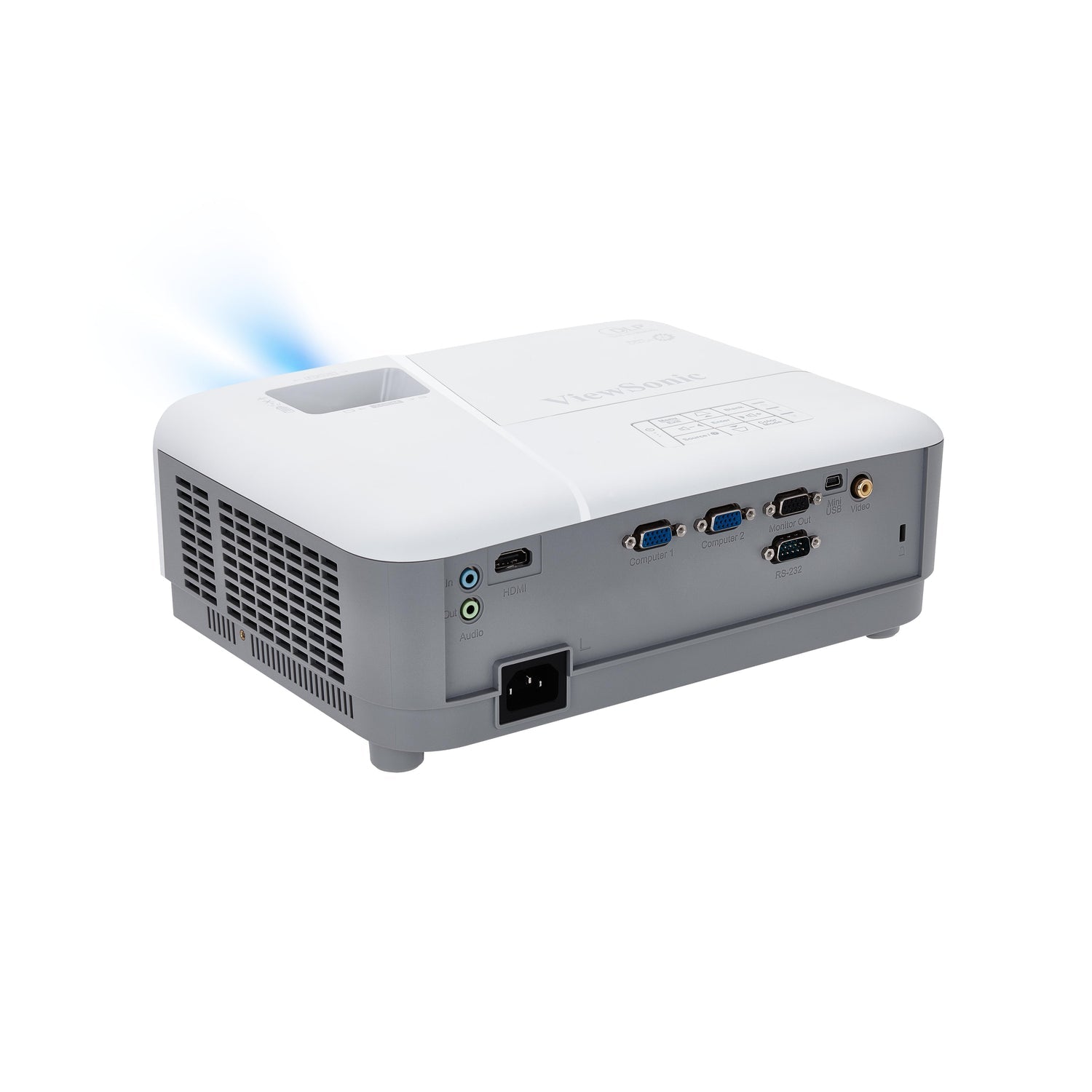

Connectivity
| HDMI | 1 x HDMI 1.4 (HDCP 1.4) |
| Computer In | 2 x VGA |
| Composite In | 1 |
| Audio In | 1 x 3.5 mm |
| Monitor Out | 1 x VGA |
| Audio Out | 1 x 3.5 mm |
| Control | 1 x RS232 |
| USB Service | 1 x USB Mini-B |
| Speaker | 2 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 260 W (Normal); <0.5 W standby |
| Audible Noise | 31 dB (Normal); 27 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 294 x 218 x 110 mm (with adjustment foot) |
| Net Weight | 2.2 kg |
| Packing Dimensions | 365 x 300 x 188 mm |
| Gross Weight | 3.24 kg |
| OSD Languages | 23 |
Compatibility & Software Support
Sources
Two VGA inputs, HDMI and composite video connect laptops, PCs, document cameras and legacy AV equipment; a VGA monitor out drives a second display.
Room Control
RS232 supports integration with room control systems. The remote supports eight remote codes so several projectors in one area can be controlled separately.
Typical Use
Classrooms, training rooms and meeting rooms where brightness matters more than resolution, such as spreadsheets and text presentations in lit rooms.
Package Contents & ViewSonic Lamp Business Projectors Ordering Information
In the Box
SP6 projector, power cord, VGA cable, remote control, quick start guide.
Optional Accessories
| Replacement lamp | RLC-108 |
| Air filter | RSPL |
| HDBaseT receiver | HB10B |
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
ViewSonic Lamp Business Projectors
| Model | Key feature |
| SP3 | 4,800 lm SVGA |
| SP6 (this listing) | 4,800 lm XGA |
| PA700X | 4,500 lm XGA |
| PA700W | 4,500 lm WXGA |
| PG707W | 4,000 lm WXGA, LAN control |
| PS502X | 4,000 lm XGA, short throw |
| PS502W | 4,000 lm WXGA, short throw |
| PX704HD | 4,000 lm 1080p Full HD |
Datasheet & Downloads
| ViewSonic datasheet | SP6 Datasheet |
| User guide | SP3 / SP6 Series User Guide (PDF, English) |
| 2D drawing | SP6 2D Drawing (PDF) |
| ViewSonic product page | SP6 on viewsonic.com Singapore |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting SP6.
Frequently Asked Questions — ViewSonic SP6
How big an image can I get?
From 30" up to 300". A 100" image needs about 3.98 m between the lens and the screen.
Is it bright enough for a lit classroom?
At 4,800 ANSI lumens it is designed for rooms with ambient light.
How long does the lamp last?
Up to 15,000 hours in SuperEco mode (5,000 hours Normal). The replacement lamp is RLC-108.
Does it have HDMI?
Yes, one HDMI input plus two VGA inputs and composite video.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island); the lamp is covered for 1 year or 1,000 hours, whichever comes first. Supplied by SourceIT with a GST invoice.
