TP-Link Tapo C501GW 1080p Outdoor Pan/Tilt 4G LTE Camera
PRODUCT DESCRIPTION
TP-Link Outdoor Pan/Tilt 4G LTE Camera (Tapo C501GW) - 2 Years Local Warranty

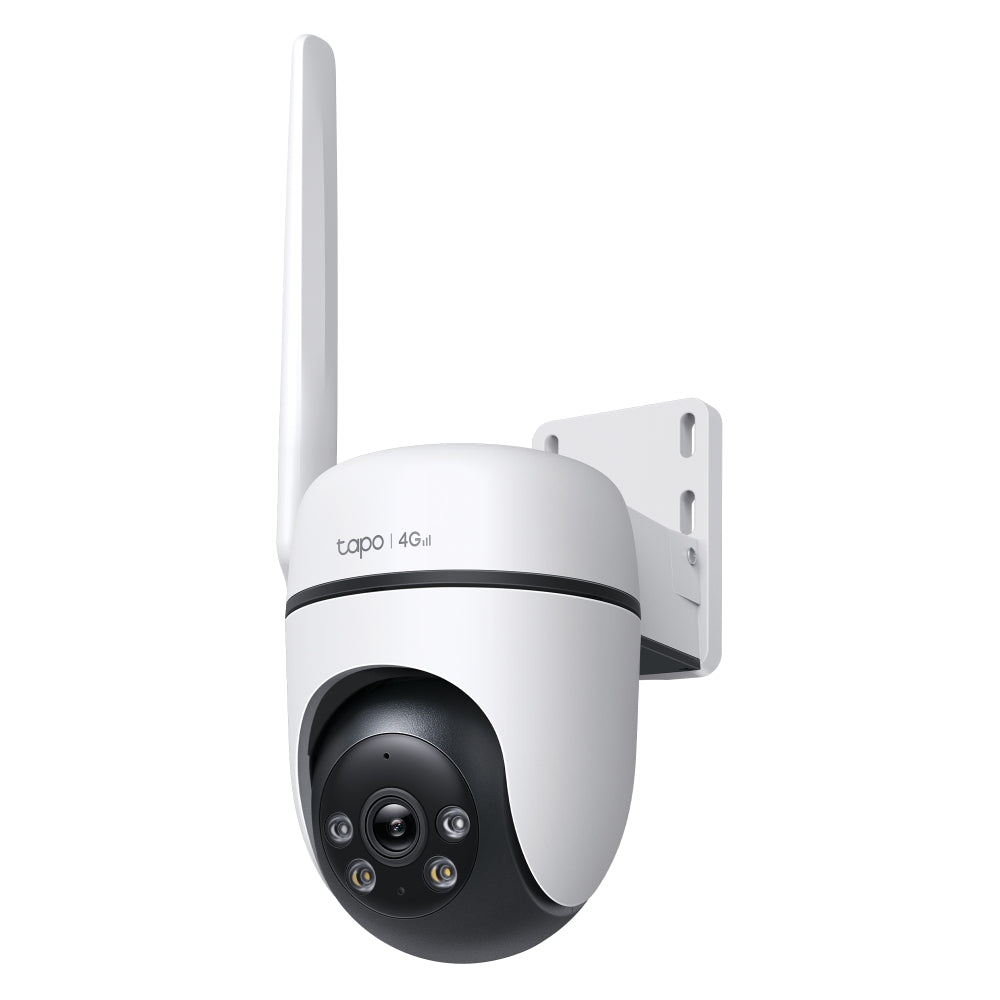

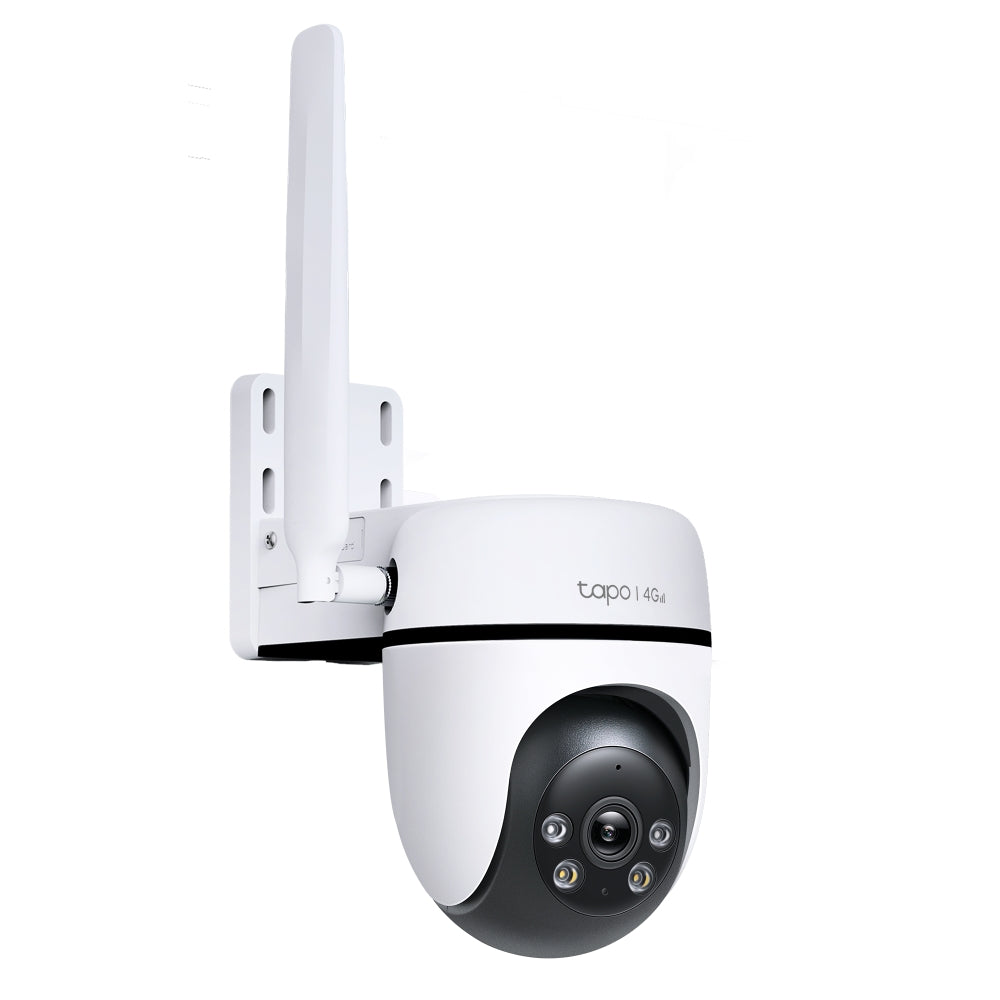

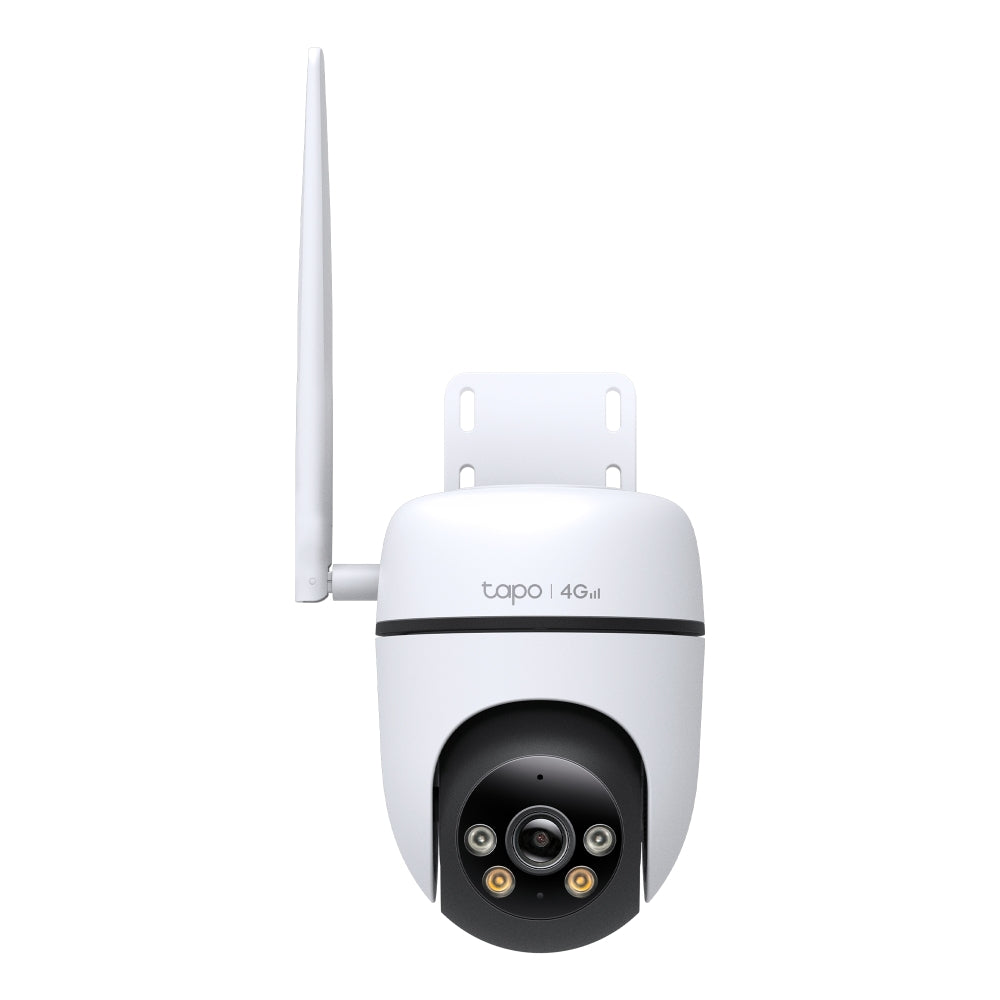

The Tapo C501GW is a 1080p outdoor pan/tilt camera that connects over 4G LTE through a Nano-SIM, or over an Ethernet cable, rather than Wi-Fi. It pans 360° and tilts across 139°, can be powered by its DC adapter or by PoE (802.3af/at), and is rated IP66.

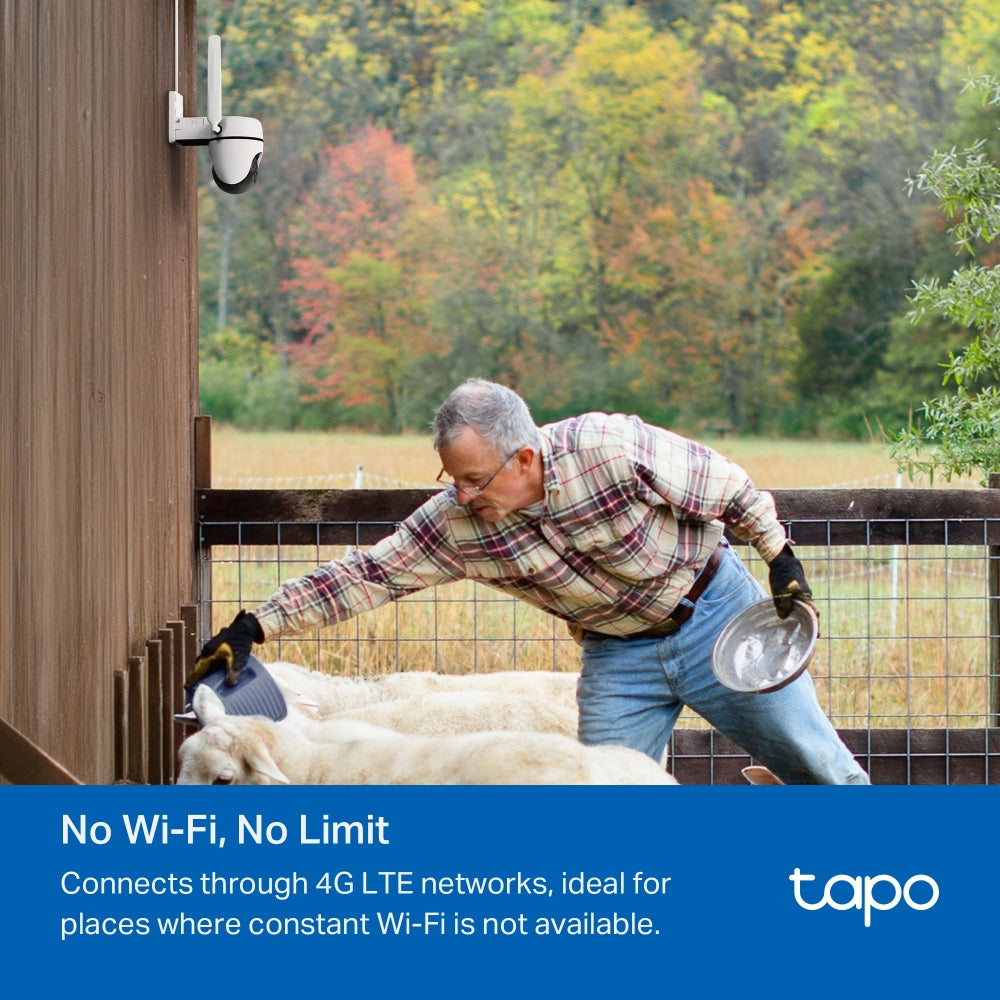

4G LTE Where There Is No Wi-Fi
A Nano-SIM slot and detachable external antenna let the C501GW stream and send alerts over the mobile network, for sites without dependable Wi-Fi. TP-Link lists LTE-FDD bands B1/3/5/7/8/20/28 and LTE-TDD bands B38/40/41. A data SIM and plan are needed and are not included.
360° Pan and 139° Tilt Coverage
The motorised head has a 340° mechanical pan (360° coverage) and an 85° mechanical tilt (139° coverage), with a 3.16 mm F1.6 lens and a 99.7° horizontal field of view. Video is 1920 x 1080 at 15, 20, 25 or 30 fps in H.264.
DC or PoE Power, Ethernet or LTE Data
Power comes from the included 12 V, 1 A DC adapter or from an 802.3af/at PoE switch or injector on the Ethernet port. The same port gives a wired data path; TP-Link lists RTSP as supported and ONVIF as available only in Ethernet mode.
Wide AI Detection Set
Beyond motion, person, pet and vehicle detection, TP-Link lists tamper, line-crossing, meow, bark and glass-breaking detection, with activity zones. Night vision uses an 850 nm IR LED rated to 29.9 m plus colour night vision, and a 99 dB sound-and-light alarm and two-way audio are built in.
Ideal For
Singapore construction sites, farms, warehouses, remote gates and vehicle yards where Wi-Fi does not reach but mobile coverage does. Supplied by SourceIT with local Singapore warranty and GST invoice.
Tapo C501GW Datasheet — Technical Specifications
General
| Model | Tapo C501GW |
| Official Product Name | Outdoor Pan/Tilt 4G LTE Camera |
| Brand | TP-Link |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" CMOS Sensor |
| Lens | Focal Length: 3.16 mm; Aperture: F1.6; Field of View: 116.7° (Diagonal), 99.7° (Horizontal), 53.8° (Vertical) |
| Night Vision | 850 nm IR LED (98 ft / 29.9 m), color night vision |
| Interface & Button | 1x DC Port, 1x Ethernet Port (PoE), 1x RESET Button, 1x MicroSD Card Slot (Up to 512 GB), 1x Nano-SIM Card Slot |
| Pan/Tilt Range | Pan Mechanical Range: 340° (360° Pan Coverage); Tilt Mechanical Range: 85° (139° Tilt Coverage) |
Video & Audio
| Maximum Resolution | 1920 x 1080 px |
| Frame Rate | 15/20/25/30 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (level measured at 4-inch/10-cm distance) |
Storage
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Detection and Notifications
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Tamper Detection, Line-Crossing Detection, Meow Detection, Bark Detection, Glass-Breaking Detection |
| Activity Zones | Yes |
| Output Notification | System Notification; System Notification with Snapshot (Tapo Care Services) |
Network
| Network Connectivity | 4G LTE / LAN Cable |
| RTSP | Yes |
| ONVIF | Yes (Only Available in Ethernet Mode) |
4G
| Frequency | LTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/40/41 |
| SIM | Nano-SIM (not included) |
| Antenna | Detachable antenna (included) |
Power
| Power Source | 12 V DC Power Adapter; PoE: 802.3 af/at |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | DC Power: 12 V, 1 A |
Physical and Environment
| Weather Resistance | IP66 |
| Mounting Options | Ceiling-Mounted, Wall-Mounted, Pole-Mounted (pole-mounting loops required but not included) |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Camera Dimensions | 130.8 x 84.0 x 116.1 mm (5.15 x 3.31 x 4.57 in) |
| Dimensions with Antennas and Bracket | 139.8 x 102.3 x 234.2 mm (5.5 x 4.03 x 9.22 in) |
| Certifications | CE, NTRA, RCM, VCCI, NCC, BSMI, RoHS |
TP-Link's Singapore page for the Tapo C501GW publishes no security/encryption row, no digital zoom figure, no weight and no power consumption. It also does not state compatibility with specific Singapore mobile operators; LTE bands are shown exactly as published so they can be checked against your carrier.
Compatibility & Software Support
| App | Tapo App — iOS 9.0 or higher, Android 4.4 or higher |
| Voice Assistants | Google Assistant, Amazon Alexa |
| Cloud | Tapo Care (subscription) for cloud storage and snapshot notifications |
| NVR / Third-Party | RTSP: Yes; ONVIF: Ethernet mode only |
| Mobile Data | Nano-SIM with an active data plan (not included) |
| PoE | 802.3af/at |
| Local Storage | microSD card up to 512 GB (purchased separately) |
Tapo Care subscriptions are sold by TP-Link at https://www.tapo.com/tapocare/.
Package Contents & Ordering Information
Package Contents
| In the Box | Tapo C501GW Camera, Detachable Antenna, DC Power Adapter, Mounting Template Sticker, Mounting Bracket, Mounting Anchors, Bracket Screws, Mounting Screws, Waterproof Seal, Waterproof Cable Attachments, Quick Start Guide |
Ordering Information
| Model | Tapo C501GW |
| SKU | Tapo C501GW |
| Warranty | 2 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Tapo C501GW
Does the C501GW connect over Wi-Fi?
No. TP-Link lists 4G LTE or a LAN cable as its network connections.
Is a SIM card included?
No. You need a Nano-SIM with a data plan; check that your operator's LTE bands match those TP-Link publishes.
Can it be powered by PoE?
Yes. TP-Link lists 802.3af/at PoE on the Ethernet port as an alternative to the included 12 V DC adapter.
What warranty does SourceIT provide?
Two years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and the site details and we will quote with local warranty, delivery and support.
