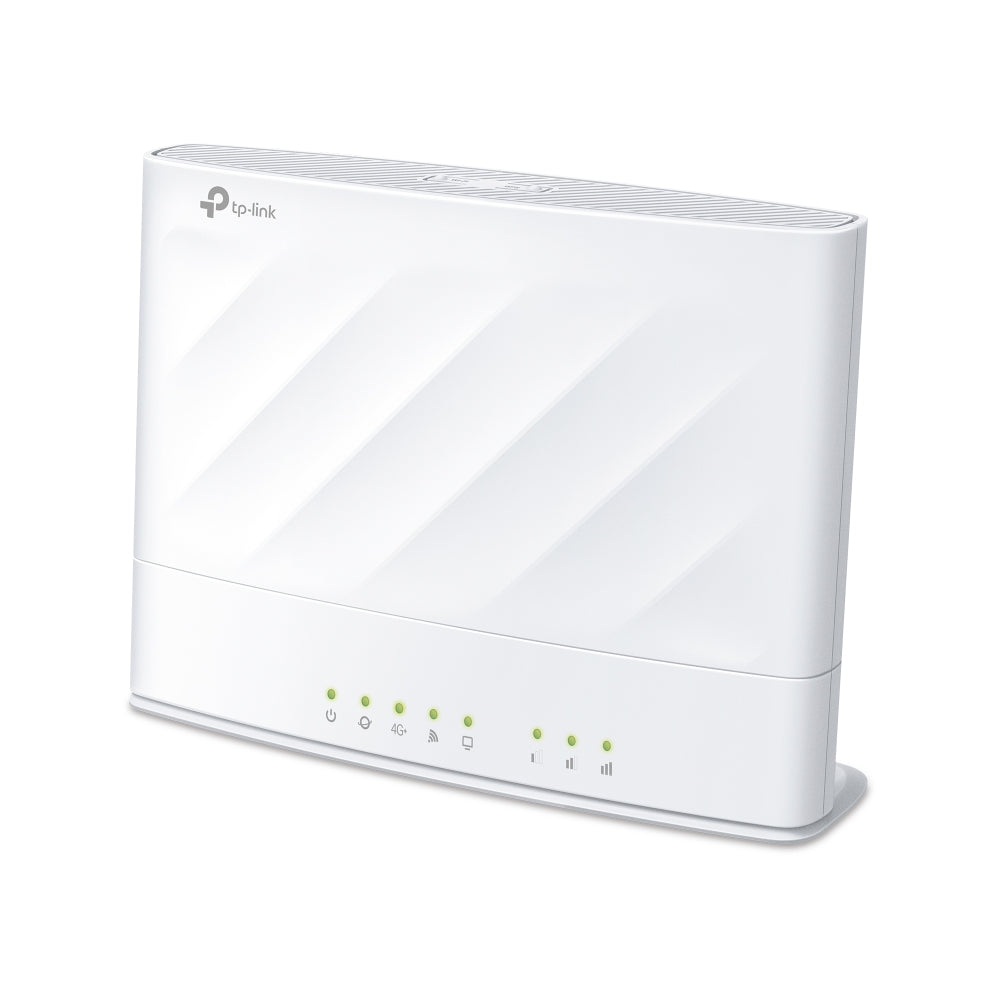

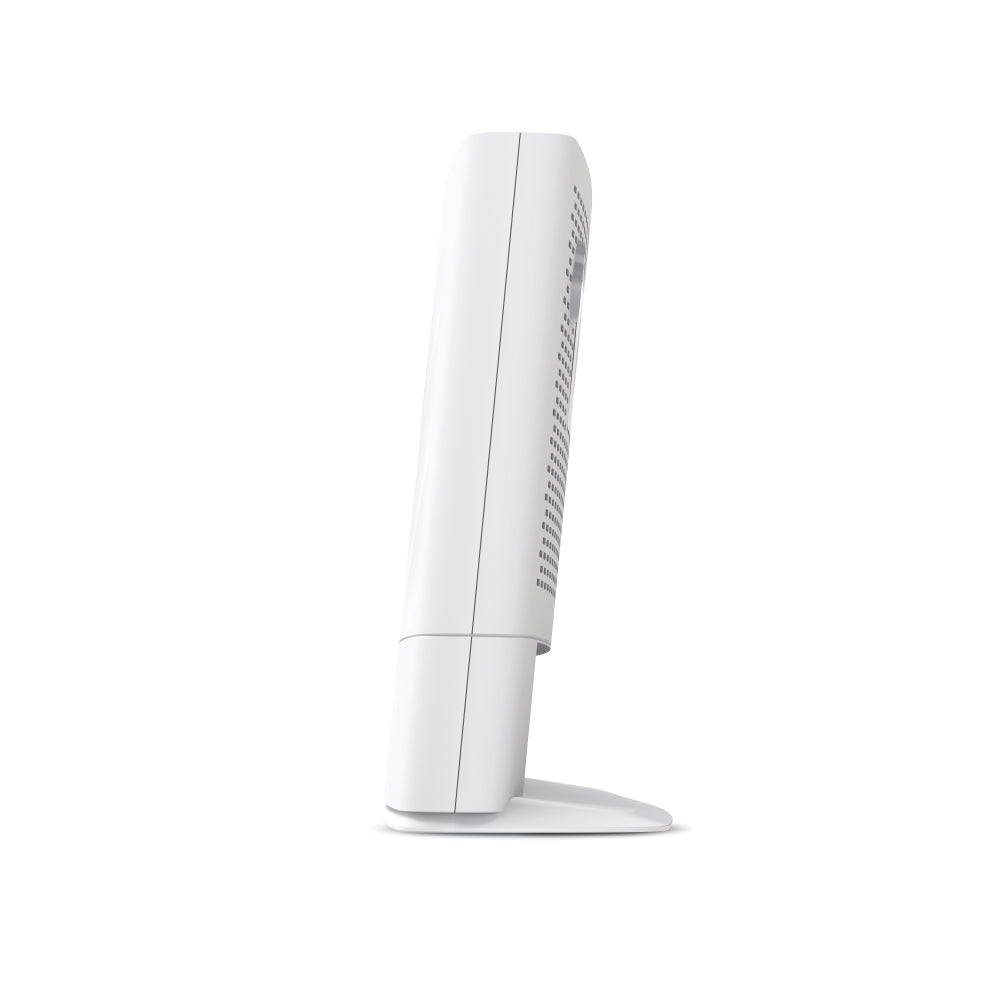

TP-Link Archer MX700 AX1500 4G+ Cat6 Wi-Fi 6 LTE Router
PRODUCT DESCRIPTION
TP-Link 4G+ AX1500 Dual Band Wi-Fi LTE Router (Archer MX700) - 3 Years Local Warranty

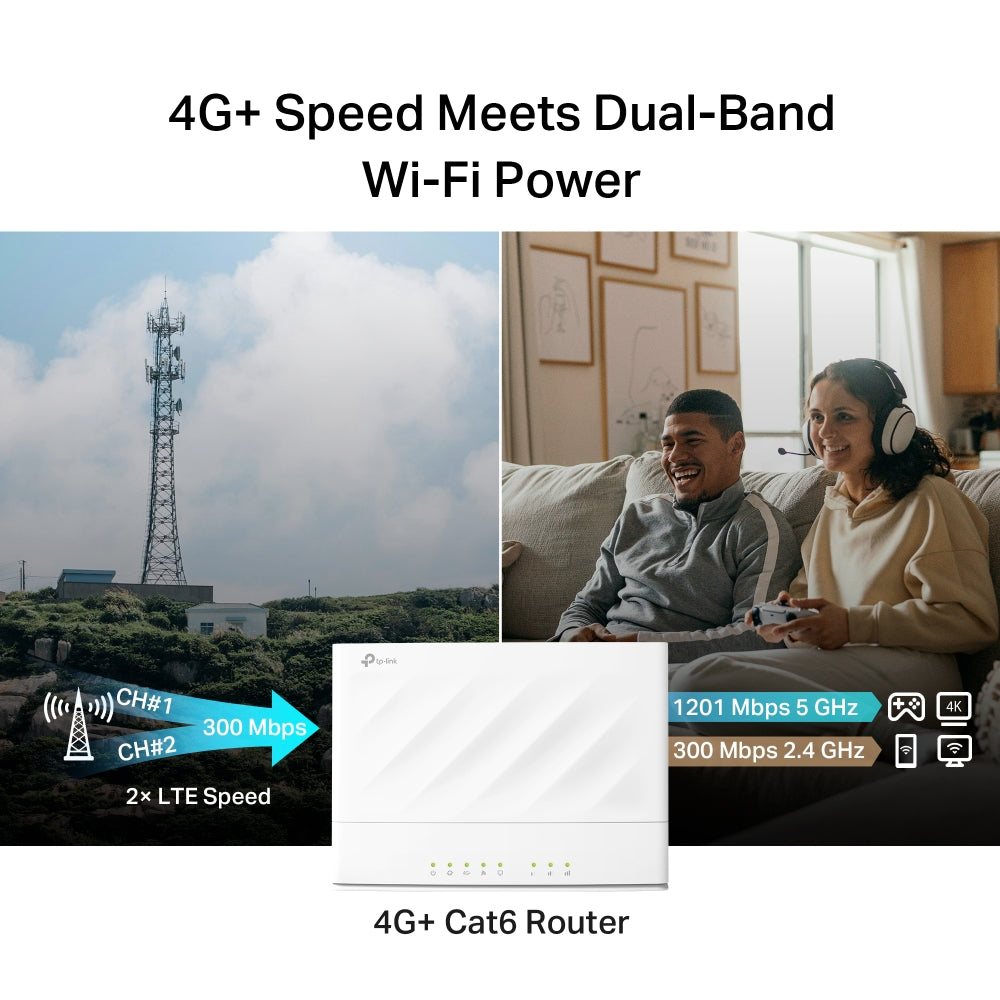

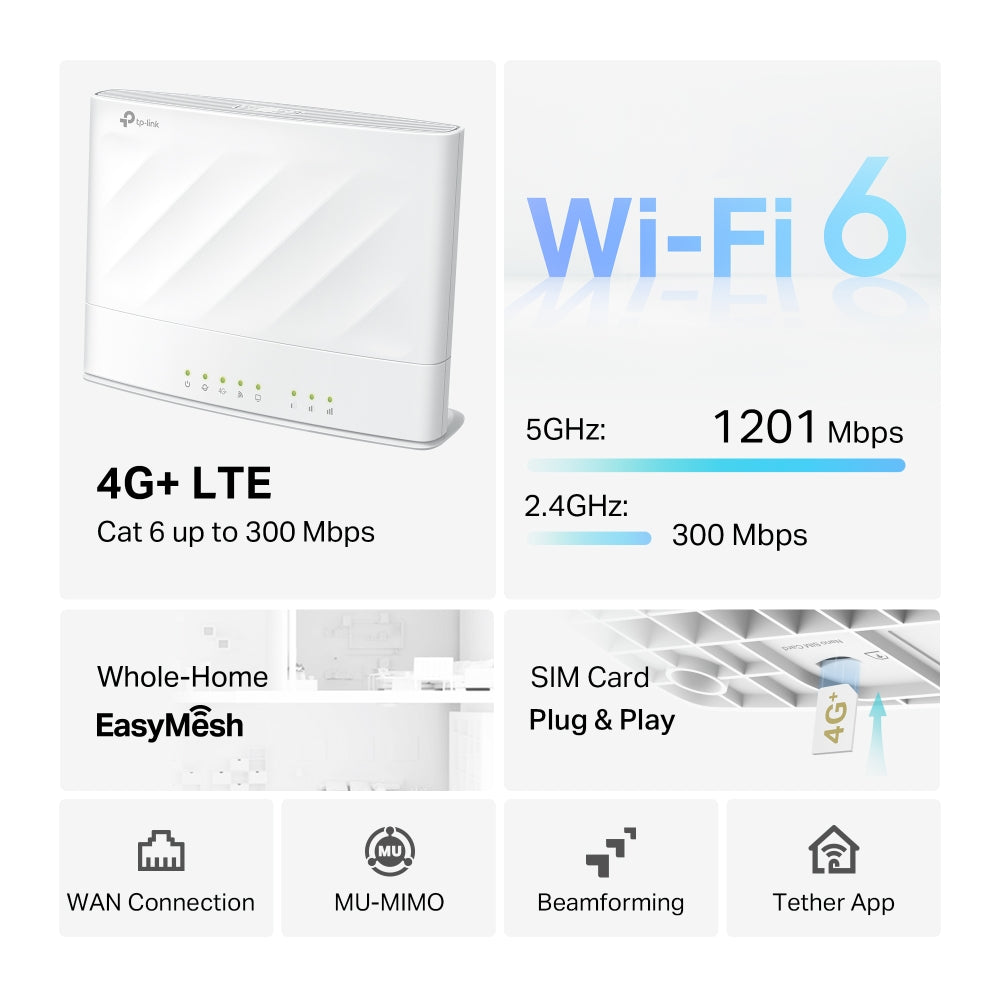

The Archer MX700 is a 4G+ Cat6 SIM router — 300 Mbps download and 50 Mbps upload — with AX1500 dual-band Wi-Fi at 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, four Gigabit Ethernet ports (one LAN/WAN), two external antenna ports and EasyMesh compatibility. TP-Link positions it for high-density small businesses with up to 128 devices supported.
4G+ Cat6 on a Nano SIM
The built-in 4G+ Cat6 modem reaches 300 Mbps download and 50 Mbps upload across FDD-LTE B1/B3/B5/B7/B8/B20/B28 and TDD-LTE B38/B40/B41, with 3G fallback on B1/B5/B8. Insert an activated SIM and it connects without a landline, which suits relocations and temporary premises.
Wi-Fi 6 on 5 GHz, Wi-Fi 4 on 2.4 GHz
5 GHz runs 802.11ax at 1201 Mbps; 2.4 GHz runs 802.11b/g/n at 300 Mbps. Two internal Wi-Fi antennas and two internal 4G/3G antennas are built in, with two external antenna ports for optional antennas at weak-signal sites. Security includes WPA/WPA3 Personal and WPA/WPA2 Enterprise.
Four Gigabit Ports for a Small Office
One Gigabit LAN/WAN port plus three Gigabit LAN ports connect a printer, NVR or desktop directly. The LAN/WAN port also lets the MX700 run on a fixed line with 4G as a backup connection. TP-Link rates it for up to 128 devices.
EasyMesh and Tether App
EasyMesh compatibility lets the MX700 form a mesh with other EasyMesh devices for one Wi-Fi name across a larger space. Setup and management are via the Tether app or web interface, with TP-Link Cloud, remote management, bandwidth control and a guest network on each band.
Ideal For
Singapore shops, kiosks, site offices and small businesses needing a dependable 4G line or fixed-line backup with enough Gigabit ports for on-site equipment. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer MX700 Datasheet — Technical Specifications
General
| Model | Archer MX700 |
| Official Product Name | 4G+ AX1500 Dual Band Wi-Fi LTE Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
4G / 3G
| Network Mode | 4G: FDD B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz), TDD B38/B40/B41 (2600/2300/2500 MHz); 3G: B1/B5/B8 (2100/850/900 MHz) |
| Speed | 4G+ Cat 6: 300 Mbps Download, 50 Mbps Upload |
| SIM Type | Nano SIM Card |
Wireless
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M -77 dBm; 11ax HE20 -64 dBm, HE40 -61 dBm, HE80 -59 dBm; 11ac VHT20 -69 dBm, VHT40 -66 dBm, VHT80 -63 dBm; 11n HT20 -74 dBm, HT40 -71 dBm. 2.4 GHz: 11g 54M -78 dBm; 11n HT20 -75 dBm, HT40 -72 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM |
| Wireless Security | 64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise, WPA/WPA3 Personal |
| Connected Devices | Up to 128 devices |
Hardware

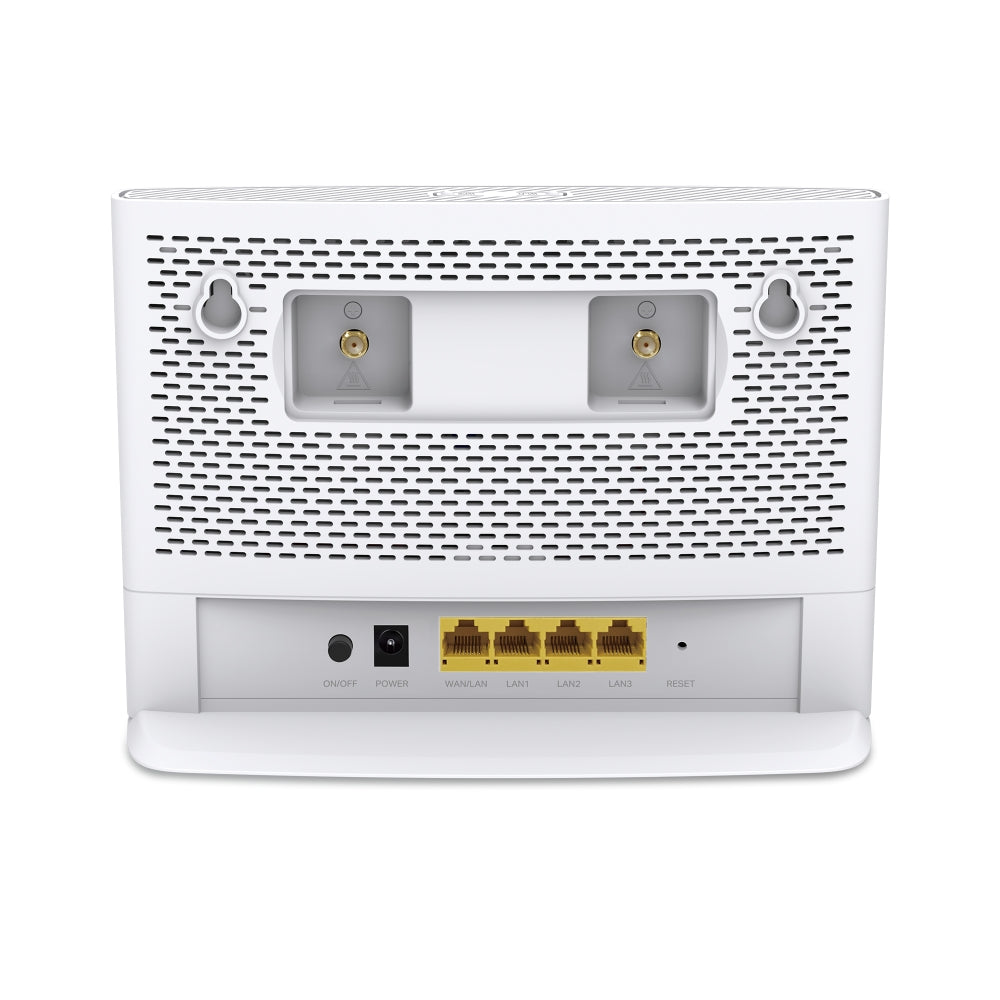

| Interface | 1x Gigabit LAN/WAN Port + 3x Gigabit LAN Ports |
| Antenna | 2x Internal 4G/3G Antennas + 2x Internal Wi-Fi Antennas + 2x External Antenna Ports |
| Dimensions (W x D x H) | 199.7 x 148.6 x 67.5 mm (7.86 x 5.85 x 2.66 in) |
Software
| Quality of Service | Bandwidth Control |
| Security | IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access) |
| Management Features | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Guest Network | 1x 2.4 GHz Guest Network, 1x 5 GHz Guest Network |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| Mesh | EasyMesh-Compatible |
Environment and Certification
| Certification | CE, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link's Singapore page for the Archer MX700 publishes no power adapter rating, no button list, no VPN row and no weight. External antennas are not included.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Edge, Firefox, Chrome, Safari or other JavaScript-enabled browser |
| SIM | Requires an activated Nano SIM card without a PIN lock; TP-Link's quick installation guide explains how to unlock a locked SIM. |
| Mesh Ecosystem | EasyMesh-compatible (listed on TP-Link Singapore's EasyMesh product list) |
| Wi-Fi 6 Clients | 802.11ax applies on 5 GHz only; 2.4 GHz is 802.11b/g/n |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences. Actual wireless throughput, coverage and number of connected devices vary with conditions.
Package Contents & Ordering Information
Package Contents
| In the Box | 4G+ Cat6 300 Mbps LTE AX1500 Wireless Dual Band Gigabit Router Archer MX700; Power Adapter; RJ45 Ethernet Cable; Quick Installation Guide |
Ordering Information
| Model | Archer MX700 |
| SKU | Archer MX700 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer MX700
Is the MX700 a 5G router?
No. It is 4G+ LTE Cat6 at 300 Mbps download and 50 Mbps upload, with 3G fallback. For 5G see the Archer NX series.
Is 2.4 GHz Wi-Fi 6?
No. TP-Link lists 802.11ax on 5 GHz and 802.11b/g/n on 2.4 GHz.
Can it use a fixed line as well?
Yes. The Gigabit LAN/WAN port lets it act as a normal wireless router with 4G as backup.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
