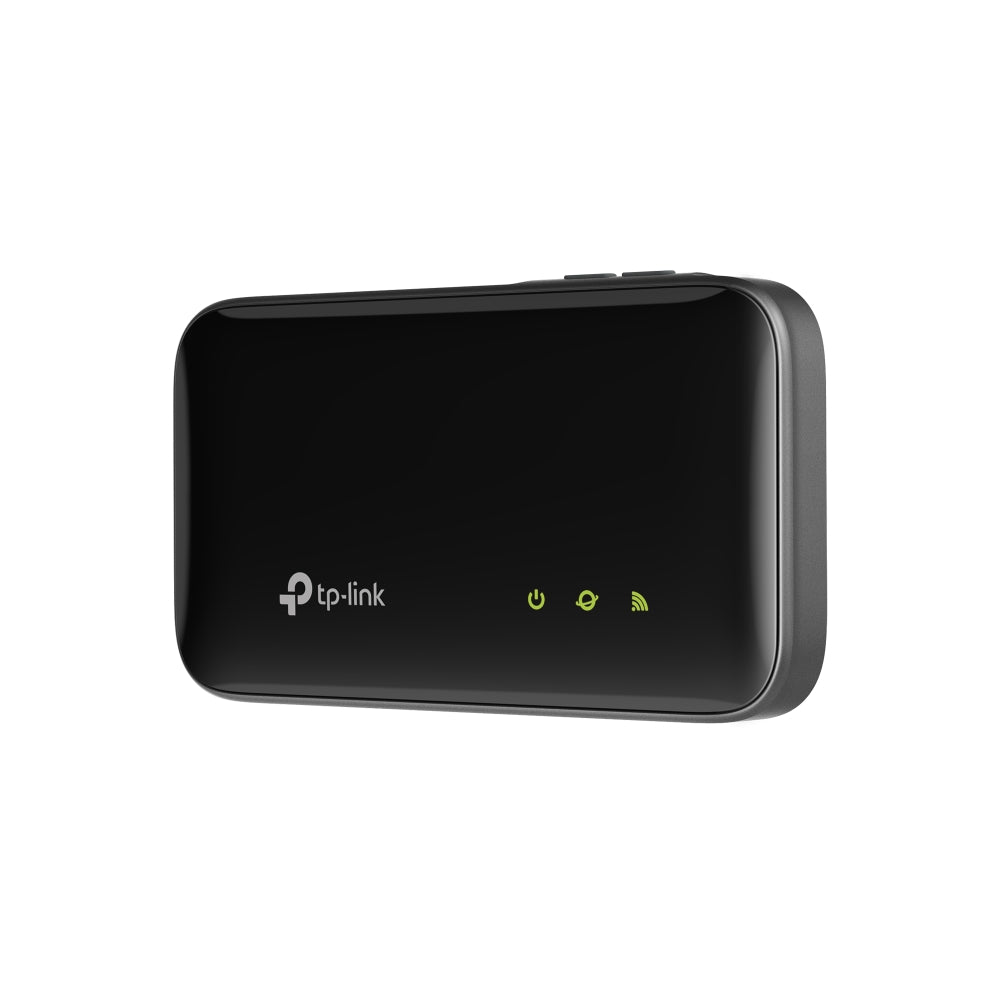

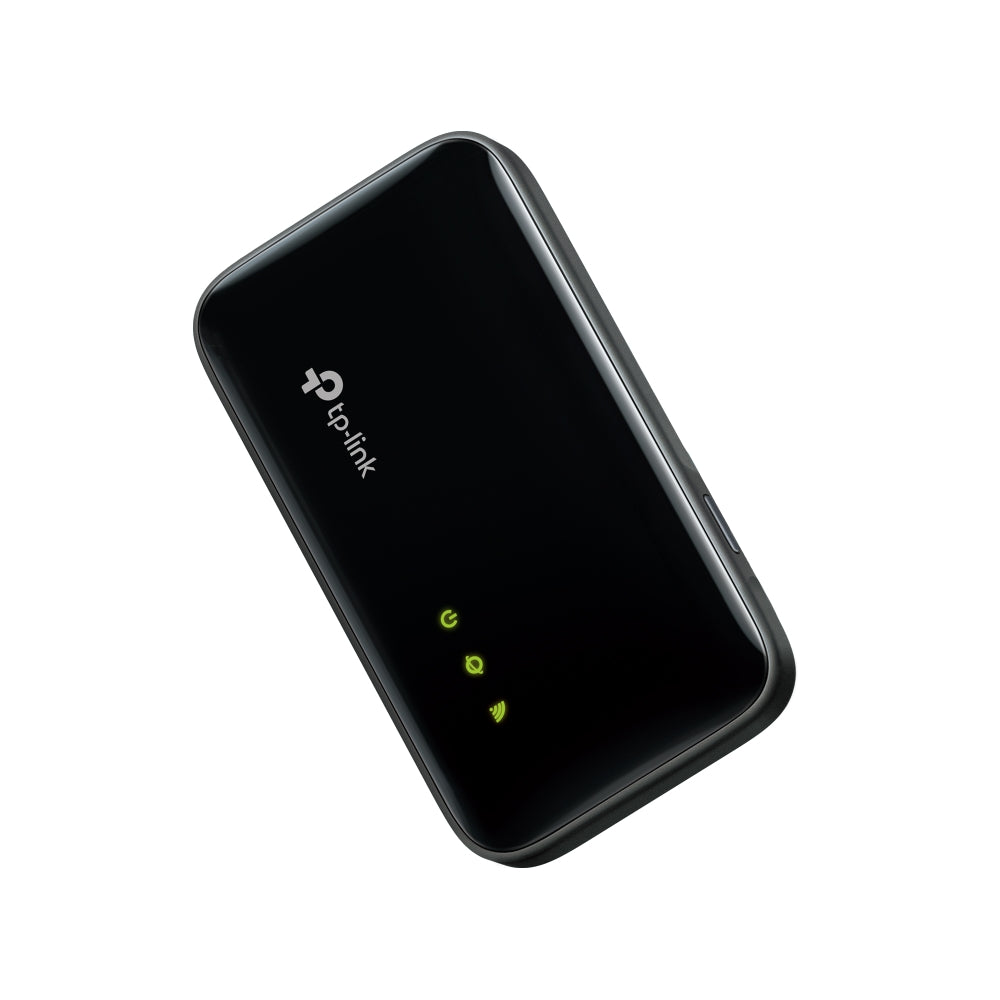

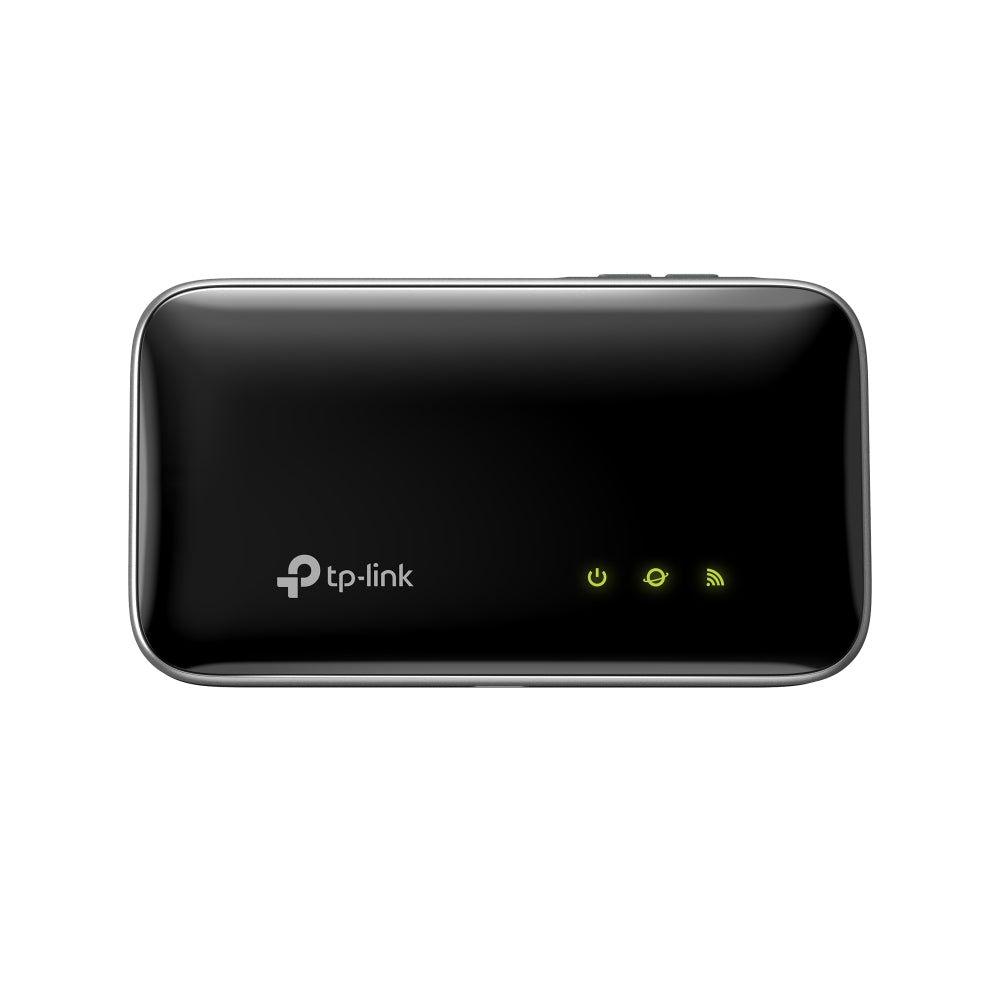

TP-Link M7400 300 Mbps 4G LTE-Advanced Mobile Wi-Fi
PRODUCT DESCRIPTION
TP-Link 300 Mbps LTE-Advanced Mobile Wi-Fi (M7400) - 3 Years Local Warranty
The M7400 is TP-Link's 4G LTE-Advanced pocket Wi-Fi: 300 Mbps download and 50 Mbps upload over a Nano SIM, selectable dual-band Wi-Fi at 867 Mbps on 5 GHz or 300 Mbps on 2.4 GHz, a 1.44-inch TFT screen and a 2100 mAh battery rated for up to 8 hours. It supports up to 32 connected devices, weighs about 121 g with the battery, and is managed from the tpMiFi app.
LTE-Advanced at 300 Mbps
The built-in LTE-Advanced modem reaches 300 Mbps download and 50 Mbps upload, with FDD-LTE bands B1/B3/B5/B7/B8/B20/B28, TDD-LTE B38/B40/B41 and 3G fallback on B1/B5/B8. Actual mobile broadband speed depends on the network, signal strength and subscription terms.
Selectable Dual-Band Wi-Fi
Wi-Fi runs on either 5 GHz at 867 Mbps (802.11ac) or 2.4 GHz at 300 Mbps (802.11n) — selectable rather than simultaneous. 5 GHz suits a handful of nearby laptops; 2.4 GHz reaches further and suits older devices. Security covers WPA-PSK/WPA2-PSK, MAC filtering and hidden SSID.
2100 mAh Battery, 32 Devices
The 2100 mAh battery is included and TP-Link rates it for up to 8 hours, noting that actual battery time varies with use. Up to 32 devices can share the connection. It charges over USB-C (5V/1A external power supply).
Micro SD Sharing and tpMiFi App
A Micro SD slot takes cards up to 2 TB (sold separately) for storing and sharing files with connected devices. The tpMiFi app for iOS and Android handles data usage, settings and device management; a web interface is also available.
Ideal For
Staff who travel regionally, sales teams on the road and small sites needing a simple 4G backup hotspot on a Singapore SIM. Supplied by SourceIT with local Singapore warranty and GST invoice.
M7400 Datasheet — Technical Specifications
General
| Model | M7400 |
| Official Product Name | 300 Mbps LTE-Advanced Mobile Wi-Fi |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
4G / 3G
| Network Type | 4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz); TDD-LTE B38/B40/B41 (2600/2300/2500 MHz); 3G: DC-HSDPA/HSUPA/UMTS/WCDMA B1/B5/B8 (2100/850/900 MHz) |
| Speed | Download Speed: 300 Mbps; Upload Speed: 50 Mbps |
| SIM | 1x Nano SIM Card Slot |
Wireless
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz & 5 GHz |
| Signal Rate | Selectable dual band, 300 Mbps at 2.4 GHz or 867 Mbps at 5 GHz |
| Wireless Security | WPA-PSK/WPA2-PSK, Wireless MAC Filtering, Enable/Disable SSID Broadcast |
| DHCP | Server, Client, DHCP Client List |
| Connected Devices | Up to 32 devices |
Hardware
| Interface | 1x USB-C port for power supply, 1x Nano SIM card slot, 1x Micro SD card slot |
| Button | Power On/Off Button, Reset Button |
| Battery | 2100 mAh — up to 8 hours (actual battery time may vary) |
| External Power Supply | 5V/1A |
| Screen Display | 1.44 inch TFT |
| Antenna | Internal Antenna |
| Micro SD Card Reader | Up to 2 TB (SD card sold separately) |
| Weight | About 121 g (including the battery) |
| Dimensions (W x D x H) | 114 x 64 x 17.7 mm (4.5 x 2.5 x 0.7 in) |
Other
| Network Services Enabled by Default | Web Server (ports 80/443, HTTP/HTTPS); DNS (port 53, UDP); DHCP/DHCPv6 (ports 67/547, UDP) |
| Certification | CE, RoHS |
| System Requirements | Windows 11/10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (4°F to 140°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link Singapore carries a download page for the M7400 but no product page; the specifications above are reproduced from TP-Link's United Kingdom product page for the same model. TP-Link does not publish an LTE category on that page, only the 300/50 Mbps figures.
Compatibility & Software Support
| Management App | TP-Link tpMiFi (iOS and Android) |
| Web Management | Supported via browser (HTTP/HTTPS) |
| SIM | Requires an activated Nano SIM card without a PIN lock; TP-Link's quick installation guide explains how to unlock a locked SIM. |
| Client Operating Systems | Windows 11/10/8/7/Vista/XP, Mac OS, Android, iOS, Windows Phone |
| Storage | Micro SD card up to 2 TB (sold separately) |
Actual mobile broadband speeds vary with network configuration, signal strength and subscription terms. Maximum wireless signal rates are physical rates derived from IEEE 802.11; actual throughput and connected devices vary.
Package Contents & Ordering Information
Package Contents

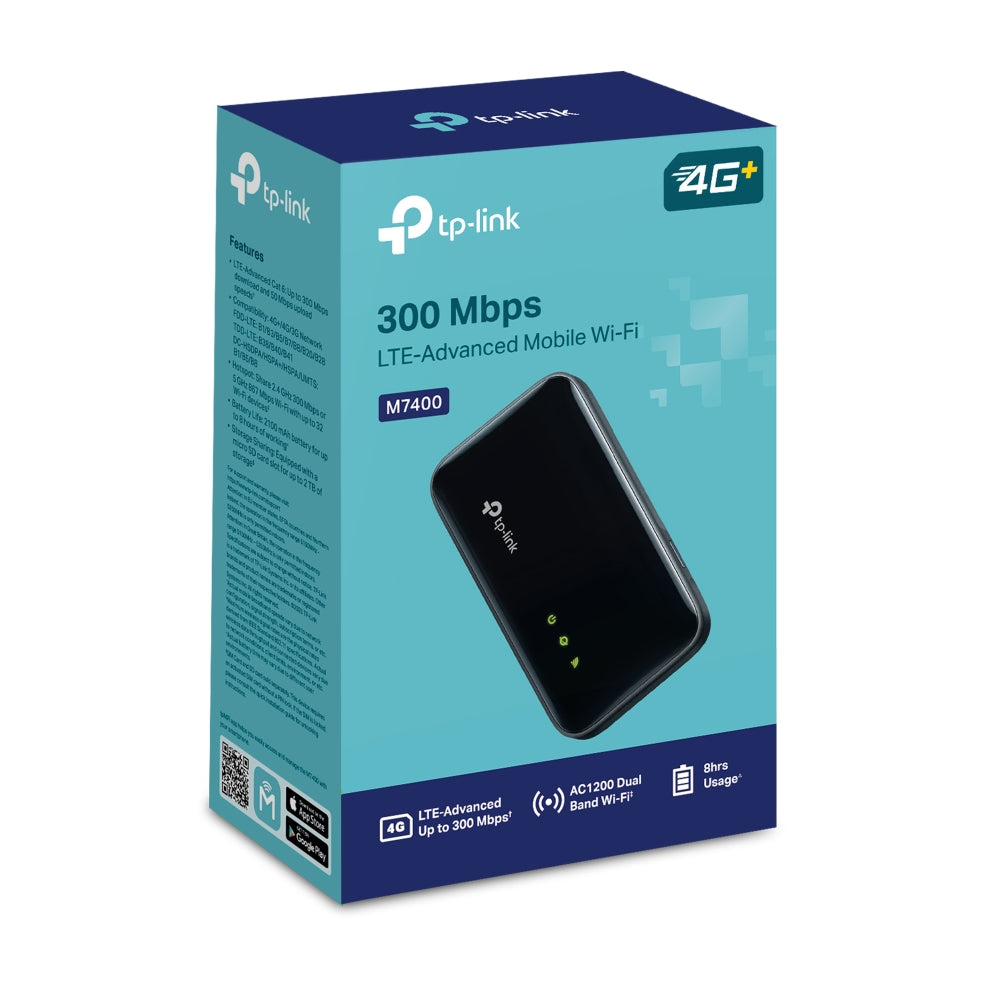

| In the Box | 300 Mbps LTE-Advanced Mobile Wi-Fi M7400; USB-C Cable; 2100 mAh Battery; Quick Installation Guide |
Ordering Information
| Model | M7400 |
| SKU | M7400 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — M7400
Is the Wi-Fi dual-band at the same time?
No. The M7400 uses selectable dual band — either 5 GHz at 867 Mbps or 2.4 GHz at 300 Mbps.
Does it support 5G?
No. It is a 4G LTE-Advanced device with 3G fallback, rated at 300 Mbps download and 50 Mbps upload.
How many devices can connect?
TP-Link rates it for up to 32 devices, with actual numbers varying by usage and environment.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
