TP-Link Archer NX205 AX1500 5G Wi-Fi 6 Router
PRODUCT DESCRIPTION
TP-Link 5G AX1500 Wireless Dual-Band Gigabit Router (Archer NX205) - 3 Years Local Warranty
The Archer NX205 is TP-Link's entry 5G SIM router: headline 5G download up to 2.9 Gbps, AX1500 dual-band Wi-Fi 6 at 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, a Gigabit LAN/WAN port plus two Gigabit LAN ports, two SMA-F external antenna interfaces and EasyMesh compatibility. Six internal 5G/LTE antennas and WAN failover round it out.
5G up to 2.9 Gbps
TP-Link headlines the NX205 at up to 2.9 Gbps 5G download, covering 5G N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78, FDD-LTE B1/B3/B5/B7/B8/B20/B28/B32, TDD-LTE B38/B40/B41/B42/B43 and 3G B1/B5/B8. Insert an activated SIM and it connects without further configuration; real speed depends on coverage and data plan.
AX1500 Wi-Fi 6 for Everyday Loads
1201 Mbps on 5 GHz plus 300 Mbps on 2.4 GHz from two internal Wi-Fi antennas is sized for a flat or small office rather than a large multi-storey space. WPA3 is supported alongside WPA/WPA2, with a guest network on each band.
External Antenna Interfaces
Two external SMA-F antenna interfaces take optional antennas where indoor 5G reception is marginal; six internal 5G/LTE antennas handle normal use. Antennas are not included.
Failover, QoS and EasyMesh
The Gigabit LAN/WAN port lets the NX205 run on fibre, cable or DSL with WAN failover to 5G. QoS prioritises traffic by device or application, parental controls and domain filtering are built in, and EasyMesh compatibility lets it join a mesh with other EasyMesh devices.
Ideal For
Singapore flats and small offices wanting an affordable 5G line or fibre failover without paying for AX3000 Wi-Fi. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer NX205 Datasheet — Technical Specifications
General
| Model | Archer NX205 |
| Official Product Name | 5G AX1500 Wireless Dual-Band Gigabit Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
5G / 4G / 3G
| Network Type | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz); FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz); TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz); DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Headline 5G Download | Up to 2.9 Gbps |
| SIM | 1x Nano SIM Card Slot |
Wireless
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11ax/n/b/g 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M -80 dBm; 11ax HE20 -68 dBm, HE40 -65 dBm, HE80 -62 dBm; 11ac VHT20 -76 dBm, VHT40 -72 dBm, VHT80 -68 dBm; 11n HT20 -79 dBm, HT40 -75 dBm. 2.4 GHz: 11g 54M -78 dBm; 11ax HE20 -65 dBm, HE40 -62 dBm; 11ac VHT20 -73 dBm, VHT40 -68 dBm; 11n HT20 -75 dBm, HT40 -72 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3 encryptions |
| Transmission Power | <23 dBm (5.15 GHz-5.35 GHz); <30 dBm (5.47 GHz-5.71 GHz); <20 dBm (2.4 GHz) |
Hardware

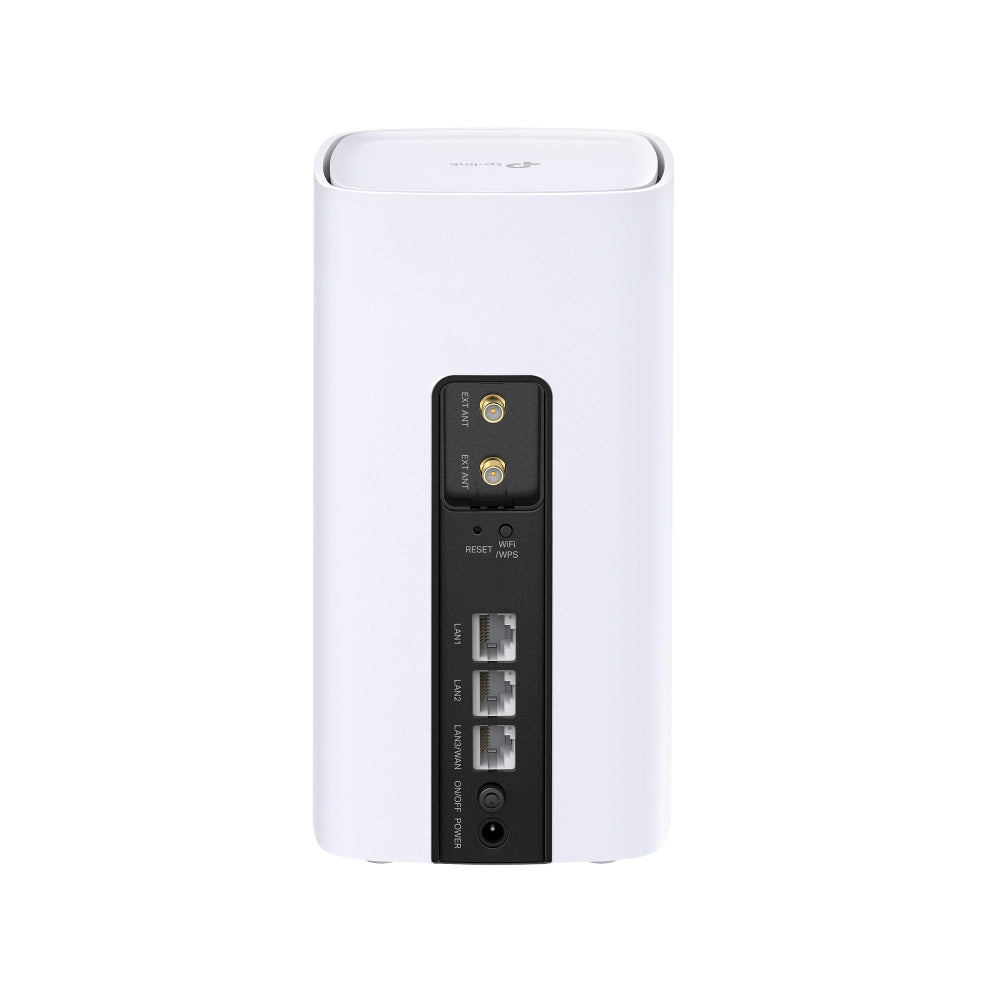

| Interface | 1x 10/100/1000 Mbps LAN/WAN Port, 2x 10/100/1000 Mbps LAN Ports, 1x Nano SIM Card Slot, 2x External SMA-F Antenna Interface |
| Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
| External Power Supply | Power Adapter: Input 100-240 V~ 50/60 Hz 0.6 A; Output 12 VDC 2 A |
| Antenna | 6x 5G/LTE Internal Antennas, 2x Wi-Fi Internal Antennas |
| Dimensions (W x D x H) | 99 x 99 x 190 mm (3.9 x 3.9 x 7.5 in) |
Software
| Quality of Service | Prioritises network traffic by device or application |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access) |
| Management Features | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | PPTP VPN, IPSec VPN, OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding, Access Control |
| Protocols | IPv4, IPv6 |
| Guest Network | 1x 2.4 GHz Guest Network, 1x 5 GHz Guest Network |
| Mesh | EasyMesh-Compatible |
| Network Services Enabled by Default | Web Server (ports 80/443, TCP); DHCP Server (port 67, UDP); IPv6 DHCP Server (port 547, UDP); DNS (port 53, TCP); App management (ports 22 and 20002, TCP) |
Environment and Certification
| Certification | CE, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link Singapore lists the Archer NX205 on its download and EasyMesh pages but carries no product page for it; the specifications above are reproduced from TP-Link's Malaysia product page, which lists the same band set as the EU hardware shown. TP-Link publishes no 5G upload or 4G speed figure and no weight for this model. External antennas are not included.
Compatibility & Software Support
| Management | Web interface; TP-Link Cloud; local and remote management |
| SIM | Requires an activated Nano SIM card without a PIN lock; TP-Link's quick installation guide explains how to unlock a locked SIM. |
| Mesh Ecosystem | EasyMesh-compatible (listed on TP-Link Singapore's EasyMesh product list) |
| Fixed-Line Use | Gigabit WAN/LAN port works with cable, fibre and DSL modems; WAN failover supported |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences. Maximum 5G speeds depend on local coverage, data plan and network capacity.
Package Contents & Ordering Information
Package Contents
| In the Box | 5G AX1500 Wireless Dual-Band Gigabit Router Archer NX205; 1.5 m Power Adapter; RJ45 Ethernet Cable; Quick Installation Guide |
Ordering Information
| Model | Archer NX205 |
| SKU | Archer NX205 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer NX205
Is the NX205 fast enough for a small office?
For a handful of users, yes — AX1500 Wi-Fi 6 and three Gigabit ports. Larger or busier offices would suit the AX3000 NX500 or NX505 better.
Does it support WPA3?
Yes. TP-Link lists WPA3 alongside WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK.
Can I add external antennas?
Yes, via two external SMA-F antenna interfaces. Antennas are sold separately.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
