TP-Link Archer NX500 AX3000 5G Wi-Fi 6 Router
PRODUCT DESCRIPTION
TP-Link 5G AX3000 Wireless Dual-Band Gigabit Router (Archer NX500) - 3 Years Local Warranty
The Archer NX500 is a SIM-based 5G router with AX3000 dual-band Wi-Fi 6 — 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz — and TP-Link's headline 5G download of up to 4.67 Gbps. It has a Gigabit LAN/WAN port and two Gigabit LAN ports, two SMA-F external antenna interfaces, eight internal 5G/LTE antennas, WAN failover and EasyMesh compatibility.
5G up to 4.67 Gbps
TP-Link headlines the NX500 at up to 4.67 Gbps 5G download. It covers 5G N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78, FDD-LTE B1/B3/B5/B7/B8/B20/B28, TDD-LTE B38/B40/B41/B42/B43 and 3G B1/B5/B8. Insert an activated SIM and it connects without further configuration; actual speed depends on coverage and the data plan.
AX3000 Dual-Band Wi-Fi 6
Three internal Wi-Fi antennas deliver 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Wireless functions include scheduling, WMM and statistics, and each band gets its own guest network. Encryption is listed as WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK.
Eight Internal Cellular Antennas plus SMA-F Ports
Eight internal 5G/LTE antennas handle reception, and two external SMA-F antenna interfaces allow optional outdoor or directional antennas where indoor signal is weak. Antennas are not included.
WAN Failover, QoS and Parental Controls
The Gigabit LAN/WAN port lets it run as a conventional router on fibre or cable with WAN failover to 5G. QoS prioritises traffic by device or application, and parental controls, SPI firewall, domain filtering and PPTP/IPSec/OpenVPN VPN are built in. Management covers TP-Link Cloud, local and remote access.
Ideal For
Singapore homes and small offices needing a 5G primary line or an automatic failover for fibre, especially where an external antenna may be needed. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer NX500 Datasheet — Technical Specifications
General
| Model | Archer NX500 |
| Official Product Name | 5G AX3000 Wireless Dual-Band Gigabit Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
5G / 4G / 3G
| Network Type | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz); FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz); TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz); DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Headline 5G Download | Up to 4.67 Gbps |
| SIM | 1x Nano SIM Card Slot |
Wireless
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11ax/n/b/g 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M -80 dBm; 11ax HE20 -68 dBm, HE40 -65 dBm, HE80 -62 dBm; 11ac VHT20 -76 dBm, VHT40 -72 dBm, VHT80 -68 dBm; 11n HT20 -79 dBm, HT40 -75 dBm. 2.4 GHz: 11g 54M -78 dBm; 11ax HE20 -65 dBm, HE40 -62 dBm; 11ac VHT20 -73 dBm, VHT40 -68 dBm; 11n HT20 -75 dBm, HT40 -72 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Transmission Power | <23 dBm (5.15 GHz-5.35 GHz); <30 dBm (5.47 GHz-5.71 GHz); <20 dBm (2.4 GHz) |
Hardware

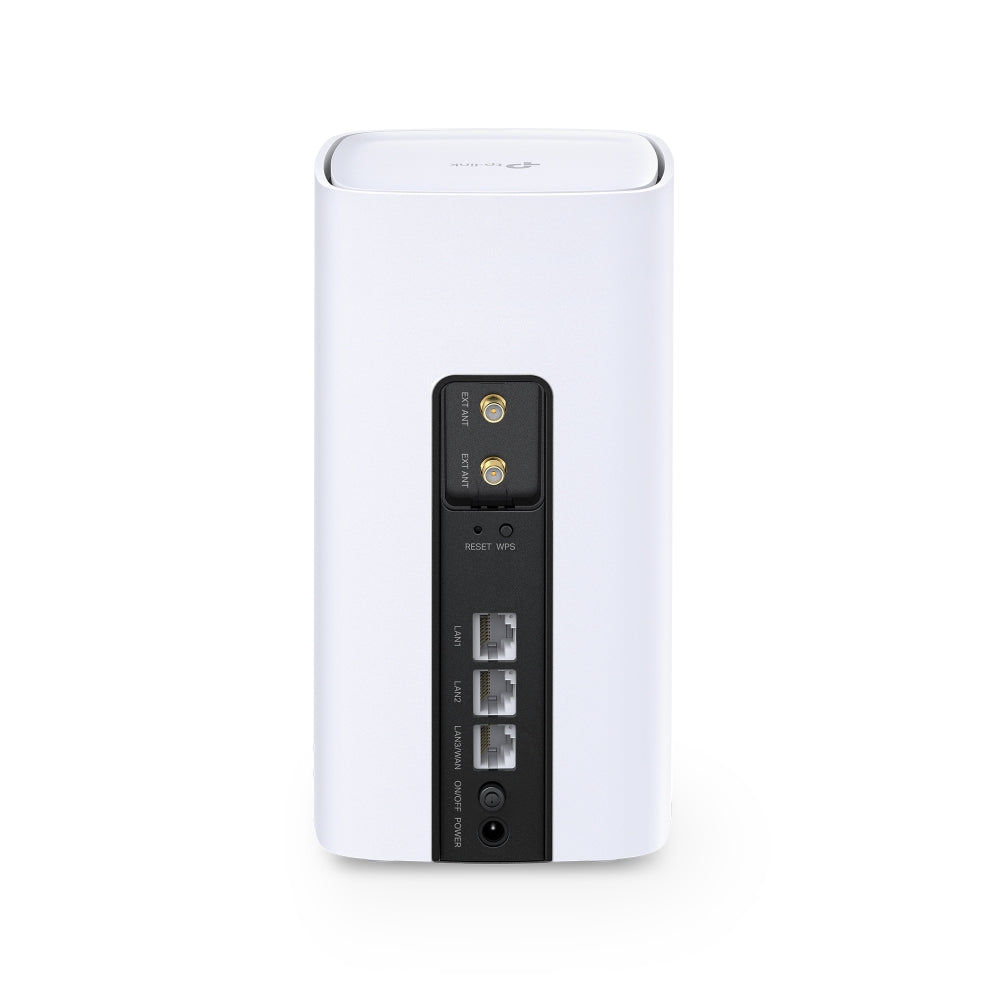

| Interface | 1x 10/100/1000 Mbps LAN/WAN Port, 2x 10/100/1000 Mbps LAN Ports, 1x Nano SIM Card Slot, 2x External SMA-F Antenna Interface |
| Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
| External Power Supply | Input 100-240 V~ 50/60 Hz 0.6 A; Output 12 VDC 2 A |
| Antenna | 8x 5G/LTE Internal Antennas, 3x Wi-Fi Internal Antennas |
| Dimensions (W x D x H) | 99 x 99 x 190 mm (3.9 x 3.9 x 7.5 in) |
Software
| Quality of Service | Prioritises network traffic by device or application |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access) |
| Management Features | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | PPTP VPN, IPSec VPN, OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding, Access Control |
| Protocols | IPv4, IPv6 |
| Guest Network | 1x 2.4 GHz Guest Network, 1x 5 GHz Guest Network |
| Mesh | EasyMesh-Compatible |
| Network Services Enabled by Default | Web Server (ports 80/443, TCP); DHCP Server (port 67, UDP); IPv6 DHCP Server (port 547, UDP); DNS (port 53, TCP); App management (ports 22 and 20002, TCP) |
Environment and Certification
| Certification | CE, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link's Singapore specification table for the Archer NX500 gives no 5G upload figure and no 4G speed figure — only the 4.67 Gbps headline download — and publishes no weight. WPA3 is not listed for this model. External antennas are not included.
Compatibility & Software Support
| Management | Web interface; TP-Link Cloud; local and remote management |
| SIM | Requires an activated Nano SIM card without a PIN lock; TP-Link's quick installation guide explains how to unlock a locked SIM. |
| Mesh Ecosystem | EasyMesh-compatible — works with EasyMesh products for a single Wi-Fi name |
| Fixed-Line Use | Gigabit WAN/LAN port works with cable, fibre and DSL modems; WAN failover supported |
Maximum wireless signal rates are physical rates derived from IEEE 802.11; actual throughput, coverage and number of connected devices vary. Actual network speed may be limited by Ethernet port rate, cabling and ISP factors.
Package Contents & Ordering Information
Package Contents
| In the Box | 5G AX3000 Wireless Dual-Band Gigabit Router Archer NX500; 1.5 m Power Adapter; RJ45 Ethernet Cable; Quick Installation Guide |
Ordering Information
| Model | Archer NX500 |
| SKU | Archer NX500 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer NX500
Does it support WAN failover?
Yes. TP-Link lists WAN failover, so a fibre or cable line on the Gigabit WAN/LAN port can fall back to 5G.
Can I add external antennas?
Yes, via the two external SMA-F antenna interfaces. Antennas are sold separately.
How does it differ from the Archer NX505?
Same AX3000 Wi-Fi class and form factor; the NX505 is rated at 6.47 Gbps 5G download against 4.67 Gbps here, lists WPA3, and uses TS-9 rather than SMA-F antenna ports.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
