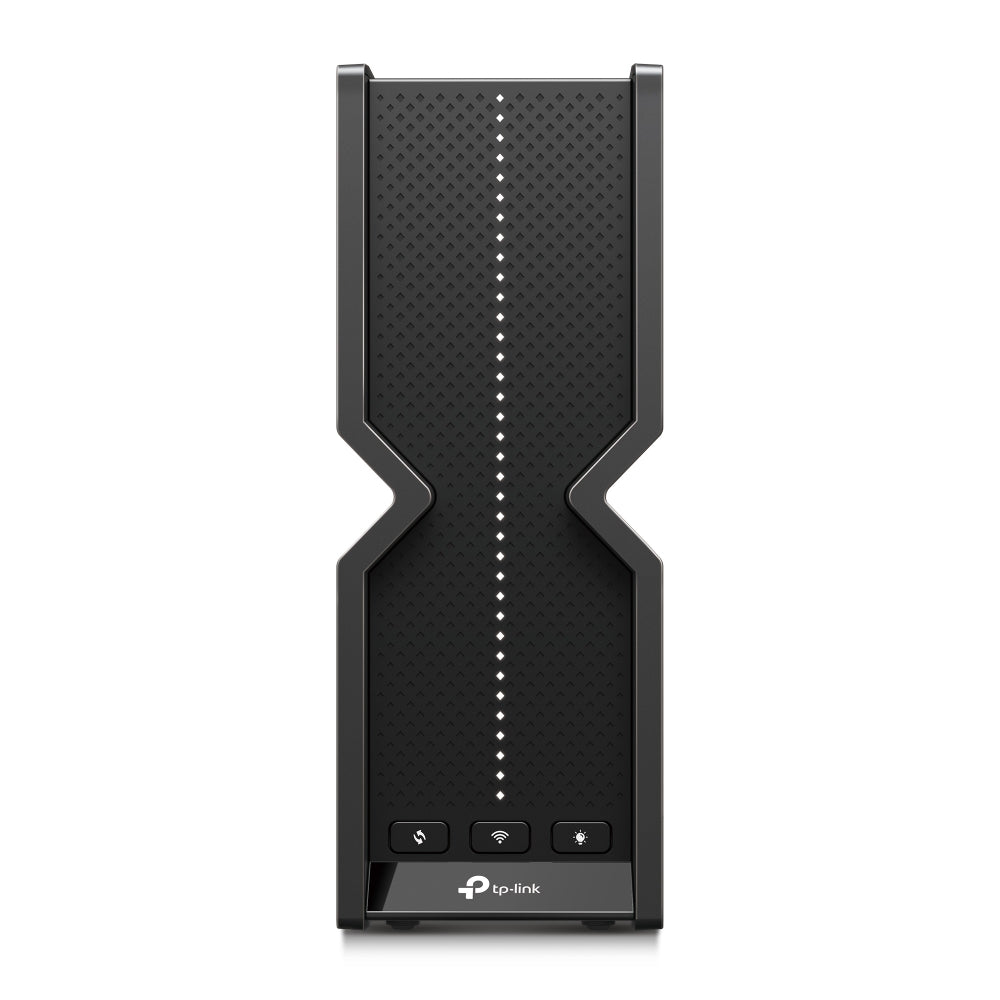

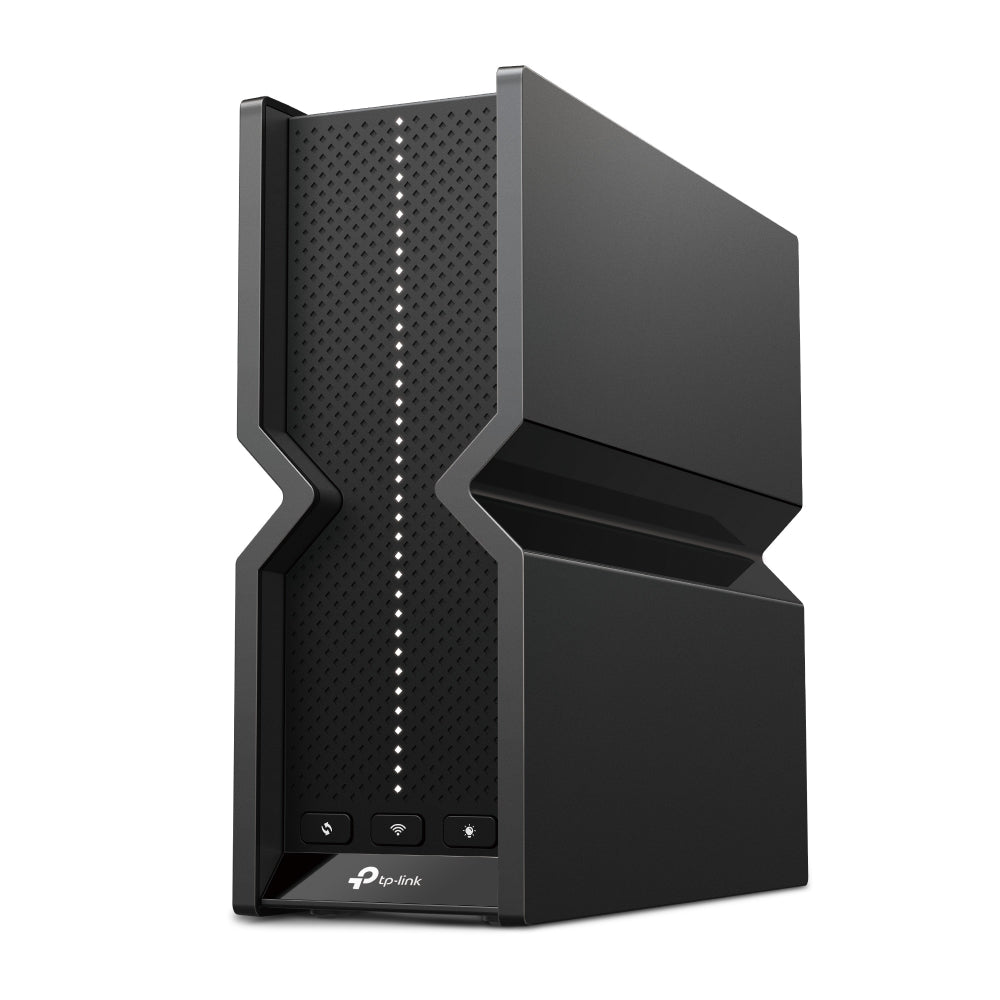

TP-Link Archer BE700 BE15000 Tri-Band Wi-Fi 7 Router
PRODUCT DESCRIPTION
TP-Link BE15000 Tri-Band Wi-Fi 7 Router (Archer BE700) - 3 Years Local Warranty
The Archer BE700 is TP-Link's BE15000 tri-band Wi-Fi 7 router: 11528 Mbps on 6 GHz, 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, with Multi-Link Operation, 320 MHz channels, a 10 Gbps WAN port, a 2.5 Gbps LAN port, three 1 Gbps LAN ports and a USB 3.0 port.

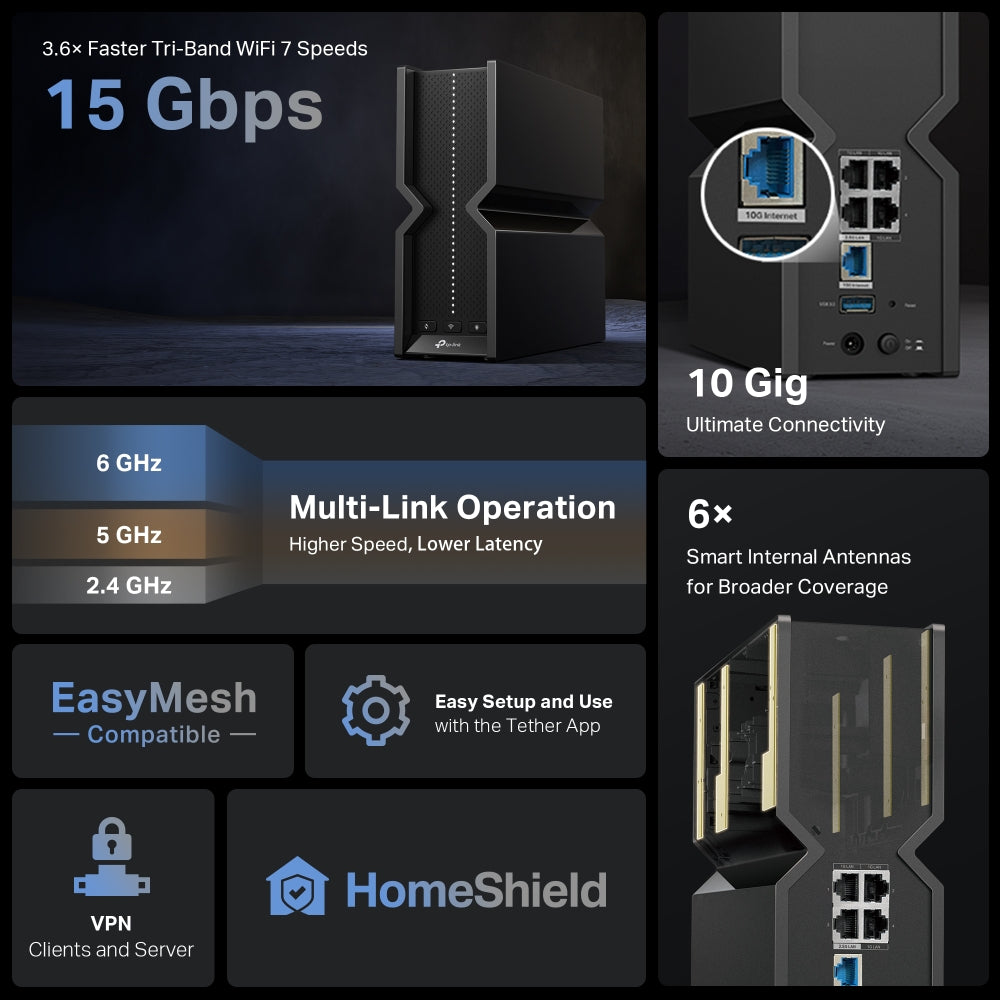

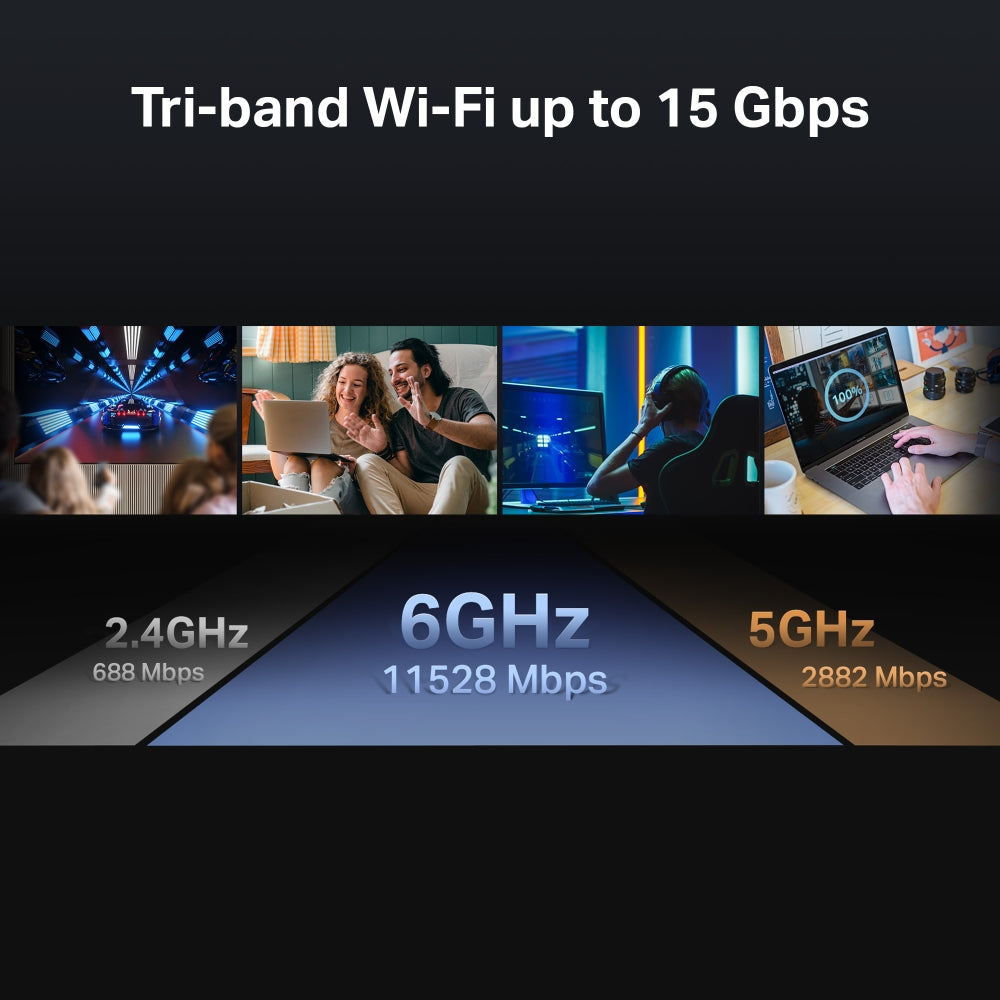

Blazing-Fast 15 Gbps Tri-Band Wi-Fi
Wi-Fi 7 unleashes the 6 GHz band with up to 320 MHz channels and 11.5 Gbps Wi-Fi speeds for 8K streaming and high-speed downloading. Multi-Link Operation lets the BE700 transmit with Wi-Fi 7 clients across 6 GHz, 5 GHz and 2.4 GHz simultaneously, which TP-Link rates at 3x faster than Wi-Fi 6/6E routers.
Lower Latency, Higher Capacity
TP-Link rates latency at 4x lower than Wi-Fi 6/6E routers for VR/AR, video conferencing and online gaming. Eight streams across three bands, combined with a powerful CPU, keep laptops, TVs and smart-home devices connected without congestion.
10 Gbps Port for Multi-Gigabit Connectivity

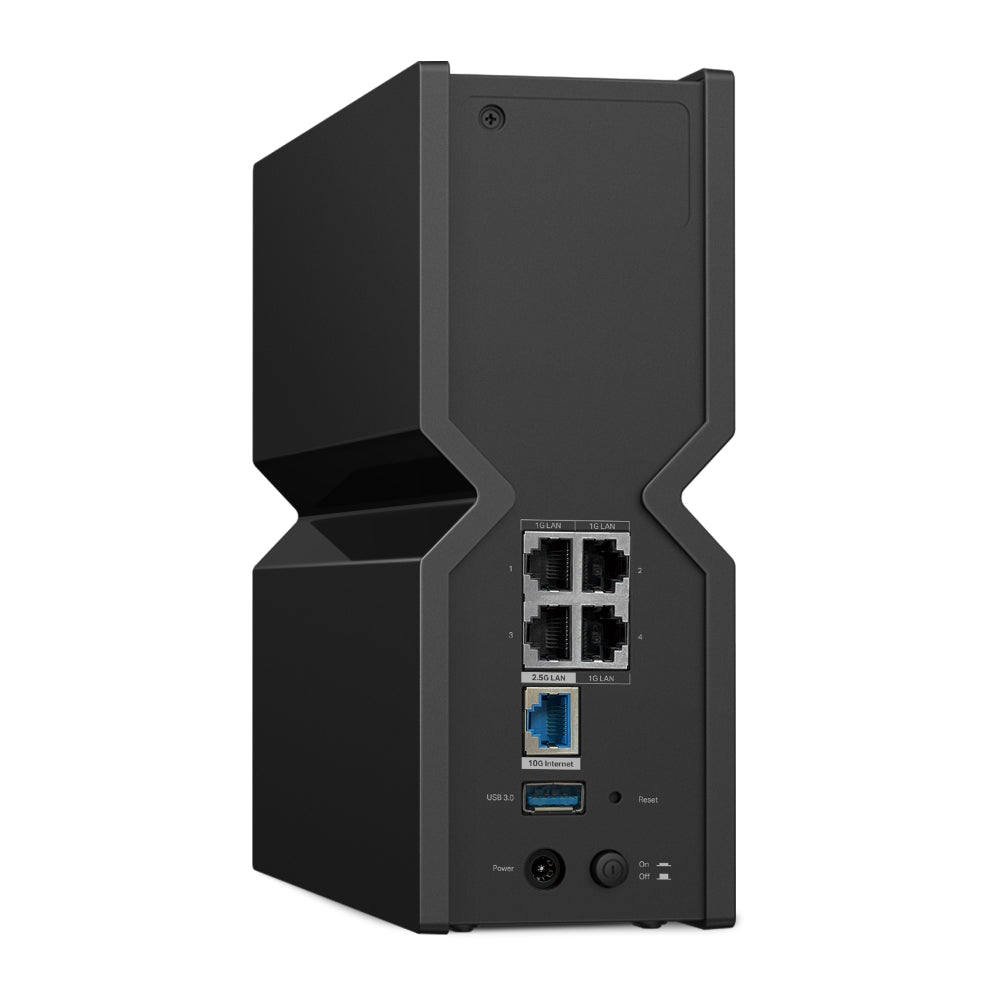

Supports multi-gig internet plans up to 10 Gbps, with one 10 Gbps WAN port, one 2.5 Gbps LAN port, three 1 Gbps LAN ports and one USB 3.0 port for fast wired connections and file sharing.

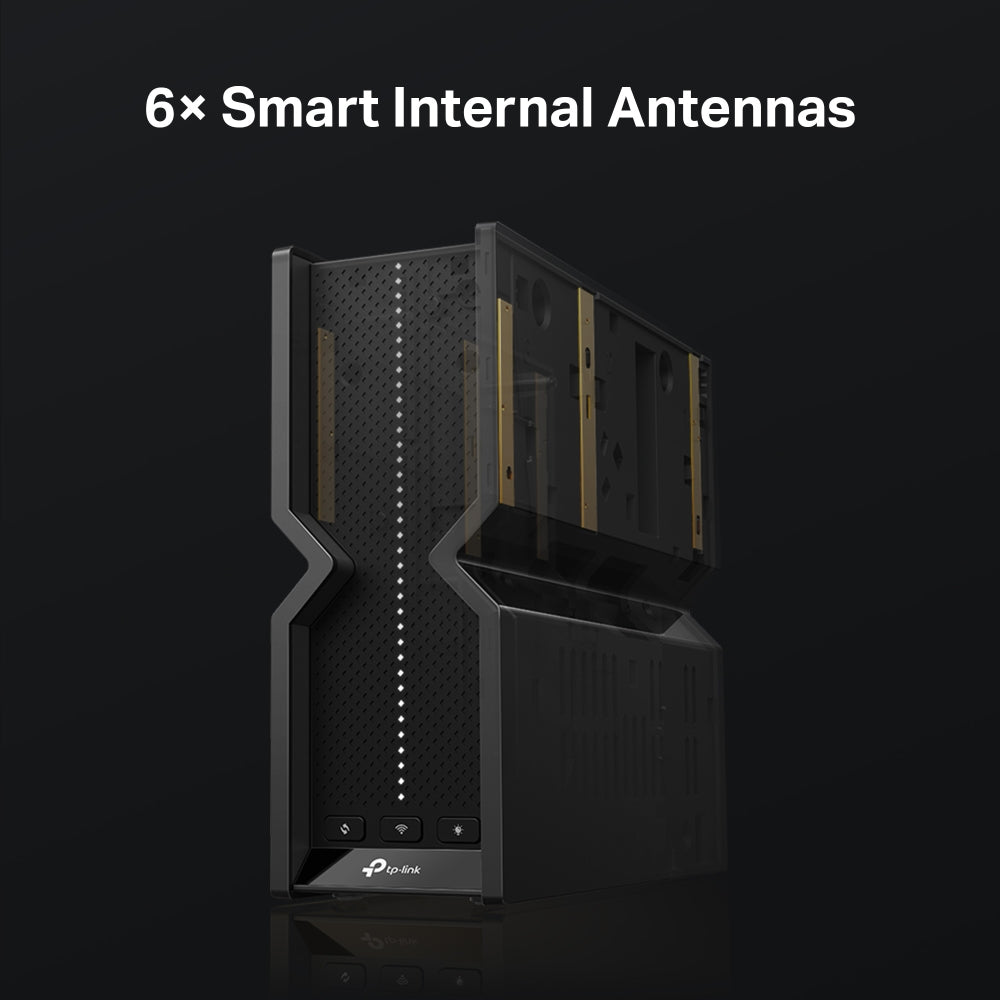

6 High Gain Antennas with Beamforming
Six internal antennas form a signal-boosting array, while Beamforming and a High-Power FEM concentrate and strengthen signal for TP-Link's rated four-bedroom coverage.
Mesh, HomeShield and VPN
EasyMesh compatibility lets you add another EasyMesh router or extender for whole-home mesh with smart roaming and one Wi-Fi name. HomeShield adds IoT protection, parental controls and QoS, a private IoT network can be set up with WPA3, and the router runs VPN client and server at the same time as ordinary internet connections.
Ideal For
Homes and home offices moving to multi-gig fibre that want a 10G WAN port, tri-band Wi-Fi 7 and a 2.5G LAN port for a NAS or PC, at a step below flagship pricing. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer BE700 Datasheet — Technical Specifications
General
| Model | Archer BE700 |
| Official Product Name | BE15000 Tri-Band Wi-Fi 7 Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Wi-Fi Speeds | BE15000 — 6 GHz: 11528 Mbps (802.11be); 5 GHz: 2882 Mbps (802.11be); 2.4 GHz: 688 Mbps (802.11ax) |
| Wi-Fi Range | 4 Bedroom Houses — 6x Optimally Positioned Antennas, Beamforming, High-Power FEM |
| Wi-Fi Capacity | High — Tri-Band, OFDMA, Airtime Fairness, DFS, 8 Streams |
| Working Modes | Router Mode, Access Point Mode |
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Channel, 4K-QAM, Multi-RUs, EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network |
Hardware
| Ethernet Ports | 1x 10 Gbps WAN, 1x 2.5 Gbps LAN, 3x 1 Gbps LAN |
| USB | 1x USB 3.0 — supported partition formats NTFS, exFAT, HFS+, FAT32; supported functions FTP Server, Media Server, Samba Server |
| Power | 12 V DC 3.3 A |
| Buttons | Power On/Off Button, Wi-Fi On/Off Button, LED Button, WPS Button, Reset Button |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 6 GHz Guest Network, 5 GHz Guest Network, 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocol | IPv4, IPv6 |
| Service Kit | HomeShield (free Basic Plan; fees apply for the Pro Plan) |
| Mesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls — Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Type | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management | Tether App, Webpage |
Environment and Certification
| Certifications | CE, FCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or other JavaScript-enabled browser; cable or DSL modem (if needed); internet service provider subscription |
| Network Services Enabled by Default | Web Server (HTTP/HTTPS, TCP 80/443); DNS (TCP & UDP 53); DHCP Server (UDP 67); App management (TCP 20001, TCP 30001, UDP 20002) |
Physical
| Dimensions (W x D x H) | 76 x 231.7 x 203 mm (3.0 x 9.1 x 8.0 in) |
TP-Link's Singapore page for the Archer BE700 publishes no processor specification and no weight. Note that the 2.4 GHz band is listed as 802.11ax (Wi-Fi 6), while the 6 GHz and 5 GHz bands are 802.11be (Wi-Fi 7).
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| TP-Link Cloud | TP-Link ID, auto firmware upgrade, DDNS |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh routers and range extenders |
| Voice Assistants | Works with Alexa and Google Assistant |
| USB Storage | NTFS, exFAT, HFS+, FAT32 partitions; FTP Server, Media Server, Samba Server |
| Wi-Fi 7 Client Requirement | Wi-Fi 7, MLO, 320 MHz, 4K-QAM and Multi-RUs require client devices that also support them; older Wi-Fi clients connect at their own standard |
TP-Link notes that the 320 MHz bandwidth is only available on the 6 GHz band and may be unavailable in some regions due to regulatory restrictions; that EasyMesh connections between vendors can fail because of firmware conflicts, and EasyMesh compatibility is still being developed on some models; that WPA3 requires clients that also support it; and that 10 Gbps internet speeds require a compatible service plan and ISP bandwidth. The 3x faster and 4x lower latency figures are TP-Link's theoretical and laboratory comparisons against Wi-Fi 6/6E routers.
Package Contents & Ordering Information
Package Contents
| In the Box | Wi-Fi 7 Router Archer BE700, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
Ordering Information
| Model | Archer BE700 |
| SKU | Archer BE700 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer BE700
Is the 2.4 GHz band Wi-Fi 7?
No. TP-Link lists 2.4 GHz as 802.11ax at 688 Mbps; the 6 GHz (11528 Mbps) and 5 GHz (2882 Mbps) bands are 802.11be.
What wired ports does it have?
One 10 Gbps WAN, one 2.5 Gbps LAN, three 1 Gbps LAN and one USB 3.0 port. 10 Gbps internet speeds require a compatible service plan and equipment.
How is it different from the Archer BE805?
The BE700 is BE15000 with 8 streams, a 2.5 Gbps LAN port and one USB 3.0 port; the BE805 is BE19000 with 12 streams, a 10 Gbps LAN port and two USB 3.0 ports.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
