TP-Link Archer NX505 AX3000 5G Wi-Fi 6 Router
PRODUCT DESCRIPTION
TP-Link 5G AX3000 Wireless Dual-Band Gigabit Router (Archer NX505) - 3 Years Local Warranty

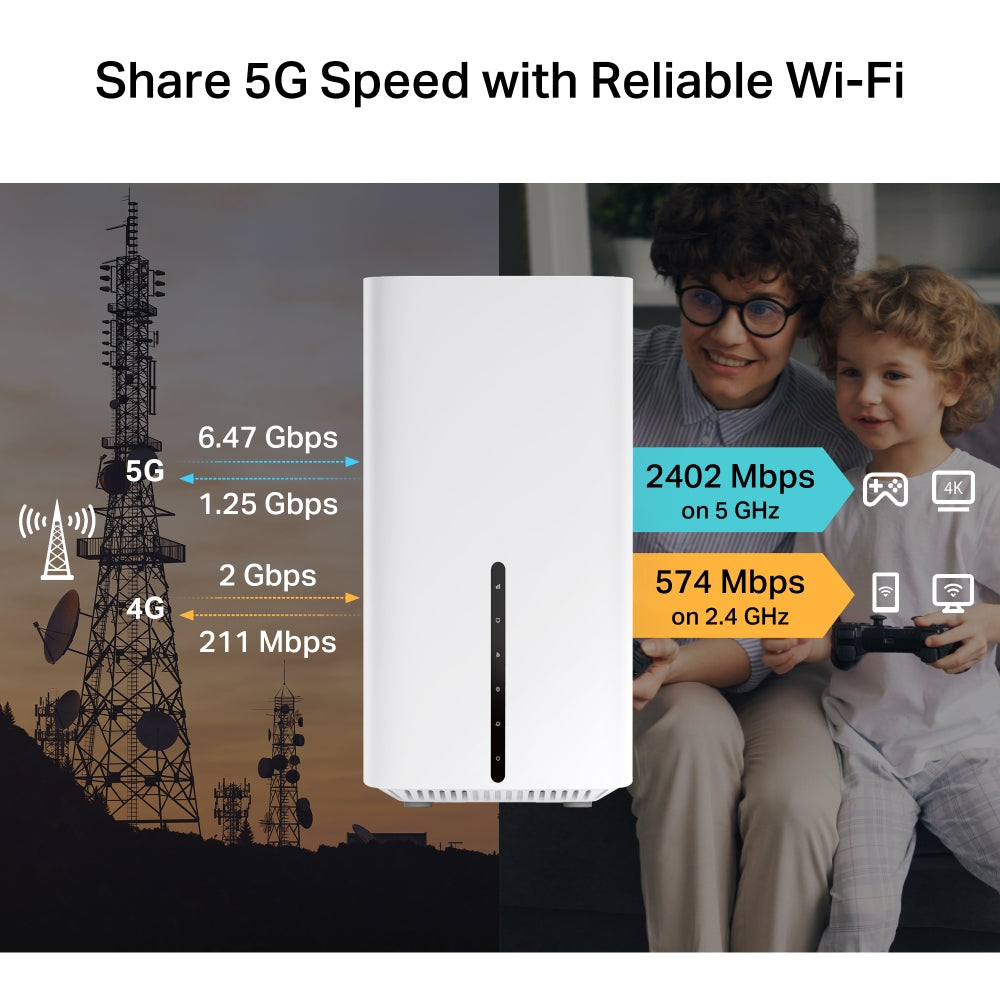

The Archer NX505 turns a Nano SIM into a home or office connection: 5G download up to 6.47 Gbps and upload up to 1.25 Gbps, 4G LTE Cat19 fallback at 2 Gbps, and AX3000 dual-band Wi-Fi 6 at 2402 Mbps on 5 GHz plus 574 Mbps on 2.4 GHz. It adds two Gigabit LAN ports, a Gigabit WAN/LAN port for fixed-line use or backup, two TS-9 ports for external 5G/4G antennas, WPA3 and EasyMesh compatibility.

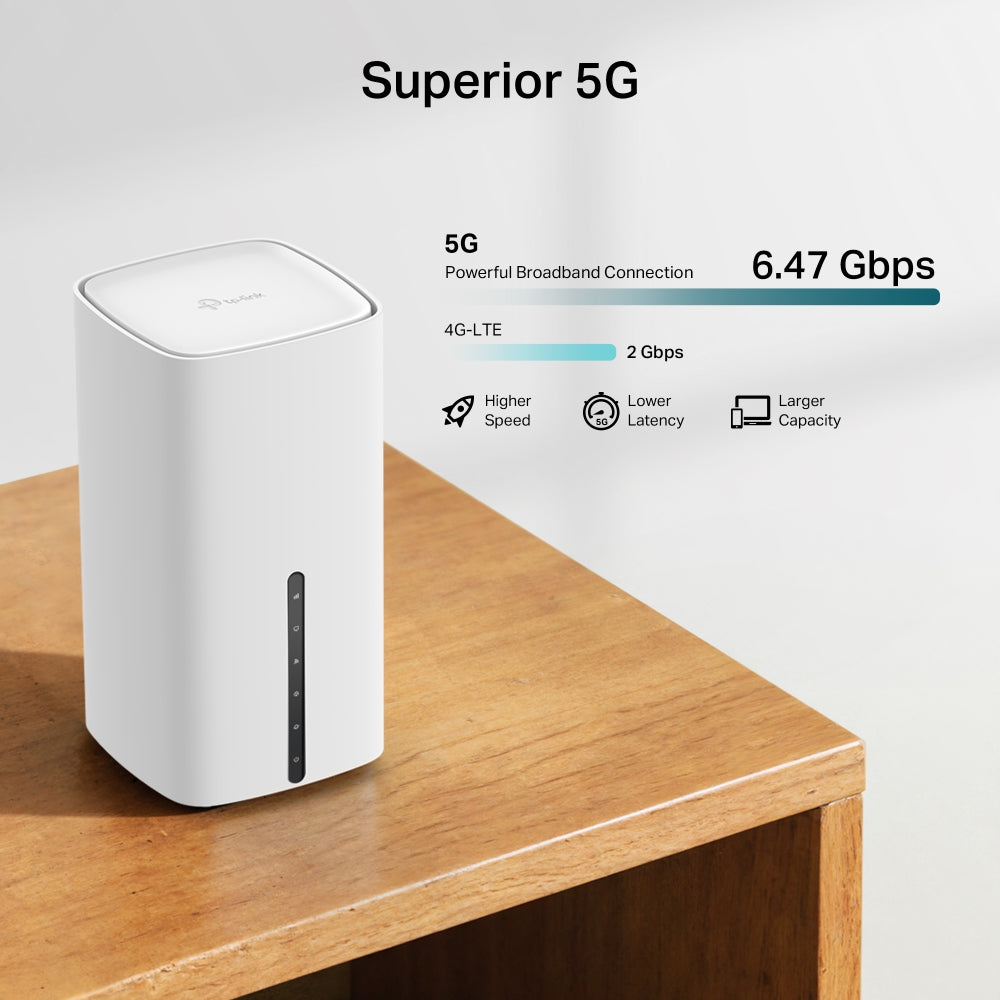

5G up to 6.47 Gbps with Cat19 Fallback
TP-Link rates the NX505 at 6.47 Gbps 5G download and 1.25 Gbps upload, dropping to 4G LTE Cat19 at 2 Gbps download and 211 Mbps upload where 5G is unavailable. Band support spans 5G N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78 plus FDD and TDD LTE and 3G. Real speeds depend on local coverage, the data plan and network load.
AX3000 Wi-Fi 6 from Internal Antennas

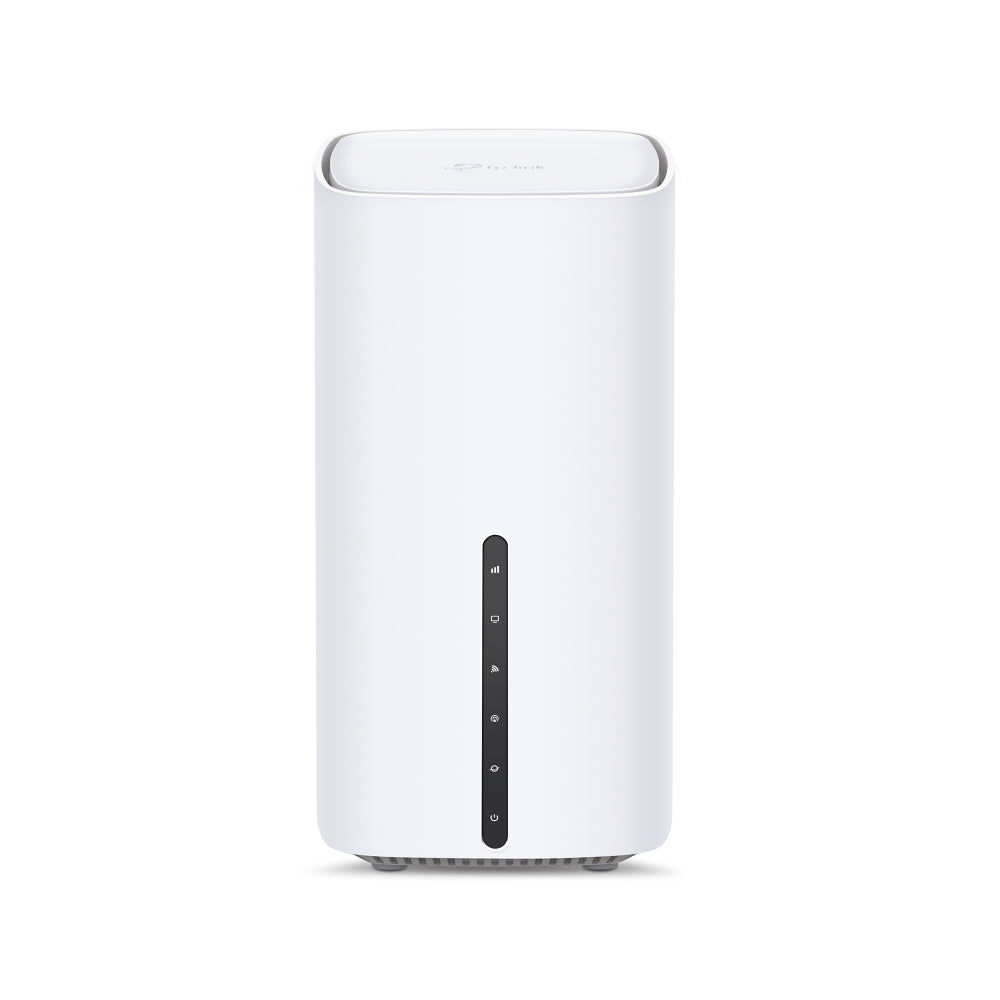

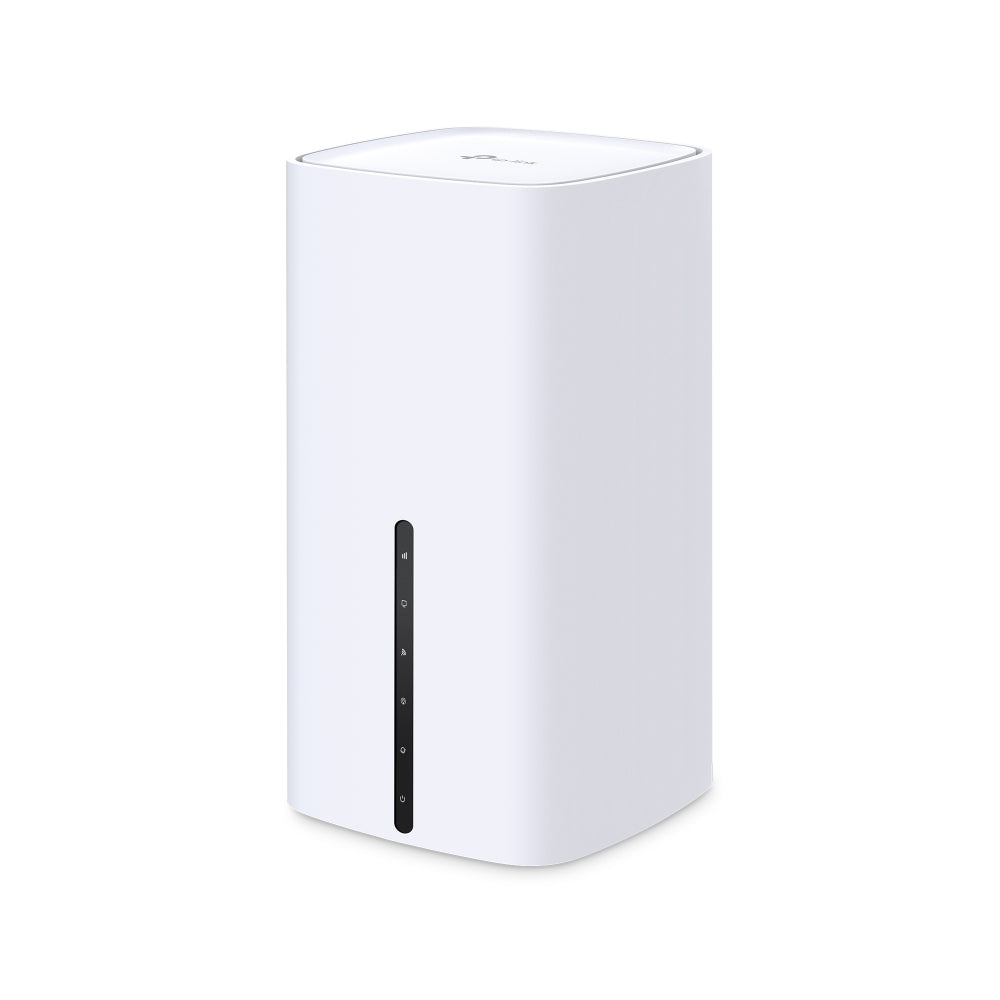

Three internal Wi-Fi antennas deliver 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz under 802.11ax, with WPA3 encryption and one guest network per band. Six internal NR/LTE antennas handle the cellular side, and the upright 99 x 99 x 190 mm body keeps the footprint small.
External Antenna Ports for Weak-Signal Sites
Two TS-9 ports accept external 5G/4G antennas — useful in HDB corner units, shophouse back rooms or industrial units where indoor 5G signal is marginal. Antennas are not included.

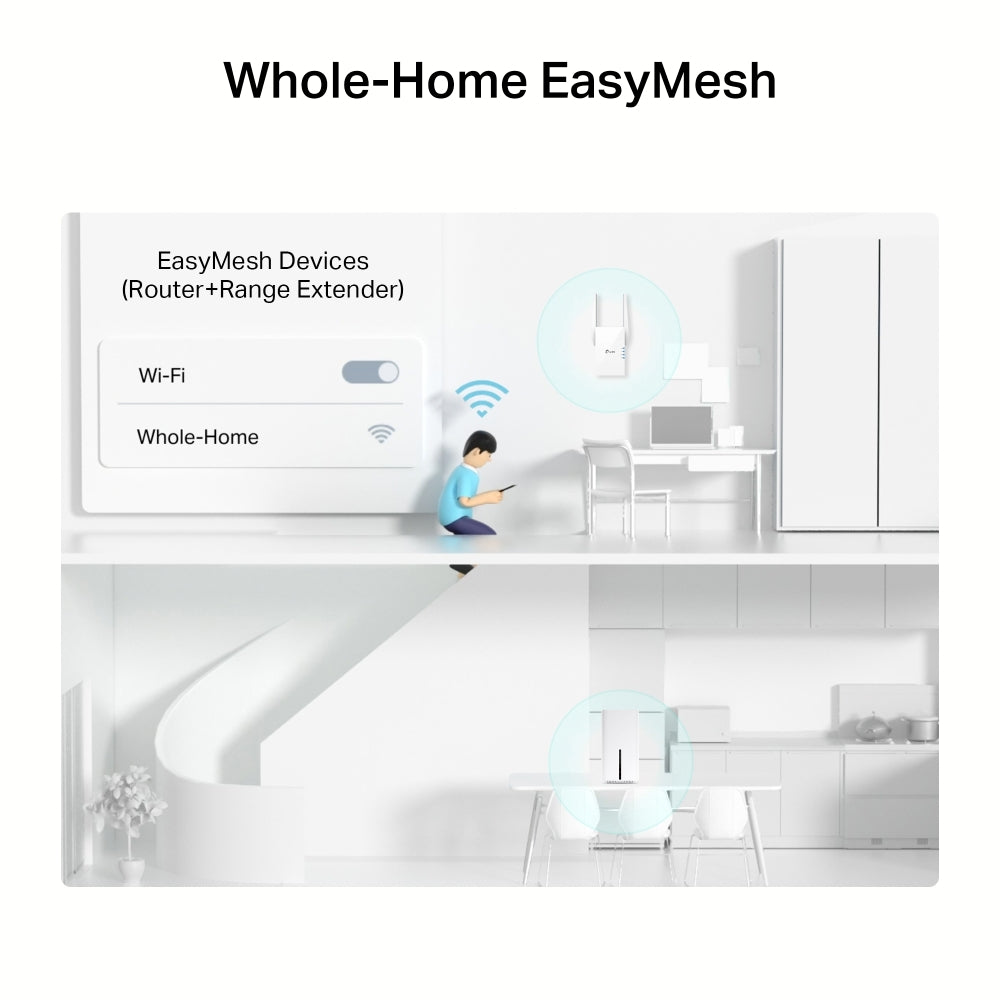

Gigabit WAN Backup and EasyMesh
The Gigabit WAN/LAN port lets the NX505 act as a conventional wireless router on fibre or cable, with 5G/LTE as backup. It is EasyMesh-compatible, so it can form a mesh with other EasyMesh devices — TP-Link notes cross-vendor firmware differences can cause failed connections. Setup is via the web interface or the Tether app.
Ideal For
Singapore homes and small offices using a 5G SIM as the main line, as a failover for fibre, or at a temporary site without a fixed line. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer NX505 Datasheet — Technical Specifications
General
| Model | Archer NX505 |
| Official Product Name | 5G AX3000 Wireless Dual-Band Gigabit Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
5G / 4G / 3G
| Network Mode | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N75/N76/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/600/1500/1500/3700/3500 MHz); 4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28/B32/B71 (2100/1800/850/2600/900/800/700/1500/600 MHz), TDD-LTE B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz); 3G: DC-HSDPA/HSPA+/HSPA/UMTS B1/B3/B5/B8 (2100/1800/850/900 MHz) |
| Speed | 5G: Download 6.47 Gbps, Upload 1.25 Gbps; 4G LTE Cat19: Download 2 Gbps, Upload 211 Mbps |
| SIM Type | Nano SIM Card |
Wireless
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11ax HE20 -64 dBm, HE40 -61 dBm, HE80 -59 dBm, HE160 -56 dBm; 11ac VHT20 -70 dBm, VHT40 -67 dBm, VHT80 -64 dBm. 2.4 GHz: 11ax HE20 -66 dBm, HE40 -62 dBm; 11ac VHT20 -71 dBm, VHT40 -67 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3 encryptions |
Hardware

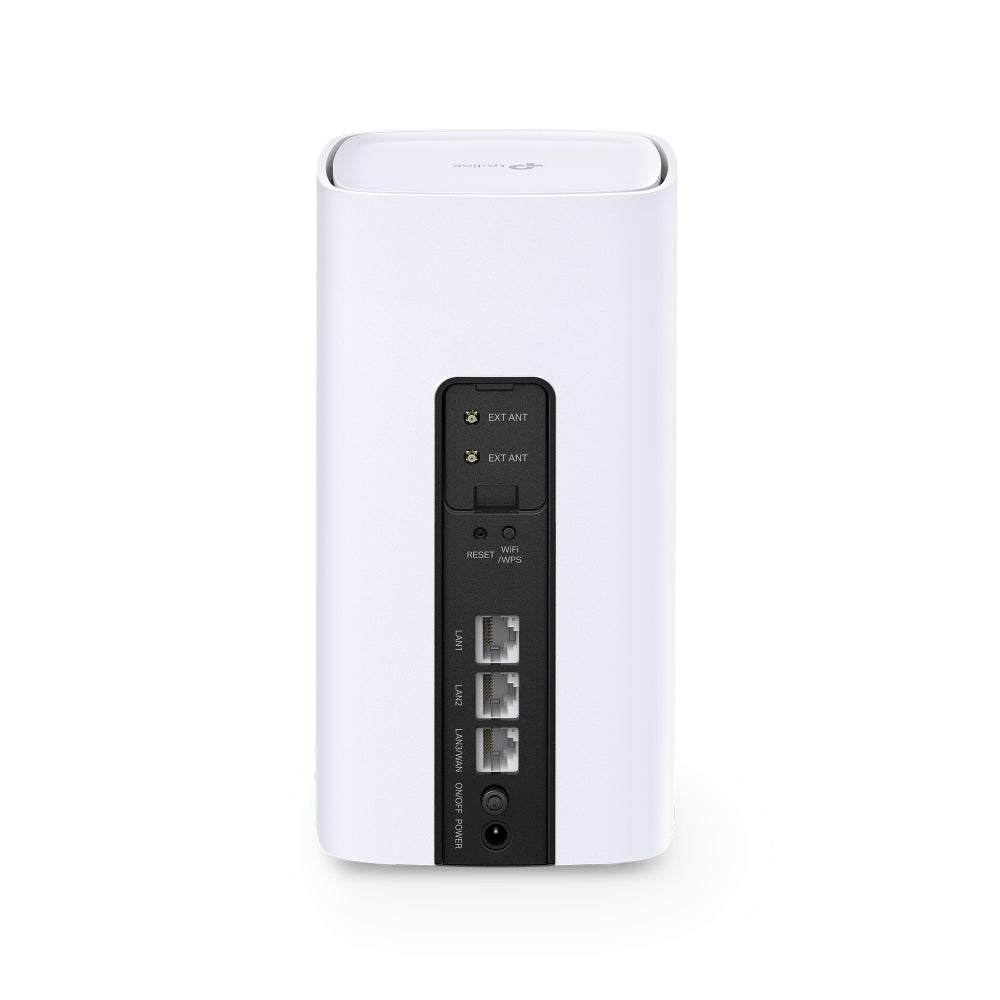

| Interface | 2x Gigabit LAN Ports, 1x Gigabit WAN/LAN Port, 1x Nano SIM Card Slot, 2x TS-9 Ports for 5G/4G External Antennas, 1x Power Slot |
| Button | Wi-Fi/WPS Button, Reset Button, Power Button |
| External Power Supply | 12V/2.5A |
| Antenna | 3x Internal Wi-Fi Antennas, 6x Internal NR/LTE Antennas |
| Dimensions (W x D x H) | 99 x 99 x 190 mm (3.9 x 3.9 x 7.5 in) |
Software
| Operating Modes | 3G/4G/5G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access) |
| Quality of Service | Bandwidth Control |
| Management Features | Access Control, Local Management, Remote Management, Reboot Schedule |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| Firewall Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control |
| Protocols | IPv4, IPv6 |
| Guest Network | 1x 2.4 GHz guest network, 1x 5 GHz guest network |
| VPN Server | PPTP VPN, IPSec VPN, OpenVPN |
| Mesh | EasyMesh-Compatible |
Environment and Certification
| Certification | CE, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
TP-Link's Singapore page for the Archer NX505 publishes no weight, no storage temperature and no USB port. External antennas for the TS-9 ports are not included.
Compatibility & Software Support
| Management | Web interface (Edge, Firefox, Chrome, Safari or other JavaScript-enabled browser) and TP-Link Tether app |
| SIM | Requires an activated Nano SIM card without a PIN lock; TP-Link's quick installation guide explains how to unlock a locked SIM. |
| Mesh Ecosystem | EasyMesh-compatible — networks with other EasyMesh devices |
| Fixed-Line Use | Gigabit WAN/LAN port works with cable, fibre or DSL modems; 5G/LTE can act as backup |
TP-Link notes that EasyMesh connections between vendors can fail because of firmware differences, and that EasyMesh support is still being developed on some models. Maximum 5G speeds depend on local coverage, data plan and network capacity; supported bands may vary slightly by region due to certification.
Package Contents & Ordering Information
Package Contents
| In the Box | 5G AX3000 Dual Band Wi-Fi 6 Router Archer NX505; RJ45 Ethernet Cable; Power Adapter; Quick Installation Guide |
Ordering Information
| Model | Archer NX505 |
| SKU | Archer NX505 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer NX505
What is the difference from the Archer NX500?
Both are AX3000 5G routers in the same form factor. TP-Link rates the NX505 higher on 5G download (6.47 Gbps vs 4.67 Gbps), lists WPA3 and uses TS-9 external antenna ports where the NX500 uses SMA-F.
Can I use it with my fibre line?
Yes. The Gigabit WAN/LAN port lets it work as a normal wireless router, with 5G/LTE as backup.
Are external antennas included?
No. The two TS-9 ports accept optional 5G/4G external antennas.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
