TP-Link Archer MR200 AC750 Wireless Dual Band 4G LTE Router
PRODUCT DESCRIPTION
TP-Link AC750 Wireless Dual Band 4G LTE Router (Archer MR200) - 3 Years Local Warranty
The Archer MR200 is the entry point into TP-Link's 4G LTE router range: dual-band Wi-Fi at AC750, four 10/100 Mbps ports and two detachable external LTE antennas in the same 202 mm chassis as its bigger siblings. Insert a SIM and the unit builds a full local network without any fixed-line service.
Up to 150Mbps on 4G LTE
TP-Link publishes download speeds of up to 150Mbps on 4G LTE for the Archer MR200 - enough headroom for a shop counter, a kiosk or a small flat running entirely on mobile data. Real-world speed depends on your operator, plan and signal, and no configuration is needed: insert a SIM card, turn it on and the wireless network comes up.
4G LTE With 3G and 2G Fallback
TP-Link publishes FDD-LTE B1/B3/B7/B8/B20 and TDD-LTE B38/B40, plus DC-HSPA+/HSPA+/HSPA/UMTS on B1/B8 and EDGE/GPRS/GSM quad band. Where the signal will not hold LTE, the router steps down through 3G and 2G rather than losing the connection. A WAN Failover function is published, so the unit can switch between the mobile and wired paths.
AC750 Dual Band: 433 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
The MR200 runs IEEE 802.11ac/n/a at 5 GHz and 802.11b/g/n at 2.4 GHz, published at 433 Mbps and 300 Mbps, which TP-Link also quotes as a simultaneous dual-band figure of up to 733 Mbps. AC750 is sized for a small flat, a shop counter or a site office rather than a large household - it is the lowest wireless tier in this family, and the 5 GHz rate is half the MR400's. Three internal Wi-Fi antennas serve the local coverage; the two external antennas are for the LTE radio.
IPSec Tunnels and an OpenVPN Server
TP-Link publishes support for up to 10 IPSec VPN tunnels on this model, plus a VPN server offering PPTP VPN and OpenVPN, and VPN pass-through for PPTP, L2TP and IPSec. For a small branch that needs an encrypted path back to head office over a mobile link, that capability is present at the bottom of the range rather than only at the top.
SIM Adapters in the Box

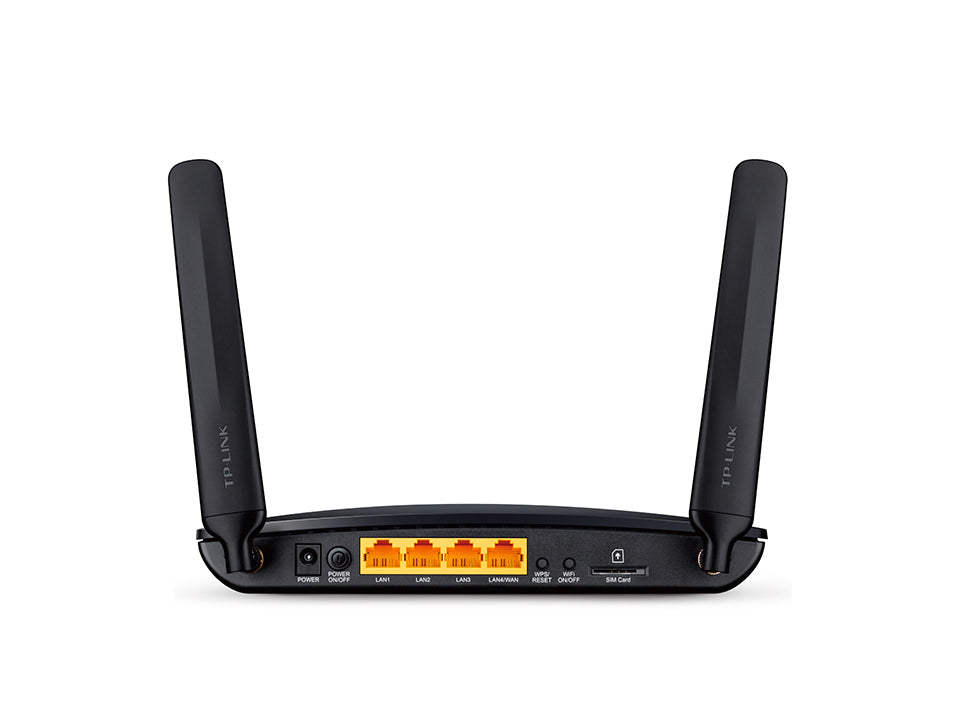

The MR200 ships with both a Micro-to-Standard and a Nano-to-Standard SIM card adapter, so a SIM in any of the three common sizes can be fitted without a trip to the operator. Physical buttons cover WPS/Reset, wireless on/off and power on/off. Ports are three 10/100 Mbps LAN and one 10/100 Mbps LAN/WAN, and power is 12V/1A.
Ideal For
Small Singapore flats, shop counters, kiosks and temporary site offices that run on a mobile data plan, and anyone needing a low-cost standby internet path. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer MR200 Datasheet — Technical Specifications
General
| Model | Archer MR200 |
| Official Product Name | AC750 Wireless Dual Band 4G LTE Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Hardware
| Interface | 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot |
| Button | WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
| Antenna | 3 Internal Wi-Fi Antennas, 2 Detachable External 4G LTE Antennas |
| External Power Supply | 12V/1A |
| Dimensions (W x D x H) | 202 x 141 x 33.6 mm (7.95 x 5.55 x 1.32 in) |
Mobile Broadband
| SIM Card Type | Standard SIM slot; Micro-to-Standard and Nano-to-Standard SIM card adapters supplied in the box |
| 4G LTE Speed | Up to 150Mbps download |
| Network Type | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B40 (2600/2300MHz); 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz); 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Failover | Yes |
Wireless
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300Mbps at 2.4GHz, 433Mbps at 5GHz |
| Transmission Power | CE: <20dBm(2.4GHz), <23dBm(5GHz) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
Software
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Quality of Service | Traffic Control (IP QoS) |
| VPN Server | PPTP VPN, OpenVPN |
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
| VPN Pass-Through | PPTP, L2TP, IPSec |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Management Features | Access Control, Local Management, Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Protocols | Supports IPv4 and IPv6 |
Environment and Certification
| Certification | CE, FCC, RoHS |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
TP-Link does not publish a processor, memory, net weight or reception-sensitivity row for the Archer MR200 on its Singapore page, so none is claimed here. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications; actual throughput, coverage and device counts vary with network conditions, client limitations and environmental factors.
Compatibility & Software Support
| SIM Format | Standard SIM slot; Micro-to-Standard and Nano-to-Standard SIM card adapters are supplied in the box. A data plan from your mobile operator is required; the SIM is not supplied |
| 4G LTE Speed | Up to 150Mbps download |
| Fixed-Line Use | The 10/100Mbps LAN/WAN port accepts a wired broadband service, so the router can run on fixed line, on the SIM, or with WAN Failover between them |
| VPN | PPTP VPN and OpenVPN server; up to 10 IPSec VPN tunnels; PPTP/L2TP/IPSec pass-through |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers; SIM Card |
| Hardware Versions | V8 is the current hardware revision for Singapore, and V7.20, V7, V5.20, V5, V4, V3, V2 and V1 have also shipped. Tell us if you need a specific revision and we will confirm what we can supply |
The system-requirements row is TP-Link's published text and still names operating systems that are long out of support. Band support varies by operator and plan — check your intended bands against the Network Type row above before ordering.
Package Contents & Ordering Information
Package Contents

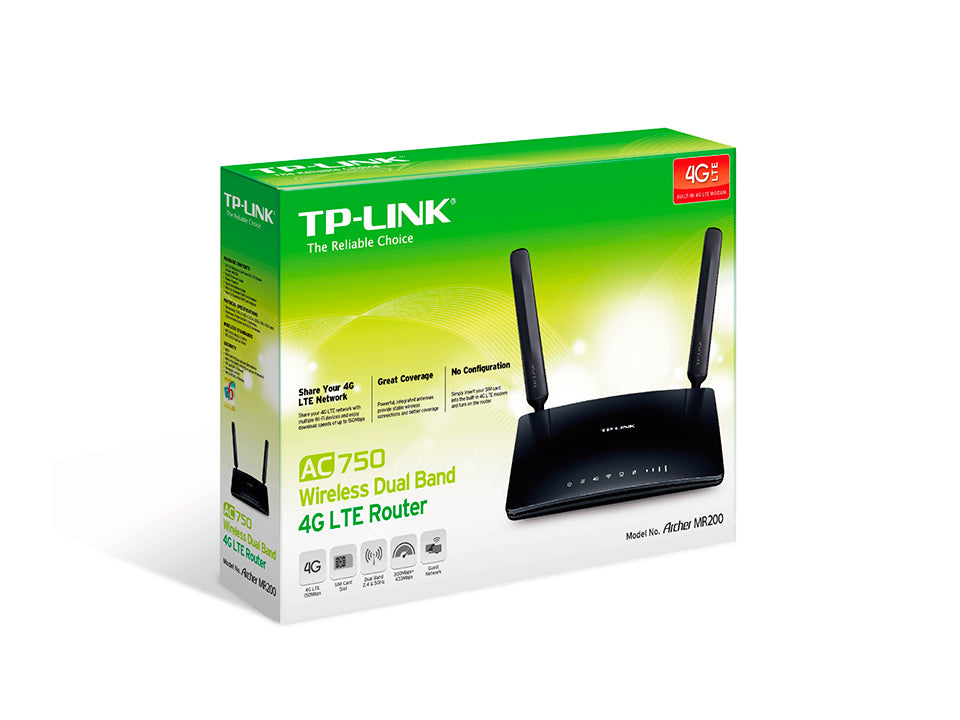

| In the Box | AC750 Wireless Dual Band 4G LTE Router, Archer MR200, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide, Micro to Standard SIM Card Adapter, Nano to Standard SIM Card Adapter |
Ordering Information
| Model | Archer MR200 |
| SourceIT SKU | Archer MR200 |
| Warranty | 3 Years Local Warranty (Singapore) |
| Requires | An active SIM and mobile data plan (not included) |
Datasheet & Downloads
Frequently Asked Questions — Archer MR200
How does the MR200 compare with the MR400?
Both are 4G LTE routers with 10/100 Mbps ports and the same chassis size. The MR200 is AC750 (433 Mbps at 5 GHz); the MR400 is AC1200 (867 Mbps at 5 GHz) and publishes a wider TDD band list. If several people will use 5 GHz at once, the MR400 is the better fit.
How fast is the 4G connection?
Up to 150Mbps download on 4G LTE. Real-world speeds depend on your operator, plan, signal strength and how many devices are active.
What SIM size do I need?
The slot is standard SIM, and both Micro-to-Standard and Nano-to-Standard adapters are supplied, so any common SIM size will fit.
Can it act as an ordinary Wi-Fi router?
Yes. TP-Link publishes 3G/4G Router and Wireless Router operating modes, and the LAN/WAN port accepts a wired broadband feed.
What warranty does SourceIT provide?
Three years local Singapore warranty, per TP-Link's published replacement warranty policy, with a GST invoice on every unit.
Can SourceIT quote this in volume?
Yes. Send the quantity and we will quote the routers and local warranty support together.
