TP-Link Archer C24 AC750 Dual-Band Wi-Fi Router
PRODUCT DESCRIPTION
TP-Link AC750 Dual-Band Wi-Fi Router (Archer C24) - 3 Years Local Warranty

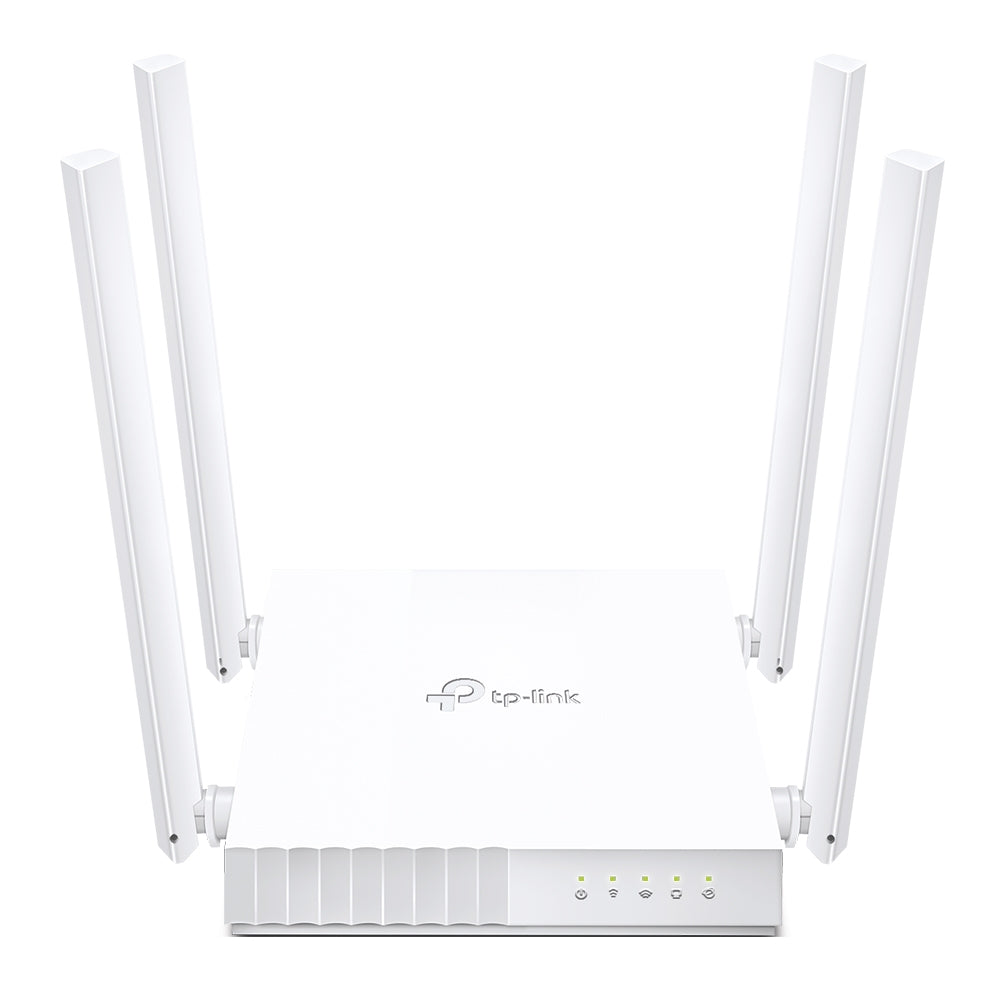

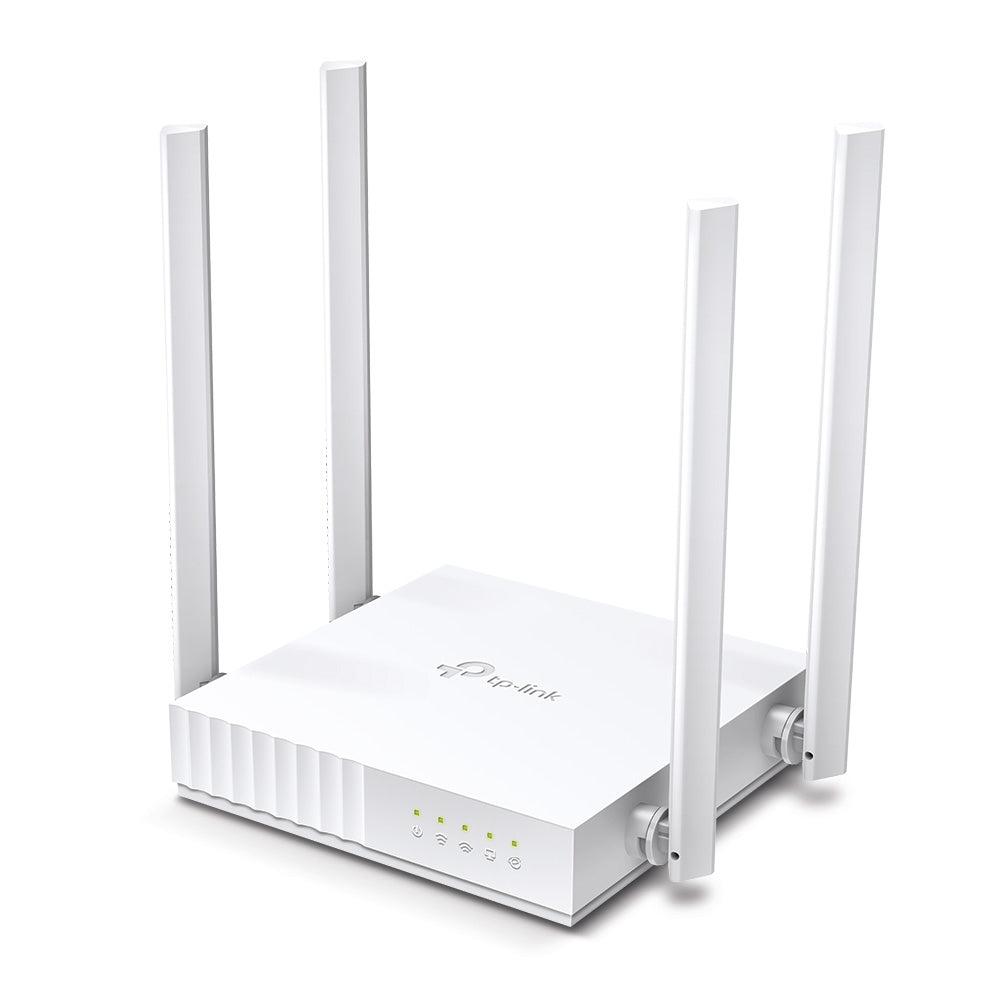

The Archer C24 is the entry point of TP-Link's Archer line: AC750 dual-band Wi-Fi at 433 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, four fixed antennas, and 10/100 Mbps Ethernet ports in a 115 mm body. It runs in Router, Access Point or Range Extender mode, which makes it as useful as a second-room extender as it is as a primary router.
AC750 Dual-Band Wi-Fi for a Small Flat
TP-Link rates the C24 at 433 Mbps on 5 GHz using 802.11ac and 300 Mbps on 2.4 GHz using 802.11n, and rates its coverage at two-bedroom houses. That is enough for browsing, video calls and HD streaming on a handful of devices. It is not the model for a household on a 1 Gbps plan wanting to use all of it — the Archer C64 or C80 publish full Gigabit ports and higher wireless rates for that.
10/100 Mbps Ethernet — Check This Before Ordering
The C24's wired ports are one 10/100 Mbps WAN port and four 10/100 Mbps LAN ports. Wired throughput is therefore capped at 100 Mbps, and so is the internet connection reaching the router, whatever the fibre plan behind it. This is the single most important specification on the page and the one most often mistaken for Gigabit. If you need Gigabit wired ports, choose the Archer C64, C80 or any of the AX models.
Three Working Modes Including Range Extender
Router, Access Point and Range Extender modes are all published for this model, which makes it flexible: it can be the main router in a small flat, a wireless access point behind an ISP gateway, or a repeater for an existing network in a back bedroom. A single-core CPU drives it, power is 9 V DC, 0.6 A, and the chassis measures 115 × 106.7 × 24.3 mm.
Encryption: WEP, WPA and WPA2 — No WPA3
TP-Link's published encryption list for the Archer C24 is WEP, WPA, WPA2 and WPA/WPA2-Enterprise with 802.1x. WPA3 is not on that list, which matters if your devices or IT policy require it. Network security covers an SPI firewall, access control, IP and MAC binding and an application layer gateway, with guest networks on both bands. Parental controls are URL filtering and time controls.
No Mesh and No Cloud Service Row
TP-Link publishes neither a OneMesh nor an EasyMesh row for the Archer C24, so it cannot be joined into a TP-Link mesh — its Range Extender mode is the alternative. It also publishes no cloud service row, and its DDNS providers are NO-IP and DynDNS only, without TP-Link's own service. Its certification row lists FCC while the transmission-power row quotes only CE limits; both are reproduced here as published, and no USB port or VPN server is listed for this model.
Ideal For
Small Singapore flats, studio rooms, rental units and second-room repeater duty where a 100 Mbps wired ceiling is acceptable and a compact, inexpensive dual-band router is what is wanted. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer C24 Datasheet — Technical Specifications
General
| Model | Archer C24 |
| Official Product Name | AC750 Dual-Band Wi-Fi Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Standards and Protocols | IEEE 802.11ac/n/a 5 GHz; IEEE 802.11n/b/g 2.4 GHz |
| Wi-Fi Speeds | 5 GHz: 433 Mbps (802.11ac); 2.4 GHz: 300 Mbps (802.11n) |
| Wi-Fi Range | 2 Bedroom Houses — 4× Fixed Antennas |
| Wi-Fi Capacity | Medium — Dual-Band |
| Working Modes | Router Mode, Access Point Mode, Range Extender Mode |
Hardware
| Processor | Single-Core CPU |

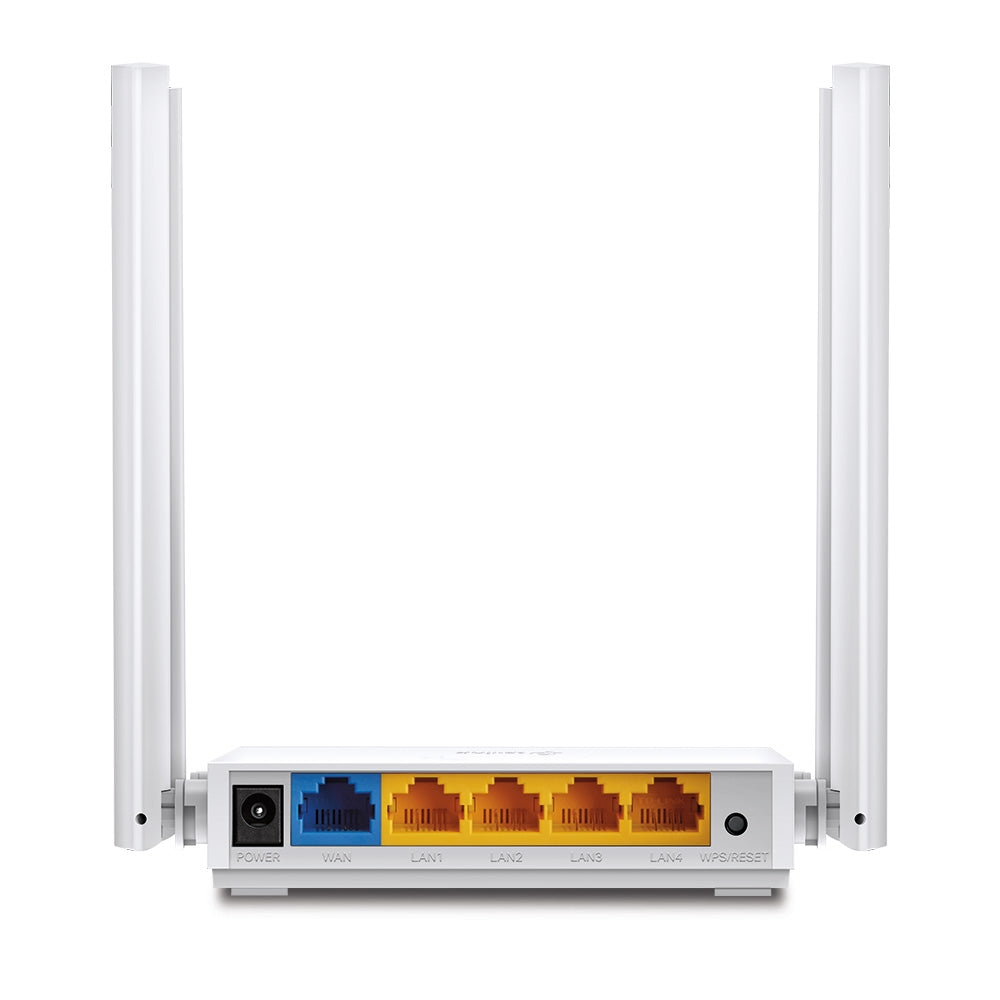

| Ethernet Ports | 1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports |
| USB Support | Not published — TP-Link's specification table for the Archer C24 lists no USB port |
| Buttons | WPS/Reset Button |
| Power | 9 V DC, 0.6 A |
| Dimensions (W × D × H) | 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm) |
Security
| Network Security | SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| Wi-Fi Encryption | WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x) |
Software
| Protocols | IPv4, IPv6 |
| Parental Controls | URL Filtering, Time Controls |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | NO-IP, DynDNS |
| Management | Tether App, Webpage |
| Network Services | Web Server (ports 80/443 TCP); DHCP Server (port 67 UDP); App management (port 20002 UDP) |
Environment and Certification
| Certifications | FCC, CE, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Wi-Fi Transmission Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
TP-Link publishes no net weight, no USB row, no VPN server row, no cloud service row and neither a OneMesh nor an EasyMesh row for the Archer C24. Its certification row names FCC although only CE transmission-power limits are quoted on the same page. Nothing above has been taken from another model.
Compatibility & Software Support
| Management App | TP-Link Tether (iOS and Android) |
| Web Management | Supported via browser |
| Mesh Compatibility | None published — use Range Extender mode to repeat an existing network |
| Client Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ |
| Internet Requirements | Cable or DSL modem if required by your plan, plus a subscription with an internet service provider |
| Wired Throughput Ceiling | 100 Mbps — all WAN and LAN ports are 10/100 Mbps |
Package Contents & Ordering Information
Package Contents

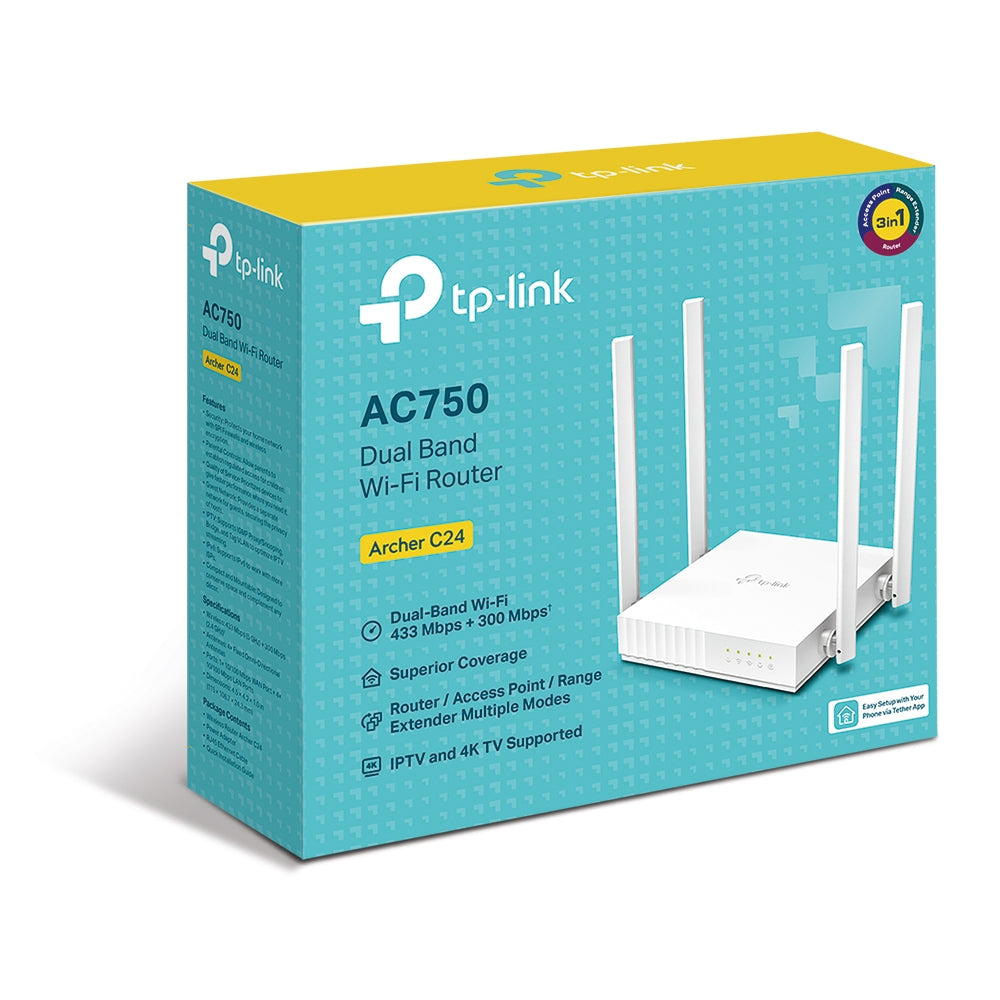

| In the Box | Wi-Fi Router Archer C24, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
Ordering Information
| Model | Archer C24 |
| SKU | C24 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — Archer C24
Are the Ethernet ports Gigabit?
No. All five ports are 10/100 Mbps, so wired throughput and the internet connection through the router are capped at 100 Mbps. For Gigabit ports at a similar size, the Archer C64 is the next step up.
Does the Archer C24 support WPA3?
No. TP-Link's published encryption list for this model is WEP, WPA, WPA2 and WPA/WPA2-Enterprise (802.1x).
Can it be used as a range extender?
Yes. Range Extender mode is published alongside Router and Access Point modes, so it can repeat an existing Wi-Fi network.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms. Every unit is supplied with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
