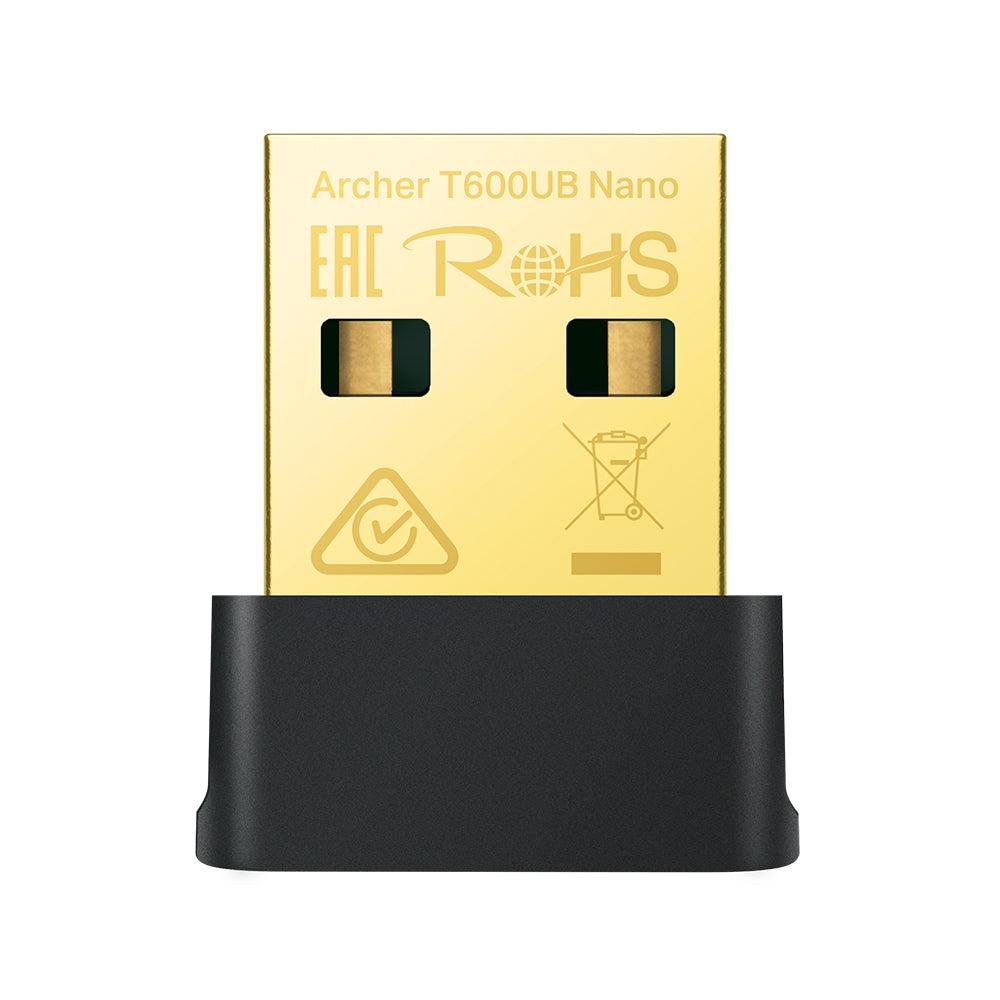

TP-Link Archer T600UB Nano AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter
PRODUCT DESCRIPTION
TP-Link AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter (Archer T600UB Nano) - 3 Years Local Warranty
The Archer T600UB Nano adds both dual-band 802.11ac Wi-Fi and Bluetooth 4.2 to a Windows PC, in a 15.7 x 7.4 x 19.2 mm dongle that occupies a single USB port. It is TP-Link's value entry in the combined Wi-Fi-plus-Bluetooth nano category, and it supports 7 Bluetooth devices at most.
Two Radios, One USB Port

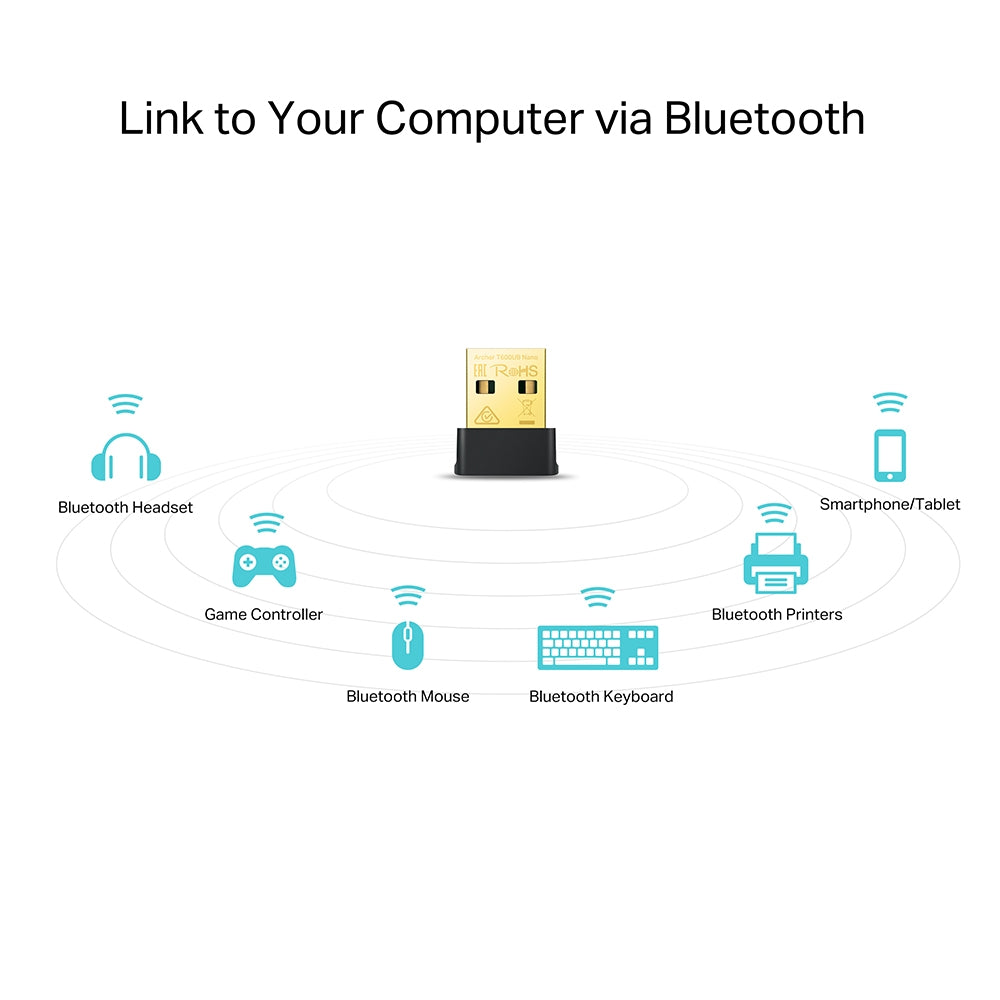

Wi-Fi and Bluetooth share the same dongle, so a desktop that has neither can gain both without consuming two ports or buying two devices. That matters on small-form-factor PCs, thin clients and older office desktops where rear ports are already occupied by keyboard, mouse and display peripherals. TP-Link describes the Bluetooth 4.2 radio as turning a non-Bluetooth PC or laptop into a Bluetooth-capable one.
Dual-Band AC600 with Full Sensitivity Figures
Published rates are up to 433 Mbps on 5 GHz under 802.11ac and up to 200 Mbps on 2.4 GHz under 802.11n, both dynamic, with a complete reception-sensitivity table running from -96 dBm at 802.11b 1 Mbps to -56 dBm at 11ac VHT80 MCS9. Standards support spans 802.11a, b, g, n and ac, and modulation is published as DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM and 256-QAM.
WPA3 Encryption and Windows 11
The published security row reads "WPA/WPA2/WPA3 encryption standards", and the feature copy extends that to "WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption". Wi-Fi system requirements reach Windows 11. Certification is published as CE, FCC and RoHS.
Read the Windows Lists Carefully
Two different lists are published: Wi-Fi for Win 11/10/8.1/8/7, Bluetooth for Win 11/10/8.1/7 — Windows 8 is present for Wi-Fi and absent for Bluetooth. No macOS support is published for this model at all. Plan a Windows build for both radios.
Ideal For
Singapore offices, schools and IT refurbishment work fitting Wi-Fi and Bluetooth to Windows desktops in quantity at the lowest unit cost, where the network is WPA2 or WPA3 and no Mac support is required. Supplied by SourceIT with local Singapore warranty, GST invoice and volume pricing on request.
Specifications on this page are reproduced from TP-Link's official Singapore product page for the Archer T600UB Nano, with driver and hardware-version details from TP-Link Singapore's download centre.
Archer T600UB Nano Datasheet — Technical Specifications
Hardware
| Interface | USB 2.0 |
| Antenna | Omni Directional |

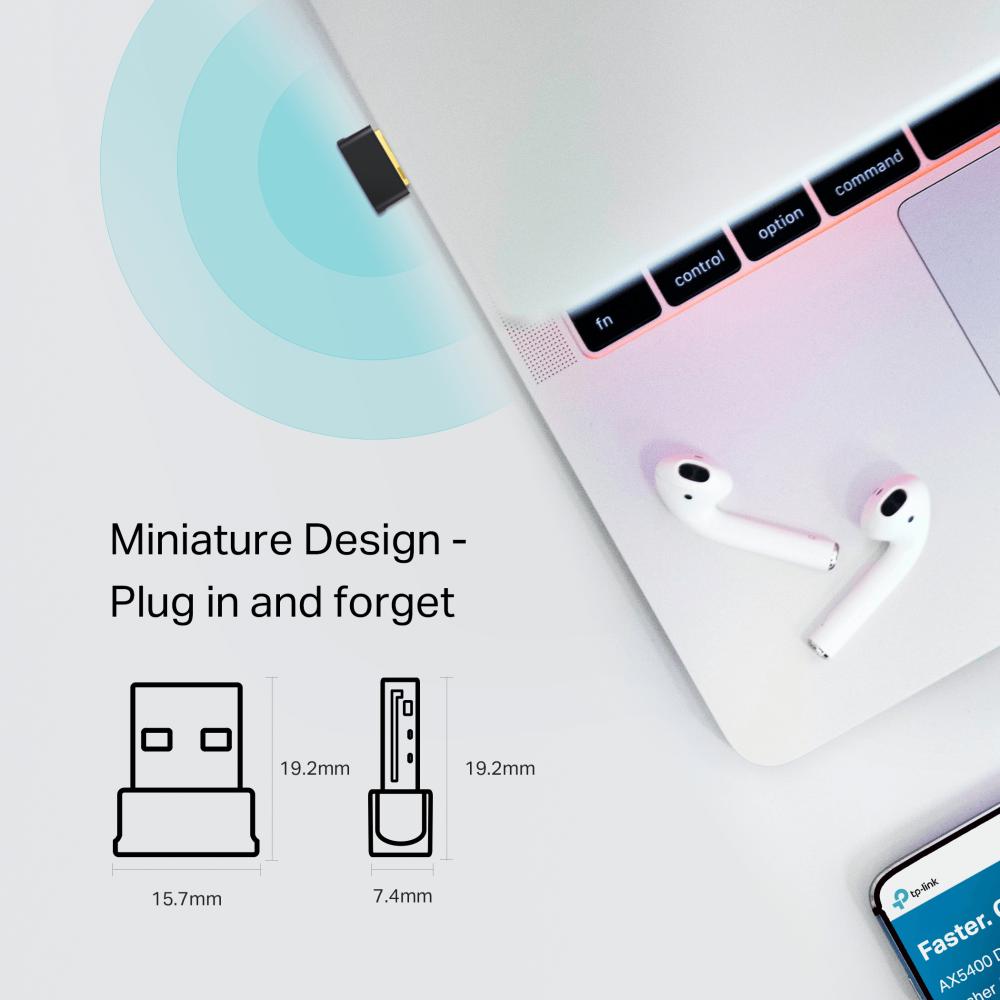

| Dimensions (W x D x H) | 15.7*7.4*19.2mm |
Wireless
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 5 GHz, 2.4 GHz |
| Signal Rate (5 GHz) | 11ac: Up to 433 Mbps (dynamic); 11n: Up to 150 Mbps (dynamic); 11a: Up to 54 Mbps (dynamic) |
| Signal Rate (2.4 GHz) | 11n: Up to 200 Mbps (dynamic); 11g: Up to 54 Mbps (dynamic); 11b: Up to 11 Mbps (dynamic) |
| Reception Sensitivity (5 GHz) | 11a 6 Mbps: -90 dBm; 11a 54 Mbps: -73 dBm; 11n HT20 MCS0: -89 dBm; 11n HT20 MCS7: -70 dBm; 11n HT40 MCS0: -86 dBm; 11n HT40 MCS7: -67 dBm; 11ac VHT80 MCS0: -82 dBm; 11ac VHT80 MCS9: -56 dBm |
| Reception Sensitivity (2.4 GHz) | 11b 1 Mbps: -96 dBm; 11b 11 Mbps: -88 dBm; 11g 6 Mbps: -89 dBm; 11g 54 Mbps: -74 dBm; 11n HT20 MCS0: -89 dBm; 11n HT20 MCS7: -72 dBm; 11n HT40 MCS0: -86 dBm; 11n HT40 MCS7: -66 dBm |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | WPA/WPA2/WPA3 encryption standards |
| Encryption Supported | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
Bluetooth
| Bluetooth | Bluetooth 4.2 (as published in the product name and feature specifications) |
| Paired Devices | Supports 7 Bluetooth devices at most |
Environment and Compliance
| Certification | CE, FCC, RoHS |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Local Warranty (Singapore) | 3 Years Local Warranty (Singapore) |
No LED row, no transmission-power figure, no net weight and no Bluetooth profile list is published for this model, so none is stated here. TP-Link prints these caveats with the specifications: "Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions." and "Models' appearances and specifications are not determined and will be updated accordingly. Please use the product images only for reference." Both are reproduced as published; the first is TP-Link's general networking caveat and this adapter's only published interface is USB 2.0.
Compatibility & Software Support
| System Requirements (Wi-Fi) | Win 11/10/8.1/8/7 |
| System Requirements (Bluetooth) | Win 11/10/8.1/7 |
| Host Port | USB 2.0 |
| Network Compatibility | Works with any 2.4 GHz or 5 GHz Wi-Fi router or access point; no TP-Link router required |
| Hardware Versions | V1 (TP-Link Singapore download centre) |
The two lists differ as published: Windows 8 appears under Wi-Fi but not under Bluetooth. No macOS support is published for this model. Please confirm your operating system before ordering.
Package Contents & Ordering Information

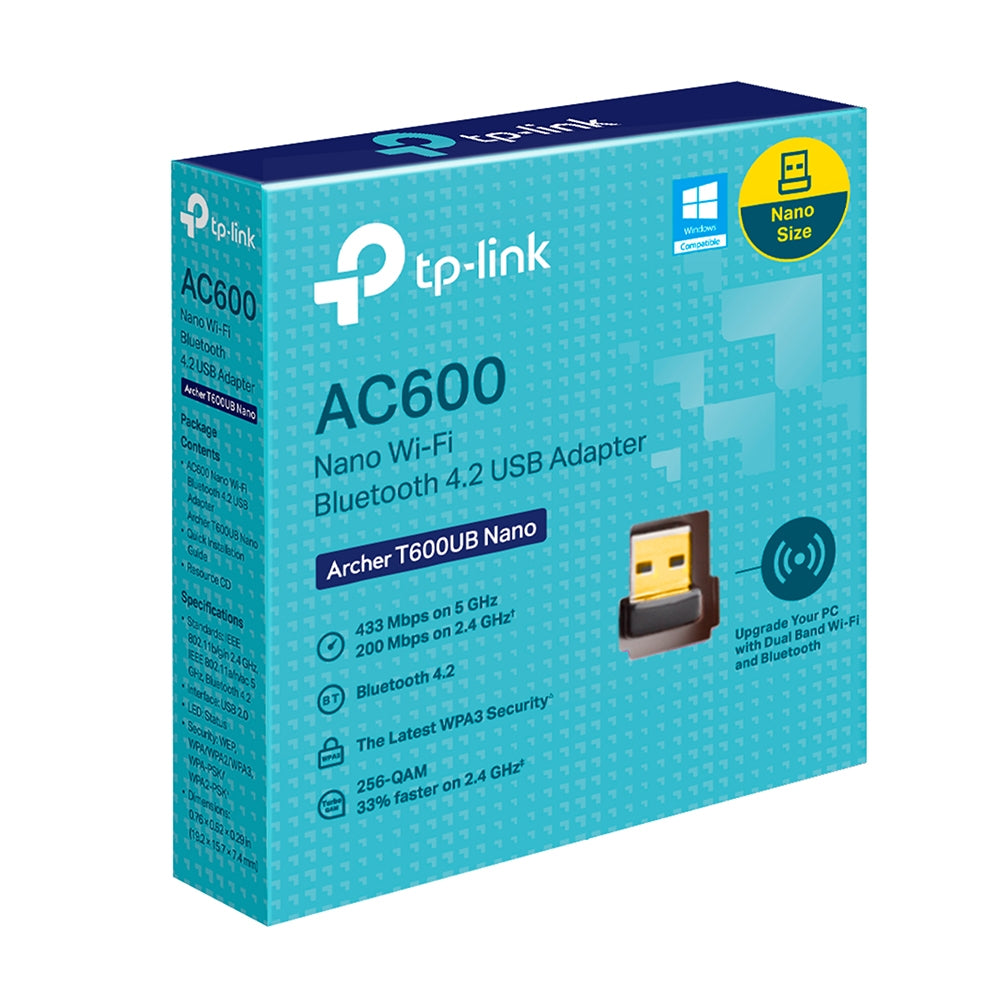

Package Contents
| Adapter | AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter Archer T600UB Nano |
| Documentation | Quick Installation Guide |
| Media | Resource CD |
Ordering Information
| Model | Archer T600UB Nano |
| SKU | Archer T600UB Nano |
| Warranty | 3 Years Local Warranty (Singapore) |
TP-Link names this model two ways on one page: the product heading reads "AC600 Nano Wi-Fi Bluetooth USB Adapter" while the package-contents row reads "AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter Archer T600UB Nano". Both are reproduced as published; the model code Archer T600UB Nano is the same in either case.
Datasheet & Downloads
Frequently Asked Questions — Archer T600UB Nano
Does it work on a Mac?
No macOS support is published for this model — the system requirements are Windows only.
Which Bluetooth version, and how many devices?
Bluetooth 4.2, as published in the product name and feature specifications, and it supports 7 Bluetooth devices at most.
How does it differ from the Archer T2UB Nano?
They are listed as separate models and we do not treat them as interchangeable. Tell us which model code you need and we will supply that one.
Does it support WPA3?
Yes. The published security row reads "WPA/WPA2/WPA3 encryption standards", and the feature copy lists "WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, WPA3-SAE encryption".
Is a Bluetooth driver installed automatically?
TP-Link supplies Bluetooth and Wi-Fi drivers through its download centre. Install both from TP-Link's download centre rather than relying on Windows to find them.
What warranty applies in Singapore?
3 Years Local Warranty (Singapore). TP-Link Singapore's replacement-warranty policy states a three-year default and does not list USB wireless adapters among its exception categories.
Can SourceIT quote quantity?
Yes. Send the quantity and we will quote with local warranty, GST invoice and delivery in Singapore.
