TP-Link Archer MR400 AC1200 Wireless Dual Band 4G LTE Router
PRODUCT DESCRIPTION
TP-Link AC1200 Wireless Dual Band 4G LTE Router (Archer MR400) - 3 Years Local Warranty
The Archer MR400 shares a mobile data connection over dual-band Wi-Fi and four wired ports. Two detachable external 4G LTE antennas and three internal Wi-Fi antennas sit in a 202 mm desktop body, and the SIM slot is all the setup a site needs - no fixed line, no ISP installation appointment. A Micro SIM card goes straight in; no adapter is supplied.
Up to 150Mbps Down, 50Mbps Up, Shared With 64 Devices
TP-Link publishes download speeds of up to 150Mbps and upload speeds of up to 50Mbps on 4G LTE for the Archer MR400, and up to 64 devices can share that connection over Wi-Fi and the wired ports. Actual throughput depends on your operator, plan, signal and the number of devices in use.
Wide 4G, 3G and 2G Band Coverage
TP-Link publishes FDD-LTE B1/B3/B7/B8/B20 and TDD-LTE B38/B39/B40/B41 for this model, plus DC-HSPA+/HSPA+/HSPA/UMTS on B1/B8 and EDGE/GPRS/GSM quad band. The TDD list is unusually broad for its class, covering 1900, 2300, 2500 and 2600 MHz. The 2G and 3G fallback matters where LTE coverage is patchy - the router drops back rather than dropping out.
AC1200 Dual-Band Wi-Fi With Guest Networks
Wi-Fi runs IEEE 802.11ac/n/a at 5 GHz and 802.11b/g/n at 2.4 GHz, published at 867 Mbps and 300 Mbps. Three internal Wi-Fi antennas handle the local coverage while the two detachable external antennas are dedicated to the LTE radio. Separate 2.4 GHz and 5 GHz guest networks keep visitor devices off the working network, and published security is 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK.
Three VPN Types Including IPSec Tunnels
The MR400's published VPN support is broader than most routers at this level: PPTP VPN, IPSec VPN and OpenVPN, with support for up to 10 IPSec VPN tunnels. For a branch or site office that needs to reach head office over a mobile link, that removes the need for a separate VPN appliance. Access control covers parental control, local management control, host list, access schedule and rule management.
Physical Buttons for Wi-Fi and Power
TP-Link publishes a WPS/Reset button, a wireless on/off button and a power on/off button. Physical switches are practical in a shared space - Wi-Fi can be cut without unplugging the router, and the unit can be powered down cleanly at the end of the day. Ports are 10/100 Mbps: three LAN and one LAN/WAN, the latter accepting a wired broadband feed where one is available. Power is 12V/1.5A.
Ideal For
Singapore homes, shops and site offices running on mobile data, branch locations needing IPSec back to head office, and anyone wanting a standby connection independent of the fixed line. Supplied by SourceIT with local Singapore warranty and GST invoice.
Archer MR400 Datasheet — Technical Specifications
General
| Model | Archer MR400 |
| Official Product Name | AC1200 Wireless Dual Band 4G LTE Router |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Hardware

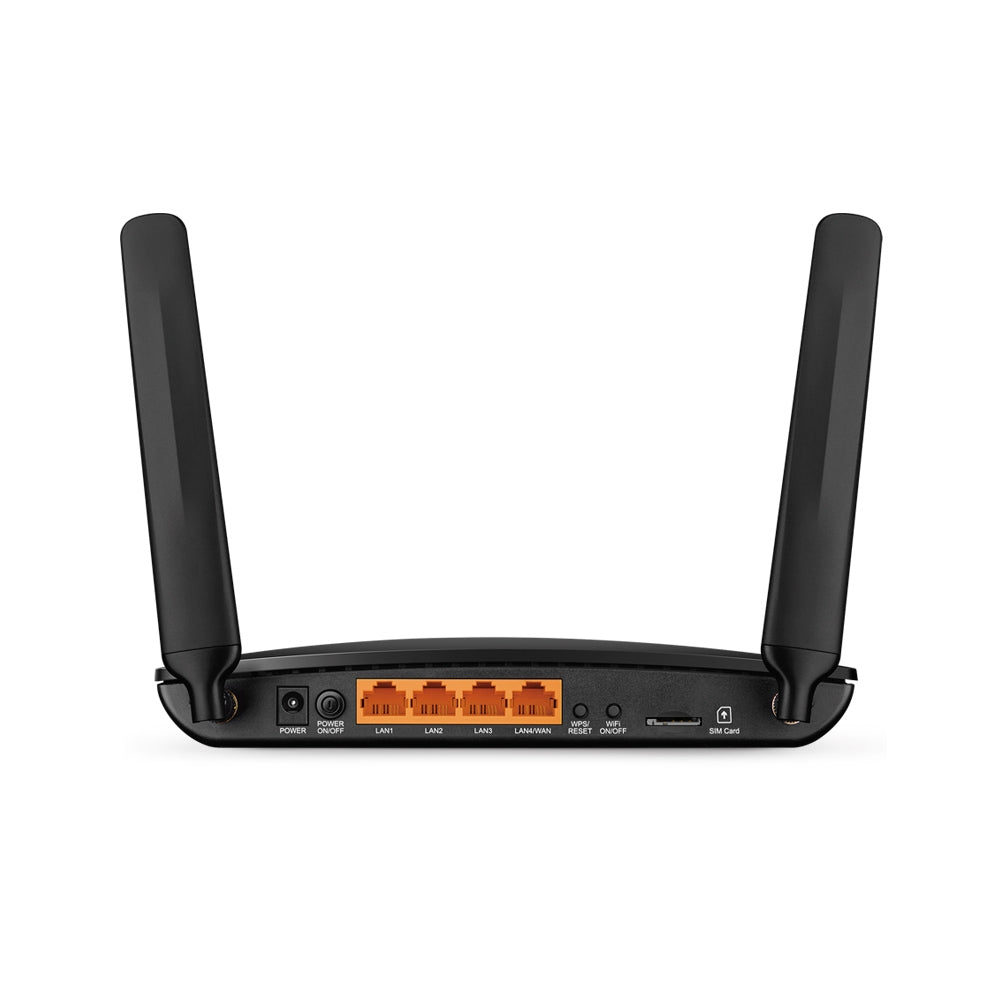

| Interface | 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot |
| Button | WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
| Antenna | 3 Internal Wi-Fi Antennas, 2 Detachable External 4G LTE Antennas |
| External Power Supply | 12V/1.5A |
| Dimensions (W x D x H) | 202 x 141 x 33.6 mm (7.95 x 5.55 x 1.32 in) |
Mobile Broadband
| SIM Card Type | Micro SIM Card |
| 4G LTE Speed | Up to 150Mbps download, up to 50Mbps upload |
| Devices Supported | Up to 64 |
| Network Type | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz); 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz); 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) |
| Operating Modes | 3G/4G Router, Wireless Router |
Wireless
| Wireless Standards | IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300Mbps at 2.4GHz, 867Mbps at 5GHz |
| Transmission Power | CE: <20dBm(2.4GHz), <23dBm(5GHz) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Guest Network | 2.4GHz guest network x 1, 5GHz guest network x 1 |
Software
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Quality of Service | Bandwidth Control |
| VPN | PPTP VPN, IPSec VPN, OpenVPN — supports up to 10 IPSec VPN tunnels |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Management Features | Access Control, Local Management, Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Protocols | Supports IPv4 and IPv6 |
Environment and Certification
| Certification | CE, RoHS |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -40℃~70℃ (-40℉~158℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
TP-Link does not publish a processor, memory, net weight or reception-sensitivity row for the Archer MR400 on its Singapore page, so none is claimed here. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications; actual throughput, coverage and device counts vary with network conditions, client limitations and environmental factors.
Compatibility & Software Support
| SIM Format | Micro SIM Card, in a single SIM card slot. No SIM adapter is supplied. An active SIM and mobile data plan are required and are not included |
| 4G LTE Speed | Up to 150Mbps download, up to 50Mbps upload, shared with up to 64 devices |
| Fixed-Line Use | The 10/100Mbps LAN/WAN port accepts a wired broadband service, so the router can run on fixed line or on the SIM |
| VPN | PPTP VPN, IPSec VPN (up to 10 tunnels) and OpenVPN |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10; MAC OS, NetWare, UNIX or Linux; Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers; Micro SIM Card |
| Hardware Versions | V6 is the current hardware revision for Singapore, and V5.20, V5, V4, V3, V2 and V1 have also shipped. Tell us if you need a specific revision and we will confirm what we can supply |
The system-requirements row is TP-Link's published text and still names operating systems and browsers that are long out of support. Band support varies by operator and plan — check your intended bands against the Network Type row above before ordering.
Package Contents & Ordering Information
Package Contents

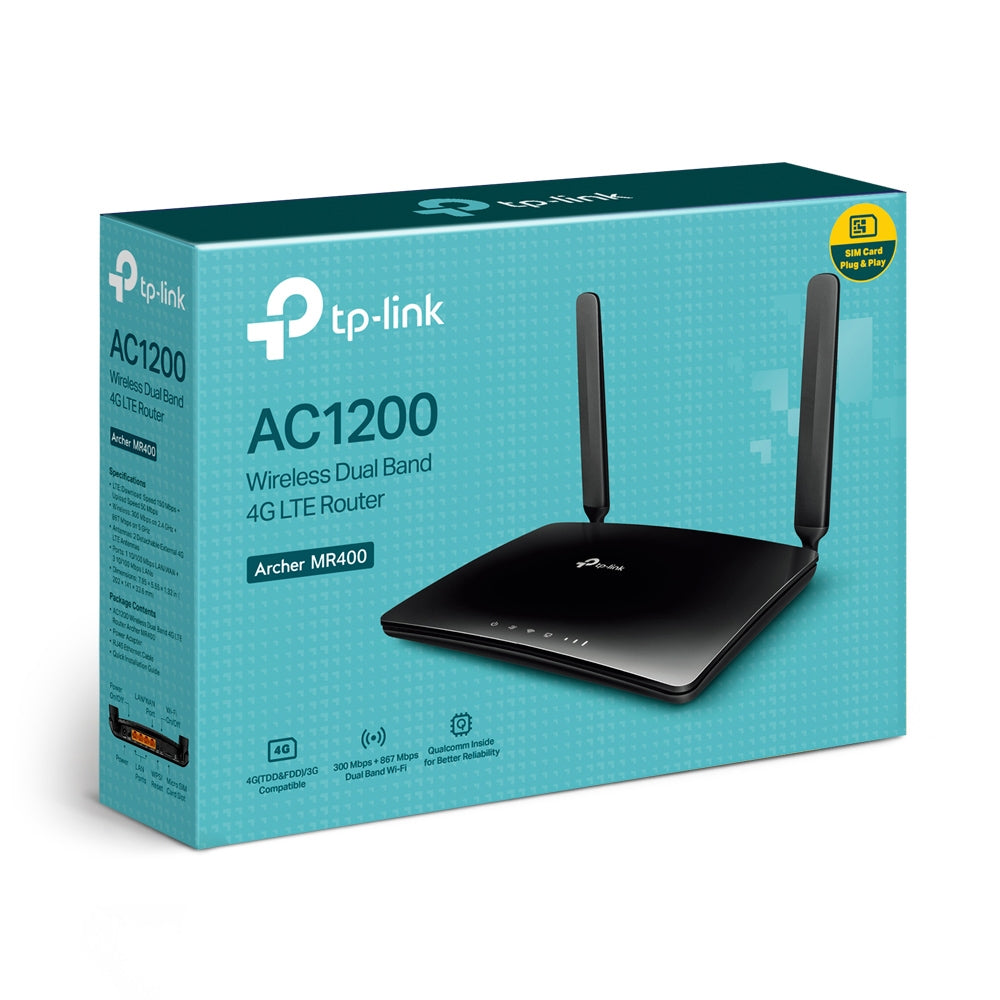

| In the Box | AC1200 Wireless Dual Band 4G LTE Router, Archer MR400; RJ45 Ethernet Cable; Power Adapter; Quick Installation Guide |
Ordering Information
| Model | Archer MR400 |
| SourceIT SKU | Archer MR400 |
| Warranty | 3 Years Local Warranty (Singapore) |
| Requires | An active Micro SIM and mobile data plan (not included) |
Datasheet & Downloads
Frequently Asked Questions — Archer MR400
Are the Ethernet ports Gigabit?
No. TP-Link publishes three 10/100Mbps LAN ports and one 10/100Mbps LAN/WAN port for the MR400. If you need Gigabit wired ports on a 4G router, look at the Archer MR500 or MR505 instead.
How fast is the 4G connection?
Up to 150Mbps download and up to 50Mbps upload on 4G LTE, with up to 64 devices sharing the connection. Real-world speeds depend on your operator, plan, signal strength and how many devices are active.
Can it run IPSec VPN?
Yes. TP-Link publishes PPTP VPN, IPSec VPN and OpenVPN for this model, with support for up to 10 IPSec VPN tunnels.
Which SIM size does it take?
A Micro SIM. TP-Link lists a Micro SIM Card for the Archer MR400, and there is one SIM card slot. No adapter is included, so ask your operator for a Micro SIM or bring a multi-size SIM cut to Micro.
What warranty does SourceIT provide?
Three years local Singapore warranty, per TP-Link's published replacement warranty policy, with a GST invoice on every unit.
Can SourceIT quote this for multiple sites?
Yes. Send the quantity and locations and we will quote the routers and local warranty support together.
