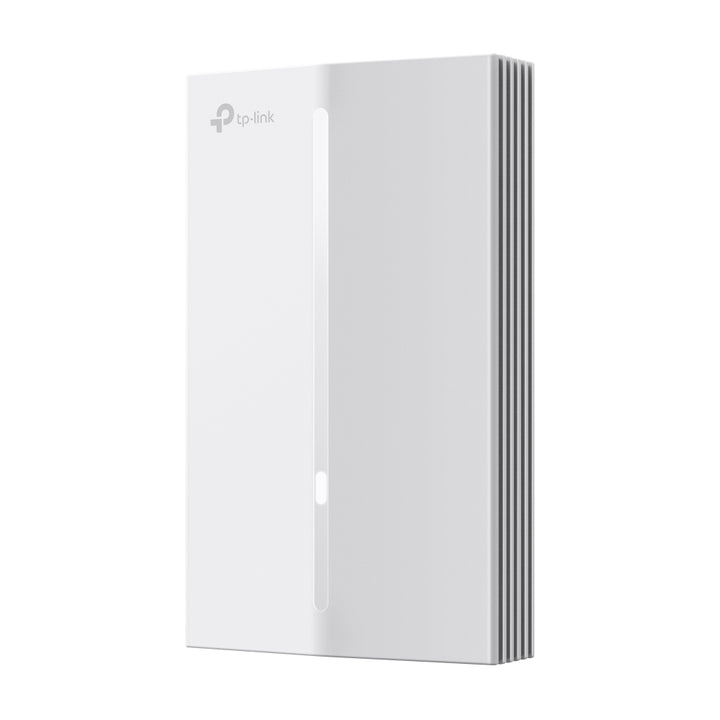

TP-Link Festa F65-Wall AX3000 Wall Plate WiFi 6 Access Point

TP-Link AX3000 Wall Plate WiFi 6 Access Point (Festa F65-Wall) - 3 Years Local Warranty

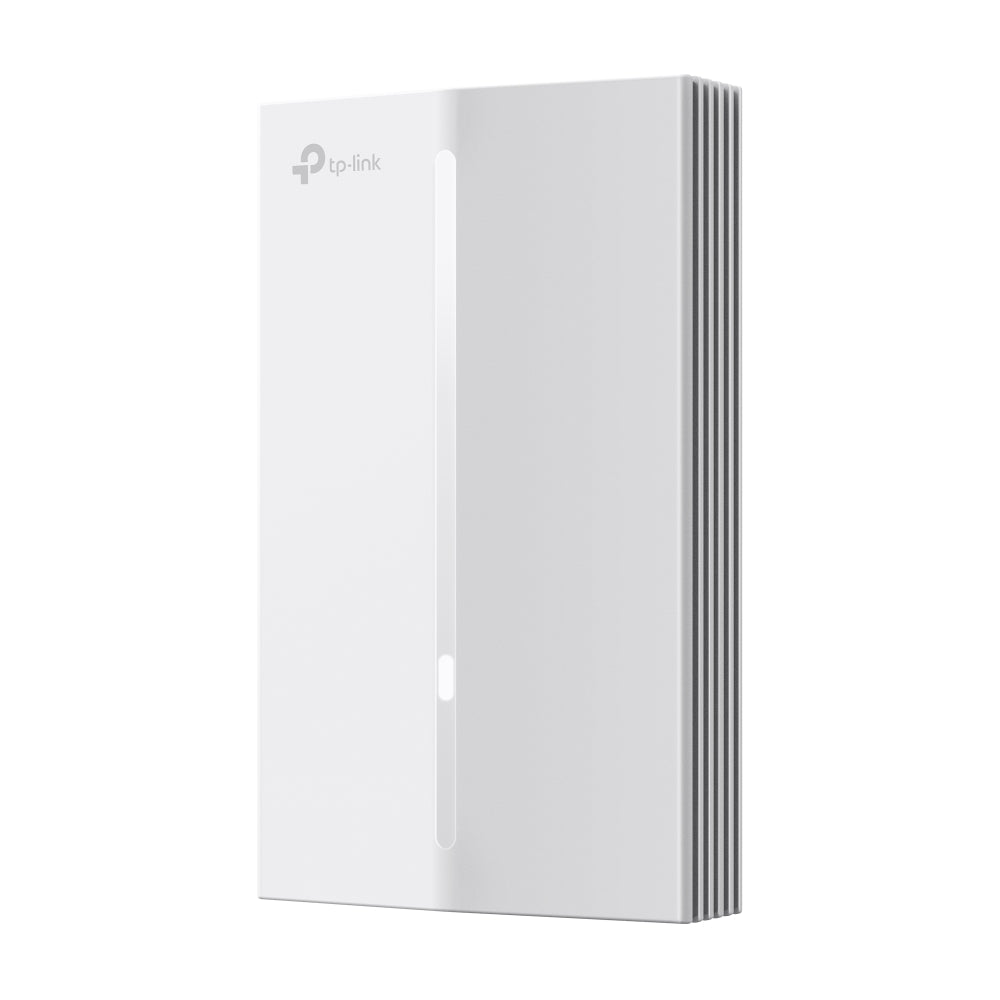

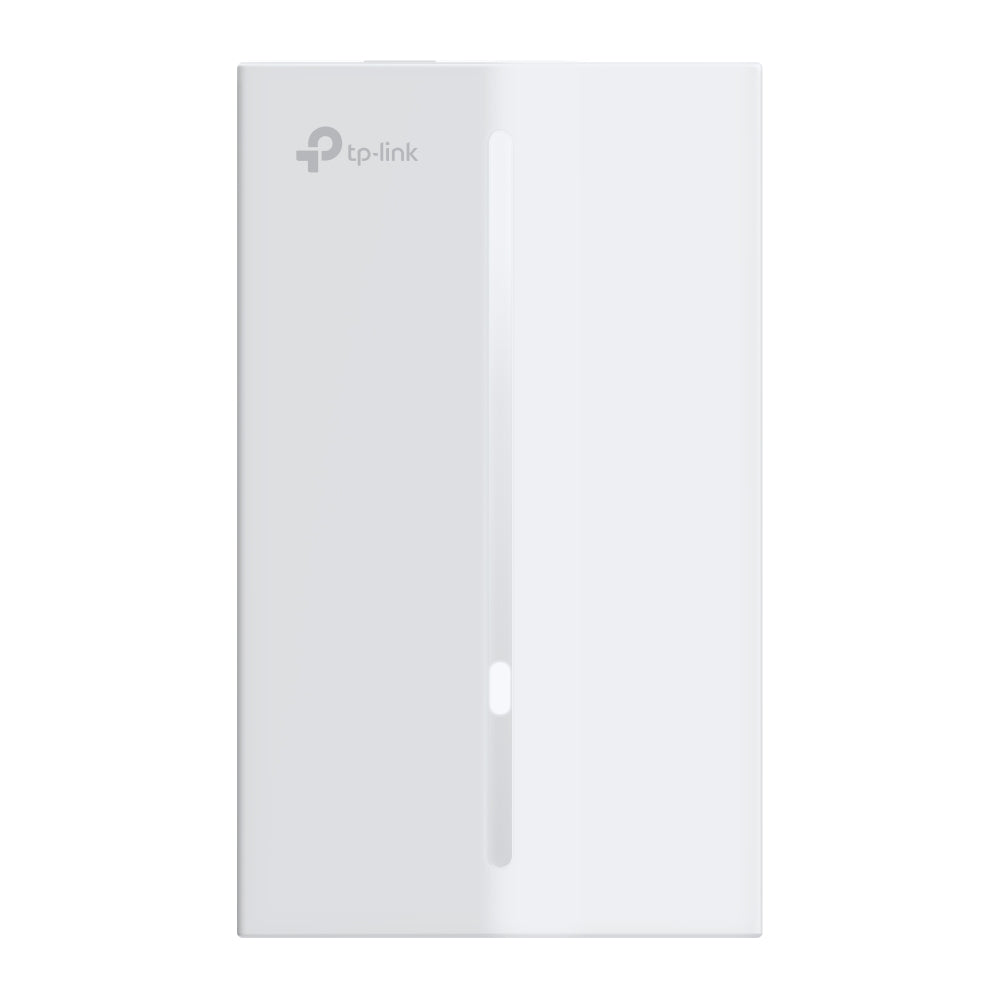

The Festa F65-Wall is an AX3000 Wi-Fi 6 access point built into a wall plate, with three wired ports on its face and one of them delivering PoE out. It is the in-room answer for hotels, serviced apartments, dormitories and clinics, where each room needs its own access point plus a wired drop or two and there is no ceiling to mount to.

AX3000 Wi-Fi 6 From a Wall Plate

The F65-Wall delivers up to 2402 Mbps on 5 GHz and up to 574 Mbps on 2.4 GHz over IEEE 802.11 a/b/g/n/ac/ax, using two dual-band antennas in 2x2 SU-MIMO. HE160 is supported on 5 GHz, doubling the channel width against a standard 80 MHz access point for clients that can use it. TP-Link notes that OFDMA, HE160 and 1024-QAM require matching client support, and that 160 MHz operation may be restricted in some markets.

Three Downlink Ports, One of Them PoE Out

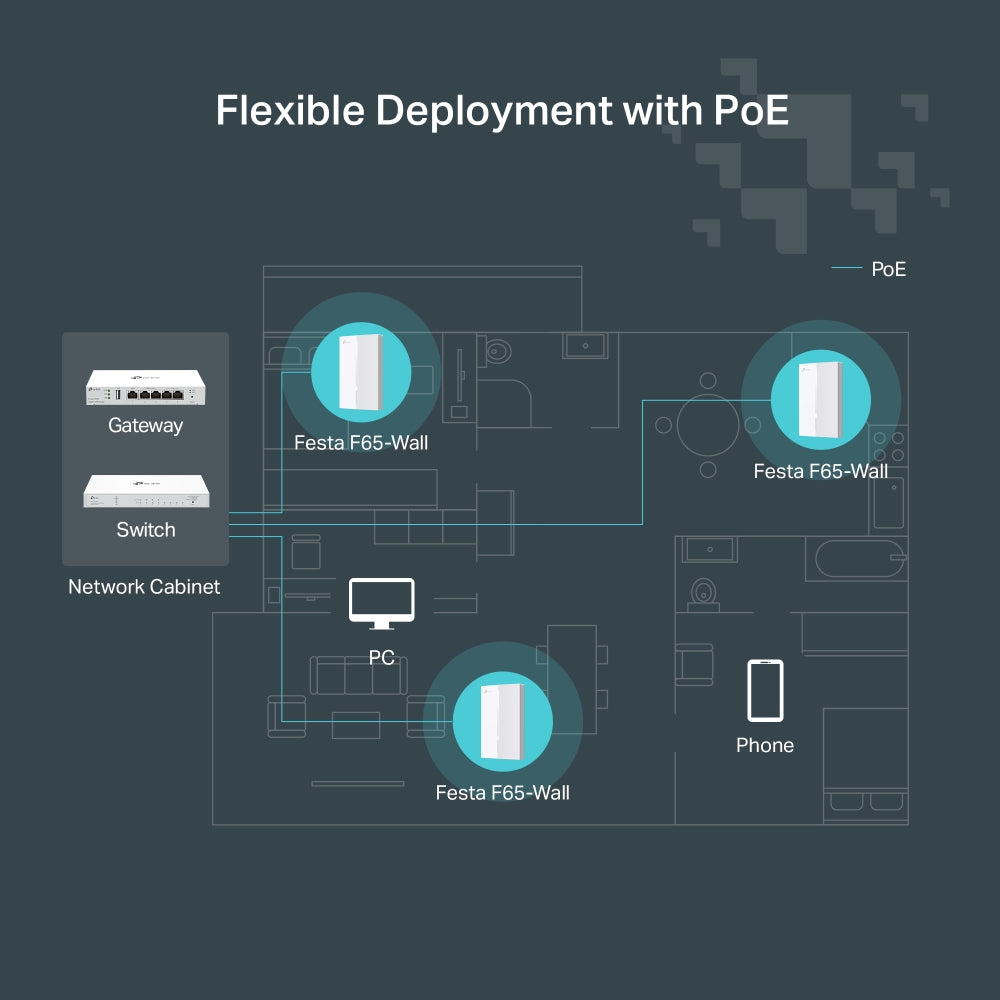

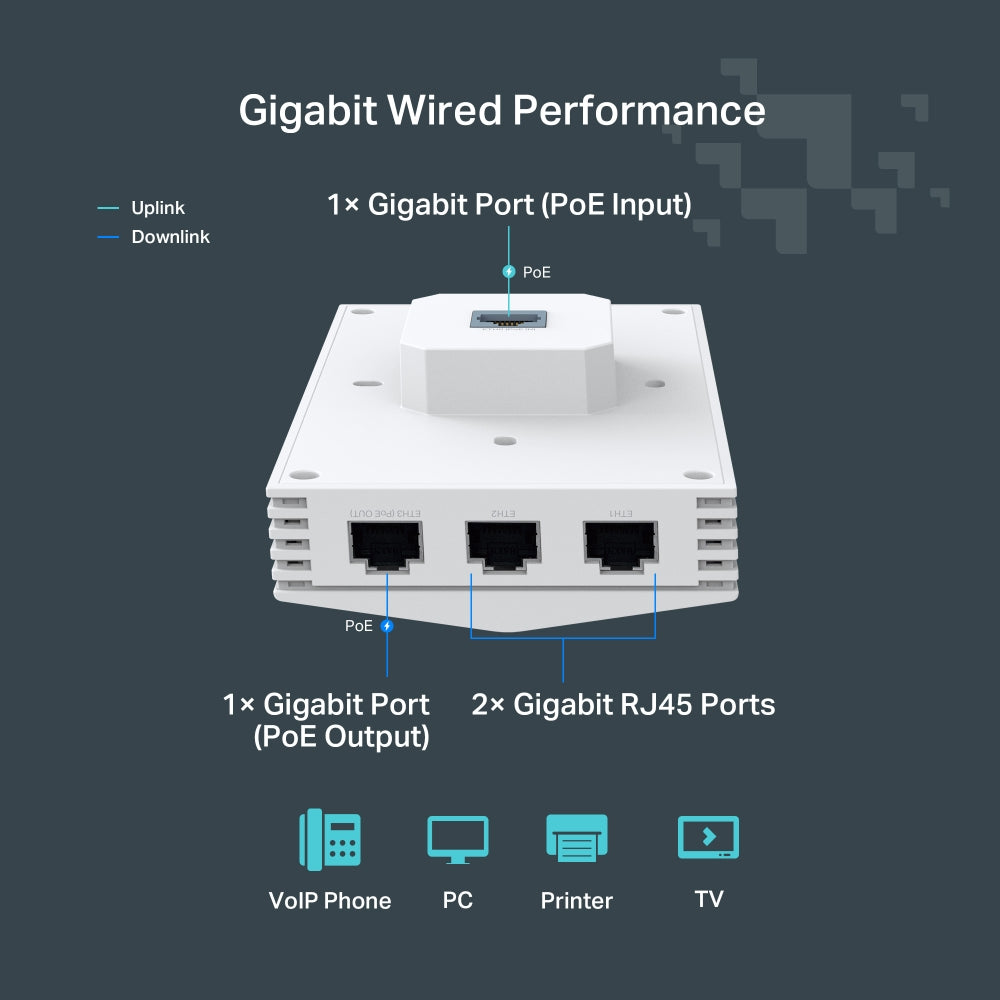

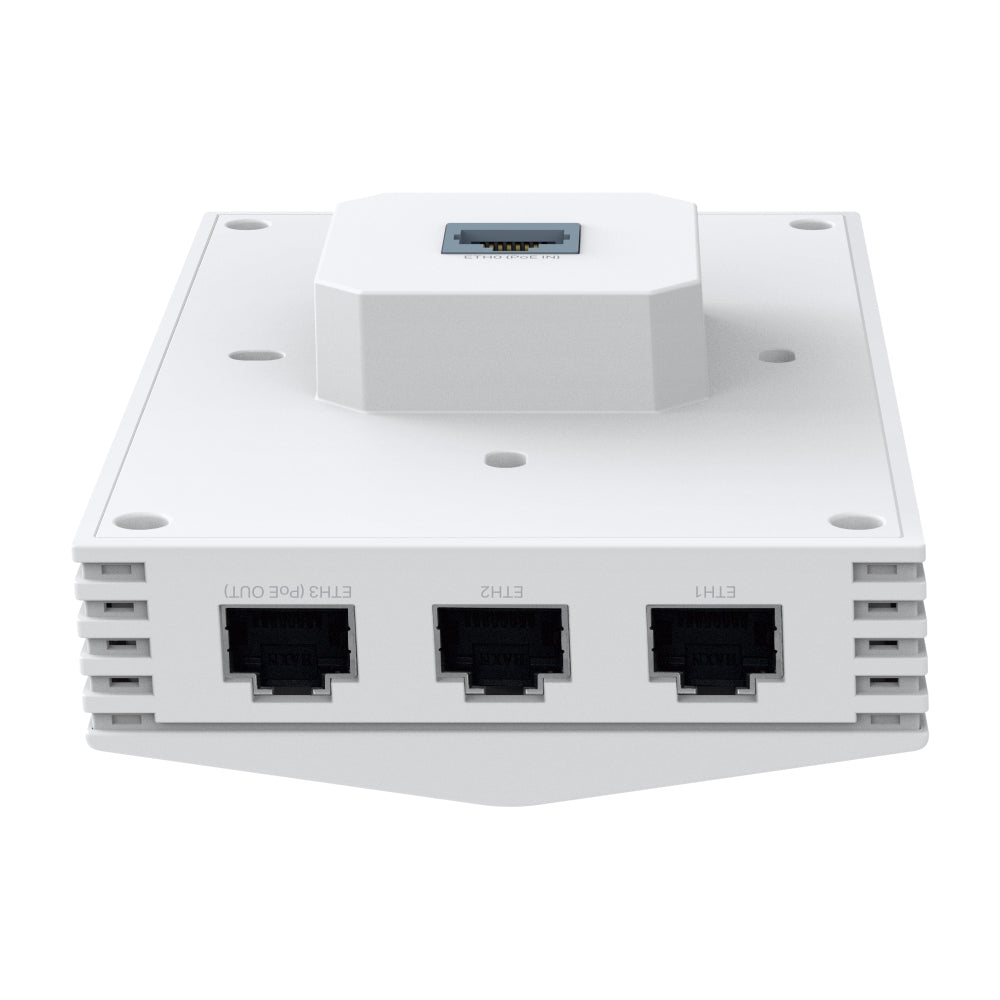

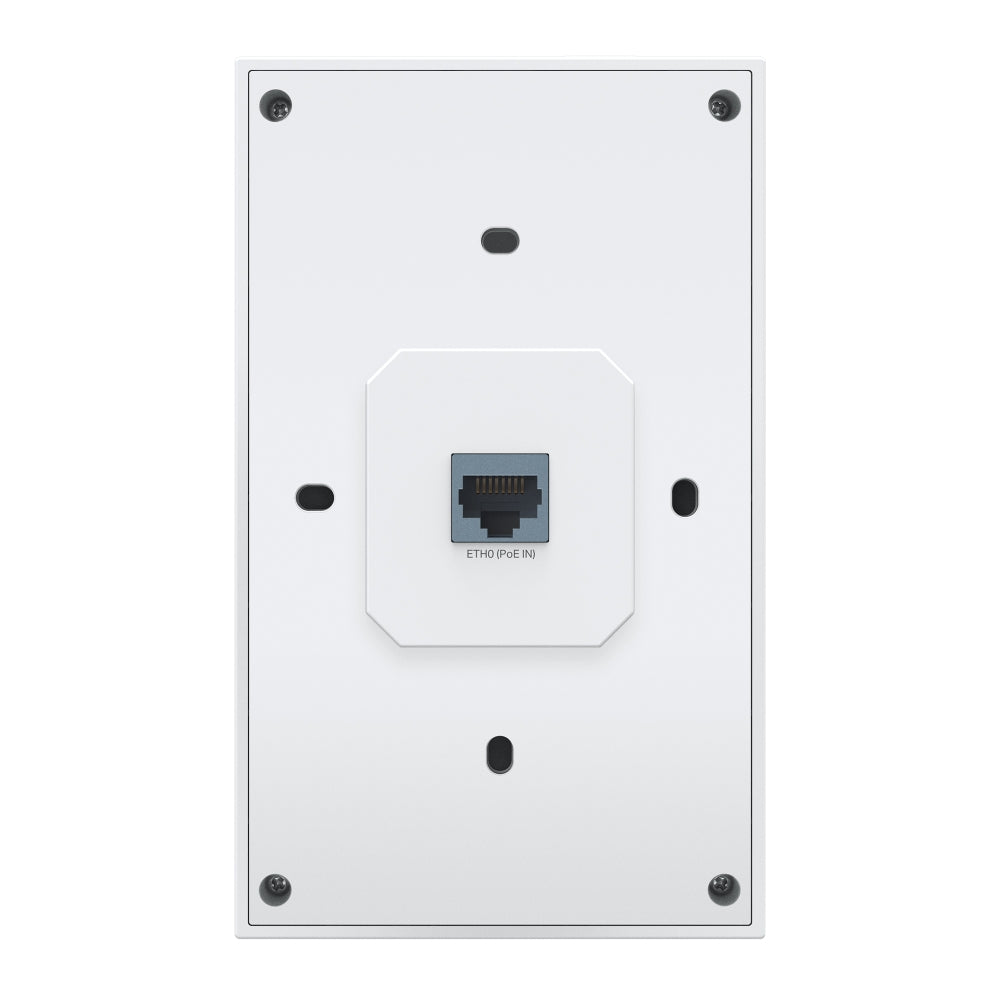

This is the feature that separates the F65-Wall from a ceiling AP. The uplink is one Gigabit port with PoE in; on the face are one Gigabit PoE-out port and two more Gigabit RJ45 ports. That means a single cable to the room can power the access point and, in turn, power a desk phone or a small camera from the PoE-out port, while a TV and a workstation take the other two. Buttons are reset and LED.

Rated for 120+ Concurrent Clients Over 50 m2

TP-Link rates the F65-Wall at 120+ concurrent clients and publishes a coverage figure of 50 m2 (600 ft2), which reflects its in-room role rather than an open-plan one. Both figures carry published caveats: actual capacity depends on the wireless environment and client traffic and is generally lower than the maximum association count, and the coverage value is calculated from laboratory testing. Plan one unit per room rather than one per floor.

PoE Only, So Check the Switch Budget

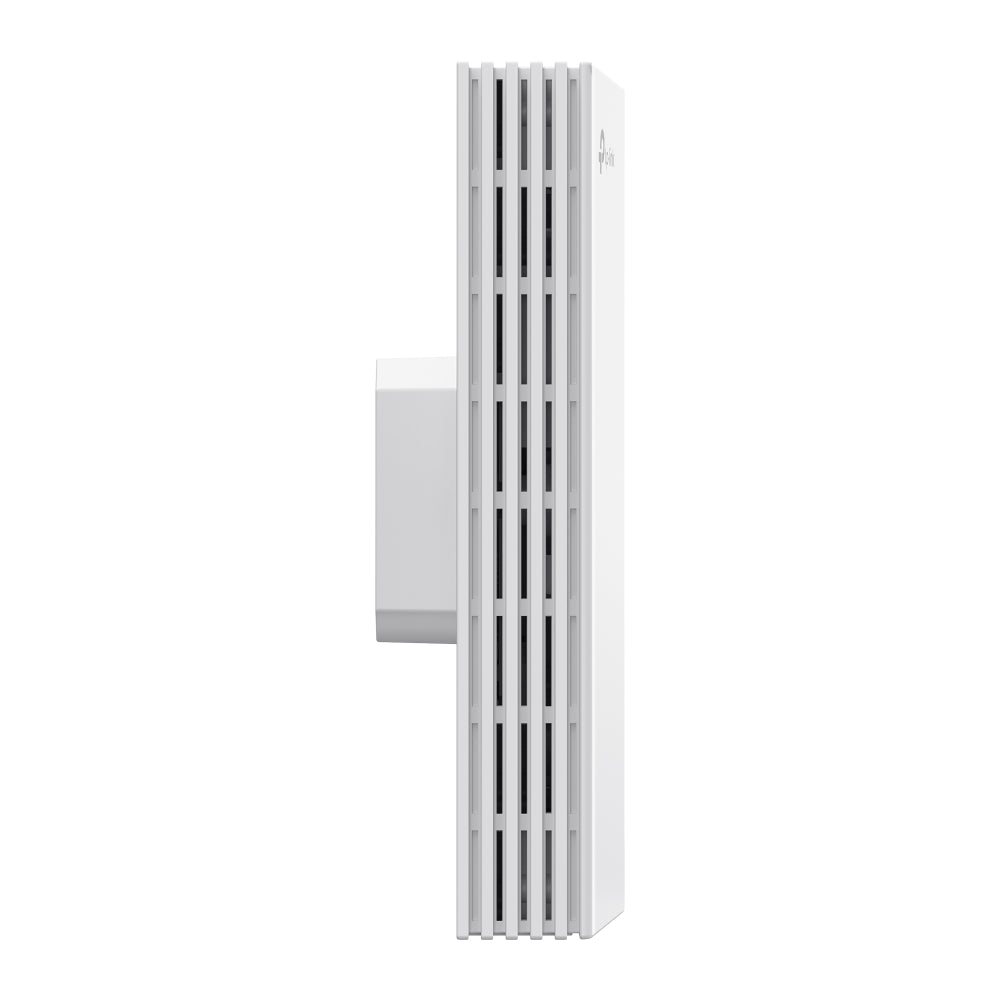

Power is 802.3af/at PoE and nothing else: TP-Link publishes no DC input and no power adapter in the box, so a PoE switch or injector is required. Maximum draw is 12 W with PoE out switched off on the EU model, and more once a device is drawing from the PoE-out port, so size the switch budget for the downstream load as well. The unit is 143 x 86 x 42.4 mm, weighs 284.6 g, and mounts to a wall plate with the supplied kit.

Festa Cloud With L3, Multi-Site and Management VLAN

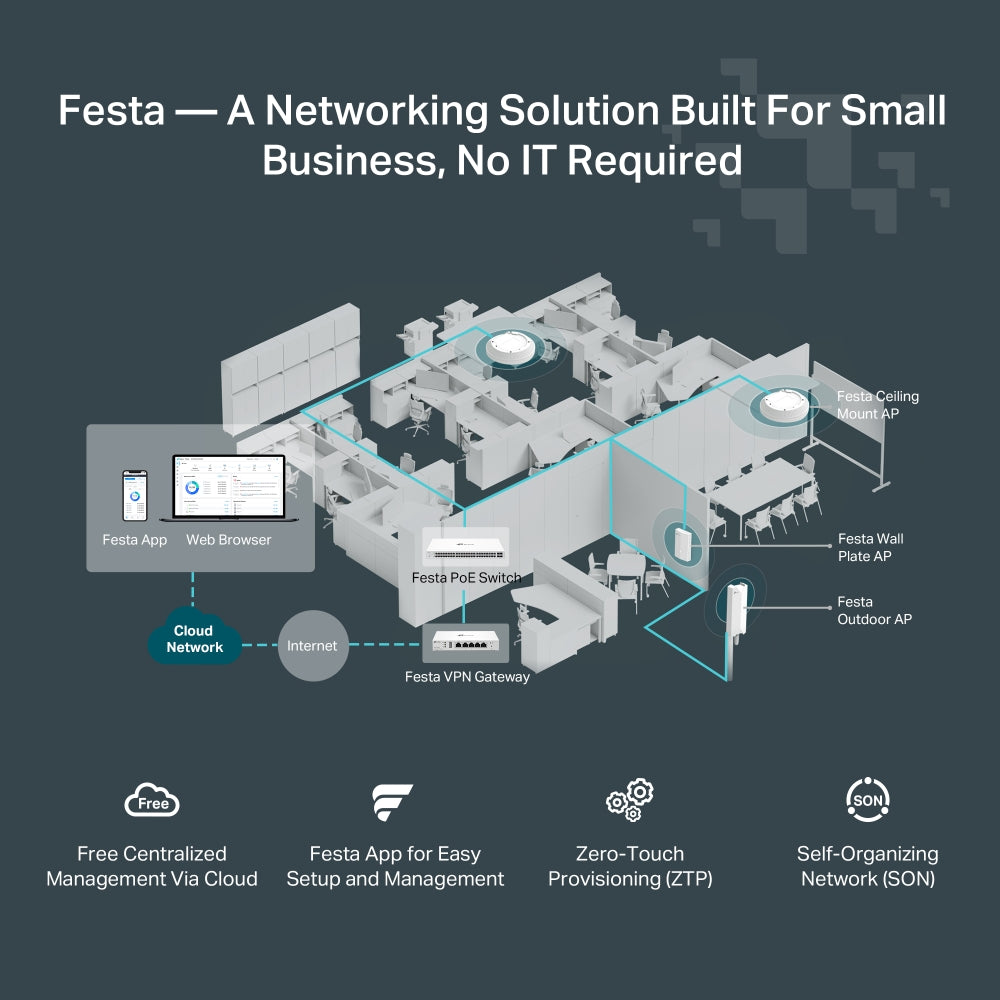

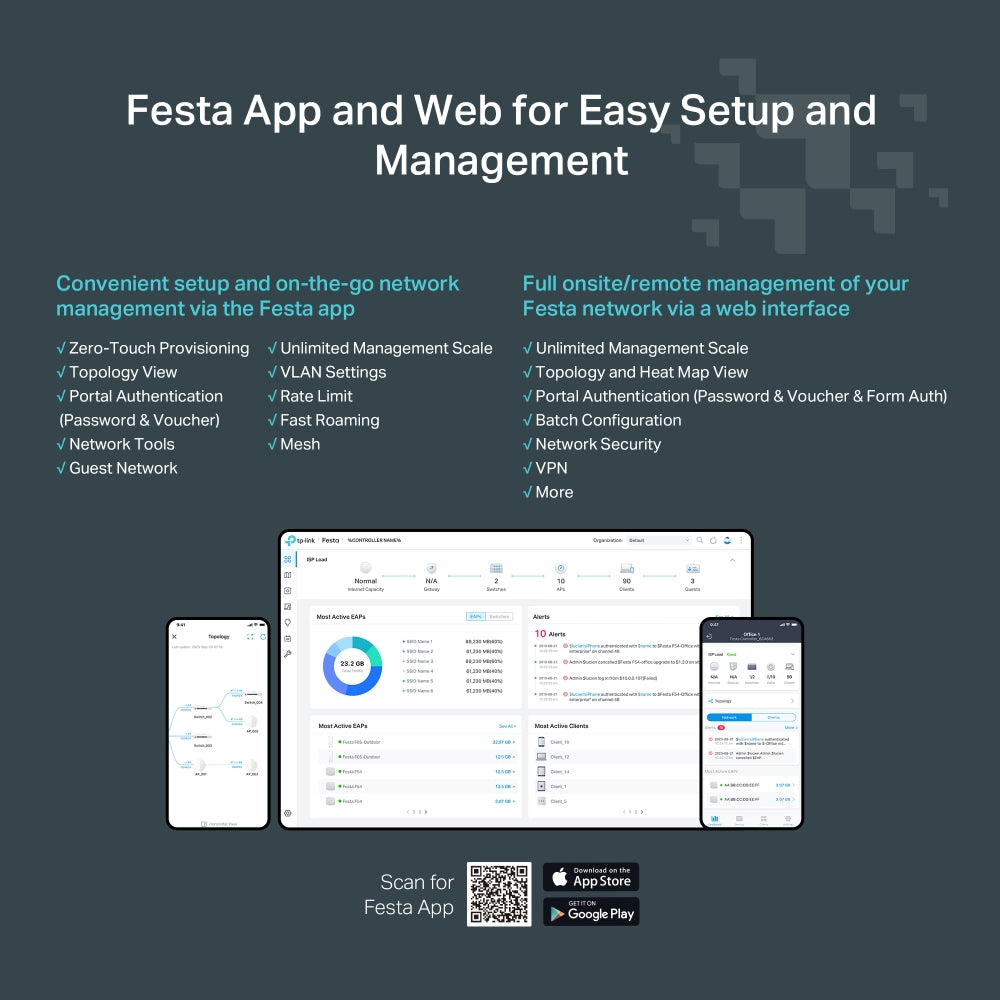

Management runs through the Festa platform: centralised management, free cloud access, the Festa App, zero-touch provisioning, and web management over HTTP or HTTPS. The F65-Wall publishes a fuller management set than the ceiling models, adding email alerts, management MAC access control, management VLAN, L3 management and multi-site management, alongside SNMP v1/v2c/v3, local and remote syslog, SSH and LED on/off control. TP-Link states that Festa cloud access is free today and that it reserves the right to apply fees in future.

Ideal For

Singapore hotels, serviced apartments, student accommodation, co-living operators, clinics and any fit-out where each room needs its own access point plus wired ports, delivered on one cable. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
