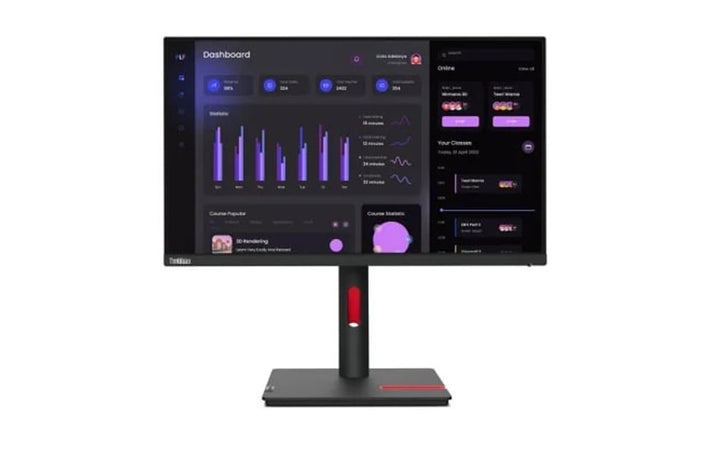

Lenovo ThinkVision T24i-30 23.8 inch FHD Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision T24i-30 (63CFMARXMY) - 3 Years Local Warranty
The 23.8-Inch Standard Office Monitor, Specified Properly
The ThinkVision T24i-30 is the size most Singapore offices standardise on: 23.8 inches, Full HD IPS, with a four-port USB 3.2 Gen 1 hub, a stand offering 155 mm of height adjustment, 45° swivel and 90° pivot, and HDMI, DisplayPort and VGA inputs.
99% sRGB and 110% Colour Area Ratio
Lenovo publishes 99% sRGB coverage with a 110% sRGB colour area ratio on this panel. For everyday office work that means documents, dashboards and brand colours look right without calibration, and two T24i-30s side by side match each other — which matters more in practice than any single-monitor figure.
14 W Typical, EPEAT Gold, TCO 9.0, Eyesafe 2.0
14 W typical consumption with an ENERGY STAR power-on figure of 12 W, and a certification list that clears most procurement checklists outright: EPEAT Gold, ENERGY STAR, TCO Certified 9.0 with TCO edge 2.0, a Volatile Organic Compound certification, Eyesafe Certified 2.0 and TÜV Rheinland Low Blue Light.
A Note on the Warranty Wording
An earlier version of this page stated the warranty in two different forms in two different places. Lenovo publishes one figure: a 3-year limited warranty. Every unit we sell also carries local Singapore warranty support and a GST invoice.
Specification note. Every figure on this page is taken from Lenovo's own PSREF specification sheet for the ThinkVision T24i-30, with any item drawn from Lenovo's product datasheet instead labelled as such in the table. Lenovo publishes monitor specifications per model rather than per part number — the PSREF sheet we link does not itself list this SKU, and the suffix on a part number governs market and packaging rather than the panel or the ports. Where Lenovo publishes no figure, this page says so rather than estimating one, and where two Lenovo documents disagree we show the disagreement. Specifications and prices are subject to change by Lenovo without notice.
Lenovo ThinkVision T24i-30 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision T24i-30 |
| Part Number | 63CFMARXMY |
| Machine Type | 63CF |
| Type | 23.8-inch business monitor |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 23.8" |
| Panel Type | 3-side NearEdgeless In-Plane Switching (IPS), WLED backlight |
| Resolution | 1920 x 1080 (Full HD), 93 dpi |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60 Hz |
| Response Time | 4 ms Extreme mode / 6 ms Normal mode |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB coverage ratio; 110% sRGB colour area ratio |
| Colour Depth | 8-bit (6-bit + FRC), 16.7 million colours |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare; Natural Low Blue Light |
| Bezel | 2 mm sides, 2 mm top, 17.1 mm bottom |
Connectivity
| Video Inputs | 1 x HDMI 1.4, 1 x DisplayPort 1.2, 1 x VGA |
| DisplayPort Out | None — this model cannot daisy-chain a second display |
| USB Hub | 1 x USB-B 3.2 Gen 1 upstream; 4 x USB 3.2 Gen 1 (5 Gbps) downstream. Lenovo publishes no BC 1.2 fast-charge port on this model |
| USB-C | None |
| Network | None |
| Audio Out | 1 x 3.5 mm |
| Speakers | None. Lenovo publishes no built-in speakers for this model — there is a 3.5 mm audio-out for powered speakers or headphones |
| Security | Kensington Security Slot (2.5 x 6 mm and 3 x 7 mm) |
Stand & Ergonomics
| Tilt | -5° to +23.5° |
| Swivel | 45° left and right |
| Pivot | -90° to +90° |
| Height Adjustment | Up to 155 mm |
| VESA | 100 x 100 mm |
Power & Certifications
| Power Consumption | 14 W typical / 51 W maximum |
| ENERGY STAR Power-On | 12 W; TEC 38 kWh |
| Sleep / Off Mode | < 0.5 W |
| Switch-off Mode | < 0.3 W |
| Power Supply | Internal — no external brick |
| Certifications | ENERGY STAR certified; EPEAT Gold registered; RoHS; TCO Certified 9.0; TCO edge 2.0; Volatile Organic Compound certification; Eyesafe Certified 2.0; TÜV Rheinland Low Blue Light |
| Operating Environment | 0°C to 40°C, 10–80% non-condensing |
Physical
| Dimensions with Stand | 539.8 x 199.7 x 349.8 mm at lowest; 504.8 mm high at highest |
| Head Only | 539.8 x 49.0 x 321.4 mm |
| Weight | 5.4 kg with stand; 3.4 kg head only |
| Packaged | 592 x 152 x 422 mm; 7.8 kg |
Compatibility & Fit
Choosing between the T22i-30, T24i-30 and T27i-30. All three share the same stand, the same four-port USB hub and the same three inputs. The differences are size and, importantly, pixel density: the 21.5-inch runs 102 dpi, the 23.8-inch 93 dpi and the 27-inch 82 dpi — all three are 1920 x 1080, so the bigger the screen, the coarser the text. For most desks the 23.8-inch is the sweet spot; go to 27 inches only if physical size matters more than sharpness.
What the USB hub is for. One USB-B cable from the PC lights up four 5 Gbps USB ports on the monitor for keyboard, mouse, headset and storage. Lenovo publishes no BC 1.2 fast-charging port on this model, so treat them as data ports.
The stand, and why it is worth paying for. 155 mm of height adjustment, 45° of swivel each way, 90° of pivot to portrait. A tilt-only monitor cannot put the top of the screen at eye level for a tall or short person; this one can, for both, on the same desk. VESA 100 x 100 mm if you prefer an arm.
What it does not do. No USB-C docking, no Ethernet, no DisplayPort out. If a laptop needs to arrive on one cable, the docking models in this family are the T32h-30, T32p-30 and T34w-30, all in the table below.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Monitor with stand
- 1 x HDMI cable (1.8 m)
- 1 x USB-A to USB-B cable (1.8 m)
- 1 x power cable (1.8 m)
- Quick setup guide and warranty booklet
Note: no DisplayPort cable is supplied. Ask us to add one if you plan to connect over DisplayPort.
ThinkVision T-Series Ordering Information
| 63B0MAR6MY | ThinkVision T22i-30 — 21.5" FHD IPS, 4-port USB hub, full ergonomic stand |
| 63CFMARXMY (this listing) | ThinkVision T24i-30 — 23.8" FHD IPS, 4-port USB hub, full ergonomic stand |
| 63FFMAR1MY | ThinkVision T24d-30 — 24" WUXGA 16:10, 1500:1, speakers, 100 Hz |
| 63A4MAR1WW | ThinkVision T27i-30 — 27" FHD IPS, 300 nits, 4-port USB hub |
| 61F1GAR2WW | ThinkVision T32h-20 — 31.5" QHD, USB-C 75 W, previous generation |
| 63D3GAR1WW | ThinkVision T32h-30 — 31.5" QHD, USB-C 90 W dock, gigabit Ethernet |
| 63D2GAR1WW | ThinkVision T32p-30 — 31.5" 4K, USB-C 90 W dock, GbE, KVM |
| 63D4GAR1WW | ThinkVision T34w-30 — 34" 21:9 curved 1500R VA, USB-C 75 W dock, GbE |
Datasheet & Downloads
PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page unless the table says otherwise. PSREF publishes its spec sheets per model rather than per part number, so this SKU does not appear inside the PDF itself; a per-part-number detail page also exists at psref.lenovo.com and will render in a normal browser if you need this exact configuration confirmed before ordering. Ask us and we will pull it for you.
Frequently Asked Questions — Lenovo ThinkVision T24i-30
Does it have built-in speakers?
No. Lenovo publishes no speakers for this model. There is a 3.5 mm audio-out for powered speakers or headphones. If the desk needs sound from the monitor itself, ask us about the MS30 Monitor Soundbar, which clips onto the ThinkVision T-series chassis and is a separate purchase.
Will 27 inches be better than 23.8?
Bigger, but not sharper. Both the T24i-30 and the T27i-30 are 1920 x 1080. Spread over 27 inches those pixels give 82 dpi against 93 dpi here, so text and interface elements look coarser. If you want a genuinely better 27-inch, look at a QHD or 4K model rather than a larger Full HD one.
Can I connect my laptop with one USB-C cable?
No. The T24i-30 has no USB-C port. Video arrives over HDMI, DisplayPort or VGA, and the USB hub needs its own USB-B cable back to the PC.
Does it rotate to portrait?
Yes — 90° pivot, plus 155 mm of height adjustment and 45° of swivel each way.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells comes with local Singapore warranty support and a GST invoice.
