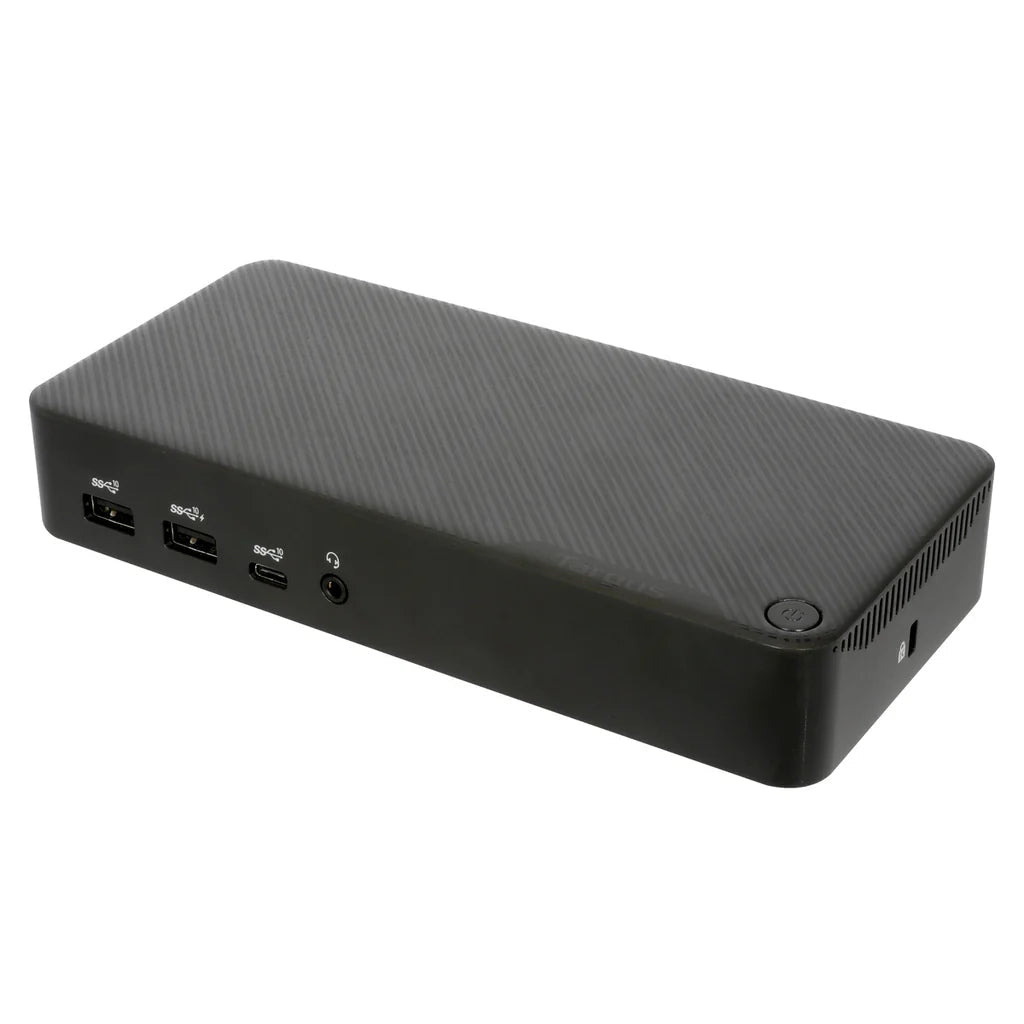

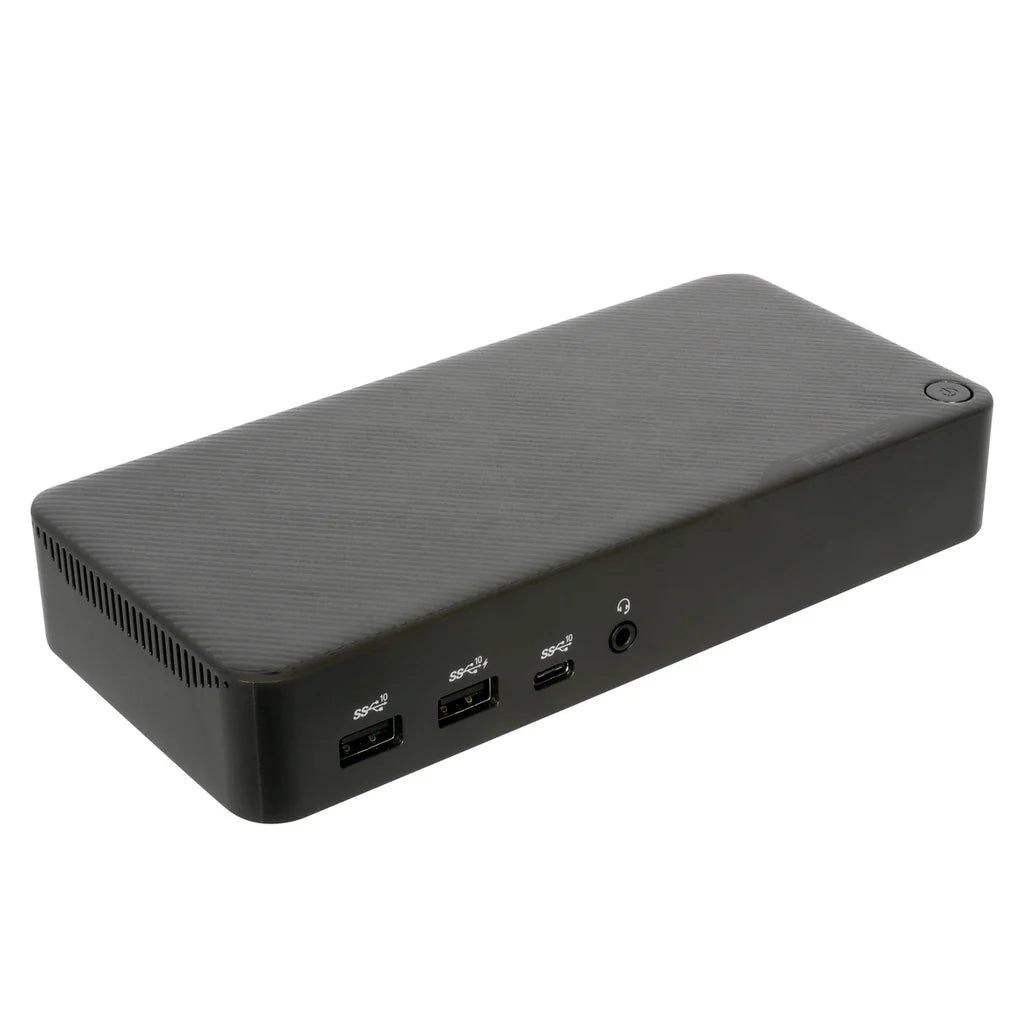

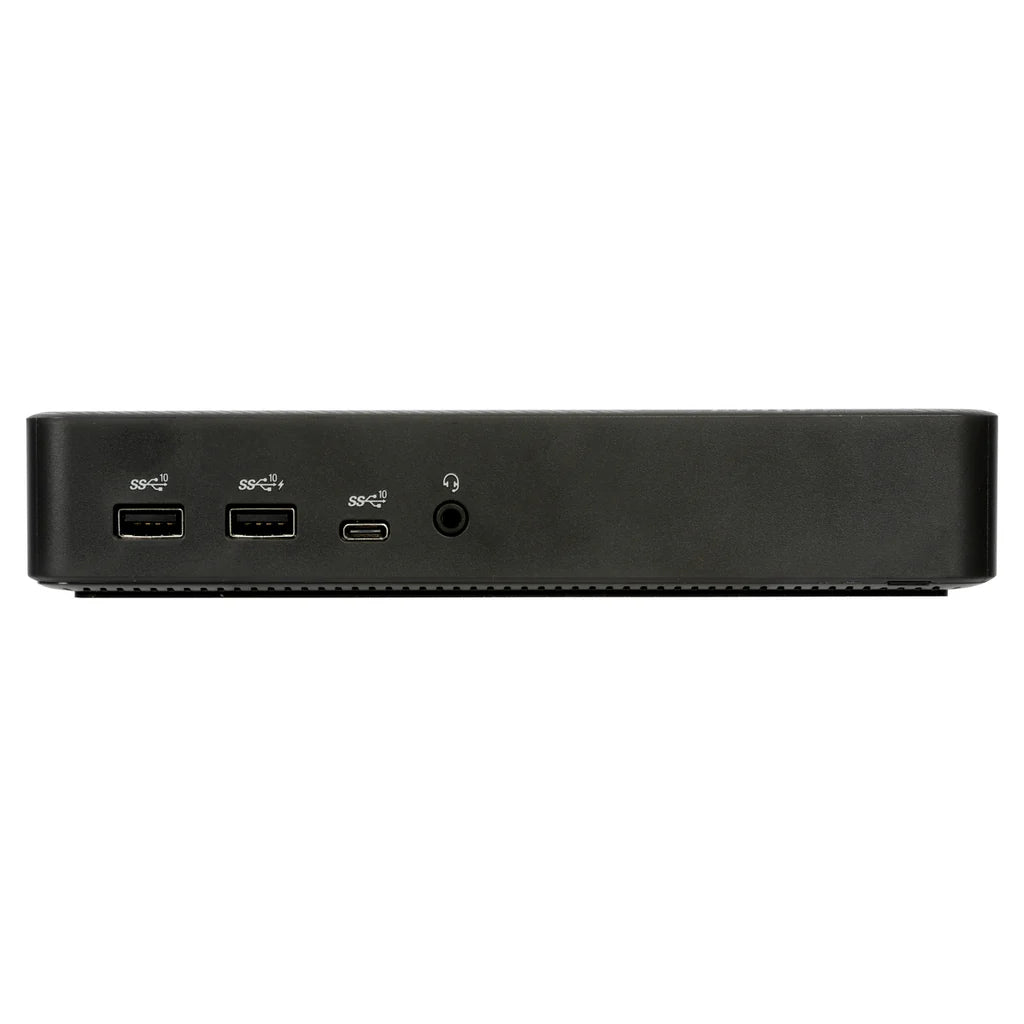

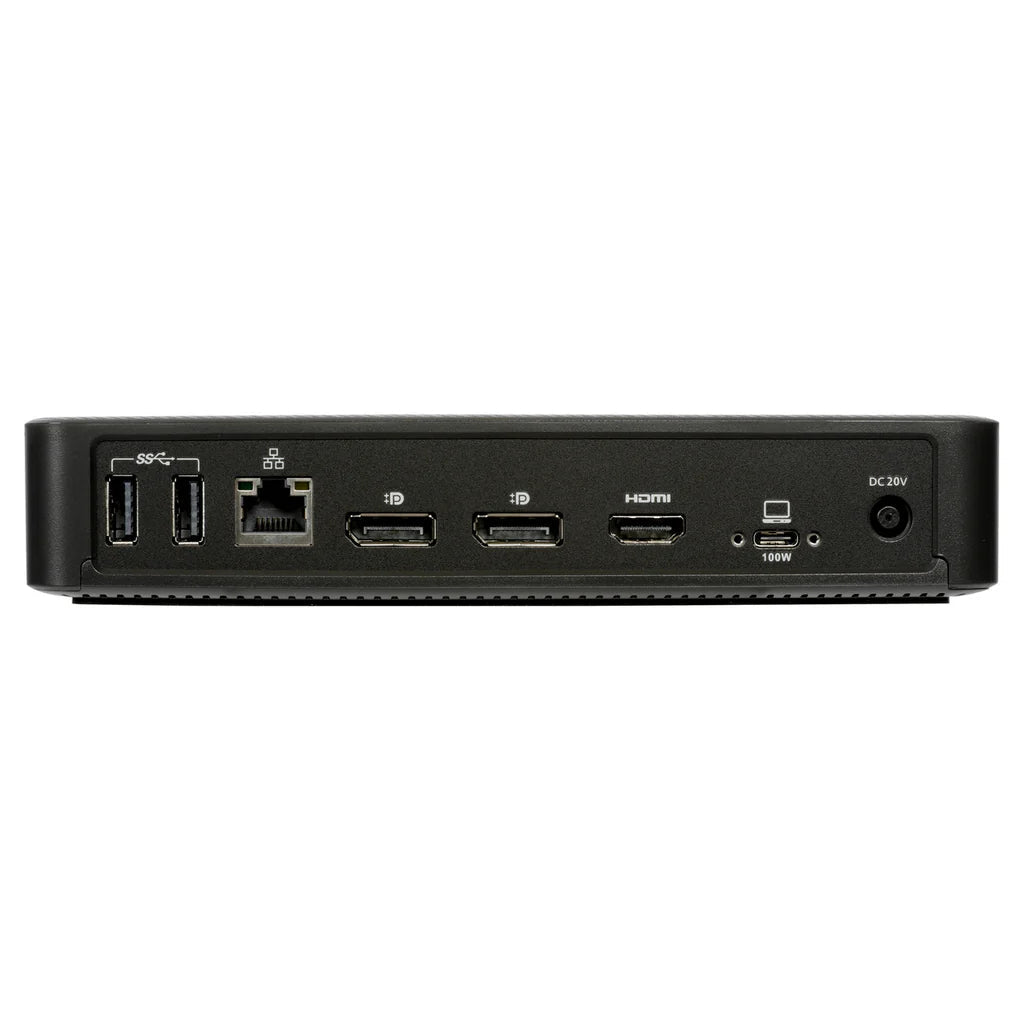

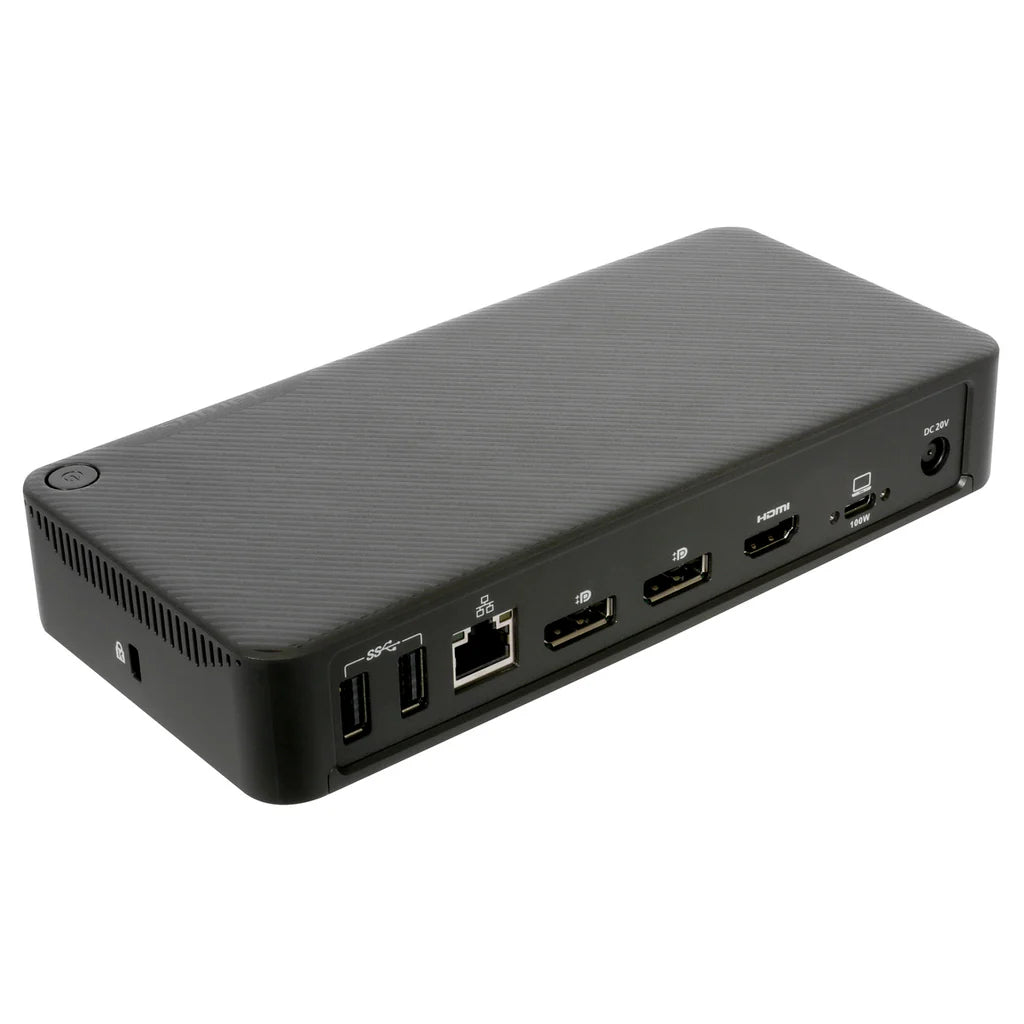

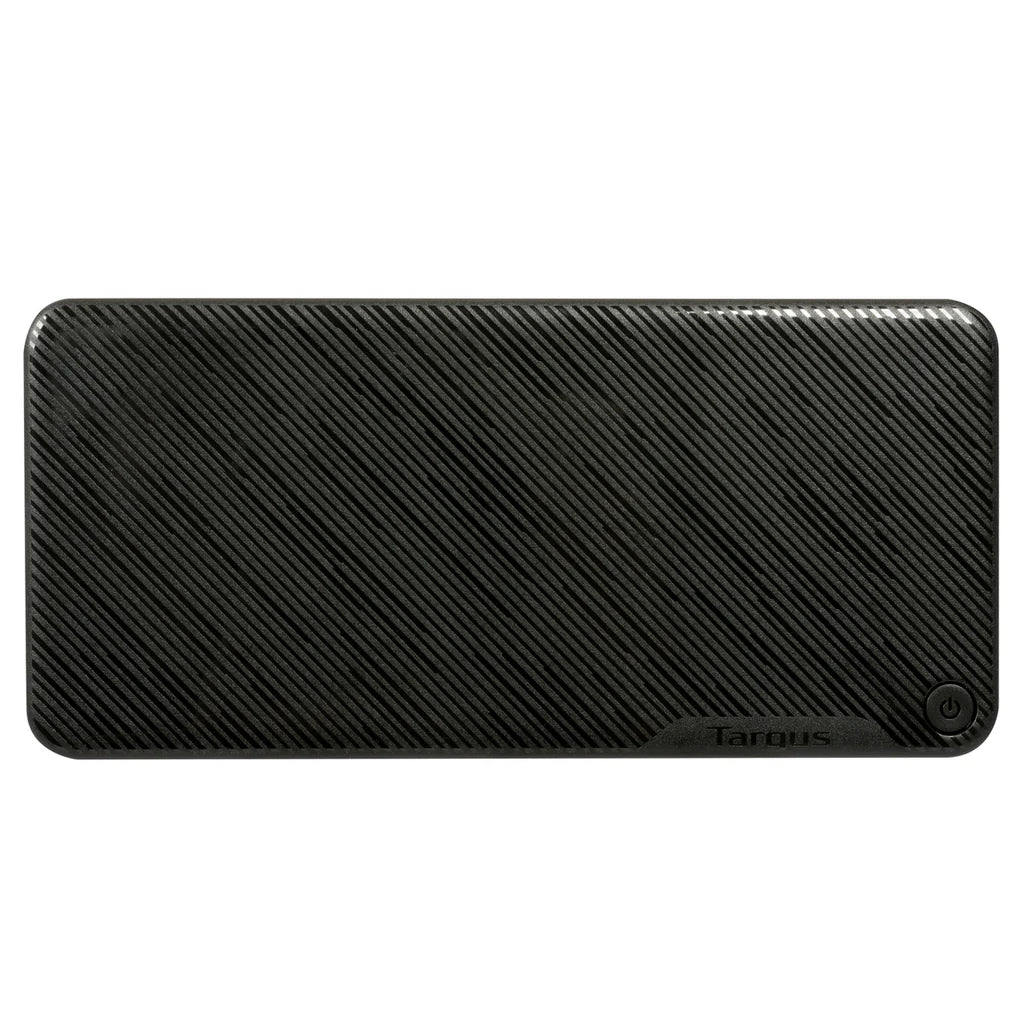

Targus USB4 Triple Video Docking Station 100W Power
PRODUCT DESCRIPTION
Targus USB4 Triple Video Docking Station with 100W Power (DOCK460USZ-50) - 3 Years Local Warranty
One Cable, Three Monitors, Full Laptop Charging
The Targus DOCK460USZ-50 turns a single USB4 cable into a full desk setup. Connect it once and the dock drives up to three external displays, moves data over USB4's 40Gbps link, charges the host notebook at up to 100W, and adds wired 2.5G networking - all from a compact unit that sits flat on a desk or mounts to the back of a monitor. For an IT team rolling out hot-desking or hybrid-work stations, that single-cable connect/disconnect is the whole point: staff plug in once and everything comes up together.
Triple Video Without Juggling Adapters
Video output is 1x HDMI 2.1 plus 2x DisplayPort 1.4, and how many screens you get depends on the host. Over a genuine USB4 connection the dock supports a single display at up to 8K/60Hz, two displays at up to 8K/30Hz, or three displays at up to 4K/60Hz. Connected to a USB-C host running DisplayPort Alt Mode instead of full USB4, the ceiling drops to single 8K/30Hz, dual 4K/60Hz or triple 4K/30Hz. Either way, the days of carrying separate HDMI and DisplayPort dongles for different meeting rooms are over.
Built for the Way IT Actually Deploys Docks
Five USB ports (a mix of USB 3.2 Gen 2 Type-C and Type-A, one Type-A with fast charging), 2.5G Ethernet for wired connections that outrun typical office Wi-Fi, a 3.5mm audio combo jack, and an integrated Kensington lock slot for securing the dock itself at a shared desk. The dock's host cable is a screw-in 1m USB4 lead, so it will not work loose from vibration under a standing desk, and it is compatible with USB4, Thunderbolt 3 and Thunderbolt 4 notebooks. A Targus VESA Mounting Bracket (ACX003GLZ, sold separately) lets you fix the dock to the back of a monitor and keep the desk clear.
Targus DOCK460USZ-50 Datasheet — Technical Specifications
General
| Model Name | USB4 Triple Video Docking Station with 100W Power |
| Part Number (SKU) | DOCK460USZ-50 |
| Manufacturer Warranty | 3 Years, Targus limited warranty |
| Local Warranty (Singapore) | 3 Years, supplied and supported locally by SourceIT |
| Host Connection | USB4 (Thunderbolt 3 and Thunderbolt 4 compatible) |
Video Output

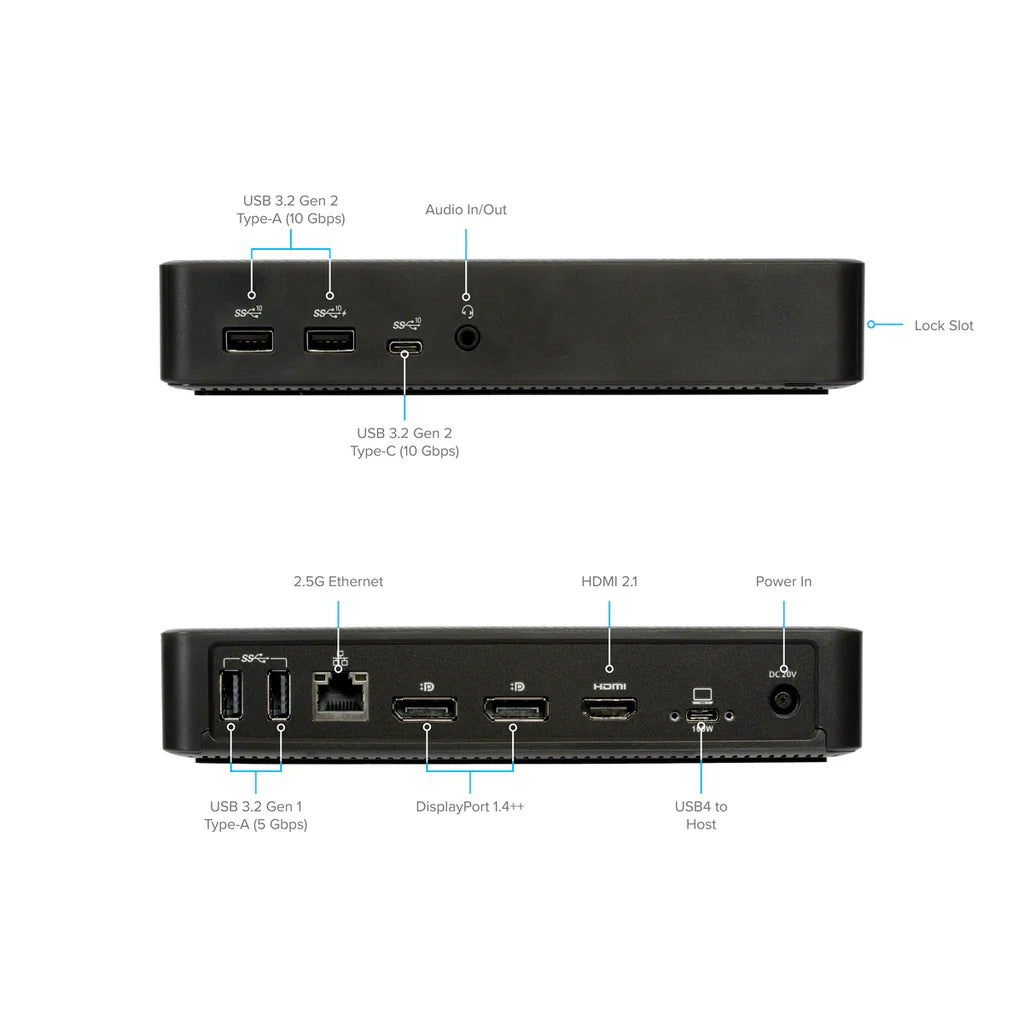

| Video Ports | 1x HDMI 2.1, 2x DisplayPort 1.4 |
| USB4 Host Mode | Single display up to 8K@60Hz, dual display up to 8K@30Hz, or triple display up to 4K@60Hz |
| DisplayPort Alt Mode Host | Single display up to 8K@30Hz, dual display up to 4K@60Hz, or triple display up to 4K@30Hz |
Connectivity (USB, Ethernet, Audio)
| USB-C | 1x USB 3.2 Gen 2 Type-C (10Gbps, 7.5W device charging) |
| USB-A | 3x USB 3.2 Gen 2 Type-A (10Gbps, one with fast charging) + 2x USB 3.2 Gen 1 Type-A (5Gbps) |
| Ethernet | 1x 2.5G RJ45 |
| Audio | 1x 3.5mm combo audio in/out |
| Security | Integrated Kensington-style lock slot |
Power Delivery
| Host Charging | Up to 100W via USB Power Delivery 3.0 |
| AC Adapter Output | 20.5V / 7.31A |
Physical & Environmental
| Host Cable | 1m screw-in USB4 Type-C to Type-C (40Gbps, E-marked) |
| Dimensions | 7.68 x 3.62 x 1.38 in (195 x 92 x 35 mm approx.) |
| Weight | 0.76 lbs (approx. 345 g) |
| Mounting | Compatible with Targus VESA Mounting Bracket ACX003GLZ (sold separately) |
Compatibility
Host connection. The DOCK460USZ-50 connects over USB4 and is backward compatible with Thunderbolt 3 and Thunderbolt 4 notebooks, and with USB-C laptops running DisplayPort Alt Mode (at reduced multi-monitor resolutions as noted in the spec table above).
Operating systems. Supports Windows, macOS, Android, Chrome OS and Ubuntu Linux hosts. Actual display and charging behaviour depends on the host's own USB4/Thunderbolt and USB-C Power Delivery implementation - check your notebook's own USB-C/Thunderbolt port specification if in doubt.
Monitor compatibility. Any monitor with an HDMI or DisplayPort input works. Reaching 8K or triple-4K@60Hz needs both a USB4-capable host and a display that natively supports the target resolution and refresh rate - a display that maxes out at 4K@60Hz will simply run at its own native resolution.
Mounting. The dock is compatible with the Targus VESA Mounting Bracket (ACX003GLZ, sold separately) for fixing it to the rear of a VESA-mount monitor.
Package Contents & Ordering Information

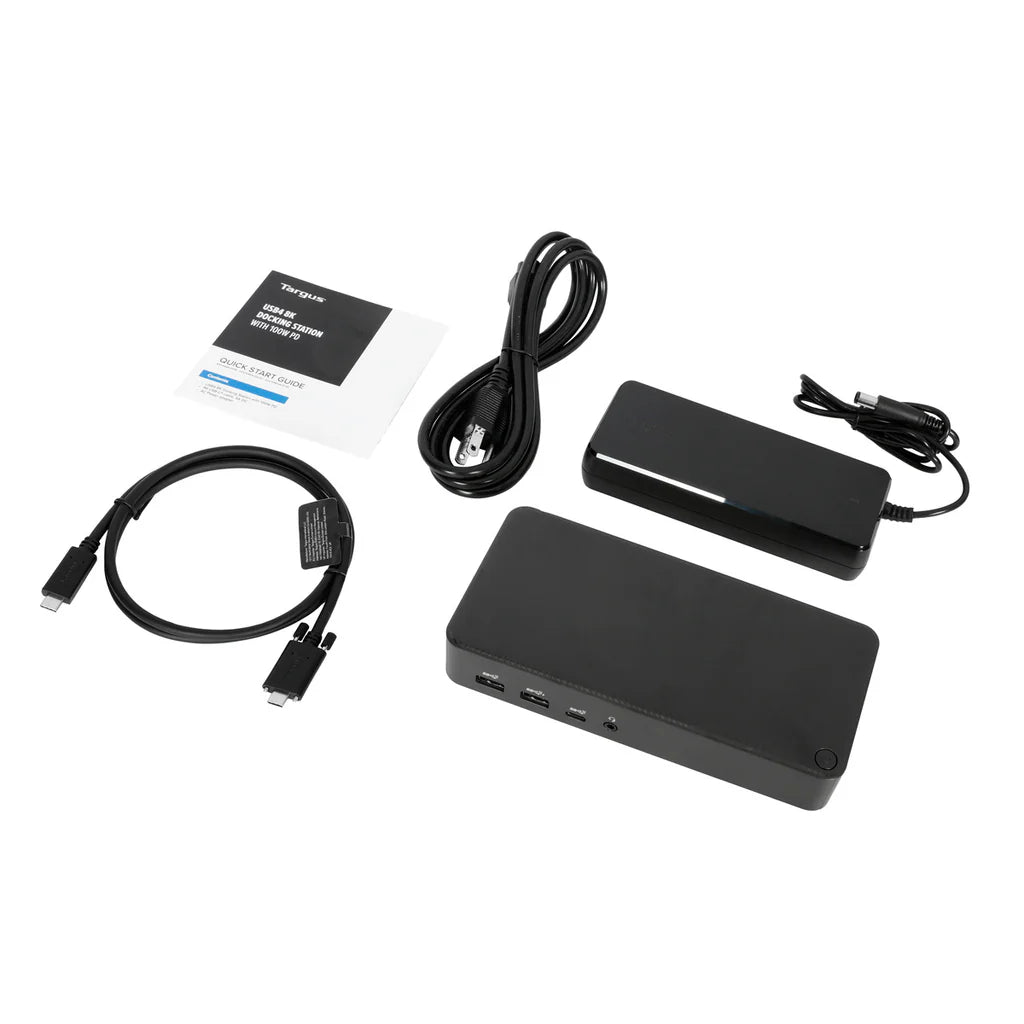

In the box: Targus DOCK460USZ-50 docking station, 1m screw-in USB4 host cable, AC power adapter, quick start guide.
Ships from SourceIT Pte Ltd with a GST invoice and 3-year local Singapore warranty. Contact sales@sourceit.com.sg for bulk pricing on multi-unit rollouts, hot-desk fleets or standardised remote-worker kits.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK460USZ-50, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK460USZ-50
How many monitors can I connect?
Up to three, using the 1x HDMI 2.1 and 2x DisplayPort 1.4 outputs together. The maximum resolution per monitor depends on how many are connected and whether the host is running full USB4 or DisplayPort Alt Mode - see the spec snapshot above.
What is the highest resolution it supports?
A single monitor can run at up to 8K/60Hz over a genuine USB4 host connection. With two monitors the ceiling is 8K/30Hz each, and with three it is 4K/60Hz each.
Will it charge my laptop?
Yes, up to 100W via USB Power Delivery 3.0 to a USB-C or USB4/Thunderbolt host, enough for the great majority of business notebooks to charge while docked.
Is it plug and play?
Yes. No driver installation is required for basic USB, video and Ethernet function on Windows, macOS, Chrome OS and Linux hosts; the dock is detected as a standard USB4 device.
What cable comes in the box?
A 1m screw-in USB4 Type-C to Type-C cable rated at 40Gbps, plus the AC power adapter.
Does it work with Thunderbolt laptops?
Yes, the dock is compatible with Thunderbolt 3 and Thunderbolt 4 hosts as well as native USB4 hosts.
Can I mount it to the back of my monitor?
Yes, using the Targus VESA Mounting Bracket ACX003GLZ, sold separately.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK460USZ-50 sold by SourceIT comes with a 3-year local Singapore warranty and a GST invoice.
