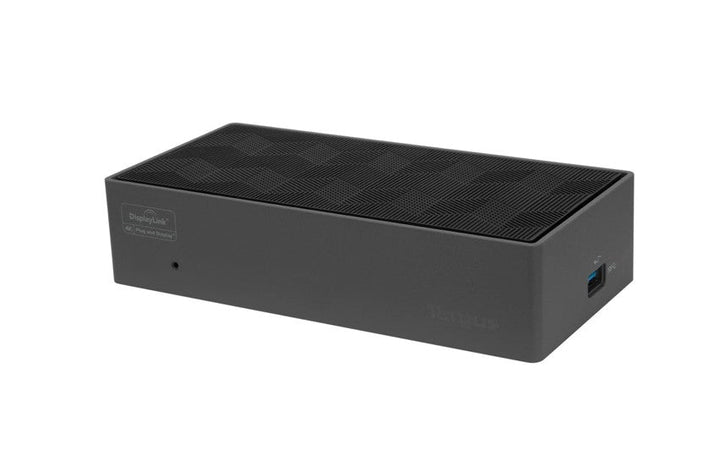

Targus USB-C™ Universal DV4K Docking Station 100W
PRODUCT DESCRIPTION
Targus USB-C Universal DV4K Docking Station with 100W Power (DOCK190APZ) - 3 Years Local Warranty
A True Universal Dock, Built to Work With Almost Everything
The Targus DOCK190APZ is positioned as one of the most universally compatible docks Targus makes, spanning USB-C and Thunderbolt 3 notebooks across Windows, macOS, Chrome OS and Android. For IT teams standardizing on one dock across a mixed device fleet, that breadth of compatibility is the whole point.
Dual 4K Video, Seven Ports of Connectivity
Two HDMI 2.0 and two DisplayPort 1.2 outputs support dual 4K UHD displays at up to 4096x2160@60Hz, backed by four USB-A ports, a second USB-C port, Gigabit Ethernet and a 3.5mm audio combo jack - enough to replace a laptop's entire side panel with one connection.
100W Power Delivery Keeps the Charger at Home
USB Power Delivery supplies up to 100W to the host notebook, covering the charging needs of the great majority of business and mobile-workstation laptops through the same cable that carries video and data.
Targus DOCK190APZ Datasheet — Technical Specifications
General
| Model Name | USB-C Universal DV4K Docking Station with 100W Power |
| Part Number (SKU) | DOCK190APZ |
| Manufacturer Warranty | 3 Years, Targus limited warranty |
| Local Warranty (Singapore) | 3 Years, supplied and supported locally by SourceIT |
| Host Connection | 1x USB-C (host) + 1x USB-C 3.2 Gen 2 |
Video Output
| Video Ports | 2x HDMI 2.0 + 2x DisplayPort 1.2 |
| Max Resolution | Dual 4K UHD displays at up to 4096x2160@60Hz |
Connectivity (USB, Ethernet, Audio)
| USB-A | 4x USB 3.2 Gen 1 Type-A |
| Ethernet | 1x Gigabit Ethernet (RJ45) |
| Audio | 1x 3.5mm combo audio in/out |
Power Delivery
| Host Charging | Up to 100W via USB Power Delivery |
Physical & Environmental
| Dimensions | 20.9 x 8.2 x 3.2 cm |
| Weight | 0.53 kg |
Compatibility
Host connection. Compatible with most USB-C and Thunderbolt 3-enabled notebooks.
Operating systems. Supports Windows, macOS, Chrome OS and Android hosts.
Monitor compatibility. Any monitor with an HDMI or DisplayPort input works with the four video ports. Reaching dual-4K at 60Hz needs a compatible host and displays that natively support the target resolution.
Package Contents & Ordering Information
In the box: Targus DOCK190APZ docking station.
Ships from SourceIT Pte Ltd with a GST invoice and 3-year local Singapore warranty. Contact sales@sourceit.com.sg for volume pricing on mixed-fleet deployments.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK190APZ, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK190APZ
How many monitors can I connect?
Up to two 4K UHD displays at up to 4096x2160@60Hz, using the 2x HDMI 2.0 and 2x DisplayPort 1.2 outputs.
Does it charge my laptop?
Yes, up to 100W via USB Power Delivery.
Is it plug and play?
Yes, no driver installation is required for standard USB, video and Ethernet function on Windows, macOS, Chrome OS and Android.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK190APZ sold by SourceIT comes with a 3-year local Singapore warranty and a GST invoice.
