Targus Thunderbolt 5 Triple Video 8K EcoSmart Dock
PRODUCT DESCRIPTION
Targus Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR (DOCK230USZ-50) - 3 Years Local Warranty
Targus's Flagship Dock, Built Around Thunderbolt 5
The Targus DOCK230USZ-50 is a first-generation Thunderbolt 5 docking station, built for engineering, design and data teams who have outgrown what a USB-C or Thunderbolt 4 dock can push through one cable. Three Thunderbolt 5 downstream ports give it up to 80Gbps of data throughput and up to 120Gbps of display bandwidth per port, so it can drive three 8K displays and still leave headroom that older docks simply do not have.
Triple 8K, One Connector to the Notebook
A single Thunderbolt 5 upstream connection carries video for all three downstream ports, which support single, dual or triple 8K displays depending on what is connected. In the box are a 1.0m passive Thunderbolt 5 cable for the host connection and two 2m USB-C to HDMI 8K cables for displays that only have an HDMI input - so getting to three screens does not mean sourcing extra cables separately.
140W EPR Power and Two-PC Thunderbolt Share
Power Delivery 3.1 EPR gives the DOCK230USZ-50 up to 140W to the primary host (100W under standard PD 3.0, plus 15W to a second connected host), enough headroom for high-draw mobile workstations that many docks cannot fully charge. The dock also supports Intel Thunderbolt Share technology, with the license included, which lets two PCs connected to the same dock share a keyboard, mouse, displays and even files without extra software licensing. It is built from up to 75% post-consumer recycled aluminum and plastic, and carries integrated standard and nano security lock slots plus VESA mount compatibility for fixing it out of the way of the desk.
Targus DOCK230USZ-50 Datasheet — Technical Specifications
General
| Model Name | Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR |
| Part Number (SKU) | DOCK230USZ-50 |
| Manufacturer Warranty | 3 Years, Targus limited warranty |
| Local Warranty (Singapore) | 3 Years, supplied and supported locally by SourceIT |
| Host Connection | 1x Thunderbolt 5 upstream port |
| Materials | Up to 75% post-consumer recycled aluminum and plastic (EcoSmart design) |
Video Output
| Downstream Ports | 3x Thunderbolt 5, up to 120Gbps display bandwidth per port |
| Max Resolution | Single, dual or triple 8K displays, depending on configuration |
| Included HDMI Adapters | 2x USB-C to HDMI 8K cables (2m) for displays without Thunderbolt/USB-C input |

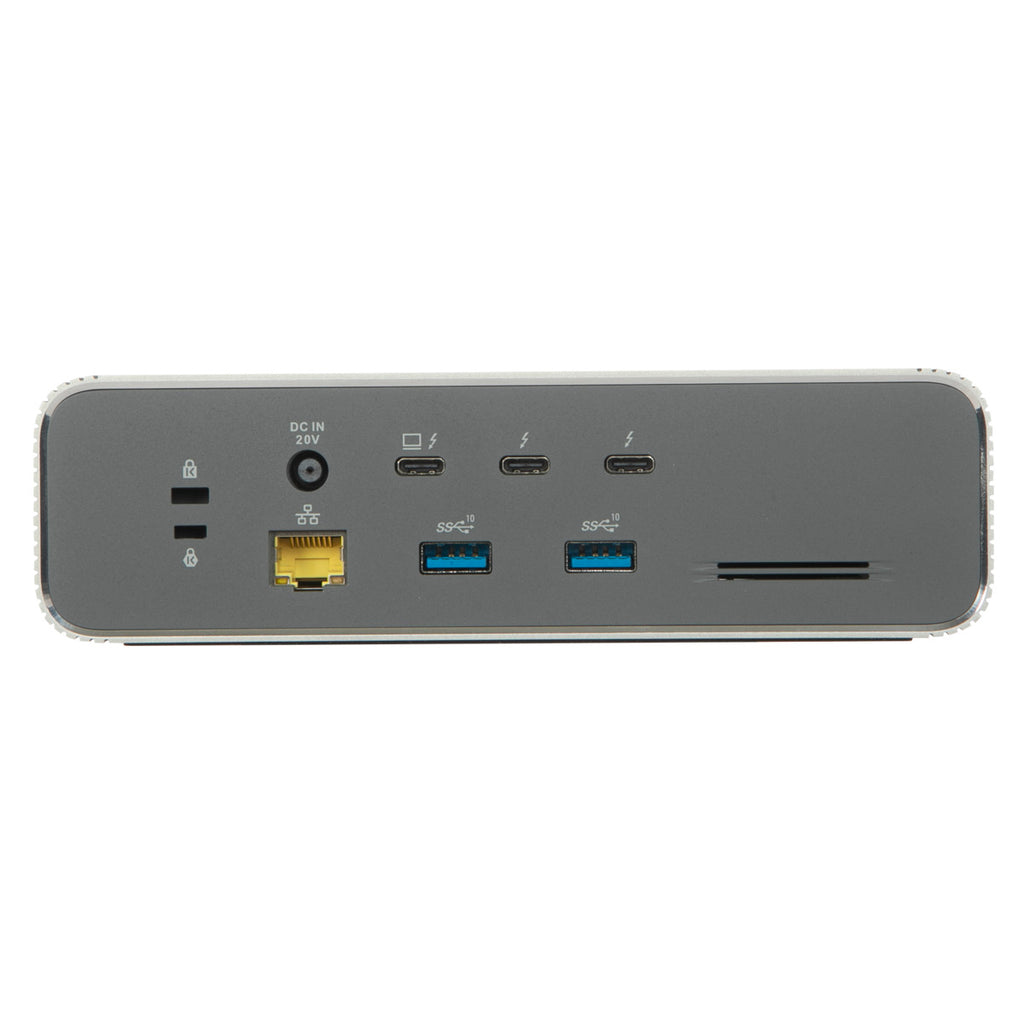

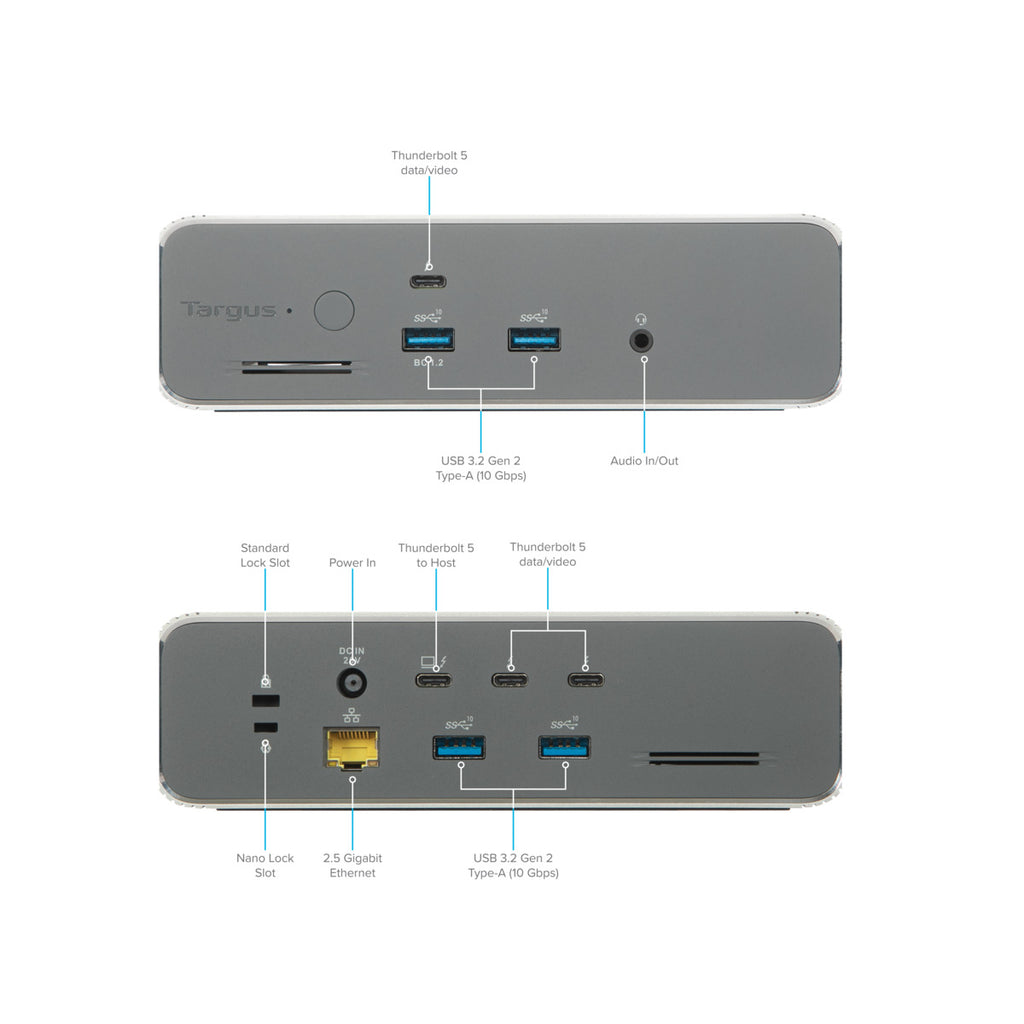

Connectivity (USB, Ethernet, Audio)
| Thunderbolt | 1x Thunderbolt 5 upstream + 3x Thunderbolt 5 downstream, up to 80Gbps data throughput per port |
| USB-A | 4x USB 3.2 Gen 2 Type-A (10Gbps), one with fast charging |
| Ethernet | 1x 2.5 Gigabit Ethernet (RJ45) |
| Audio | 1x 3.5mm combo audio in/out |
| Security | Integrated standard and nano security lock slots |
Power Delivery
| Primary Host Charging | Up to 140W via USB Power Delivery 3.1 EPR (100W under standard PD 3.0) |
| Secondary Host Charging | Up to 15W to a second connected host |
| AC Adapter Output | 20V / 9A (180W) |
Physical & Environmental
| Cables Included | 1x 1.0m passive Thunderbolt 5 host cable (detachable, Type-C to Type-C) + 2x 2m USB-C to HDMI 8K cables |
| Dimensions | 7 x 3.13 x 2 in |
| Weight | 2.33 lbs (approx. 1.06 kg) |
| Color | Silver |
| Mounting | VESA mount compatible (bracket sold separately) |
| Special Feature | Supports Intel Thunderbolt Share technology (license included) for sharing displays, keyboard, mouse and files between two connected PCs |
Compatibility
Host connection. Requires a Thunderbolt 5 host port for the dock's full triple-8K, 80Gbps data and 140W EPR capability. Thunderbolt 5 is backward compatible with Thunderbolt 4, Thunderbolt 3 and USB4 hosts, but connecting to an earlier-generation port lowers the achievable bandwidth, display count and power delivery below the Thunderbolt 5 figures quoted above.
Operating systems. Supports Windows and macOS hosts with Thunderbolt support. Confirm your specific notebook's Thunderbolt generation before ordering if triple-8K output is a requirement.
Monitor compatibility. Displays with Thunderbolt/USB-C DisplayPort input connect directly to the three downstream ports; HDMI-only displays use the two included USB-C to HDMI 8K cables.
Thunderbolt Share. The two-PC sharing feature requires both connected computers to support Intel Thunderbolt Share and be connected to the same DOCK230USZ-50.
Package Contents & Ordering Information
In the box: Targus DOCK230USZ-50 docking station, 1.0m passive Thunderbolt 5 host cable, 2x 2m USB-C to HDMI 8K cables, AC power adapter (180W), quick start guide.
Ships from SourceIT Pte Ltd with a GST invoice and 3-year local Singapore warranty. Contact sales@sourceit.com.sg for engineering-workstation or multi-monitor fleet deployment pricing.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK230USZ-50, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK230USZ-50
How many monitors can I connect?
Up to three 8K displays across the three Thunderbolt 5 downstream ports, or fewer displays at the same 8K ceiling.
What resolution and refresh rate does it support?
Each of the three downstream ports carries up to 120Gbps of display bandwidth, enabling single, dual or triple 8K display configurations depending on what is connected.
Does it charge my laptop?
Yes, up to 140W to the primary host via USB Power Delivery 3.1 EPR (100W on standard PD 3.0 hosts), plus up to 15W to a second connected host.
Do I need Thunderbolt 5 on my laptop to use this dock?
Thunderbolt 5 is required to reach the full triple-8K, 80Gbps data and 140W EPR figures. The dock is backward compatible with Thunderbolt 4, Thunderbolt 3 and USB4 hosts, but bandwidth, display count and charging power are lower on those connections.
Is it plug and play?
Yes, no driver installation is required for standard Thunderbolt, USB and video function on Windows and macOS.
What cables are included?
A 1.0m passive Thunderbolt 5 host cable and two 2m USB-C to HDMI 8K cables for HDMI-only displays, plus the 180W AC power adapter.
What is Intel Thunderbolt Share, and is it really included?
It is Intel's technology for sharing a keyboard, mouse, displays and files between two PCs connected to the same dock. The DOCK230USZ-50 supports it with the license included, so there is no separate software purchase needed to use the feature.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK230USZ-50 sold by SourceIT comes with a 3-year local Singapore warranty and a GST invoice.
