Targus Dual 4K DisplayLink Docking Station with 100W
PRODUCT DESCRIPTION
Targus USB-C Universal DV4K Docking Station with 100W Power Delivery (DOCK182USZ-80) - 3 Years Local Warranty
Dual 4K, Four Video Outputs, One Cable
The Targus DOCK182USZ-80 gives a USB-C notebook dual DisplayPort and dual HDMI outputs in one dock, so it can drive two external 4K UHD displays at 60Hz without hunting for the right combination of adapters. It's built for desk setups that need genuine dual-4K clarity rather than a single ultra-wide compromise.
100W Charging Through the Same Cable
USB Power Delivery 3.0 passes up to 100W to the host notebook, enough for the great majority of business and mobile-workstation laptops to charge fully while docked. A detachable 1m USB-C host cable means a worn cable can be replaced without swapping the whole dock, and an integrated Kensington-style lock slot secures the unit at a shared desk.

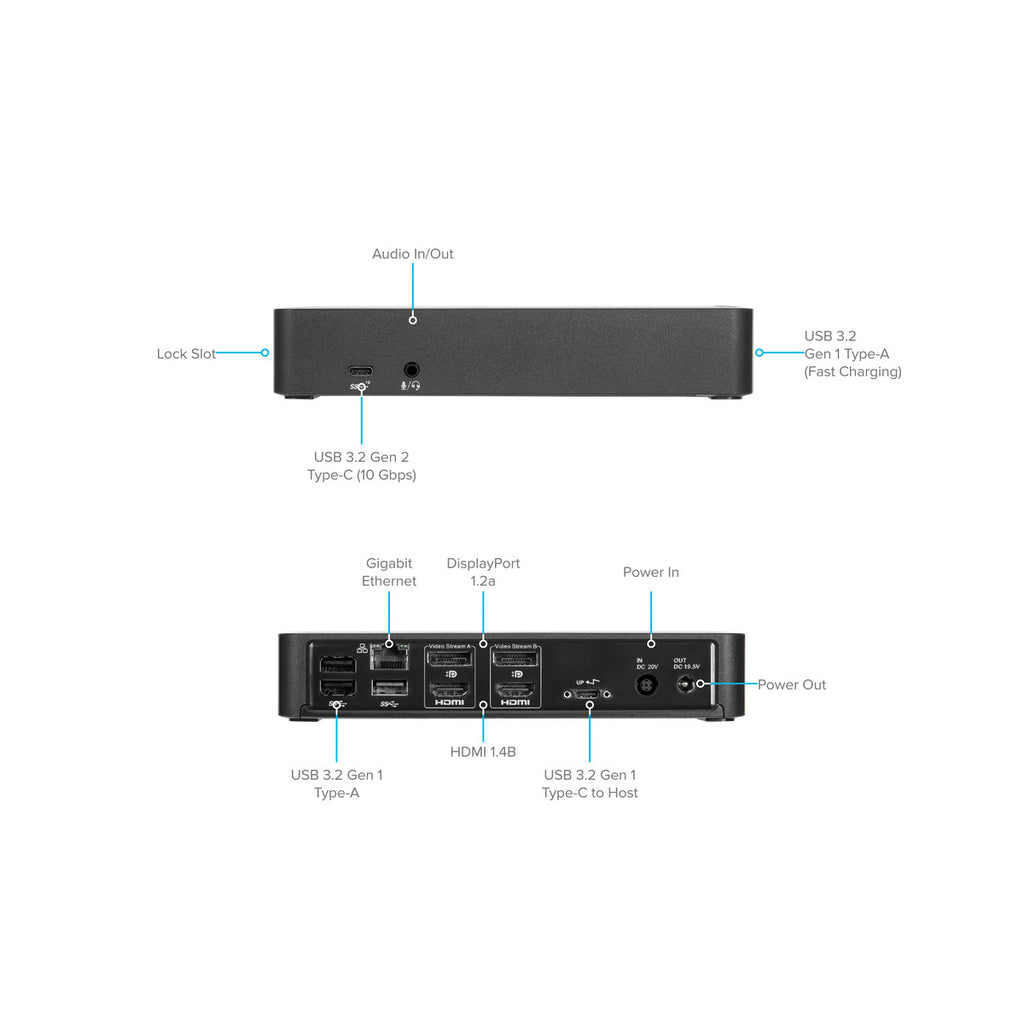

Built-In Ethernet and a Full Port Spread
Beyond video and power, the dock adds 4x USB-A 3.2 Gen 1 ports (one with fast charging), Gigabit Ethernet for wired networking, and a 3.5mm audio combo jack - enough connectivity to replace a laptop's entire side panel with one cable.
Targus DOCK182USZ-80 Datasheet — Technical Specifications
General
| Model Name | USB-C Universal DV4K Docking Station with 100W Power Delivery |
| Part Number (SKU) | DOCK182USZ-80 |
| Manufacturer Warranty | 3 Years, Targus limited warranty |
| Local Warranty (Singapore) | 3 Years, supplied and supported locally by SourceIT |
| Host Connection | 1x USB 3.2 Gen 2 Type-C (10Gbps) |
Video Output

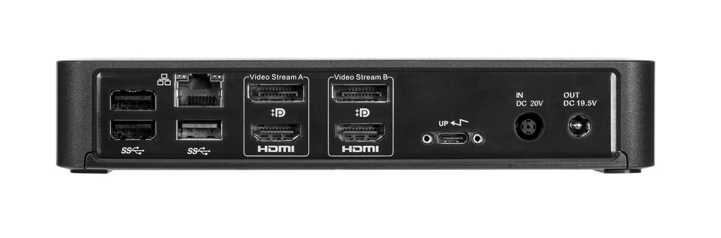

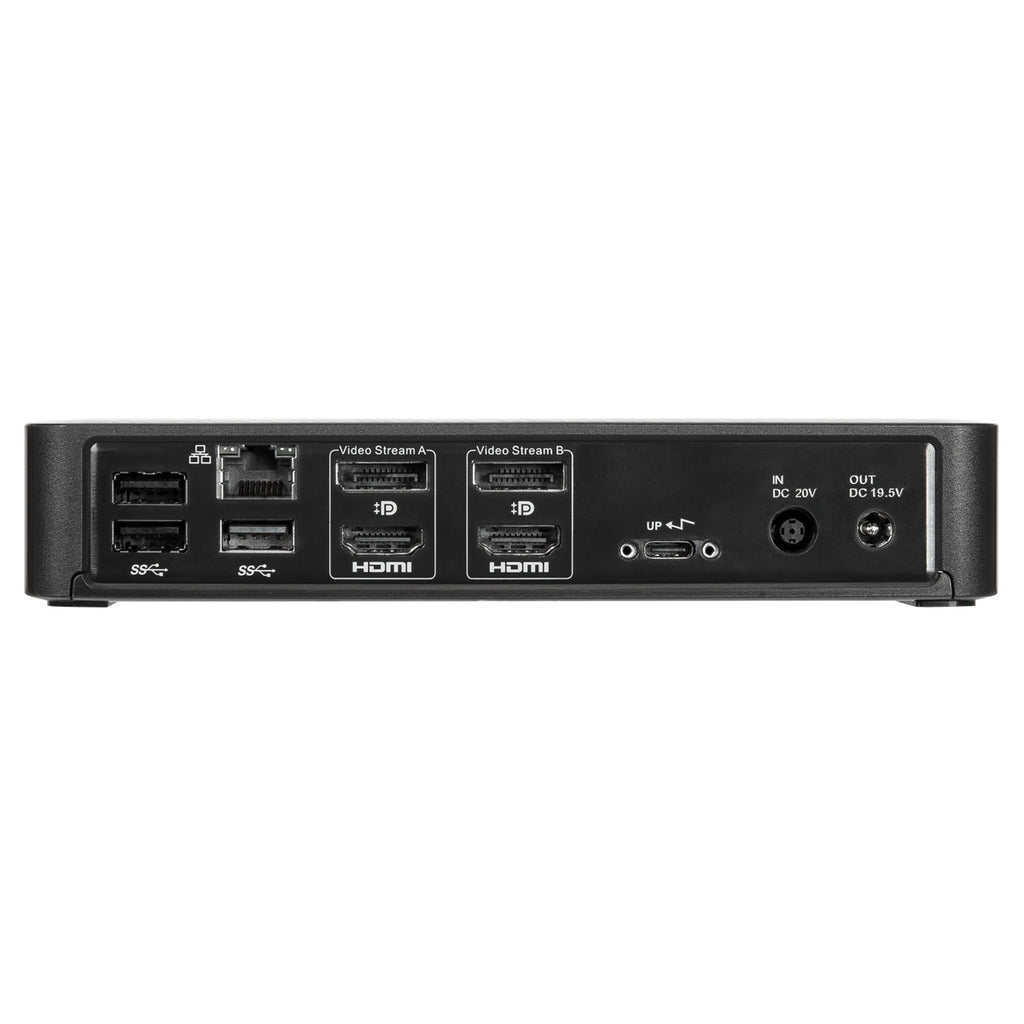

| Video Ports | 2x DisplayPort 1.2a + 2x HDMI 2.0 |
| Max Resolution | Single or dual 4K UHD displays at 60Hz |
Connectivity (USB, Ethernet, Audio)
| USB-A | 4x USB 3.2 Gen 1 Type-A (one with fast charging) |
| Ethernet | 1x Gigabit Ethernet (RJ45) |

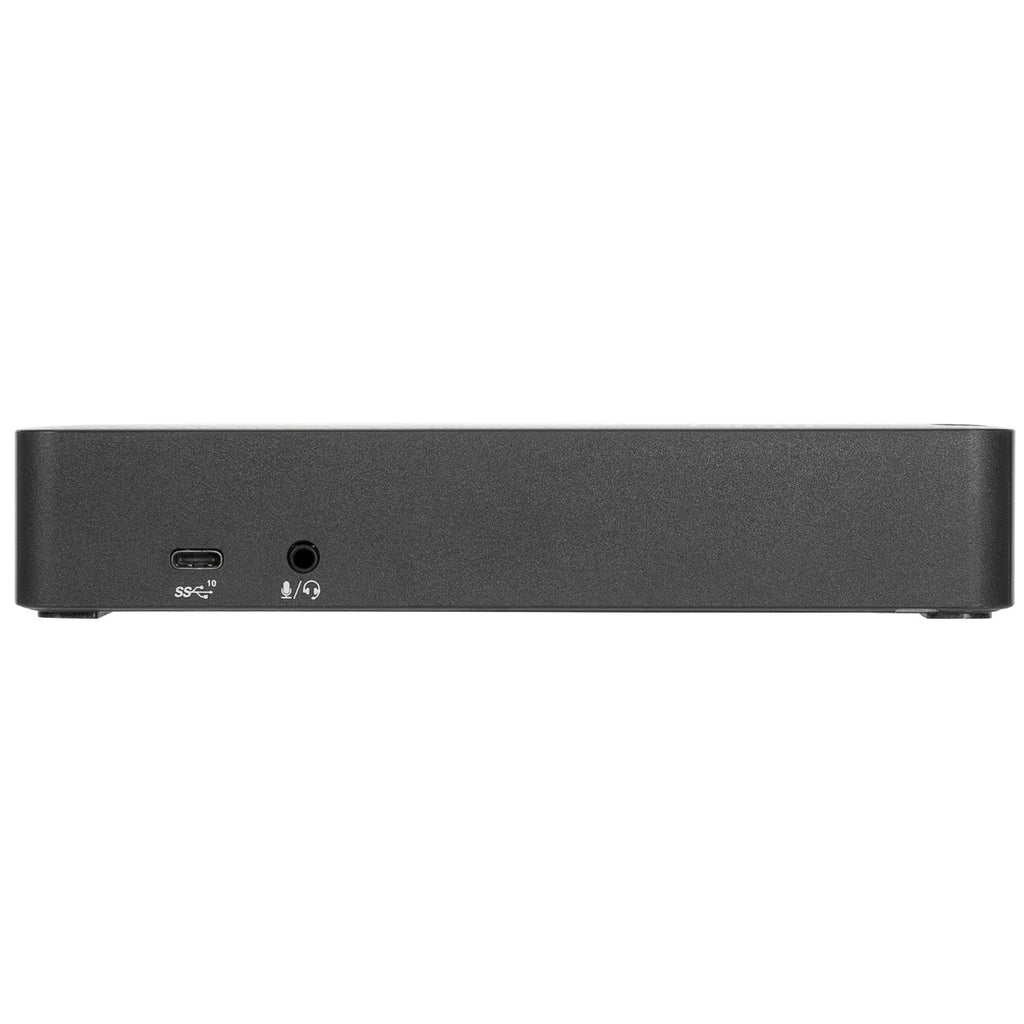

| Audio | 1x 3.5mm combo audio in/out |
| Security | Integrated Kensington T-bar lock slot |
Power Delivery
| Host Charging | Up to 100W via USB Power Delivery 3.0 |
| AC Adapter Output | 19V / 7.89A (150W) |
Physical & Environmental
| Host Cable | 1m detachable USB-C host cable (Type-C male to Type-C male), tethered USB-A adapter |
| Dimensions | 7.06 x 3.25 x 1.25 in |
| Weight | 0.76 lbs (approx. 345 g) |
Compatibility
Host connection. Requires a USB-C host port supporting DisplayPort Alt Mode and USB Power Delivery for full dual-4K video and 100W charging.
Operating systems. Supports Windows and macOS hosts with USB-C DisplayPort Alt Mode support.
Monitor compatibility. Any monitor with an HDMI or DisplayPort input works with the four video ports. Reaching dual-4K at 60Hz needs both a compatible host and displays that natively support the target resolution.
Package Contents & Ordering Information

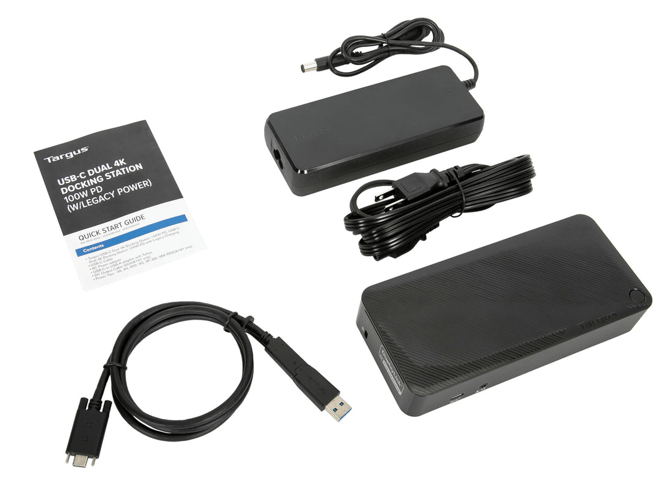

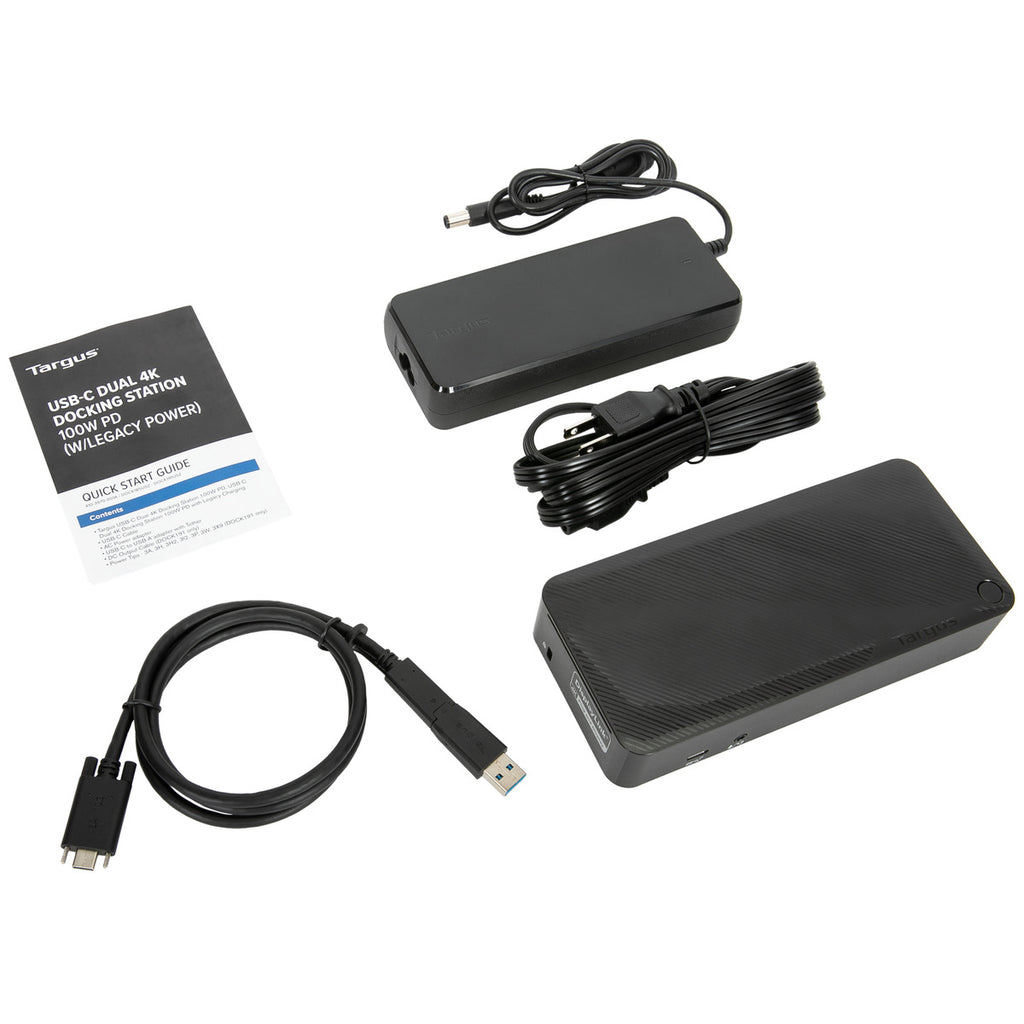

In the box: Targus DOCK182USZ-80 docking station, 1m detachable USB-C host cable with tethered USB-A adapter, AC-to-DC power adapter (150W), 1.8m AC power cable (C5 connector).
Ships from SourceIT Pte Ltd with a GST invoice and 3-year local Singapore warranty. Contact sales@sourceit.com.sg for volume pricing on multi-unit rollouts.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK182USZ-80, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK182USZ-80
How many monitors can I connect?
Up to two, using the 2x DisplayPort 1.2a and 2x HDMI 2.0 ports, both at up to 4K UHD/60Hz.
Does it charge my laptop?
Yes, up to 100W via USB Power Delivery 3.0.
Is it plug and play?
Yes, no driver installation is required for standard USB, video and Ethernet function on Windows and macOS.
What cable is included, and can it be replaced?
A 1m detachable USB-C host cable with a tethered USB-A adapter. Because it's detachable rather than hardwired, a damaged cable can be swapped without replacing the dock.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK182USZ-80 sold by SourceIT comes with a 3-year local Singapore warranty and a GST invoice.
