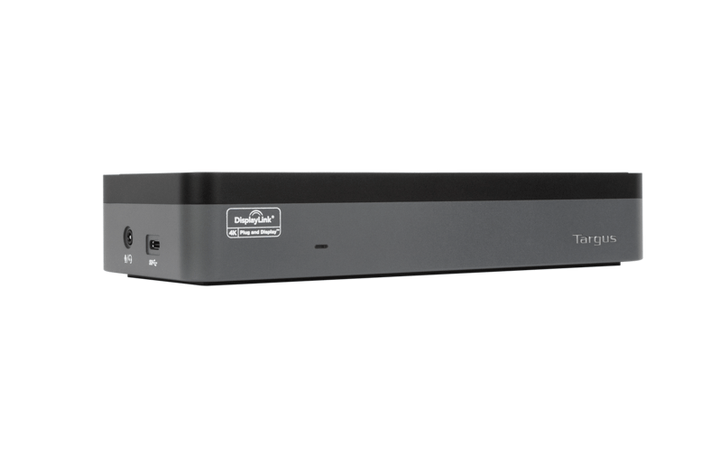

Targus USB-C Universal QUAD 4K Docking Station 100W
PRODUCT DESCRIPTION
Targus USB-C Universal Quad 4K Docking Station with 100W Power Delivery (DOCK570USZ-80) - 3 Years Local Warranty
Four 4K Monitors From a Single USB-C Cable
The Targus DOCK570USZ-80 was the industry's first USB-C dock to drive four independent 4K UHD displays from a single host connection, using DisplayLink technology rather than relying solely on the host GPU's native video output. That makes it a genuine option for trading floors, control rooms and analyst desks that need four full 4K screens rather than one oversized panel.

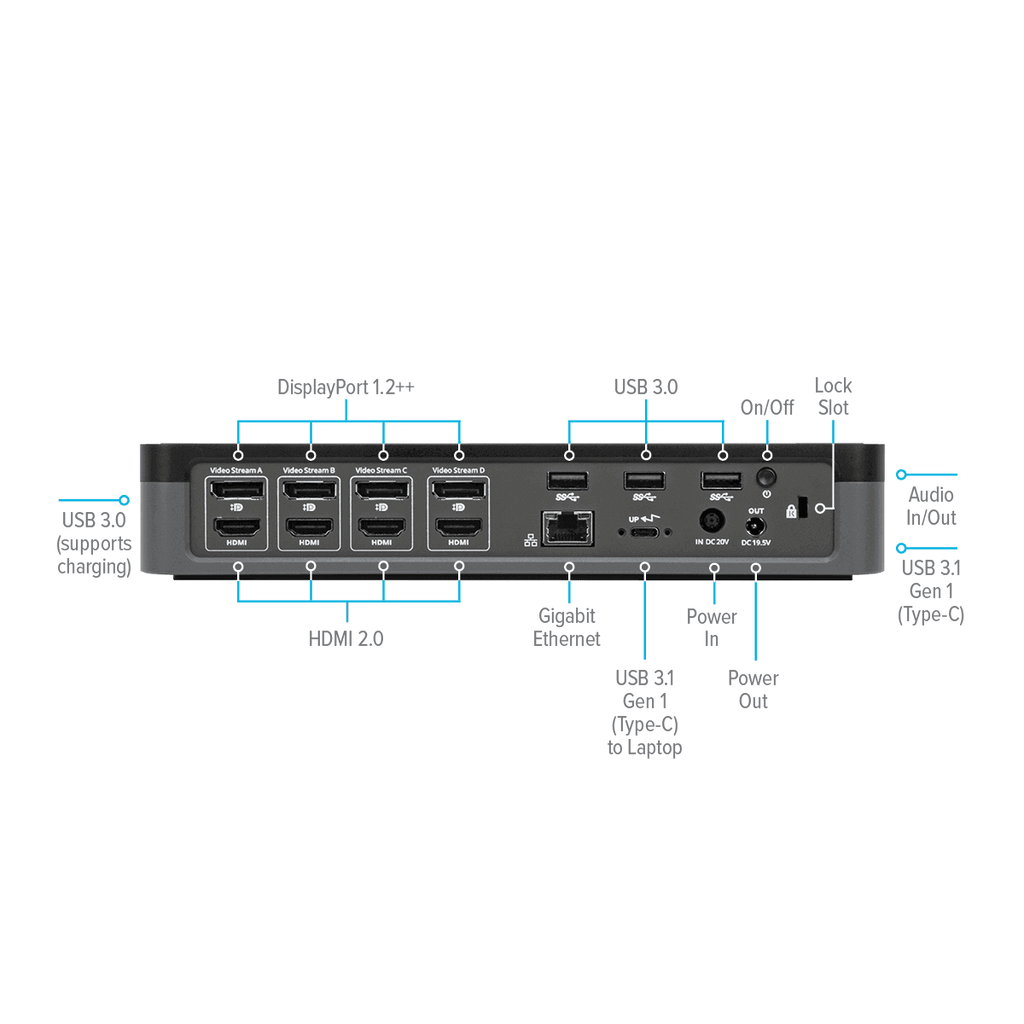

Eight Video Ports, Four Screens at 4K/60

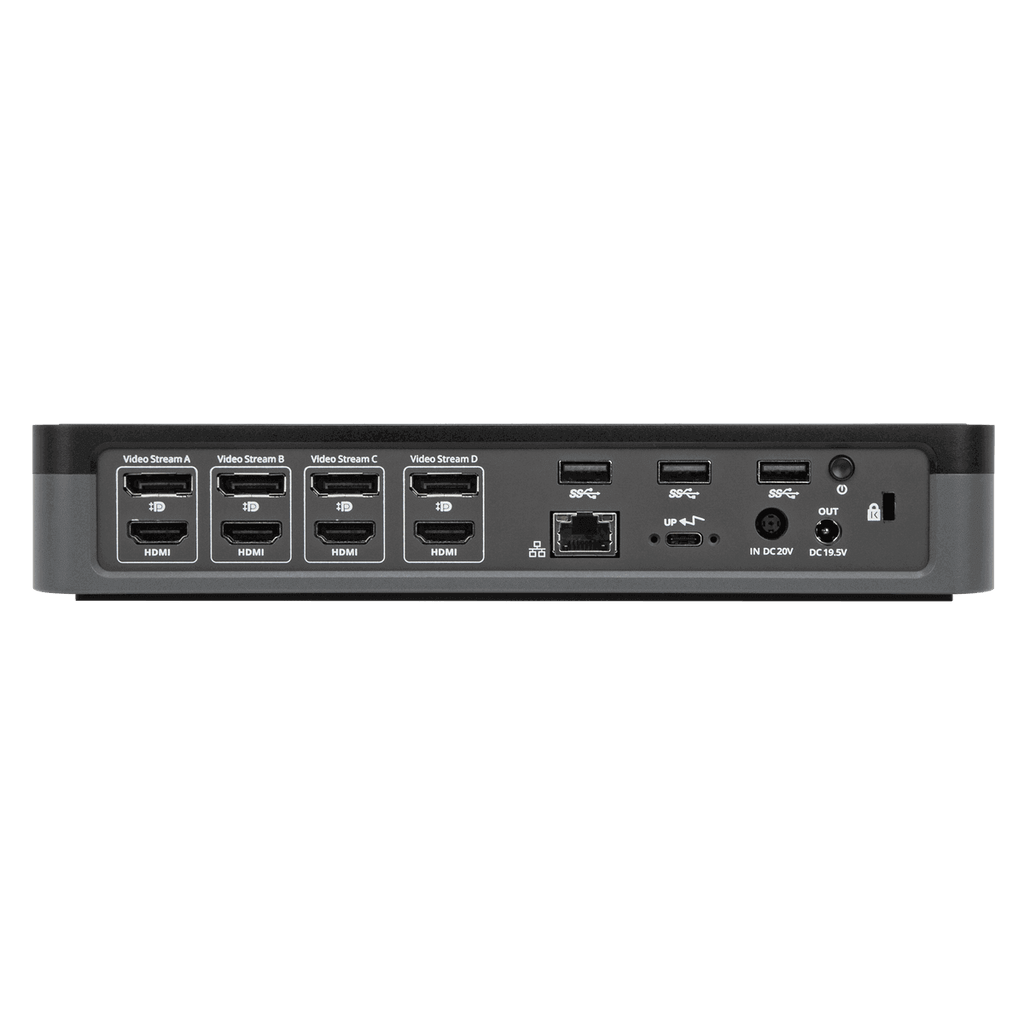

Four DisplayPort and four HDMI ports are available (use either set, or a mix, depending on your monitors), supporting up to a 5K single display or four 4K UHD displays simultaneously at 60Hz on DisplayPort / 50Hz on HDMI.
100W Charging Plus a Legacy Power-Tip Kit
USB Power Delivery supplies up to 100W to a USB-C host (90W for legacy notebooks using the included barrel-tip adapters for Acer, ASUS, Dell, HP, Lenovo/IBM and Toshiba), so the same dock can serve both a modern USB-C fleet and older machines still on proprietary chargers.
Targus DOCK570USZ-80 Datasheet — Technical Specifications
General
| Model Name | USB-C Universal Quad 4K Docking Station with 100W Power Delivery |
| Part Number (SKU) | DOCK570USZ-80 |
| Manufacturer Warranty | 3 Years, Targus limited warranty |
| Local Warranty (Singapore) | 3 Years, supplied and supported locally by SourceIT |
| Host Connection | 1x USB 3.2 Gen 1 Type-C (DisplayLink) |
| Color | Black |
Video Output
| DisplayPort | 4x DisplayPort, up to 3840x2160@60Hz each |
| HDMI | 4x HDMI, up to 3840x2160@50Hz each |
| Max Configuration | Single 5K display, or up to four independent 4K UHD displays |
Connectivity (USB, Ethernet, Audio)
| USB-A | 4x USB 3.2 Gen 1 Type-A (one with fast charging) |
| Ethernet | 1x Gigabit Ethernet (RJ45) |
| Audio | 1x 3.5mm combo audio in/out |
| Security | Kensington T-Bar lock slot compatible |
Power Delivery
| Host Charging | Up to 100W DC (90W for legacy notebooks with barrel-tip power) |
| AC Adapter Output | 20V / 9A (180W) |
| Legacy Power Tips | Included for Acer, ASUS, Dell, HP, IBM/Lenovo and Toshiba |
Physical & Environmental
| Dimensions | 3.46 x 8.15 x 1.69 in (W x H x D) |
| Weight | 1.50 lbs (approx. 680 g) |
Compatibility
Host connection. Uses DisplayLink technology, which requires DisplayLink drivers on the host for video output - it is not a native DisplayPort Alt Mode pass-through dock.
Operating systems. Supports Windows and macOS hosts with DisplayLink drivers installed.
Legacy notebooks. Included power tips extend charging compatibility to notebooks that still use a proprietary barrel-tip charger rather than USB-C PD.
Package Contents & Ordering Information
In the box: Targus DOCK570USZ-80 docking station, USB-C to USB-A host adapter (ACC1104GLX), 1m USB-C to USB-C host cable, AC-to-DC adapter (180W) with AC power cord, legacy power tips for Acer, ASUS, Dell, HP, IBM/Lenovo and Toshiba.
Ships from SourceIT Pte Ltd with a GST invoice and 3-year local Singapore warranty. Contact sales@sourceit.com.sg for volume pricing on trading-floor or control-room multi-monitor deployments.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK570USZ-80, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK570USZ-80
How many monitors can I connect?
Up to four independent 4K UHD displays, using the 4x DisplayPort and 4x HDMI outputs, or a single display at up to 5K.
Do I need special drivers?
Yes, this dock uses DisplayLink technology for its multi-monitor video output, which requires DisplayLink drivers on Windows and macOS.
Does it charge my laptop?
Yes, up to 100W DC to a USB-C host, or 90W to legacy notebooks using the included barrel-tip power adapters.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK570USZ-80 sold by SourceIT comes with a 3-year local Singapore warranty and a GST invoice.
