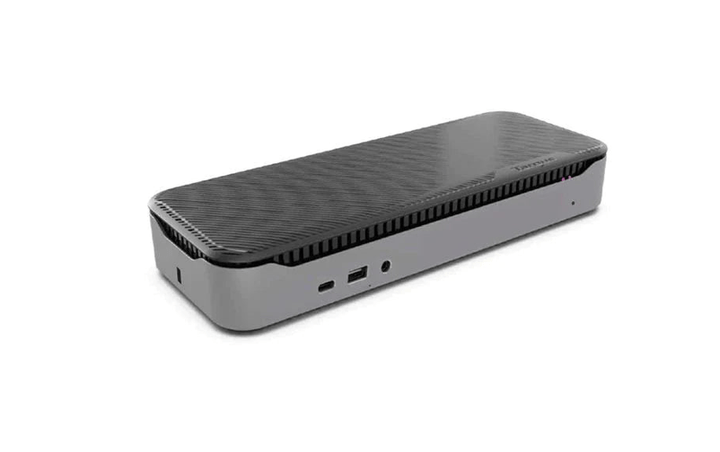

Targus USB-C™ Hybrid/Universal 4K Quad Docking Station 100W
PRODUCT DESCRIPTION
Targus USB-C Hybrid/Universal 4K Quad Monitor Docking Station with 100W PD (DOCK710USZ-50) - 3 Years Local Warranty
A "Hybrid" Dock That Handles Both Alt Mode and DisplayLink Hosts
The Targus DOCK710USZ-50 is a hybrid docking station: it drives its first two displays natively over DisplayPort Alt Mode with no drivers needed, then extends to a third and fourth display using DisplayLink technology - so it flexes to whatever combination of monitors and host hardware a desk actually needs, rather than forcing a single approach.
Up to Four 4K Displays, or a Single 8K Screen
Two HDMI and two DisplayPort outputs support up to four independent 4K UHD displays at 60Hz, or a single 8K display at 30Hz plus two additional 4K displays - genuine flexibility for analyst desks, trading floors and creative workstations that outgrow a dual-monitor setup.
100W Charging With a Full Port Spread
USB Power Delivery 3.0 supplies up to 100W to the host notebook (plus 7.5W to a secondary USB-C device and up to 12W USB-A fast charging), alongside Gigabit Ethernet, a 3.5mm audio combo jack and four USB-A ports.
Targus DOCK710USZ-50 Datasheet — Technical Specifications
General
| Model Name | USB-C Hybrid/Universal 4K Quad Monitor Docking Station with 100W PD |
| Part Number (SKU) | DOCK710USZ-50 |
| Manufacturer Warranty | 3 Years, Targus limited warranty |
| Local Warranty (Singapore) | 3 Years, supplied and supported locally by SourceIT |
| Host Connection | 1x USB 3.2 Gen 2 Type-C (10Gbps, hybrid Alt Mode + DisplayLink) |
Video Output

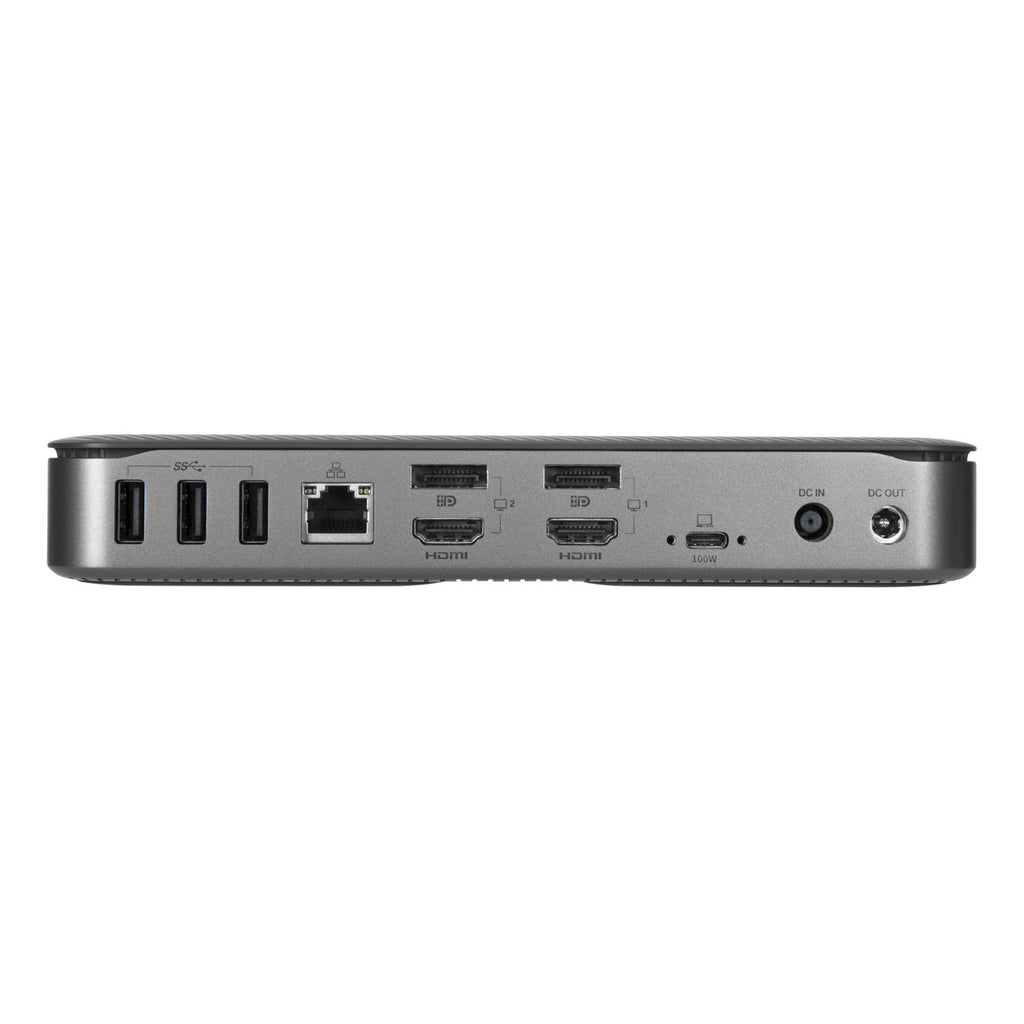

| Video Ports | 2x HDMI + 2x DisplayPort |
| Max Resolution | Up to four independent 4K UHD displays at 60Hz, or a single 8K display at 30Hz plus two 4K displays |
Connectivity (USB, Ethernet, Audio)
| USB-C | 1x USB 3.2 Gen 2 Type-C (10Gbps) + 1x secondary USB-C (7.5W charging) |
| USB-A | 1x USB 3.2 Gen 2 Type-A (10Gbps, fast charging up to 12W) + 3x USB 3.2 Gen 1 Type-A (5Gbps) |
| Ethernet | 1x Gigabit Ethernet (RJ45) |
| Audio | 1x 3.5mm combo audio in/out |
Power Delivery
| Host Charging | Up to 100W via USB Power Delivery 3.0 |
| AC Adapter Output | 20V / 7.5A (150W) |
Physical & Environmental
| Host Cable | 1m detachable USB-C host cable (Type-C male to Type-C male) with tethered USB-A adapter |
| Dimensions | 8.00 x 3.50 x 1.13 in |
| Weight | 1.18 lbs (approx. 535 g) |
Compatibility
Host connection. The first two displays run natively over DisplayPort Alt Mode with no drivers; a third and fourth display require DisplayLink drivers on the host.
Operating systems. Supports Windows and macOS hosts; DisplayLink drivers are needed for three- and four-monitor configurations.
Monitor compatibility. Any monitor with an HDMI or DisplayPort input works. Reaching 8K or four independent 4K displays needs both a compatible host and displays that natively support the target resolution.
Package Contents & Ordering Information
In the box: Targus DOCK710USZ-50 docking station, 1m detachable USB-C host cable with tethered USB-A adapter, AC-to-DC adapter (150W), US AC power cable (1.8m, C5 connector).
Ships from SourceIT Pte Ltd with a GST invoice and 3-year local Singapore warranty. Contact sales@sourceit.com.sg for volume pricing on analyst-desk or creative-workstation multi-monitor deployments.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK710USZ-50, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK710USZ-50
How many monitors can I connect?
Up to four independent 4K UHD displays at 60Hz, or a single 8K display at 30Hz plus two 4K displays.
Do I need special drivers?
The first two displays run natively with no drivers; a third and fourth display require DisplayLink drivers on Windows or macOS.
Does it charge my laptop?
Yes, up to 100W via USB Power Delivery 3.0, plus 7.5W to a secondary USB-C device.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK710USZ-50 sold by SourceIT comes with a 3-year local Singapore warranty and a GST invoice.
