Targus USB4 Dual Video Mobile Dock 140W EPR
PRODUCT DESCRIPTION
Targus USB4 Dual Video Mobile Dock (DOCK429GL-90) - 3 Years Local Warranty
A Pocketable Dock for the Road, Not Just the Desk
The Targus DOCK429GL-90 is built for people who move between desks, meeting rooms and home offices rather than staying parked at one workstation. At 5.25 x 2.63 x 0.69 inches and roughly half a pound, it fits in a laptop bag's front pocket, yet it still drives dual external monitors, moves data at up to 20Gbps over USB4, and passes through up to 140W of power to the host notebook - specs that used to mean a much larger desktop dock.
Dual 4K or Single 8K, Your Choice
Video comes from 2x HDMI 2.0 ports plus a USB-C Multi-Function DisplayPort (MFDP) port that carries both video and 10Gbps USB data. Between them the dock supports a single display at up to 8K/30Hz or dual displays at up to 4K/60Hz each - flexible enough for a two-monitor home office setup one day and a single large conference-room screen the next, without swapping hardware.
140W EPR Pass-Through Keeps the Laptop Charger at Home
The dock's power pass-through tops out at 140W when paired with a USB PD 3.1 Extended Power Range (EPR) charger and a host notebook that supports EPR charging, and steps down to 100W on standard PD 3.0 hosts. Either way, the practical effect is the same: one power brick feeds the dock, and the dock feeds the laptop, so a second charger stops being something to pack. The dock itself is built from up to 75% post-consumer recycled aluminum and plastic, in line with Targus's EcoSmart design approach.
Targus DOCK429GL-90 Datasheet — Technical Specifications
General
| Model Name | USB4 Dual Video Mobile Dock with 140W EPR Pass-Thru |
| Part Number (SKU) | DOCK429GL-90 |
| Manufacturer Warranty | 3 Years, Targus limited warranty |
| Local Warranty (Singapore) | 3 Years, supplied and supported locally by SourceIT |
| Host Connection | USB4 (up to 20Gbps), Thunderbolt 3/4 and USB-C DP Alt Mode compatible |
| Materials | Up to 75% post-consumer recycled aluminum and plastic (EcoSmart design) |
Video Output
| HDMI | 2x HDMI 2.0 |
| USB-C Video | 1x USB-C Multi-Function DisplayPort (MFDP) port, also carries 10Gbps USB data |
| Max Resolution | Single display up to 8K@30Hz, or dual displays up to 4K@60Hz each |

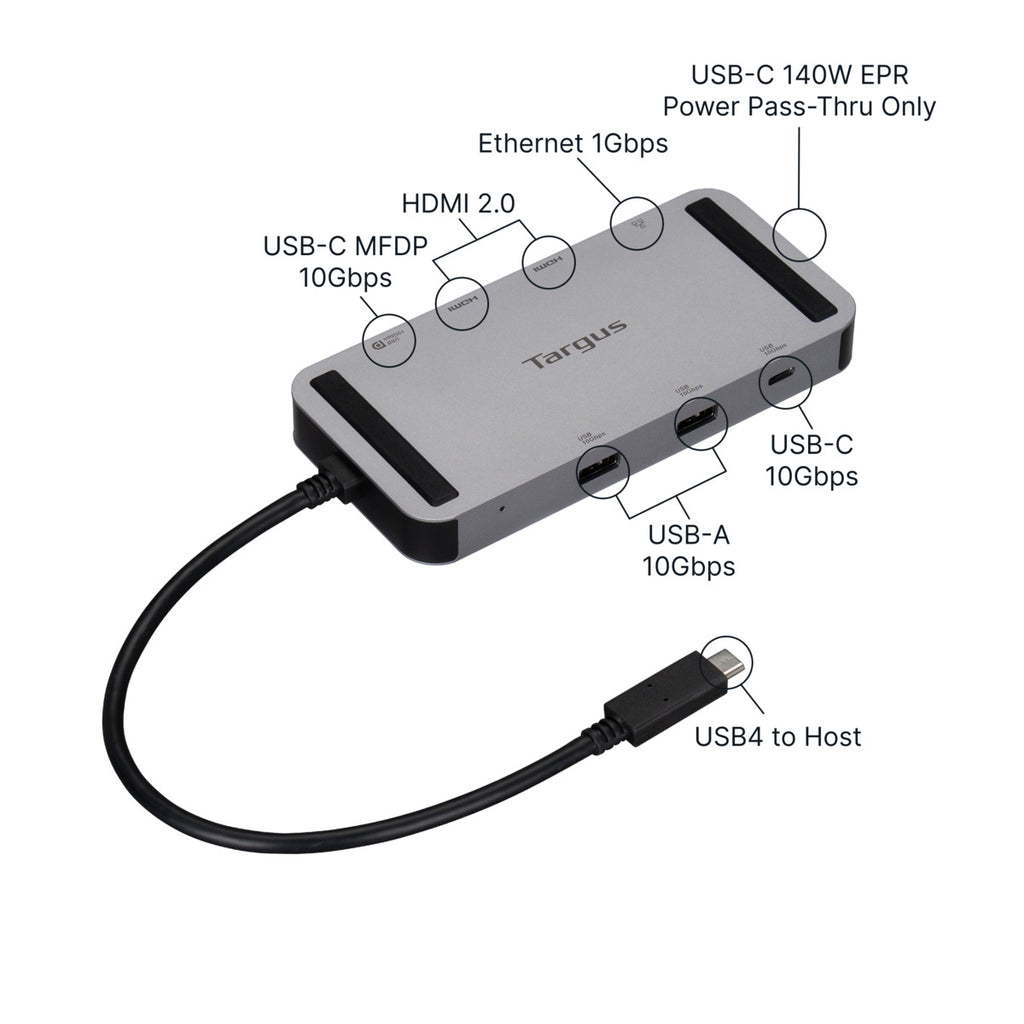

Connectivity (USB, Ethernet, Audio)

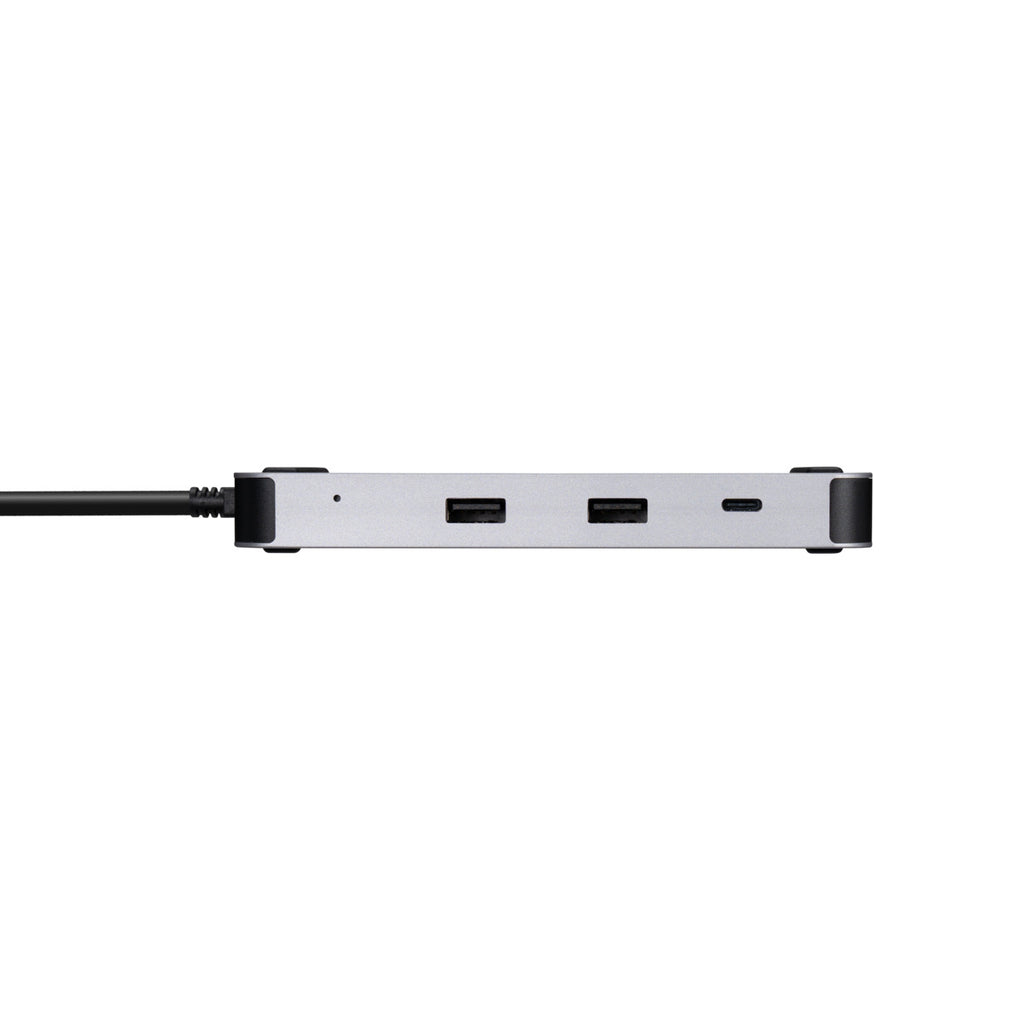

| USB-C | 1x USB 3.2 Gen 2 Type-C MFDP (10Gbps) + 1x USB 3.2 Gen 2 Type-C (10Gbps) + 1x USB-C power pass-through only port |
| USB-A | 2x USB 3.2 Gen 2 Type-A (10Gbps) |
| Ethernet | 1x Gigabit Ethernet (RJ45) |
Power Delivery
| Power Pass-Through | Up to 140W with a USB PD 3.1 EPR-compatible charger and host |
| Standard PD Fallback | Up to 100W on USB PD 3.0 chargers and hosts |
Physical & Environmental
| Dimensions | 5.25 x 2.63 x 0.69 in |
| Weight | 0.51 lbs (approx. 231 g) |
Compatibility
Host connection. Works with USB4 notebooks and is backward compatible with Thunderbolt 3/4 and USB-C hosts running DisplayPort Alt Mode.
Operating systems. Supports Windows, macOS, Android and Chrome OS/Linux hosts. Video output count and resolution depend on the host's own USB-C, USB4 or Thunderbolt implementation.
Monitor compatibility. Any monitor with an HDMI input works with the two HDMI 2.0 ports; a third monitor or higher-bandwidth link can use the USB-C MFDP port on a display or adapter that supports it.
Power adapter. To reach the full 140W pass-through figure, both the wall charger feeding the dock and the notebook receiving power must support USB PD 3.1 Extended Power Range (EPR); older PD 3.0 hardware on either end caps the pass-through at 100W.
Package Contents & Ordering Information
In the box: Targus DOCK429GL-90 mobile dock and quick start guide. This is a bus-powered/pass-through dock - bring your own USB-C PD charger (EPR-rated for the full 140W figure) to power both dock and notebook.
Ships from SourceIT Pte Ltd with a GST invoice and 3-year local Singapore warranty. Contact sales@sourceit.com.sg for volume pricing for mobile workforce or hybrid-work rollouts.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK429GL-90, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK429GL-90
How many monitors can I connect?
Up to two, using the 2x HDMI 2.0 ports, or a single display at up to 8K/30Hz using one HDMI output or the USB-C MFDP port.
What resolution and refresh rate does it support?
Single display up to 8K@30Hz, or dual displays up to 4K@60Hz each.
Does it charge my laptop?
Yes, it passes through power from your own USB-C charger to the host notebook - up to 140W with a PD 3.1 EPR charger and compatible laptop, or up to 100W with standard PD 3.0 hardware. The dock does not include its own power adapter; it passes through whatever charger you connect.
Is it plug and play?
Yes, no driver installation is required for standard USB, video and Ethernet function on Windows, macOS, Chrome OS and Linux.
What cable is included?
The dock has an integrated USB-C host connector on a short built-in cable, so no separate host cable ships in the box - it plugs straight into your notebook's USB-C/USB4/Thunderbolt port.
Is it good for travel?
Yes - at 5.25 x 2.63 x 0.69 inches and about half a pound, it is designed as a mobile dock for people who move between desks, meeting rooms and home offices.
Is it made from recycled materials?
Yes, Targus builds this dock from up to 75% post-consumer recycled aluminum and plastic as part of its EcoSmart design line.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK429GL-90 sold by SourceIT comes with a 3-year local Singapore warranty and a GST invoice.
