Targus USB-C 4K HDMI/VGA Docking Station with 100W
PRODUCT DESCRIPTION
Targus DisplayPort Alt Mode USB-C Single Video 4K HDMI/VGA Docking Station with 100W PD Pass-Thru (DOCK419AP-50) - 2 Years Local Warranty
A Palm-Sized Dock That Still Talks to Old Projectors

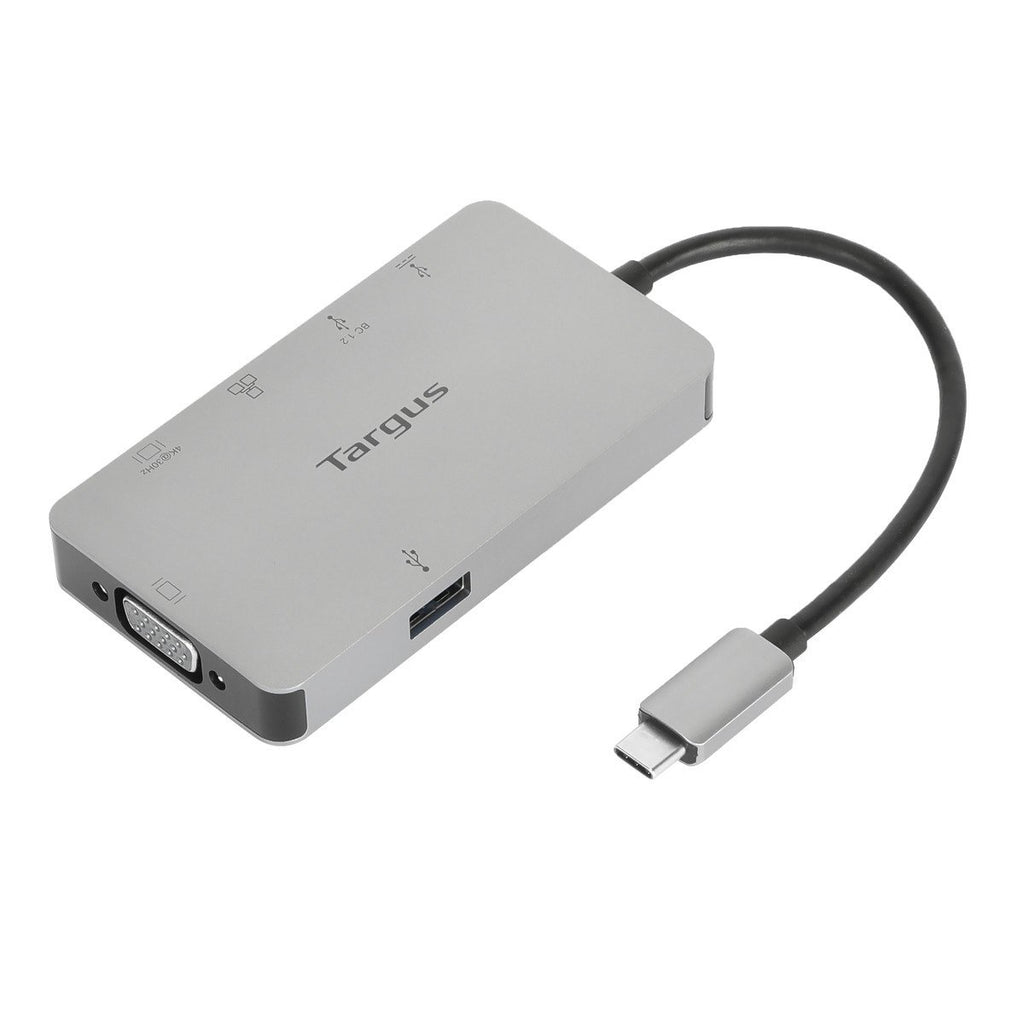

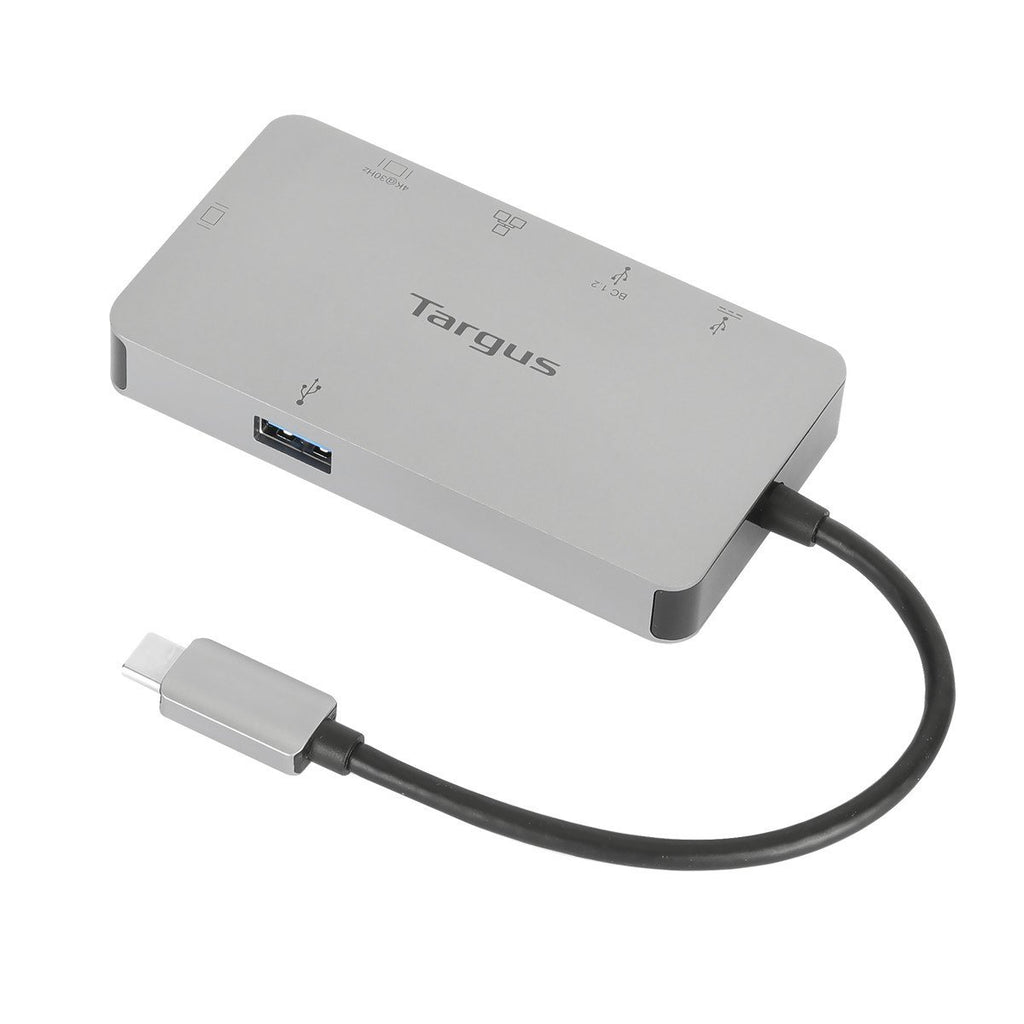

The Targus DOCK419AP-50 is one of the smallest docks in the Targus range - about the size of a deck of cards - yet it still covers both modern and legacy display standards, with an HDMI port for current monitors and a VGA port for older projectors and meeting-room screens that haven't been upgraded.
4K HDMI and Legacy VGA, No Separate Adapters
The HDMI output supports up to 4K at 30Hz for a single external display, while the VGA port covers legacy hardware at up to 1920x1200@60Hz - useful for presenters who never know in advance which port the meeting-room screen will need.
100W Pass-Through Power in a Pocketable Shell
Power Delivery 3.0 passes up to 100W (20V/5A) to the host notebook, with Fast Role Swap support for compatible PD 3.0 hosts. At 3.74 x 2.05 x 0.55 inches and 0.18 lbs, it disappears into a laptop bag pocket.
Targus DOCK419AP-50 Datasheet — Technical Specifications
General
| Model Name | DisplayPort Alt Mode USB-C Single Video 4K HDMI/VGA Docking Station with 100W PD Pass-Thru |
| Part Number (SKU) | DOCK419AP-50 |
| Manufacturer Warranty | 2 Years, Targus limited warranty |
| Local Warranty (Singapore) | 2 Years, supplied and supported locally by SourceIT |
| Color | Grey |
Video Output
| HDMI | 1x HDMI, up to 4K@30Hz |
| VGA | 1x VGA, up to 1920x1200@60Hz |
Connectivity (USB, Ethernet, Audio)
| USB-A | 2x USB 3.2 Gen 1 Type-A (one with fast charging) |
| USB-C | 1x USB 3.2 Gen 1 Type-C |
| Ethernet | 1x Gigabit Ethernet (RJ45) |
Power Delivery
| Power Pass-Through | Up to 100W (20V/5A) with Fast Role Swap support |
Physical & Environmental
| Dimensions | 3.74 x 2.05 x 0.55 in (W x D x H) |
| Weight | 0.18 lbs (approx. 82 g) |
Compatibility
Host connection. Requires a USB-C host port supporting DisplayPort Alt Mode; Thunderbolt 3 hosts are also compatible.
Operating systems. Supports Windows, macOS and Chrome OS hosts.
Power adapter. The dock passes through power from your own compatible USB-C PD 3.0 charger - no power adapter is included in the box.
Package Contents & Ordering Information
In the box: Targus DOCK419AP-50 docking station.
Ships from SourceIT Pte Ltd with a GST invoice and 2-year local Singapore warranty. Contact sales@sourceit.com.sg for volume pricing on mobile workforce or meeting-room fleet deployments.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK419AP-50, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK419AP-50
Can I connect to an old VGA projector?
Yes, the built-in VGA port supports up to 1920x1200@60Hz alongside the HDMI output.
Does it charge my laptop?
It passes through up to 100W from your own compatible USB-C PD 3.0 charger - no power adapter is included.
Is it plug and play?
Yes, no driver installation is required for standard USB, video and Ethernet function on Windows, macOS and Chrome OS.
Is it good for travel?
Yes - at 3.74 x 2.05 x 0.55 inches and 0.18 lbs, it's one of the most compact docks Targus makes.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK419AP-50 sold by SourceIT comes with a 2-year local Singapore warranty and a GST invoice.
