Targus USB-C™ Multi-Function DisplayPort™ Docking Station 85W
PRODUCT DESCRIPTION
Targus USB-C DisplayPort Alt Mode Docking Station with 85W Power (DOCK430USZ-50) - 5 Years Local Warranty
The Widest Host Compatibility in the Targus Line
The Targus DOCK430USZ-50 is designed as the most broadly compatible USB-C dock Targus makes, working across a wide span of USB-C and DisplayPort Alt Mode notebooks. That makes it a practical standard for IT teams managing a mixed fleet of laptop brands and generations, rather than qualifying a different dock for every model.
Single 4K, Dual 2K or Triple HD Video
One HDMI 2.0 and two DisplayPort 1.4 outputs flex to the display setup at hand: a single 4K monitor at 60Hz, dual 2K monitors at 60Hz each, or triple HD monitors at 60Hz each - covering the three most common desk configurations from one dock.
85W Charging Backed by a 5-Year Warranty
USB Power Delivery passes up to 85W to the host notebook, enough for most business notebooks to charge fully while docked. It's backed by a 5-year manufacturer warranty, longer than most docks in the Targus range, reflecting its position as the flagship compatibility model.
Targus DOCK430USZ-50 Datasheet — Technical Specifications
General
| Model Name | USB-C DisplayPort Alt Mode Docking Station with 85W Power |
| Part Number (SKU) | DOCK430USZ-50 |
| Manufacturer Warranty | 5 Years, Targus limited warranty |
| Local Warranty (Singapore) | 5 Years, supplied and supported locally by SourceIT |
| Host Connection | 1x USB 3.2 Gen 2 Type-C (10Gbps) |
Video Output

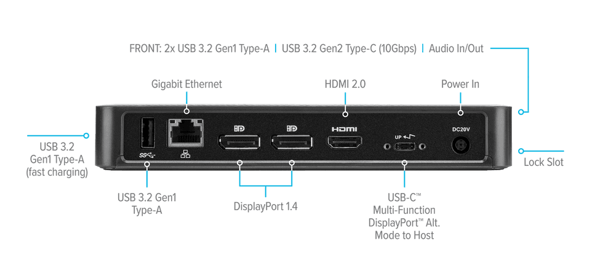

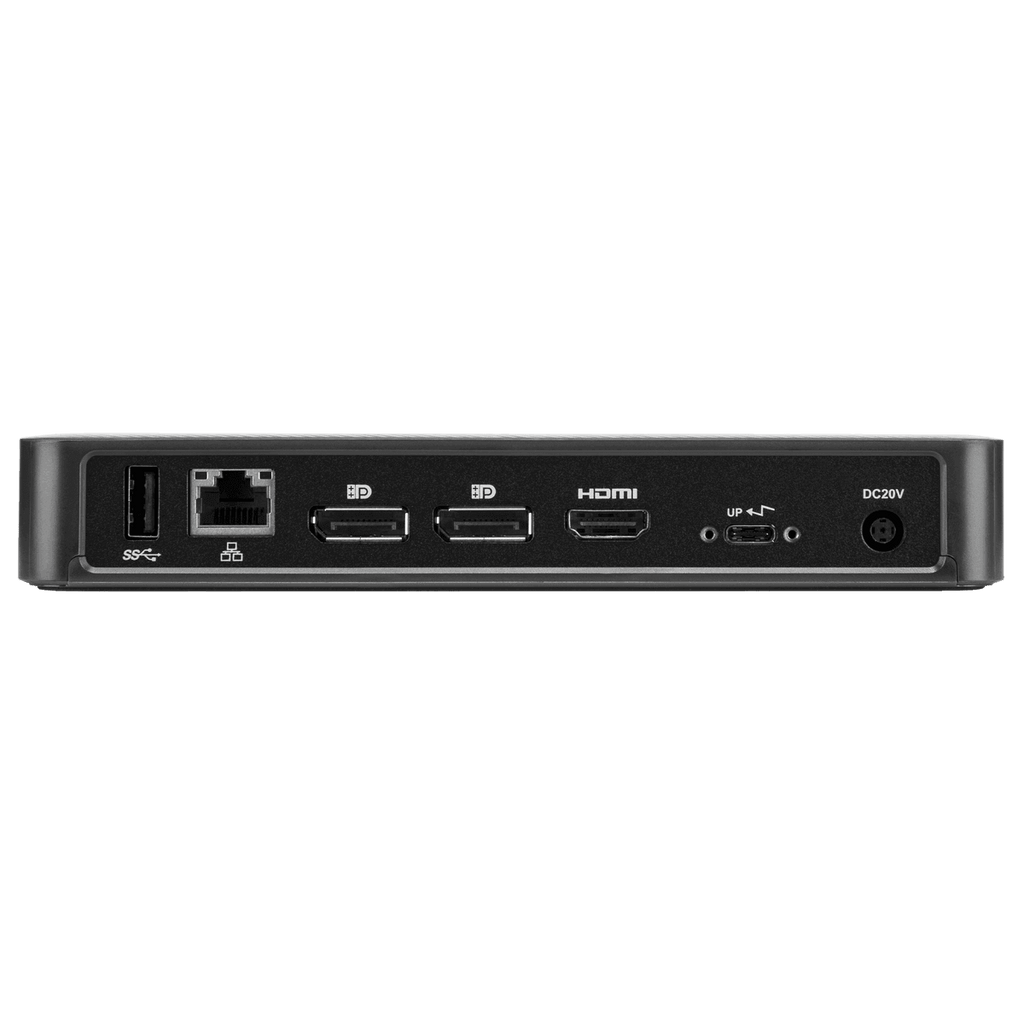

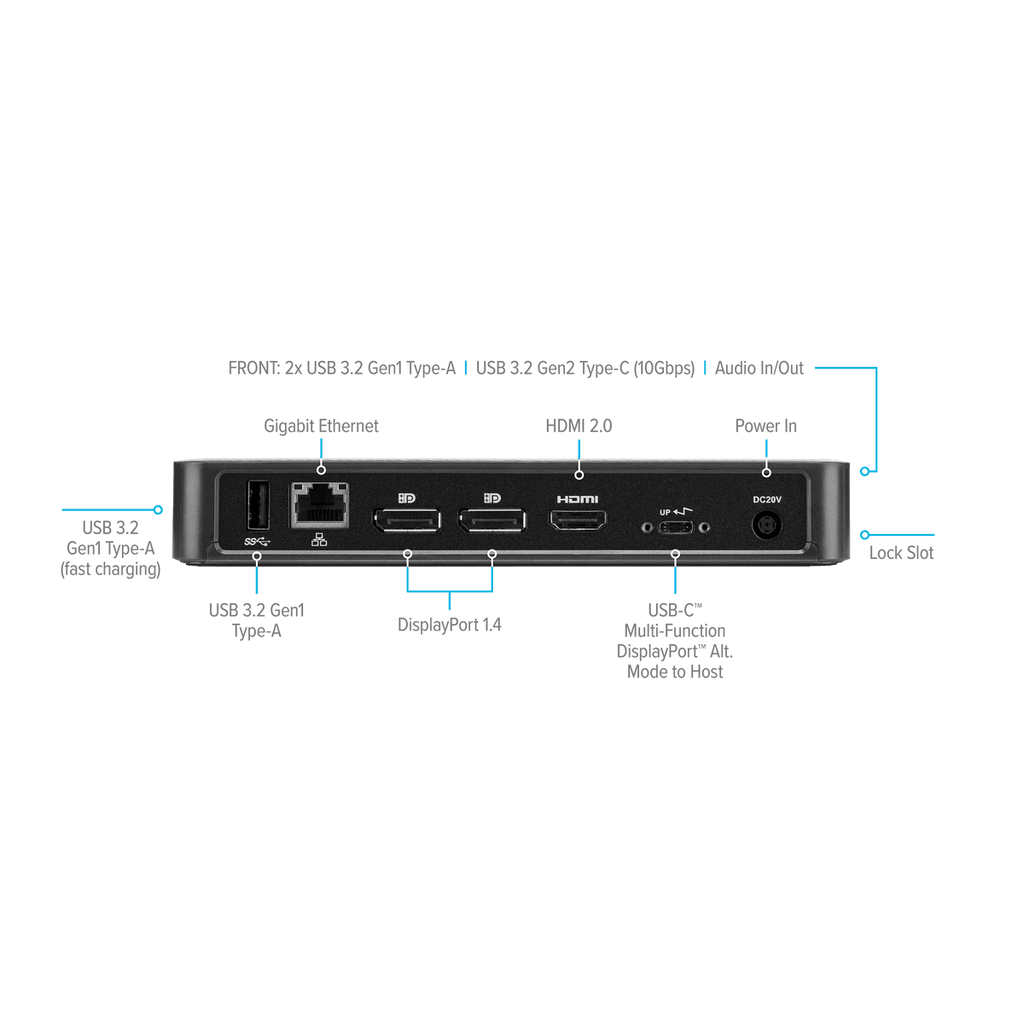

| Video Ports | 1x HDMI 2.0 + 2x DisplayPort 1.4 |
| Max Resolution | Single 4K@60Hz, dual 2K@60Hz, or triple HD@60Hz |
Connectivity (USB, Ethernet, Audio)
| USB-A | 1x USB 3.2 Gen 1 Type-A fast-charging + 3x USB 3.2 Gen 1 Type-A |
| Ethernet | 1x Gigabit Ethernet (RJ45) |
| Audio | 1x 3.5mm combo audio in/out |
| Security | Kensington T-Bar lock slot compatible |
Power Delivery
| Host Charging | Up to 85W (5V/9V/12V/15V/20V) |
| AC Adapter Output | 20V / 6.75A (135W) |
Physical & Environmental
| Host Cable | 1m USB-C to USB-C host cable (5A, 10Gbps) |
| Dimensions | 7.10 x 3.25 x 1.10 in |
| Weight | 0.63 lbs (approx. 286 g) |
Compatibility
Host connection. Requires a USB-C host port supporting DisplayPort Alt Mode and USB Power Delivery; built for broad compatibility across USB-C notebook brands and generations.
Operating systems. Supports Windows and macOS hosts.
Monitor compatibility. Any monitor with an HDMI or DisplayPort input works. Reaching triple-display configurations needs a host that supports DisplayPort Multi-Stream Transport (MST).
Package Contents & Ordering Information
In the box: Targus DOCK430USZ-50 docking station, 1m USB-C to USB-C host cable (5A, 10Gbps), AC-to-DC adapter (135W), US AC power cable (1.8m, C5 connector), quick start guide.
Ships from SourceIT Pte Ltd with a GST invoice and 5-year local Singapore warranty. Contact sales@sourceit.com.sg for volume pricing on mixed-fleet deployments.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK430USZ-50, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK430USZ-50
How many monitors can I connect?
Up to three - a single 4K@60Hz, dual 2K@60Hz, or triple HD@60Hz, depending on how many are connected.
Does it charge my laptop?
Yes, up to 85W to the host notebook.
Is it plug and play?
Yes, no driver installation is required for standard USB, video and Ethernet function on Windows and macOS.
Why does this dock have a 5-year warranty when others have 3?
It's positioned as Targus's broadest-compatibility dock, and Targus backs it with a longer 5-year manufacturer warranty as a result.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK430USZ-50 sold by SourceIT comes with a 5-year local Singapore warranty and a GST invoice.
