Targus EcoSmart Mobile Dock with Dual HDMI
PRODUCT DESCRIPTION
Targus EcoSmart Mobile Dock with Dual HDMI (DOCK403GL-92) - 3 Years Local Warranty
A Compact Everyday Dock for Dual HDMI Screens
The Targus DOCK403GL-92 is a small, light USB-C dock aimed at the everyday hybrid-work setup: two HDMI monitors, wired network, a card reader for camera cards, and enough power pass-through to skip the separate laptop charger. At 5.56 x 2.06 x 0.69 inches it is easy to leave permanently connected to a home-office monitor or slip into a bag for the office days in between.

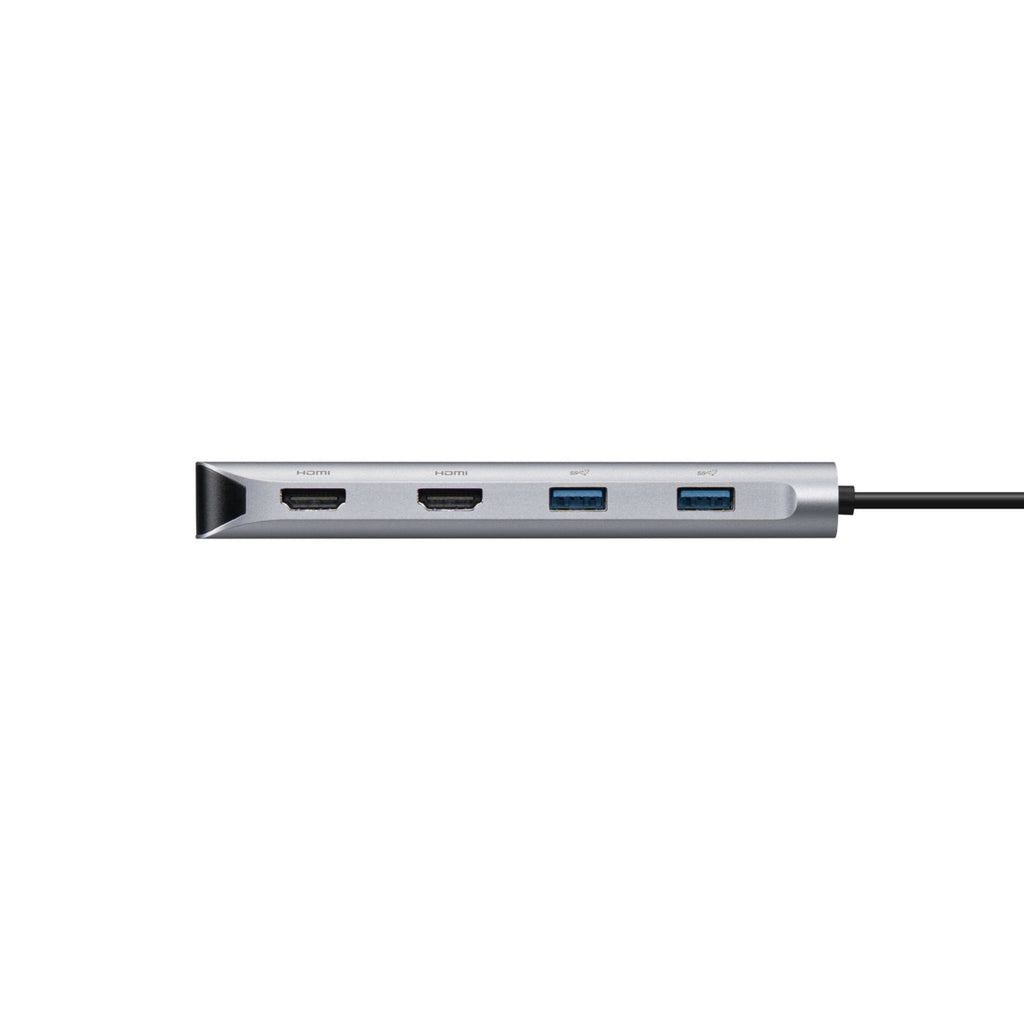

Dual 4K HDMI Output
Two HDMI 2.0 ports support a single display or dual displays at up to 4K@60Hz each on Windows hosts using multi-stream transport (MST); on Mac and iPad hosts, the second port mirrors the first rather than extending the desktop, which is a platform limitation rather than a dock limitation. For most home and branch-office setups running dual external monitors off a Windows notebook, that is exactly the dual-4K experience people expect from a dock this size.
140W EPR Pass-Through and a Built-In Card Reader
Power pass-through reaches up to 140W with a USB PD 3.1 Extended Power Range (EPR) charger and a compatible host, stepping down to 100W on standard PD 3.0 hardware - again, one charger for both dock and notebook. An SD and microSD card reader is built in, useful for anyone regularly offloading photos or footage without hunting for a separate reader. Like the rest of Targus's current mobile dock line, it is manufactured from post-consumer recycled aluminum and plastic under the EcoSmart design programme.
Targus DOCK403GL-92 Datasheet — Technical Specifications
General
| Model Name | EcoSmart Mobile Dock with Dual HDMI (Dual Video Mobile Dock with 140W EPR Pass-Thru & SD Reader) |
| Part Number (SKU) | DOCK403GL-92 |
| Manufacturer Warranty | 3 Years, Targus limited warranty |
| Local Warranty (Singapore) | 3 Years, supplied and supported locally by SourceIT |
| Host Connection | USB-C (USB Alt Mode video) |
| Materials | Manufactured from post-consumer recycled aluminum and plastic (EcoSmart design) |
Video Output
| HDMI | 2x HDMI 2.0 |
| Max Resolution | Up to 4K@60Hz single or dual display via MST (Windows); second port mirrors on Mac/iPad |

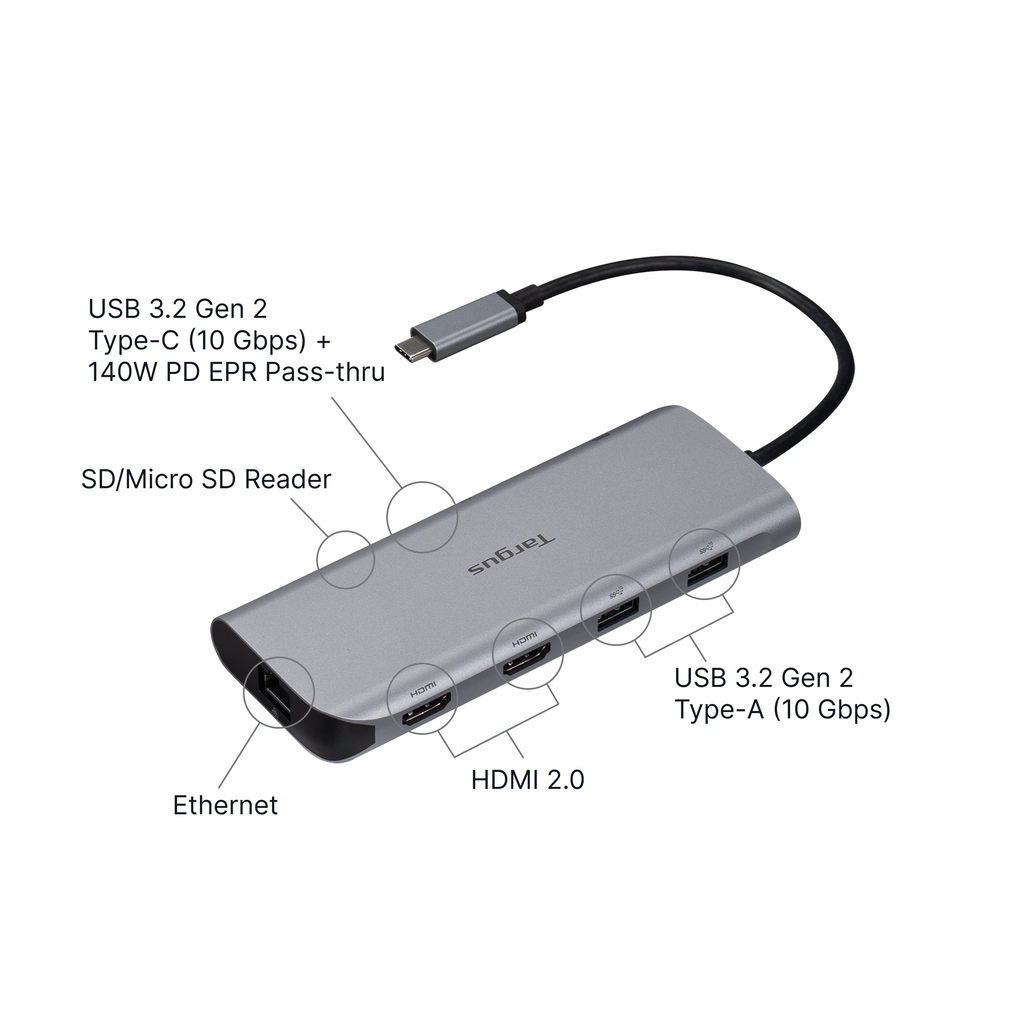

Connectivity (USB, Ethernet, Audio)
| USB-C | 1x USB 3.2 Gen 2 Type-C (10Gbps), also used for power pass-through |
| USB-A | 2x USB 3.2 Gen 2 Type-A (10Gbps) |

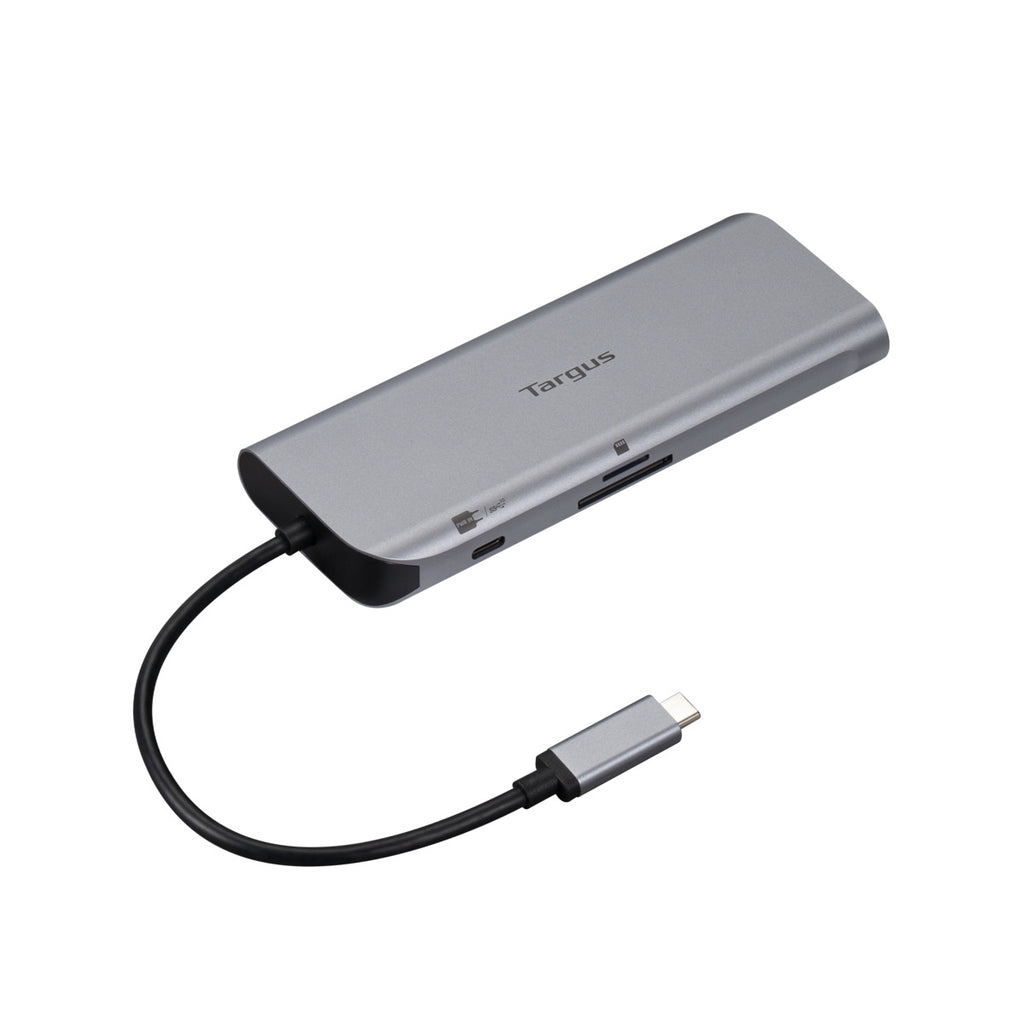

| Card Reader | 1x SD and microSD card reader |

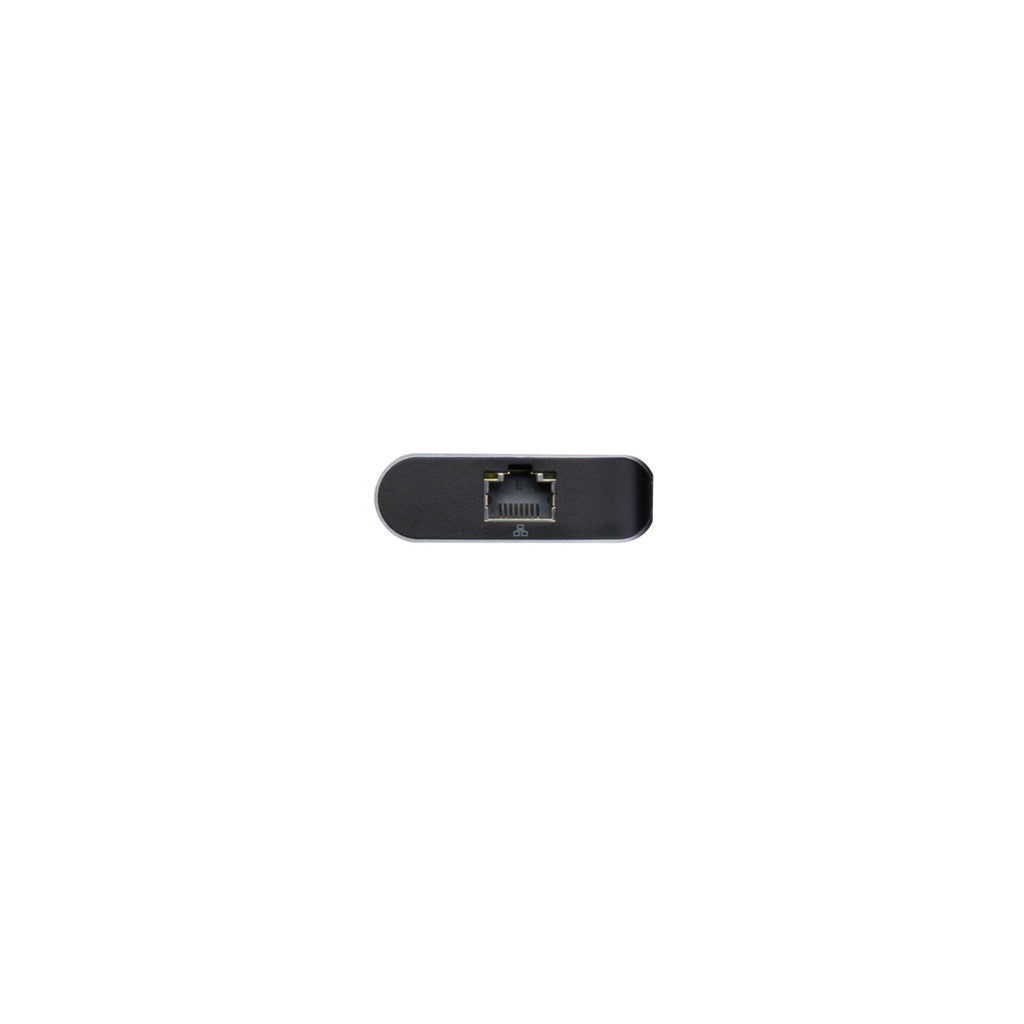

| Ethernet | 1x Gigabit Ethernet (RJ45) |
Power Delivery
| Power Pass-Through | Up to 140W with a USB PD 3.1 EPR-compatible charger and host |
| Standard PD Fallback | Up to 100W on USB PD 3.0 chargers and hosts |
| Power Source | Bus/pass-through powered - no dedicated AC adapter included |
Physical & Environmental
| Dimensions | 5.56 x 2.06 x 0.69 in |
| Weight | 0.35 lbs (approx. 159 g) |
| Color | Silver |
Compatibility
Host connection. Connects to a USB-C host port supporting USB-C Alt Mode video output. No Thunderbolt or USB4 requirement - a standard USB-C DisplayPort Alt Mode port is sufficient.
Operating systems. Supports Windows, macOS, Android and Chrome OS/Linux hosts. On Windows, dual HDMI output can extend the desktop across two monitors via multi-stream transport (MST); on macOS and iPadOS, the second HDMI output mirrors the first rather than extending it, which is an Apple platform limitation rather than a dock limitation.
Monitor compatibility. Any monitor with an HDMI input works with both HDMI 2.0 ports.
Package Contents & Ordering Information
In the box: Targus DOCK403GL-92 mobile dock and quick start guide. This is a bus-powered/pass-through dock with no dedicated AC adapter - bring your own USB-C PD charger (EPR-rated for the full 140W figure) to power both dock and notebook.
Ships from SourceIT Pte Ltd with a GST invoice and 3-year local Singapore warranty. Contact sales@sourceit.com.sg for volume pricing on standard-issue hybrid-work kits.
Datasheet & Downloads
Targus publishes its own spec sheets and user guides on its official site. For the current PDF datasheet for the DOCK403GL-92, email sales@sourceit.com.sg quoting the SKU and we will send it to you directly.
Frequently Asked Questions — Targus DOCK403GL-92
How many monitors can I connect?
Two, using the pair of HDMI 2.0 ports. On Windows both can extend the desktop; on macOS/iPadOS the second port mirrors the first.
What resolution and refresh rate does it support?
Up to 4K@60Hz per display.
Does it charge my laptop?
Yes, it passes through power from your own USB-C charger - up to 140W with a PD 3.1 EPR charger and compatible notebook, or up to 100W with standard PD 3.0 hardware. There is no dedicated AC adapter in the box; the dock passes through whatever charger you connect.
Is it plug and play?
Yes, no driver installation is required for standard USB, video and Ethernet function on Windows, macOS, Chrome OS and Linux.
What cable is included?
The dock has an integrated USB-C connector, so it plugs directly into your notebook's USB-C port with no separate host cable needed.
Does it have a memory card reader?
Yes, a built-in SD and microSD card reader.
Why does my second monitor only mirror on my MacBook?
On macOS and iPadOS, extending across two external displays from a single USB-C dock is limited by the operating system rather than the dock, so the second HDMI output mirrors the first. Windows hosts can extend across both via MST.
Does it come with a Singapore warranty and GST invoice?
Yes. Every DOCK403GL-92 sold by SourceIT comes with a 3-year local Singapore warranty and a GST invoice.
