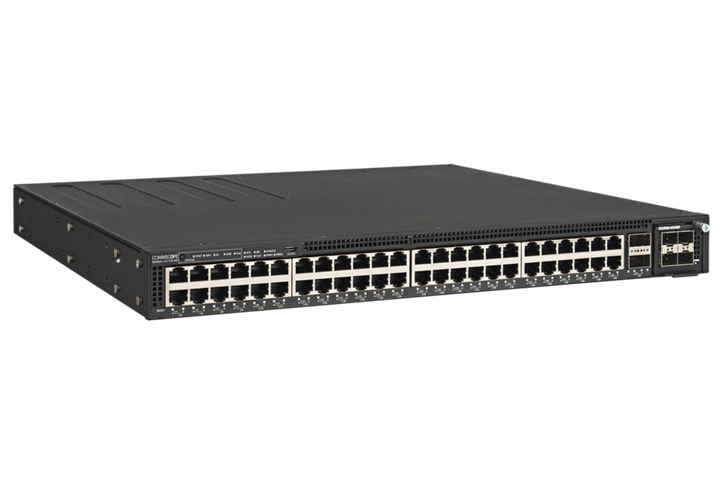

RUCKUS ICX 7550-48P-E2 48-Port Gigabit PoE+ Stackable Switch Bundle, 2 x 1200 W PSU
PRODUCT DESCRIPTION
RUCKUS ICX 7550-48P-E2 48-Port Gigabit PoE+ Stackable Switch with 2 x 40G QSFP+ Bundle with 2 x 1200 W PSU & Fans (ICX7550-48P-E2) - Limited Lifetime Local Warranty
48-Port Gigabit PoE+ Stackable Campus Switch
The RUCKUS ICX 7550-48P-E2 is a 1U stackable campus switch with 48 x 10/100/1000 Mbps RJ-45 PoE+ ports (802.3at, up to 30 W per port), 2 fixed 40 GbE QSFP+ uplink/stacking ports and a modular slot. With two power supplies RUCKUS rates the PoE budget at up to 1908 W (180-240 V).
This part number is a bundle: RUCKUS ships it with 2 x 1200 W AC power supplies and 3 fans, front-to-back airflow. Port modules and transceivers are sold separately.
416 Gbps Switching and Stacking up to 12 Units
RUCKUS rates the ICX 7550-48P at 416 Gbps switching capacity and 309 Mpps forwarding. Up to 12 switches can be stacked over the fixed QSFP ports, at distances of up to 10 km between stacked switches, with 960 Gbps aggregated stacking bandwidth, and the stack is managed as a single switch.
Layer 3 Routing, Upgradable by Licence
Base software includes IPv4/IPv6 static routes, RIP v1/v2, RIPng and ECMP. The ICX7550-PREM-LIC premium licence adds OSPF v2/v3, BGP4/BGP4+, PIM, PBR, VRRP v3, GRE, IPv6-over-IPv4 tunnels and VRF-lite. MACsec is available with the ICX-MACSEC-LIC licence and the MACsec-capable 4 x 10GbE module.
Cloud or On-Premises Management
The RUCKUS data sheet lists RUCKUS One (cloud) and SmartZone (on premises) management for the ICX 7550, alongside the CLI, an RJ-45 out-of-band management port and USB Type-C / RJ-45 console ports.
Supplied in Singapore with Local Warranty
RUCKUS covers this switch with the RUCKUS Assurance Limited Lifetime Warranty and 90 days of RUCKUS TAC support (a RUCKUS Technical Support contract is needed after that). SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your port count, power and uplink plan for a quote.
RUCKUS ICX 7550-48P-E2 ICX7550-48P-E2 Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 7550-48P-E2 Switch |
| Part Number | ICX7550-48P-E2 |
| RUCKUS Description | 48-port 10/100/1000 Mbps 802.3at POE+, 2x 40 Gbps QSFP+ dual-mode uplink/stacking ports, modular slot. Bundle includes 2x 1200W AC power supplies and 3x fans, front to back airflow. |
| Form Factor | Stackable 1U rack-mount |
| Manufacturer Warranty | RUCKUS Assurance Limited Lifetime Warranty; 90 days RUCKUS TAC support included |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 48 x 10/100/1000 Mbps RJ-45, PoE+ 802.3at (up to 30 W per port) |
| Uplink / Stacking | 2 x 40 GbE QSFP+ (dual-mode uplink/stacking), plus 1 modular uplink slot |
| PoE Budget | Up to 1630 W (100-180 V) / 1908 W (180-240 V) with two AC power supplies |
| Management / Console | RJ-45 out-of-band management port; USB Type-C and RJ-45 console ports; USB port for file storage |
Performance
| Switching Capacity | 416 Gbps |
| Forwarding Rate | 309 Mpps |
| MAC Addresses | Up to 114,000 (profile 2) |
| VLANs | 4,095 |
| IPv4 Routes (hardware) | Up to 8,192 (profile 2) |
| IPv6 Routes (hardware) | Up to 2,048 (profile 2) |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 960 Gbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routes, RIP v1/v2, RIPng, ECMP |
| With ICX7550-PREM-LIC | OSPF v2/v3, BGP4/BGP4+, PIM-SM/SSM/DM, PBR, VRRP v3, GRE, VRF-lite |
Power & Cooling
| Power Supplies | Included: 2 x 1200 W AC power supplies (bundle) |
| Supply Type | Hot-swap AC power supplies, 1000 W (100-180 V) / 1200 W (180-240 V) PoE supplies (RPS22) |
| Fans | 3 hot-swap fans, N+1 redundancy (included in bundle, front-to-back airflow) |
| Airflow | Front-to-back (bundle) |
| Power Consumption | 68.5 W (10% traffic, no PoE); 1152 W (100% traffic, full PoE) |
| Heat Dissipation | 283.3 BTU/hr (10% traffic, no PoE) |
| Acoustic Level | 51 dBA (at 35°C) |
| MTBF (25°C) | 304,125 hours |
Physical & Environmental
| Dimensions | 44.00 cm (W) x 40.64 cm (D) x 4.4 cm (H) |
| Weight | 7.10 kg (15.65 lb) (switch) |
| Operating Temperature | 0°C to 45°C at sea level |
| Operating Humidity | 10% to 90% at 50°C |
Figures are taken from the RUCKUS ICX 7550 Switch data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud) or SmartZone (on premises), plus the CLI over console or the out-of-band management port.
Powering Access Points
All 48 ports deliver 802.3at PoE+ (up to 30 W). With two supplies the budget reaches 1630 W at 100-180 V or 1908 W at 180-240 V. For 802.3bt (PoE++) multi-gigabit Wi-Fi 7 APs, see the ICX 7550-48ZP.
Uplink Modules
The modular slot accepts ICX7650-1X100GQ (1 x 40/100 GbE QSFP28), ICX7650-2X40GQ (2 x 40 GbE QSFP+), ICX7650-4X10GF (4 x 1/10 GbE SFP+, MACsec capable) and ICX7550-4X25GF (4 x 1/10/25 GbE SFP28). Modules and transceivers are sold separately.
Power Supplies & Fans
RPS22-E / RPS22-I (1000/1200 W AC PoE supplies) and ICX-FAN12-E / ICX-FAN12-I fans; -E is front-to-back (exhaust), -I is back-to-front (intake). The -E2 bundle ships with front-to-back (-E) parts.
Package Contents & RUCKUS ICX 7550 Ordering Information
In the Box
One RUCKUS ICX 7550-48P switch with 2 x 1200 W AC power supplies and 3 fans (front-to-back airflow). Port modules and transceivers are not included. Rack-mount kits (ICX-RMK-4POST-TL, XBR-R000295) are listed by RUCKUS as accessories; confirm with us before ordering if you need them.
RUCKUS ICX 7550 Switches — Ordering Information
| RUCKUS ICX 7550-24 | 24 x 1G, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-24 |
| RUCKUS ICX 7550-24-E2 | 24 x 1G, 2 x 40G QSFP+; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-24-E2 |
| RUCKUS ICX 7550-24P | 24 x 1G PoE+, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-24P |
| RUCKUS ICX 7550-24P-E2 | 24 x 1G PoE+, 2 x 40G QSFP+; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24P-E2 |
| RUCKUS ICX 7550-24P-E2-R3 | As 24P-E2, plus 3-year remote support | ICX7550-24P-E2-R3 |
| RUCKUS ICX 7550-24F | 24 x 1/10G SFP+, 2 x 40/100G QSFP28, modular slot; PSU/fans sold separately | ICX7550-24F |
| RUCKUS ICX 7550-24F-E2 | 24 x 1/10G SFP+, 2 x 40/100G; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-24F-E2 |
| RUCKUS ICX 7550-24F-E2-R3 | As 24F-E2, 3-year remote support bundle | ICX7550-24F-E2-R3 |
| RUCKUS ICX 7550-24ZP | 12 x 2.5G + 12 x 10G PoE++ (802.3bt), 2 x 40/100G; PSU/fans sold separately | ICX7550-24ZP |
| RUCKUS ICX 7550-24ZP-E2 | 12 x 2.5G + 12 x 10G PoE++, 2 x 40/100G; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24ZP-E2 |
| RUCKUS ICX 7550-24ZP-E2-R3 | As 24ZP-E2, plus 3-year remote support | ICX7550-24ZP-E2-R3 |
| RUCKUS ICX 7550-24XZP | 24 x 10G PoE++ (802.3bt), 2 x 40/100G, modular slot | ICX7550-24XZP |
| RUCKUS ICX 7550-24XZP-E2 | 24 x 10G PoE++, 2 x 40/100G; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24XZP-E2 |
| RUCKUS ICX 7550-48 | 48 x 1G, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-48 |
| RUCKUS ICX 7550-48-E2 | 48 x 1G, 2 x 40G QSFP+; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-48-E2 |
| RUCKUS ICX 7550-48P | 48 x 1G PoE+, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-48P |
| RUCKUS ICX 7550-48P-E2 (this listing) | 48 x 1G PoE+, 2 x 40G QSFP+; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-48P-E2 |
| RUCKUS ICX 7550-48P-E2-R3 | As 48P-E2, plus 3-year remote support | ICX7550-48P-E2-R3 |
| RUCKUS ICX 7550-48F | 36 x 1G SFP + 12 x 1/10G SFP+, 2 x 40/100G | ICX7550-48F |
| RUCKUS ICX 7550-48F-E2 | 36 x 1G SFP + 12 x 10G SFP+, 2 x 40/100G; PSU bundle | ICX7550-48F-E2 |
| RUCKUS ICX 7550-48F-E2-R3 | As 48F-E2, plus 3-year remote support | ICX7550-48F-E2-R3 |
| RUCKUS ICX 7550-48ZP | 36 x 2.5G + 12 x 10G PoE++ (802.3bt), 2 x 40/100G | ICX7550-48ZP |
| RUCKUS ICX 7550-48ZP-E2 | 36 x 2.5G + 12 x 10G PoE++, 2 x 40/100G; PSU bundle | ICX7550-48ZP-E2 |
| RUCKUS ICX 7550-48ZP-E2-R3 | As 48ZP-E2, plus 3-year remote support | ICX7550-48ZP-E2-R3 |
Licences & Accessories
ICX7550-PREM-LIC Layer 3 premium licence; ICX-MACSEC-LIC MACsec licence; ICX7650-1X100GQ, ICX7650-2X40GQ, ICX7650-4X10GF and ICX7550-4X25GF port modules; RPS21/RPS22 power supplies and ICX-FAN12 fans.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 7550 Switch Data Sheet |
| RUCKUS product page | RUCKUS ICX 7550-48P |
| RUCKUS support | RUCKUS ICX 7550 Campus Switches — Support |
| Installation guide | RUCKUS ICX 7550 Switch Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX7550-48P-E2.
Frequently Asked Questions — RUCKUS ICX 7550-48P-E2 ICX7550-48P-E2
Are power supplies and fans included?
Yes. This -E2 bundle includes 2 x 1200 W AC power supplies and 3 fans with front-to-back airflow. Port modules and transceivers are ordered separately.
How much PoE does it provide?
Up to 30 W per port (802.3at PoE+). With two power supplies the budget is 1630 W at 100-180 V or 1908 W at 180-240 V.
How many switches can I stack?
Up to 12 ICX 7550 switches per stack, with up to 10 km between stacked switches.
Does it do Layer 3 routing?
Static routes, RIP and ECMP are included. OSPF, BGP, PIM, PBR, VRRP v3, GRE and VRF-lite need the ICX7550-PREM-LIC licence.
What warranty and support come with it?
The RUCKUS Assurance Limited Lifetime Warranty and 90 days of RUCKUS TAC support, supplied by SourceIT with local support and a GST invoice.
