RUCKUS ICX 7550-48ZP-E2-R3 48-Port Multi-Gigabit PoE++ Stackable Switch Bundle, 3-Year Support
PRODUCT DESCRIPTION
RUCKUS ICX 7550-48ZP-E2-R3 48-Port Multi-Gigabit PoE++ Stackable Switch with 2 x 40/100G QSFP28 Bundle with 2 x 1200 W PSU, Fans & 3-Year Remote Support (ICX7550-48ZP-E2-R3) - Limited Lifetime Local Warranty
Multi-Gigabit PoE++ Campus Access Switch

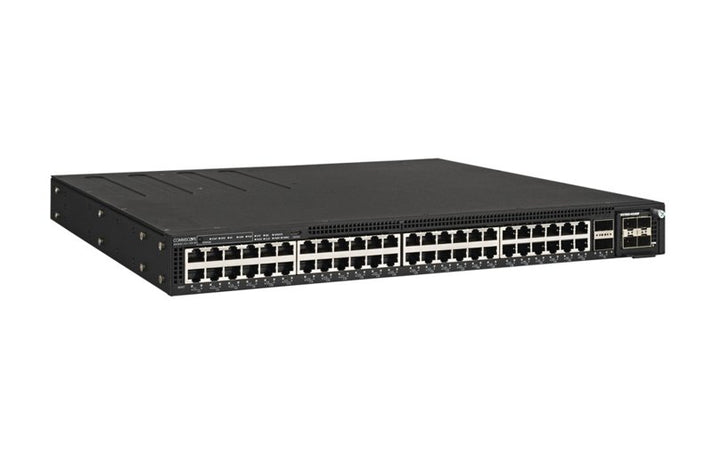

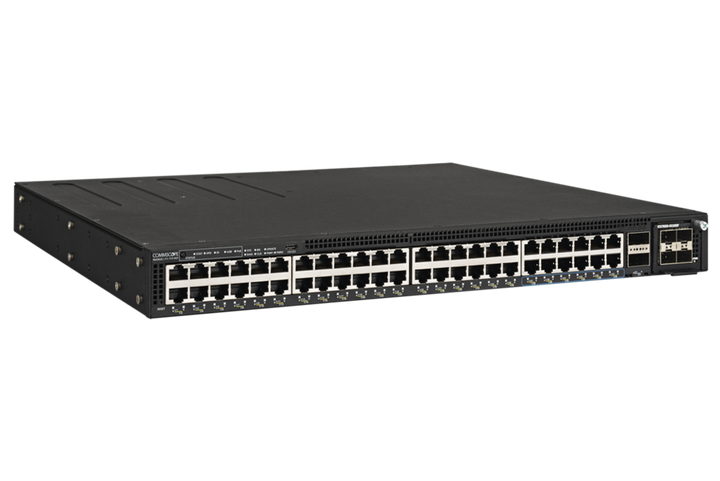

The RUCKUS ICX 7550-48ZP-E2-R3 is a 1U stackable campus switch for high-power, multi-gigabit access: 36 ports run at up to 2.5 Gbps and 12 at up to 10 Gbps, and all 48 deliver 802.3bt PoE++ at up to 90 W per port. Two 40/100 GbE QSFP28 ports handle uplink or stacking, and a modular slot adds further uplinks.
This part number is a bundle: RUCKUS ships it with 2 x 1200 W AC power supplies and 3 fans, front-to-back airflow, and includes 3 years of RUCKUS remote support. Port modules and transceivers are sold separately.
1,020 Gbps Switching and Stacking up to 12 Units
RUCKUS rates the ICX 7550-48ZP at 1,020 Gbps switching capacity and 759 Mpps forwarding. Up to 12 switches can be stacked over the fixed QSFP28 ports, at distances of up to 10 km between stacked switches, with 2.4 Tbps aggregated stacking bandwidth, and the stack is managed as a single switch.
Layer 3 Routing, Upgradable by Licence
Base software includes IPv4/IPv6 static routes, RIP v1/v2, RIPng and ECMP. The ICX7550-PREM-LIC premium licence adds OSPF v2/v3, BGP4/BGP4+, PIM, PBR, VRRP v3, GRE, IPv6-over-IPv4 tunnels and VRF-lite. MACsec is available with the ICX-MACSEC-LIC licence and the MACsec-capable 4 x 10GbE module.
Cloud or On-Premises Management
The RUCKUS data sheet lists RUCKUS One (cloud) and SmartZone (on premises) management for the ICX 7550, alongside the CLI, an RJ-45 out-of-band management port and USB Type-C / RJ-45 console ports.
Supplied in Singapore with Local Warranty
RUCKUS covers this switch with the RUCKUS Assurance Limited Lifetime Warranty; this -R3 bundle adds 3 years of RUCKUS remote support. SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your port count, power and uplink plan for a quote.
RUCKUS ICX 7550-48ZP-E2-R3 ICX7550-48ZP-E2-R3 Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 7550-48ZP-E2-R3 Switch |
| Part Number | ICX7550-48ZP-E2-R3 |
| RUCKUS Description | As ICX7550-48ZP-E2 (bundle includes 2x 1200 W AC power supplies and 3x fans, front to back airflow), with 3-year remote support included. |
| Form Factor | Stackable 1U rack-mount |
| Manufacturer Warranty | RUCKUS Assurance Limited Lifetime Warranty; 3-year remote support included (-R3 bundle) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 36 x 100/1000 Mbps/2.5 Gbps RJ-45 + 12 x 100/1000 Mbps/2.5/5/10 Gbps RJ-45, all 48 ports 802.3bt PoE++ (up to 90 W per port) |
| Uplink / Stacking | 2 x 40/100 GbE QSFP28 (dual-mode uplink/stacking), plus 1 modular uplink slot |
| Management / Console | RJ-45 out-of-band management port; USB Type-C and RJ-45 console ports; USB port for file storage |
Performance
| Switching Capacity | 1,020 Gbps |
| Forwarding Rate | 759 Mpps |
| MAC Addresses | Up to 114,000 (profile 2) |
| VLANs | 4,095 |
| IPv4 Routes (hardware) | Up to 8,192 (profile 2) |
| IPv6 Routes (hardware) | Up to 2,048 (profile 2) |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 2.4 Tbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routes, RIP v1/v2, RIPng, ECMP |
| With ICX7550-PREM-LIC | OSPF v2/v3, BGP4/BGP4+, PIM-SM/SSM/DM, PBR, VRRP v3, GRE, VRF-lite |
Power & Cooling
| Power Supplies | Included: 2 x 1200 W AC power supplies (bundle) |
| Supply Type | Hot-swap AC power supplies: RPS22 (1200 W at 180-240 V) PoE supplies; RPS21 (400 W) also listed |
| Fans | 3 hot-swap fans, N+1 redundancy (included in bundle, front-to-back airflow) |
| Airflow | Front-to-back (bundle) |
| Power Consumption | 139.7 W (10% traffic, no PoE); 1183.7 W (100% traffic, full PoE) |
| Heat Dissipation | 476.4 BTU/hr (10% traffic, no PoE) |
| Acoustic Level | 56.7 dBA (at 35°C) |
| MTBF (25°C) | 213,665 hours |
Physical & Environmental
| Dimensions | 44.00 cm (W) x 40.64 cm (D) x 4.4 cm (H) |
| Weight | 7.36 kg (16.23 lb) (switch) |
| Operating Temperature | 0°C to 45°C at sea level |
| Operating Humidity | 10% to 90% at 50°C |
Figures are taken from the RUCKUS ICX 7550 Switch data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud) or SmartZone (on premises), plus the CLI over console or the out-of-band management port.
Powering Access Points
All 48 ports deliver 802.3bt PoE++ at up to 90 W per port. The available PoE budget depends on the power supplies fitted and the input voltage; ask us to size it for your AP count. The 2.5G and 10G multi-gigabit ports let Wi-Fi 6/6E/7 access points connect at more than 1 Gbps.
Uplink Modules
The modular slot accepts ICX7650-1X100GQ (1 x 40/100 GbE QSFP28), ICX7650-2X40GQ (2 x 40 GbE QSFP+), ICX7650-4X10GF (4 x 1/10 GbE SFP+, MACsec capable) and ICX7550-4X25GF (4 x 1/10/25 GbE SFP28). Modules and transceivers are sold separately.
Power Supplies & Fans
RPS22-E / RPS22-I (1200 W AC at 180-240 V) PoE supplies, RPS21-E / RPS21-I (400 W AC), and ICX-FAN12-E / ICX-FAN12-I fans; -E is front-to-back (exhaust), -I is back-to-front (intake). The -E2 bundle ships with front-to-back (-E) parts.
Package Contents & RUCKUS ICX 7550 Ordering Information
In the Box
One RUCKUS ICX 7550-48ZP switch with 2 x 1200 W AC power supplies and 3 fans (front-to-back airflow), plus 3 years of RUCKUS remote support. Port modules and transceivers are not included. Rack-mount kits (ICX-RMK-4POST-TL, XBR-R000295) are listed by RUCKUS as accessories; confirm with us before ordering if you need them.
RUCKUS ICX 7550 Switches — Ordering Information
| RUCKUS ICX 7550-24 | 24 x 1G, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-24 |
| RUCKUS ICX 7550-24-E2 | 24 x 1G, 2 x 40G QSFP+; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-24-E2 |
| RUCKUS ICX 7550-24P | 24 x 1G PoE+, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-24P |
| RUCKUS ICX 7550-24P-E2 | 24 x 1G PoE+, 2 x 40G QSFP+; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24P-E2 |
| RUCKUS ICX 7550-24P-E2-R3 | As 24P-E2, plus 3-year remote support | ICX7550-24P-E2-R3 |
| RUCKUS ICX 7550-24F | 24 x 1/10G SFP+, 2 x 40/100G QSFP28, modular slot; PSU/fans sold separately | ICX7550-24F |
| RUCKUS ICX 7550-24F-E2 | 24 x 1/10G SFP+, 2 x 40/100G; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-24F-E2 |
| RUCKUS ICX 7550-24F-E2-R3 | As 24F-E2, 3-year remote support bundle | ICX7550-24F-E2-R3 |
| RUCKUS ICX 7550-24ZP | 12 x 2.5G + 12 x 10G PoE++ (802.3bt), 2 x 40/100G; PSU/fans sold separately | ICX7550-24ZP |
| RUCKUS ICX 7550-24ZP-E2 | 12 x 2.5G + 12 x 10G PoE++, 2 x 40/100G; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24ZP-E2 |
| RUCKUS ICX 7550-24ZP-E2-R3 | As 24ZP-E2, plus 3-year remote support | ICX7550-24ZP-E2-R3 |
| RUCKUS ICX 7550-24XZP | 24 x 10G PoE++ (802.3bt), 2 x 40/100G, modular slot; PSU/fans sold separately | ICX7550-24XZP |
| RUCKUS ICX 7550-24XZP-E2 | 24 x 10G PoE++, 2 x 40/100G; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24XZP-E2 |
| RUCKUS ICX 7550-48 | 48 x 1G, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-48 |
| RUCKUS ICX 7550-48-E2 | 48 x 1G, 2 x 40G QSFP+; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-48-E2 |
| RUCKUS ICX 7550-48P | 48 x 1G PoE+, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-48P |
| RUCKUS ICX 7550-48P-E2 | 48 x 1G PoE+, 2 x 40G QSFP+; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-48P-E2 |
| RUCKUS ICX 7550-48P-E2-R3 | As 48P-E2, plus 3-year remote support | ICX7550-48P-E2-R3 |
| RUCKUS ICX 7550-48F | 36 x 1G SFP + 12 x 1/10G SFP+, 2 x 40/100G QSFP28, modular slot; PSU/fans sold separately | ICX7550-48F |
| RUCKUS ICX 7550-48F-E2 | 36 x 1G SFP + 12 x 1/10G SFP+, 2 x 40/100G; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-48F-E2 |
| RUCKUS ICX 7550-48F-E2-R3 | As 48F-E2, plus 3-year remote support | ICX7550-48F-E2-R3 |
| RUCKUS ICX 7550-48ZP | 36 x 2.5G + 12 x 10G PoE++ (802.3bt), 2 x 40/100G; PSU/fans sold separately | ICX7550-48ZP |
| RUCKUS ICX 7550-48ZP-E2 | 36 x 2.5G + 12 x 10G PoE++, 2 x 40/100G; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-48ZP-E2 |
| RUCKUS ICX 7550-48ZP-E2-R3 (this listing) | As 48ZP-E2, plus 3-year remote support | ICX7550-48ZP-E2-R3 |
Licences & Accessories
ICX7550-PREM-LIC Layer 3 premium licence; ICX-MACSEC-LIC MACsec licence; ICX7650-1X100GQ, ICX7650-2X40GQ, ICX7650-4X10GF and ICX7550-4X25GF port modules; RPS21/RPS22 power supplies and ICX-FAN12 fans.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 7550 Switch Data Sheet |
| RUCKUS product page | RUCKUS ICX 7550-48ZP |
| RUCKUS support | RUCKUS ICX 7550 Campus Switches — Support |
| Installation guide | RUCKUS ICX 7550 Switch Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX7550-48ZP-E2-R3.
Frequently Asked Questions — RUCKUS ICX 7550-48ZP-E2-R3 ICX7550-48ZP-E2-R3
Are power supplies and fans included?
Yes. This bundle includes 2 x 1200 W AC power supplies and 3 fans with front-to-back airflow. Port modules and transceivers are ordered separately.
How much PoE does it provide?
Up to 90 W per port (802.3bt PoE++) on all 48 ports. The total budget depends on the power supplies and input voltage — email us your AP list and we will size it.
How many switches can I stack?
Up to 12 ICX 7550 switches per stack, with up to 10 km between stacked switches.
Does it do Layer 3 routing?
Static routes, RIP and ECMP are included. OSPF, BGP, PIM, PBR, VRRP v3, GRE and VRF-lite need the ICX7550-PREM-LIC licence.
What warranty and support come with it?
The RUCKUS Assurance Limited Lifetime Warranty plus 3 years of RUCKUS remote support included in this -R3 bundle, supplied by SourceIT with local support and a GST invoice.
