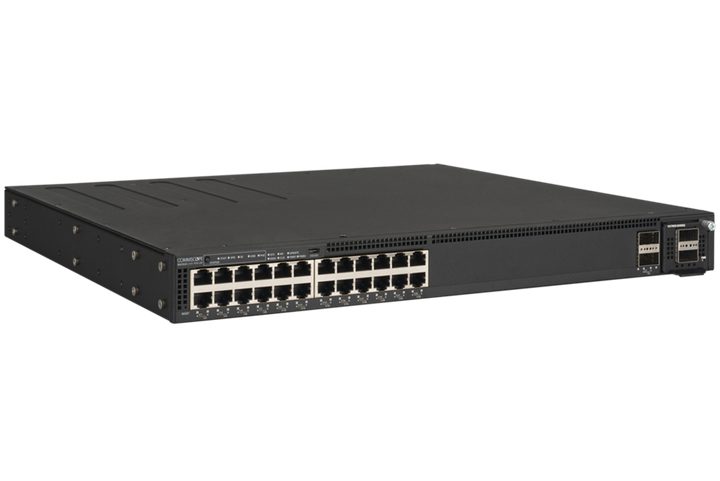

RUCKUS ICX 7550-24P 24-Port Gigabit PoE+ Stackable Switch with 2 x 40G QSFP+
PRODUCT DESCRIPTION
RUCKUS ICX 7550-24P 24-Port Gigabit PoE+ Stackable Switch with 2 x 40G QSFP+ (ICX7550-24P) - Limited Lifetime Local Warranty
Mid-Range Stackable Campus Switch
The RUCKUS ICX 7550-24P is a 1U stackable campus switch with 24 x 10/100/1000 Mbps RJ-45 PoE+ ports (802.3at, up to 30 W per port), 2 fixed 40 GbE QSFP+ uplink/stacking ports and a modular slot. With two power supplies RUCKUS rates the PoE budget at up to 1900 W (180-240 V).
This part number is the switch chassis only: RUCKUS states that power supplies, fans and port modules are sold separately, so order it together with power supplies and fans (see the ordering table below).
368 Gbps Switching and Stacking up to 12 Units
RUCKUS rates the ICX 7550-24P at 368 Gbps switching capacity and 274 Mpps forwarding. Up to 12 switches can be stacked over the fixed QSFP ports, at distances of up to 10 km between stacked switches, with 960 Gbps aggregated stacking bandwidth, and the stack is managed as a single switch.
Layer 3 Routing, Upgradable by Licence
Base software includes IPv4/IPv6 static routes, RIP v1/v2, RIPng and ECMP. The ICX7550-PREM-LIC premium licence adds OSPF v2/v3, BGP4/BGP4+, PIM, PBR, VRRP v3, GRE, IPv6-over-IPv4 tunnels and VRF-lite. MACsec is available with the ICX-MACSEC-LIC licence and the MACsec-capable 4 x 10GbE module.
Cloud or On-Premises Management
The RUCKUS data sheet lists RUCKUS One (cloud) and SmartZone (on premises) management for the ICX 7550, alongside the CLI, an RJ-45 out-of-band management port and USB Type-C / RJ-45 console ports.
Supplied in Singapore with Local Warranty
RUCKUS covers this switch with the RUCKUS Assurance Limited Lifetime Warranty and 90 days of RUCKUS TAC support (a RUCKUS Technical Support contract is needed after that). SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your port count, power and uplink plan for a quote.
RUCKUS ICX 7550-24P ICX7550-24P Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 7550-24P Switch |
| Part Number | ICX7550-24P |
| RUCKUS Description | 24-port 10/100/1000 Mbps 802.3at POE+, 2x 40Gbps QSFP+ dual-mode uplink/stacking ports, modular slot. Power supplies, fans and port modules sold separately. |
| Form Factor | Stackable 1U rack-mount |
| Manufacturer Warranty | RUCKUS Assurance Limited Lifetime Warranty; 90 days RUCKUS TAC support included |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 24 x 10/100/1000 Mbps RJ-45, PoE+ 802.3at (up to 30 W per port) |
| Uplink / Stacking | 2 x 40 GbE QSFP+ (dual-mode uplink/stacking), plus 1 modular uplink slot |
| PoE Budget | Up to 1624 W (100-180 V) / 1900 W (180-240 V) with two AC power supplies |
| Management / Console | RJ-45 out-of-band management port; USB Type-C and RJ-45 console ports; USB port for file storage |
Performance
| Switching Capacity | 368 Gbps |
| Forwarding Rate | 274 Mpps |
| MAC Addresses | 16,000 / 114,000 / 32,000 (profile 1 / 2 / 3) |
| VLANs | 4,095 |
| IPv4 Routes (hardware) | 97,280 / 8,192 / 21,504 (profile 1 / 2 / 3) |
| IPv6 Routes (hardware) | 8,192 / 2,048 / 17,408 (profile 1 / 2 / 3) |
| Memory | 4 GB DRAM; 4 GB flash; 8 MB packet buffer |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 960 Gbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routes, RIP v1/v2, RIPng, ECMP |
| With ICX7550-PREM-LIC | OSPF v2/v3, BGP4/BGP4+, PIM-SM/SSM/DM, PBR, VRRP v3, GRE, VRF-lite |
Power & Cooling
| Power Supplies | Not included (sold separately) |
| Supply Rating | Hot-swap AC power supplies, 1030 W (100-180 V) / 1200 W (180-240 V) rated output each |
| Fans | 3 hot-swap fans, N+1 redundancy (sold separately) |
| Airflow | Front-to-back or back-to-front, depending on power supplies and fans |
| Power Consumption | 68.5 W (10% traffic, no PoE); 1123.7 W (100% traffic, full PoE) |
| Heat Dissipation | 233.6 BTU/hr (10% traffic, no PoE) |
| Acoustic Level | 51 dBA (at 35°C) |
| MTBF (25°C) | 319,662 hours |
Physical & Environmental
| Dimensions | 44.00 cm (W) x 40.64 cm (D) x 4.4 cm (H) |
| Weight | 6.74 kg (14.86 lb) |
| Operating Temperature | 0°C to 45°C at sea level |
| Operating Humidity | 10% to 90% at 50°C |
Figures are taken from the RUCKUS ICX 7550 Switch data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud) or SmartZone (on premises), plus the CLI over console or the out-of-band management port.
Powering Access Points
All 24 ports deliver 802.3at PoE+ (up to 30 W). With two supplies the budget reaches 1624 W at 100-180 V or 1900 W at 180-240 V. For 802.3bt (PoE++) Wi-Fi 7 APs, see the ICX 7550-24ZP or ICX 7550-24XZP.
Uplink Modules
The modular slot accepts ICX7650-1X100GQ (1 x 40/100 GbE QSFP28), ICX7650-2X40GQ (2 x 40 GbE QSFP+), ICX7650-4X10GF (4 x 1/10 GbE SFP+, MACsec capable) and ICX7550-4X25GF (4 x 1/10/25 GbE SFP28). Modules and transceivers are sold separately.
Power Supplies & Fans
RPS22-E / RPS22-I (1000/1200 W AC PoE supplies) and ICX-FAN12-E / ICX-FAN12-I fans; -E is front-to-back (exhaust), -I is back-to-front (intake).
Package Contents & RUCKUS ICX 7550 Ordering Information
In the Box
One RUCKUS ICX 7550-24P switch chassis. Power supplies, fans and port modules are not included (RUCKUS: sold separately). Rack-mount kits (ICX-RMK-4POST-TL, XBR-R000295) are listed by RUCKUS as accessories; confirm with us before ordering if you need them.
RUCKUS ICX 7550 Switches — Ordering Information
| RUCKUS ICX 7550-24 | 24 x 1G, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-24 |
| RUCKUS ICX 7550-24-E2 | 24 x 1G, 2 x 40G QSFP+; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-24-E2 |
| RUCKUS ICX 7550-24P (this listing) | 24 x 1G PoE+, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-24P |
| RUCKUS ICX 7550-24P-E2 | 24 x 1G PoE+, 2 x 40G QSFP+; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24P-E2 |
| RUCKUS ICX 7550-24P-E2-R3 | As 24P-E2, plus 3-year remote support | ICX7550-24P-E2-R3 |
| RUCKUS ICX 7550-24F | 24 x 1/10G SFP+, 2 x 40/100G QSFP28, modular slot; PSU/fans sold separately | ICX7550-24F |
| RUCKUS ICX 7550-24F-E2 | 24 x 1/10G SFP+, 2 x 40/100G; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-24F-E2 |
| RUCKUS ICX 7550-24F-E2-R3 | As 24F-E2, 3-year remote support bundle | ICX7550-24F-E2-R3 |
| RUCKUS ICX 7550-24ZP | 12 x 2.5G + 12 x 10G PoE++ (802.3bt), 2 x 40/100G | ICX7550-24ZP |
| RUCKUS ICX 7550-24ZP-E2 | 12 x 2.5G + 12 x 10G PoE++, 2 x 40/100G; PSU bundle | ICX7550-24ZP-E2 |
| RUCKUS ICX 7550-24ZP-E2-R3 | As 24ZP-E2, plus 3-year remote support | ICX7550-24ZP-E2-R3 |
| RUCKUS ICX 7550-24XZP | 24 x 10G PoE++ (802.3bt), 2 x 40/100G, modular slot | ICX7550-24XZP |
| RUCKUS ICX 7550-24XZP-E2 | 24 x 10G PoE++, 2 x 40/100G; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24XZP-E2 |
| RUCKUS ICX 7550-48 | 48 x 1G, 2 x 40G QSFP+, modular slot | ICX7550-48 |
| RUCKUS ICX 7550-48-E2 | 48 x 1G, 2 x 40G QSFP+; PSU/fan bundle | ICX7550-48-E2 |
| RUCKUS ICX 7550-48P | 48 x 1G PoE+, 2 x 40G QSFP+, modular slot | ICX7550-48P |
| RUCKUS ICX 7550-48P-E2 | 48 x 1G PoE+, 2 x 40G QSFP+; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-48P-E2 |
| RUCKUS ICX 7550-48P-E2-R3 | As 48P-E2, plus 3-year remote support | ICX7550-48P-E2-R3 |
| RUCKUS ICX 7550-48F | 36 x 1G SFP + 12 x 1/10G SFP+, 2 x 40/100G | ICX7550-48F |
| RUCKUS ICX 7550-48F-E2 | 36 x 1G SFP + 12 x 10G SFP+, 2 x 40/100G; PSU bundle | ICX7550-48F-E2 |
| RUCKUS ICX 7550-48F-E2-R3 | As 48F-E2, plus 3-year remote support | ICX7550-48F-E2-R3 |
| RUCKUS ICX 7550-48ZP | 36 x 2.5G + 12 x 10G PoE++ (802.3bt), 2 x 40/100G | ICX7550-48ZP |
| RUCKUS ICX 7550-48ZP-E2 | 36 x 2.5G + 12 x 10G PoE++, 2 x 40/100G; PSU bundle | ICX7550-48ZP-E2 |
| RUCKUS ICX 7550-48ZP-E2-R3 | As 48ZP-E2, plus 3-year remote support | ICX7550-48ZP-E2-R3 |
Licences & Accessories
ICX7550-PREM-LIC Layer 3 premium licence; ICX-MACSEC-LIC MACsec licence; ICX7650-1X100GQ, ICX7650-2X40GQ, ICX7650-4X10GF and ICX7550-4X25GF port modules; RPS21/RPS22 power supplies and ICX-FAN12 fans.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 7550 Switch Data Sheet |
| RUCKUS product page | RUCKUS ICX 7550-24P |
| RUCKUS support | RUCKUS ICX 7550 Campus Switches — Support |
| Installation guide | RUCKUS ICX 7550 Switch Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX7550-24P.
Frequently Asked Questions — RUCKUS ICX 7550-24P ICX7550-24P
Are power supplies and fans included?
No. RUCKUS sells this part number as the switch only — power supplies, fans and port modules are ordered separately, or choose the -E2 bundle.
How much PoE does it provide?
Up to 30 W per port (802.3at PoE+). With two power supplies the budget is 1624 W at 100-180 V or 1900 W at 180-240 V.
How many switches can I stack?
Up to 12 ICX 7550 switches per stack, with up to 10 km between stacked switches.
Does it do Layer 3 routing?
Static routes, RIP and ECMP are included. OSPF, BGP, PIM, PBR, VRRP v3, GRE and VRF-lite need the ICX7550-PREM-LIC licence.
What warranty and support come with it?
The RUCKUS Assurance Limited Lifetime Warranty and 90 days of RUCKUS TAC support, supplied by SourceIT with local support and a GST invoice.
