RUCKUS ICX 7550-24ZP 24-Port Multi-Gigabit PoE++ Stackable Switch with 2 x 40/100G QSFP28
PRODUCT DESCRIPTION
RUCKUS ICX 7550-24ZP 24-Port Multi-Gigabit PoE++ Stackable Switch with 2 x 40/100G QSFP28 (ICX7550-24ZP) - Limited Lifetime Local Warranty
Multi-Gigabit PoE++ Campus Access Switch

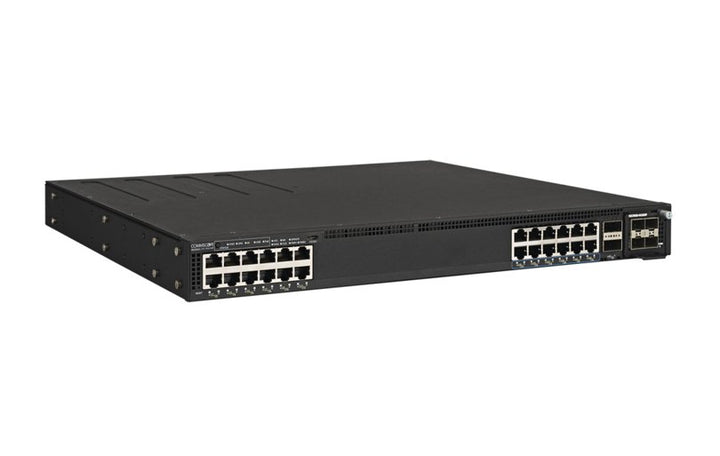

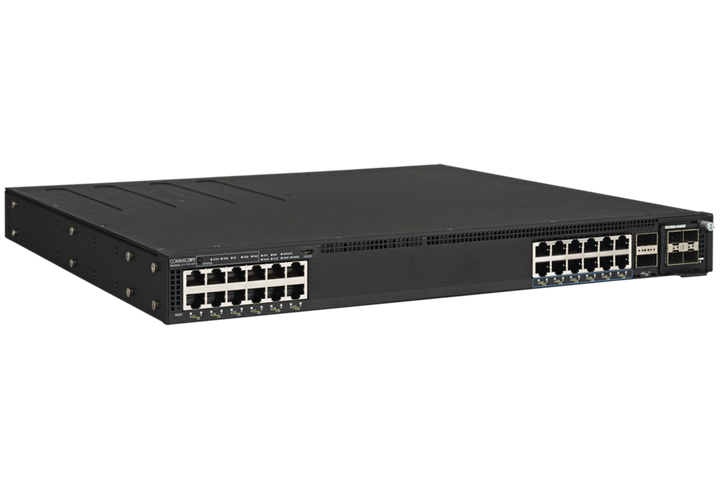

The RUCKUS ICX 7550-24ZP is a 1U stackable campus switch for high-power, multi-gigabit access: 12 ports run at up to 2.5 Gbps and 12 at up to 10 Gbps, and all 24 deliver 802.3bt PoE++ at up to 90 W per port. Two 40/100 GbE QSFP28 ports handle uplink or stacking, and a modular slot adds further uplinks. The total PoE budget depends on the power supplies fitted and the input voltage.
This part number is the switch chassis only: RUCKUS states that power supplies, fans and port modules are sold separately, so order it together with power supplies and fans, or choose the -E2 bundle (see the ordering table below).
900 Gbps Switching and Stacking up to 12 Units
RUCKUS rates the ICX 7550-24ZP at 900 Gbps switching capacity and 669 Mpps forwarding. Up to 12 switches can be stacked over the fixed QSFP ports, at distances of up to 10 km between stacked switches, with 2.4 Tbps aggregated stacking bandwidth, and the stack is managed as a single switch.
Layer 3 Routing, Upgradable by Licence
Base software includes IPv4/IPv6 static routes, RIP v1/v2, RIPng and ECMP. The ICX7550-PREM-LIC premium licence adds OSPF v2/v3, BGP4/BGP4+, PIM, PBR, VRRP v3, GRE, IPv6-over-IPv4 tunnels and VRF-lite. MACsec is available with the ICX-MACSEC-LIC licence and the MACsec-capable 4 x 10GbE module.
Cloud or On-Premises Management
The RUCKUS data sheet lists RUCKUS One (cloud) and SmartZone (on premises) management for the ICX 7550, alongside the CLI, an RJ-45 out-of-band management port and USB Type-C / RJ-45 console ports.
Supplied in Singapore with Local Warranty
RUCKUS covers this switch with the RUCKUS Assurance Limited Lifetime Warranty and 90 days of RUCKUS TAC support (a RUCKUS Technical Support contract is needed after that). SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your port count, power and uplink plan for a quote.
RUCKUS ICX 7550-24ZP ICX7550-24ZP Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 7550-24ZP Switch |
| Part Number | ICX7550-24ZP |
| RUCKUS Description | 24-port with 12-port 100/1000 Mbps/2.5 Gbps 802.3bt POE++, 12-port 100/1000 Mbps/2.5/5/10 Gbps 802.3bt POE++, 2x 40/100Gbps QSFP+ dual-mode uplink/stacking ports, modular slot. Power supplies, fans and port modules sold separately. |
| Form Factor | Stackable 1U rack-mount |
| Manufacturer Warranty | RUCKUS Assurance Limited Lifetime Warranty; 90 days RUCKUS TAC support included |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 12 x 100/1000 Mbps/2.5 Gbps RJ-45 + 12 x 100/1000 Mbps/2.5/5/10 Gbps RJ-45, all 24 ports 802.3bt PoE++ (up to 90 W per port) |
| Uplink / Stacking | 2 x 40/100 GbE QSFP28 (dual-mode uplink/stacking), plus 1 modular uplink slot |
| PoE Budget | Depends on the power supplies fitted and the input voltage; confirm with us for your configuration |
| Management / Console | RJ-45 out-of-band management port; USB Type-C and RJ-45 console ports; USB port for file storage |
Performance
| Switching Capacity | 900 Gbps |
| Forwarding Rate | 669 Mpps |
| MAC Addresses | Up to 114,000 (profile 2) |
| VLANs | 4,095 |
| IPv4 Routes (hardware) | Up to 8,192 (profile 2) |
| IPv6 Routes (hardware) | Up to 2,048 (profile 2) |
Stacking
| Stack Size | Up to 12 switches |
| Aggregated Stacking Bandwidth | 2.4 Tbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routes, RIP v1/v2, RIPng, ECMP |
| With ICX7550-PREM-LIC | OSPF v2/v3, BGP4/BGP4+, PIM-SM/SSM/DM, PBR, VRRP v3, GRE, VRF-lite |
Power & Cooling
| Power Supplies | Not included (sold separately) |
| Supply Type | Hot-swap AC power supplies, 1000 W (100-180 V) / 1200 W (180-240 V) PoE supplies (RPS22) |
| Fans | 3 hot-swap fans, N+1 redundancy (sold separately) |
| Airflow | Front-to-back or back-to-front, depending on power supplies and fans |
| Power Consumption | 99.3 W (10% traffic, no PoE) |
| Heat Dissipation | 338.6 BTU/hr (10% traffic, no PoE) |
| Acoustic Level | 51 dBA (at 35°C) |
| MTBF (25°C) | 287,828 hours |
Physical & Environmental
| Dimensions | 44.00 cm (W) x 40.64 cm (D) x 4.4 cm (H) |
| Weight | 6.98 kg (15.39 lb) (switch) |
| Operating Temperature | 0°C to 45°C at sea level |
| Operating Humidity | 10% to 90% at 50°C |
Figures are taken from the RUCKUS ICX 7550 Switch data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud) or SmartZone (on premises), plus the CLI over console or the out-of-band management port.
Powering Access Points
All 24 ports deliver 802.3bt PoE++ at up to 90 W per port. The total budget depends on the power supplies fitted and the input voltage. The 2.5G and 10G multi-gigabit ports let multi-gigabit access points connect at more than 1 Gbps.
Uplink Modules
The modular slot accepts ICX7650-1X100GQ (1 x 40/100 GbE QSFP28), ICX7650-2X40GQ (2 x 40 GbE QSFP+), ICX7650-4X10GF (4 x 1/10 GbE SFP+, MACsec capable) and ICX7550-4X25GF (4 x 1/10/25 GbE SFP28). Modules and transceivers are sold separately.
Power Supplies & Fans
RPS22-E / RPS22-I (1000/1200 W AC PoE supplies) and ICX-FAN12-E / ICX-FAN12-I fans; -E is front-to-back (exhaust), -I is back-to-front (intake).
Package Contents & RUCKUS ICX 7550 Ordering Information
In the Box
One RUCKUS ICX 7550-24ZP switch chassis. Power supplies, fans and port modules are not included (RUCKUS: sold separately). Rack-mount kits (ICX-RMK-4POST-TL, XBR-R000295) are listed by RUCKUS as accessories; confirm with us before ordering if you need them.
RUCKUS ICX 7550 Switches — Ordering Information
| RUCKUS ICX 7550-24 | 24 x 1G, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-24 |
| RUCKUS ICX 7550-24-E2 | 24 x 1G, 2 x 40G QSFP+; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-24-E2 |
| RUCKUS ICX 7550-24P | 24 x 1G PoE+, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-24P |
| RUCKUS ICX 7550-24P-E2 | 24 x 1G PoE+, 2 x 40G QSFP+; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24P-E2 |
| RUCKUS ICX 7550-24P-E2-R3 | As 24P-E2, plus 3-year remote support | ICX7550-24P-E2-R3 |
| RUCKUS ICX 7550-24F | 24 x 1/10G SFP+, 2 x 40/100G QSFP28, modular slot; PSU/fans sold separately | ICX7550-24F |
| RUCKUS ICX 7550-24F-E2 | 24 x 1/10G SFP+, 2 x 40/100G; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-24F-E2 |
| RUCKUS ICX 7550-24F-E2-R3 | As 24F-E2, 3-year remote support bundle | ICX7550-24F-E2-R3 |
| RUCKUS ICX 7550-24ZP (this listing) | 12 x 2.5G + 12 x 10G PoE++ (802.3bt), 2 x 40/100G; PSU/fans sold separately | ICX7550-24ZP |
| RUCKUS ICX 7550-24ZP-E2 | 12 x 2.5G + 12 x 10G PoE++, 2 x 40/100G; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24ZP-E2 |
| RUCKUS ICX 7550-24ZP-E2-R3 | As 24ZP-E2, plus 3-year remote support | ICX7550-24ZP-E2-R3 |
| RUCKUS ICX 7550-24XZP | 24 x 10G PoE++ (802.3bt), 2 x 40/100G, modular slot | ICX7550-24XZP |
| RUCKUS ICX 7550-24XZP-E2 | 24 x 10G PoE++, 2 x 40/100G; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-24XZP-E2 |
| RUCKUS ICX 7550-48 | 48 x 1G, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-48 |
| RUCKUS ICX 7550-48-E2 | 48 x 1G, 2 x 40G QSFP+; bundle with 2 x 400 W AC PSU, 3 fans | ICX7550-48-E2 |
| RUCKUS ICX 7550-48P | 48 x 1G PoE+, 2 x 40G QSFP+, modular slot; PSU/fans sold separately | ICX7550-48P |
| RUCKUS ICX 7550-48P-E2 | 48 x 1G PoE+, 2 x 40G QSFP+; bundle with 2 x 1200 W AC PSU, 3 fans | ICX7550-48P-E2 |
| RUCKUS ICX 7550-48P-E2-R3 | As 48P-E2, plus 3-year remote support | ICX7550-48P-E2-R3 |
| RUCKUS ICX 7550-48F | 36 x 1G SFP + 12 x 1/10G SFP+, 2 x 40/100G | ICX7550-48F |
| RUCKUS ICX 7550-48F-E2 | 36 x 1G SFP + 12 x 10G SFP+, 2 x 40/100G; PSU bundle | ICX7550-48F-E2 |
| RUCKUS ICX 7550-48F-E2-R3 | As 48F-E2, plus 3-year remote support | ICX7550-48F-E2-R3 |
| RUCKUS ICX 7550-48ZP | 36 x 2.5G + 12 x 10G PoE++ (802.3bt), 2 x 40/100G | ICX7550-48ZP |
| RUCKUS ICX 7550-48ZP-E2 | 36 x 2.5G + 12 x 10G PoE++, 2 x 40/100G; PSU bundle | ICX7550-48ZP-E2 |
| RUCKUS ICX 7550-48ZP-E2-R3 | As 48ZP-E2, plus 3-year remote support | ICX7550-48ZP-E2-R3 |
Licences & Accessories
ICX7550-PREM-LIC Layer 3 premium licence; ICX-MACSEC-LIC MACsec licence; ICX7650-1X100GQ, ICX7650-2X40GQ, ICX7650-4X10GF and ICX7550-4X25GF port modules; RPS21/RPS22 power supplies and ICX-FAN12 fans.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 7550 Switch Data Sheet |
| RUCKUS product page | RUCKUS ICX 7550-24ZP |
| RUCKUS support | RUCKUS ICX 7550 Campus Switches — Support |
| Installation guide | RUCKUS ICX 7550 Switch Hardware Installation Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX7550-24ZP.
Frequently Asked Questions — RUCKUS ICX 7550-24ZP ICX7550-24ZP
Are power supplies and fans included?
No. RUCKUS sells this part number as the switch only — power supplies, fans and port modules are ordered separately, or choose the -E2 bundle.
How much PoE does it provide?
Up to 90 W per port (802.3bt PoE++) on all 24 ports. The total budget depends on the power supplies fitted and the input voltage; ask us to size it for your access points.
How many switches can I stack?
Up to 12 ICX 7550 switches per stack, with up to 10 km between stacked switches.
Does it do Layer 3 routing?
Static routes, RIP and ECMP are included. OSPF, BGP, PIM, PBR, VRRP v3, GRE and VRF-lite need the ICX7550-PREM-LIC licence.
What warranty and support come with it?
The RUCKUS Assurance Limited Lifetime Warranty and 90 days of RUCKUS TAC support, supplied by SourceIT with local support and a GST invoice.
