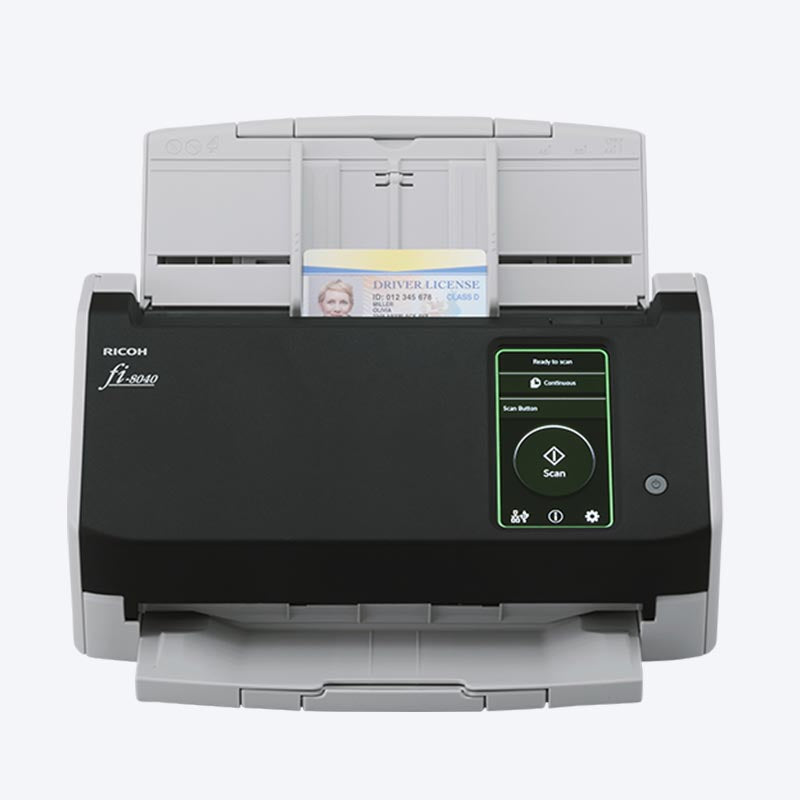

Ricoh fi-8040 A4 Duplex Network Scanner
PRODUCT DESCRIPTION
Ricoh fi-8040 A4 Duplex Network Scanner, 40 ppm / 80 ipm, 4.3" Touch Screen, USB 3.2 & Gigabit Ethernet (PA03836-B001) - 1 Year Local Warranty

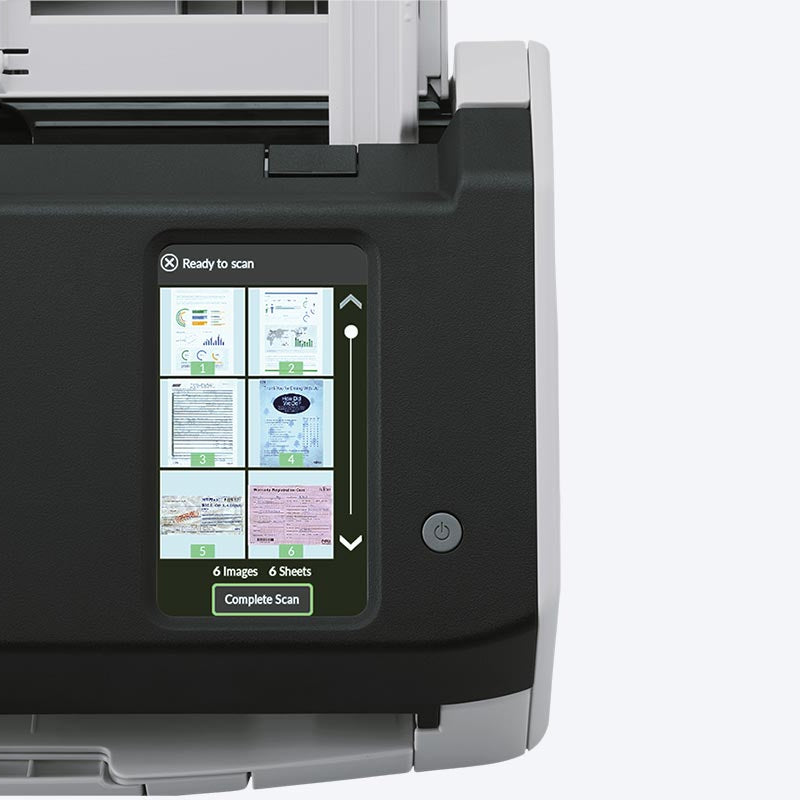

Compact Network Scanner with a 4.3-inch Touch Screen
The Ricoh fi-8040 is a compact A4 duplex scanner from the fi-8000 series. It scans at 40 pages per minute simplex and 80 images per minute duplex (A4, 200/300 dpi), holds 50 sheets in the ADF and is rated by Ricoh for an expected daily volume of 6,000 sheets. A 4.3-inch colour touch screen puts job selection and previews at the scanner.
DirectScan: Scan Without a PC
With DirectScan, the fi-8040 can attach scans to email directly or save them to network folders set up in advance, with no PC needed. PaperStream NX Manager links scanned data to business software applications.

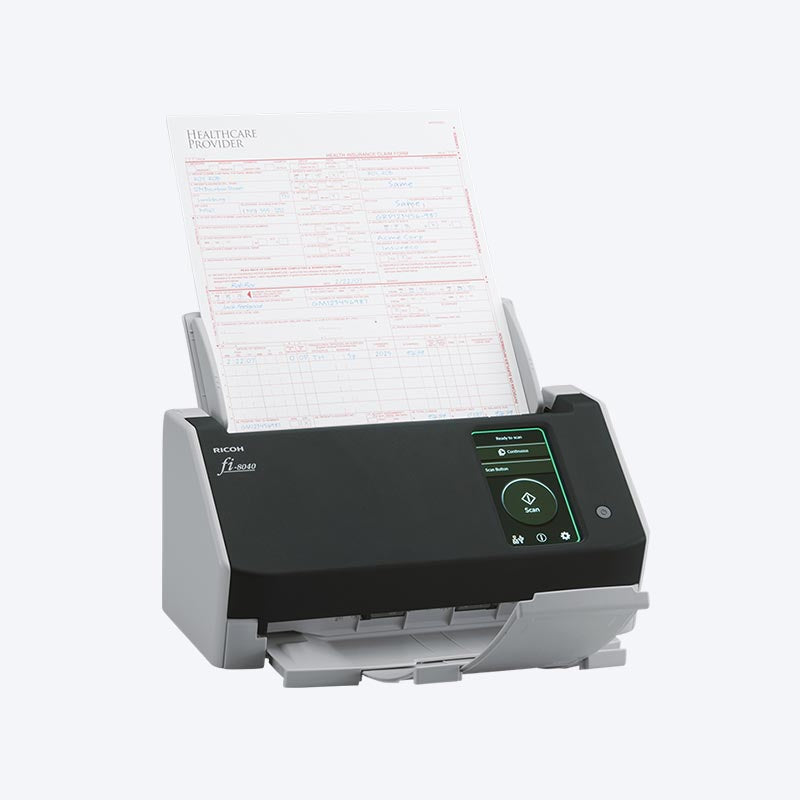

Fits at the Front Desk
At 292 x 157 x 143 mm and 3.1 kg, the fi-8040 fits beside a counter or workstation. It handles paper from 40 to 209 g/m², plastic cards up to 0.76 mm and long pages up to 5,588 mm, with ultrasonic overlap and length detection to catch multifeeds.
USB and Gigabit Ethernet Built In
Connect by USB 3.2 Gen1 or over the built-in 10/100/1000BASE-T Ethernet port. PaperStream IP (TWAIN/ISIS) and WIA drivers are supported, and PaperStream Capture and PaperStream ClickScan are supplied for scanning workflows.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and connection needs and we will size it for you.
Ricoh fi-8040 Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-8040 Image Scanner |
| Part Number | PA03836-B001 |
| Series | Ricoh fi-8000 series |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex |
| Operator Panel | 4.3-inch colour touch screen |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | CIS x 2 (front x 1, back x 1) |
| Light Source | RGB LED x 2 (front x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Portrait) | Simplex 40 ppm / Duplex 80 ipm (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | White |
Paper Handling
| Maximum Document Size | 216 x 355.6 mm (8.5 x 14 in) |
| Minimum Document Size | 50.8 x 50.8 mm (2 x 2 in) |
| Long Page Scanning | Up to 5,588 mm (220 in) |
| Paper Weight | 40 to 209 g/m² (11 to 56 lb) |
| Plastic Cards | 0.76 mm or less |
| ADF Capacity | 50 sheets (A4 80 g/m²) |
| Expected Daily Volume | 6,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor), length detection |
Connectivity & Power
| Interface | USB 3.2 Gen1 / USB 3.0 / USB 2.0 / USB 1.1; Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 19 W or less; Sleep 1.9 W or less; Auto Standby (Off) 0.15 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 292 x 157 x 143 mm |
| Weight | 3.1 kg (6.8 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016, macOS and Linux (Ubuntu), per Ricoh's fi-8040 datasheet. Ricoh notes that functions equivalent to PaperStream IP may not be available with the macOS / Linux image scanner drivers or the WIA driver, and that fi Series scanners do not run on Windows ARM-based PCs.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS) and WIA driver.
Software
PaperStream Capture, PaperStream ClickScan, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, iDTC / Advanced DTC / SDTC, de-screen, dropout colour, split image, de-skew, edge filler, vertical streak reduction, cropping, rotation, barcode detection (1D & 2D) and background pattern removal.
Package Contents & fi-8000 Series Ordering Information
In the Box (per Ricoh)
fi-8040 scanner, ADF paper chute, AC cable, AC adapter, USB cable and setup DVD-ROM.
fi-8000 A4 ADF Models
| Model | Speed (ppm / ipm) | Interface | Part No. |
| fi-8040 (this listing) | 40 / 80 | USB + Ethernet | PA03836-B001 |
| fi-8150U | 50 / 100 | USB only | PA03810-B151 |
| fi-8150 | 50 / 100 | USB + Ethernet | PA03810-B101 |
| fi-8170 | 70 / 140 | USB + Ethernet | PA03810-B051 |
| fi-8190 | 90 / 180 | USB + Ethernet | PA03810-B001 |
The fi-8040 has a 50-sheet ADF; the fi-8150U / fi-8150 / fi-8170 / fi-8190 have a 100-sheet ADF.
Datasheet & Downloads
| Ricoh datasheet | fi-8040 Datasheet (PDF) |
| Ricoh product page | fi-8040 on pfu-asia.ricoh.com |
| Drivers & software | fi-8040 downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03836-B001.
Frequently Asked Questions — Ricoh fi-8040
How fast is the fi-8040?
40 ppm simplex and 80 ipm duplex on A4 portrait at 200/300 dpi.
Can it scan without a PC?
Yes. Ricoh's DirectScan lets the fi-8040 send scans straight to email or save them to preset network folders from the 4.3-inch touch screen, without a PC.
Can it be shared on the network?
Yes. It has a built-in Gigabit Ethernet port as well as USB 3.2, and PaperStream NX Manager is supported for linking scans to business applications.
Can it scan ID cards?
It scans plastic cards up to 0.76 mm thick, and paper from 40 to 209 g/m².
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
