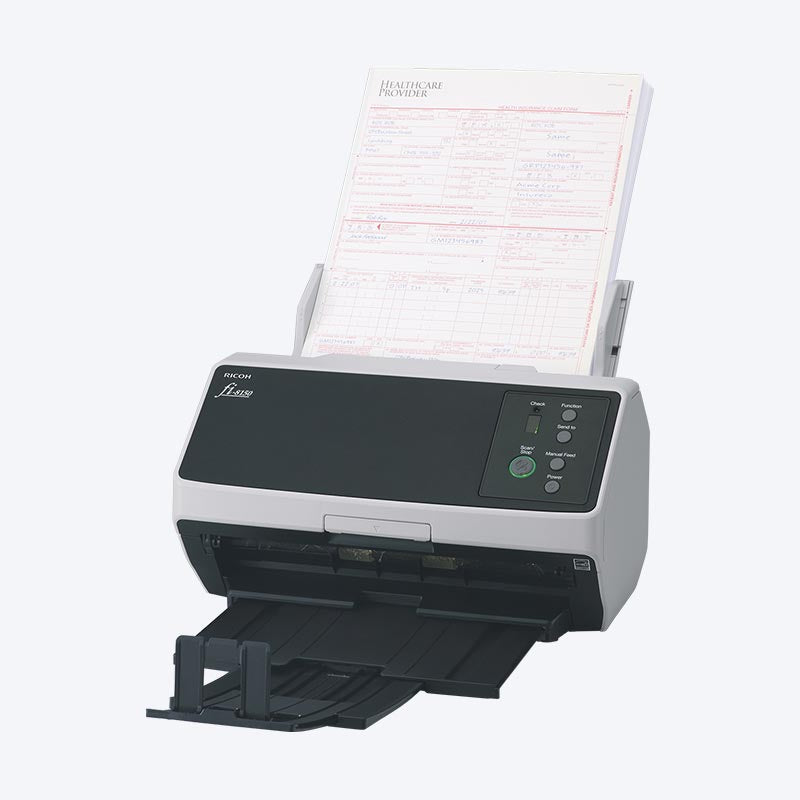

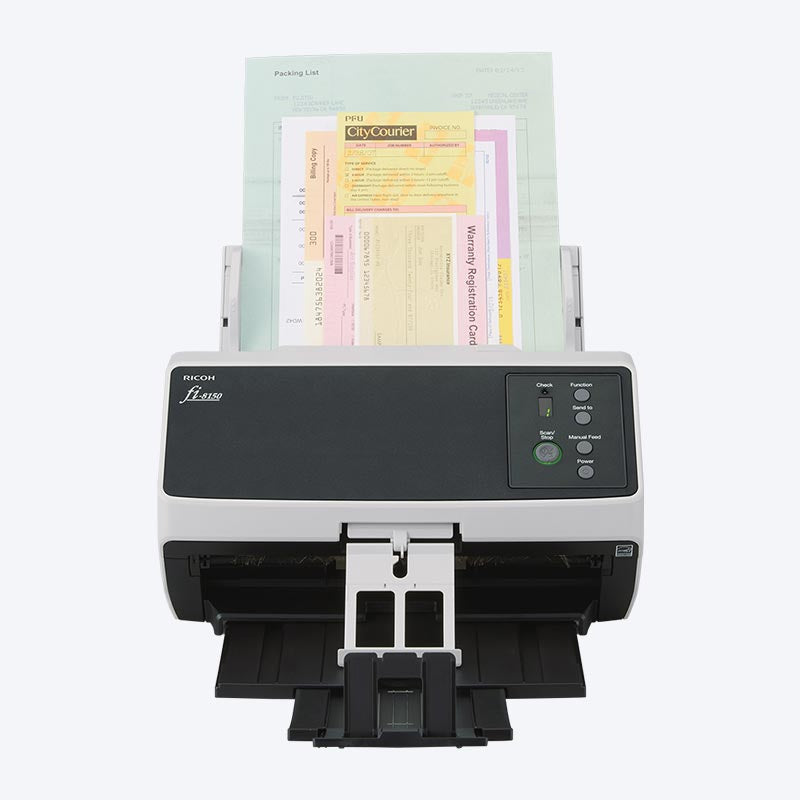

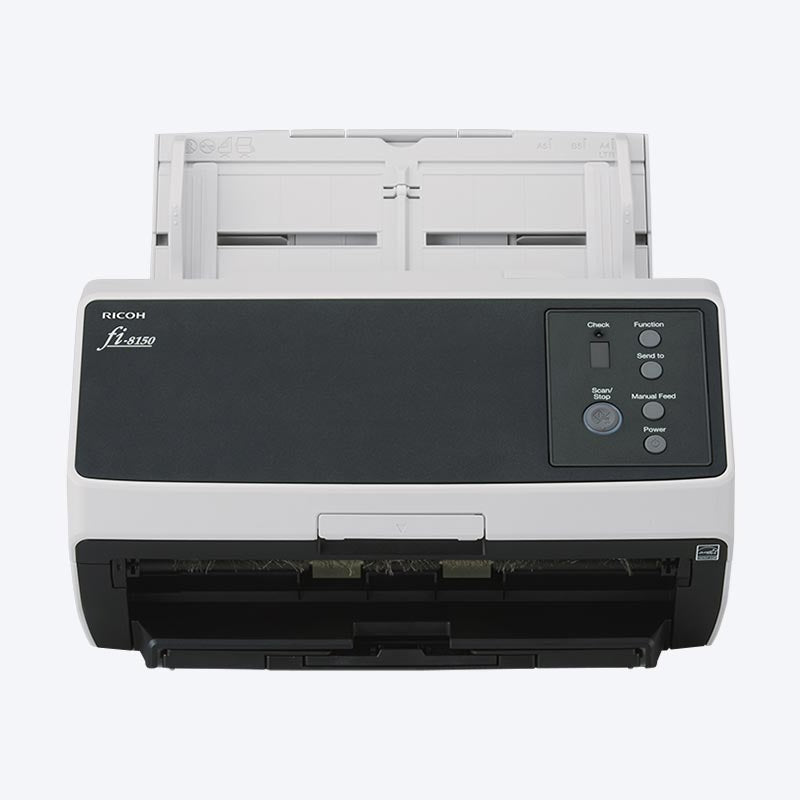

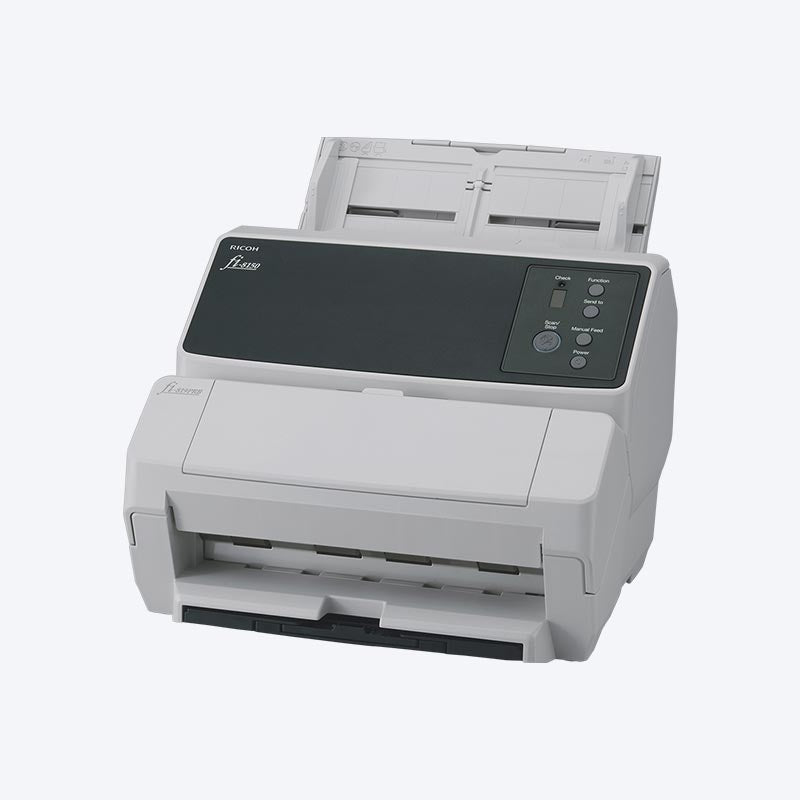

Ricoh fi-8150 A4 Duplex Document Scanner
PRODUCT DESCRIPTION
Ricoh fi-8150 A4 Duplex Document Scanner, 50 ppm / 100 ipm, USB 3.2 & Gigabit Ethernet (PA03810-B101) - 1 Year Local Warranty
50 ppm Duplex Scanning for Everyday Office Workloads
The Ricoh fi-8150 is an A4 desktop scanner from the fi-8000 series. It scans at 50 pages per minute simplex and 100 images per minute duplex (A4, 200/300 dpi), holds 100 sheets in the ADF and is rated by Ricoh for an expected daily volume of 8,000 sheets.
600 dpi Dual CIS Capture
Two CIS sensors with RGB LED light sources capture both sides in one pass at 600 dpi optical resolution, with output up to 1,200 dpi via the driver. Power consumption is 21 W or less when operating, or 17 W in Eco mode.
Handles Mixed Batches, Cards and Booklets
The fi-8150 accepts paper from 20 to 465 g/m², plastic cards up to 1.4 mm, long pages up to 6,096 mm and, in Manual Feed Mode, booklets up to 7 mm thick. Ultrasonic overlap detection and length detection help prevent missed pages.
USB and Gigabit Ethernet Built In
Connect by USB 3.2 Gen1x1 or share the scanner on the network over the built-in 10/100/1000BASE-T Ethernet port. PaperStream IP (TWAIN/ISIS), WIA, macOS (ICA) and Linux (SANE) drivers are supported, and PaperStream Capture and PaperStream ClickScan are supplied for scanning workflows.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and connection needs and we will size it for you.
Ricoh fi-8150 Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-8150 Image Scanner |
| Part Number | PA03810-B101 |
| Series | Ricoh fi-8000 series (A4 ADF) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed, Duplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | CIS x 2 (front x 1, back x 1) |
| Light Source | RGB LED x 2 (front x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Portrait) | Simplex 50 ppm / Duplex 100 ipm (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | White / Black (selectable) |
Paper Handling
| Maximum Document Size | 215.9 x 355.6 mm (8.5 x 14 in) |
| Minimum Document Size | 48 x 50 mm (1.9 x 2 in) |
| Long Page Scanning | Up to 6,096 mm (240 in) |
| Paper Weight | 20 to 465 g/m² (5.3 to 124 lb) |
| Plastic Cards | 1.4 mm or less |
| Booklets | Less than 7 mm (Manual Feed Mode) |
| ADF Capacity | 100 sheets (A4 80 g/m²) |
| Expected Daily Volume | 8,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor), length detection |
Connectivity & Power
| Interface | USB 3.2 Gen1x1 / USB 2.0 / USB 1.1; Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T |
| Power Requirements | AC 100 to 240 V, 50/60 Hz |
| Power Consumption | Operating 21 W or less (Eco mode 17 W); Sleep 2.0 W or less (LAN) / 1.4 W or less (USB); Auto Standby (Off) 0.2 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 300 x 170 x 163 mm |
| Weight | 4 kg (8.8 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 15 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016, macOS and Linux (Ubuntu), per Ricoh's fi-8150 datasheet.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS), WIA driver, Image Scanner Driver for macOS (ICA) and Image Scanner Driver for Linux (SANE).
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, iDTC / Advanced DTC / SDTC, de-screen, dropout colour, hole-punch removal, index-tab cropping, split image, de-skew, edge filler, vertical streak reduction and background pattern removal.
Package Contents & fi-8000 Series Ordering Information
In the Box (per Ricoh)
fi-8150 scanner, ADF paper chute, AC cable, AC adapter, USB cable and setup DVD-ROM.
fi-8000 A4 ADF Models
| Model | Speed (ppm / ipm) | Interface | Part No. |
| fi-8150U | 50 / 100 | USB only | PA03810-B151 |
| fi-8150 (this listing) | 50 / 100 | USB + Ethernet | PA03810-B101 |
| fi-8170 | 70 / 140 | USB + Ethernet | PA03810-B051 |
| fi-8190 | 90 / 180 | USB + Ethernet | PA03810-B001 |
Need a flatbed as well? See the fi-8250 / fi-8270 / fi-8290, which pair the same ADF with an A4 flatbed.
Datasheet & Downloads
| Ricoh datasheet | fi-8150 Datasheet (PDF) |
| Ricoh product page | fi-8150 on pfu-asia.ricoh.com |
| Drivers & software | fi-8000 series downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03810-B101.
Frequently Asked Questions — Ricoh fi-8150
How fast is the fi-8150?
50 ppm simplex and 100 ipm duplex on A4 portrait at 200/300 dpi.
Can it be shared on the network?
Yes. It has a built-in Gigabit Ethernet port as well as USB 3.2. If you only need USB, the fi-8150U is the USB-only version of this model.
Can it scan ID cards and passports?
It scans plastic cards up to 1.4 mm thick and, in Manual Feed Mode, booklets up to 7 mm thick.
Does it work with a Mac or Linux?
Yes. Ricoh supplies an ICA driver for macOS and a SANE driver for Linux (Ubuntu) alongside the Windows TWAIN/ISIS drivers.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
