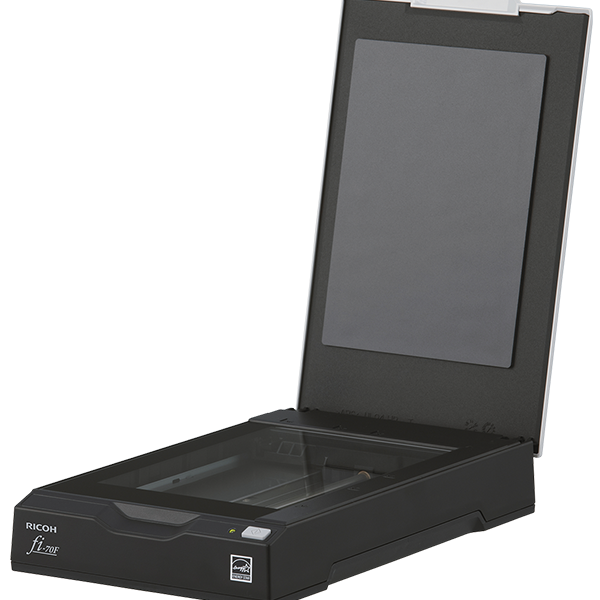

Ricoh fi-70F A6 Flatbed ID & Passport Scanner
PRODUCT DESCRIPTION
Ricoh fi-70F A6 Flatbed ID Card & Passport Scanner, 600 dpi, USB Bus-Powered (PA03841-B001) - 1 Year Local Warranty
Compact Scanner for IDs, Passports and Cards

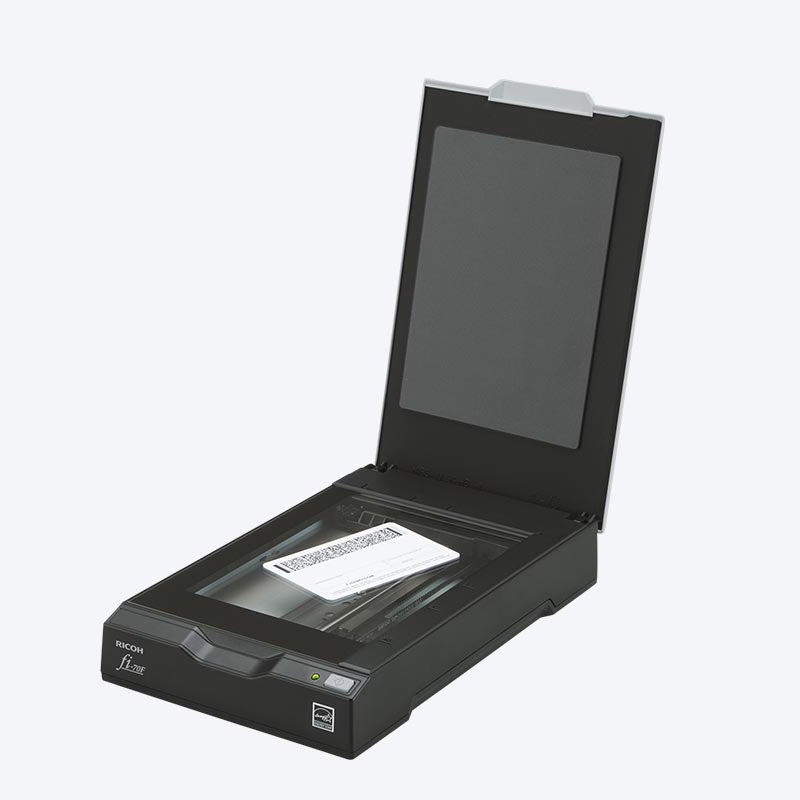

The Ricoh fi-70F is a small-footprint A6 flatbed scanner for front desks, counters and reception areas. It scans identification and small cards of all types, such as driver's licences, passports, insurance cards and credit cards, up to 105 x 148 mm, and weighs just 0.9 kg at 145 x 234 x 40 mm.
Scans in About a Second
With the AC adapter, an A6 scan takes 0.9 seconds in grayscale or monochrome and 1.3 seconds in colour at 200 dpi. The 600 dpi optical CMOS CIS sensor with a 3-colour LED light source produces clean, crisp images in colour, grayscale and monochrome.
Coverless, One-Touch Operation
Coverless scanning lets staff scan without repeatedly opening and closing the lid, and a single button press scans and saves the image. Automatic cropping, automatic rotation and de-skew tidy each scan without manual adjustment.
Runs from USB Power
The fi-70F connects over USB 2.0 and can draw its power from the computer's USB ports using the supplied USB bus power cable, or run from the included AC adapter for the fastest scans. PaperStream IP (TWAIN/ISIS) and WIA drivers are supported, and PaperStream Capture and PaperStream ClickScan are supplied.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and connection needs and we will size it for you.
Ricoh fi-70F Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-70F Image Scanner |
| Part Number | PA03841-B001 |
| Series | Ricoh fi series (A6 flatbed) |
| Scanner Type | Flatbed, Simplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | CMOS CIS |
| Light Source | 3-colour LED |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A6, AC adapter) | Colour: 1.3 s (200 dpi) / 2.0 s (300 dpi); Grayscale / Monochrome: 0.9 s (200 dpi) / 1.0 s (300 dpi) |
| Scanning Speed (A6, USB bus power) | Colour: 2.0 s (200 dpi) / 2.5 s (300 dpi); Grayscale / Monochrome: 2.0 s (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | Black |
Document Handling
| Maximum Document Size | 105 x 148 mm (4.1 x 5.8 in), A6 |
| Suitable Documents | ID cards, driver's licences, passports, insurance cards, credit cards and other small cards |
| Daily Duty Volume | 100 pages |
Connectivity & Power
| Interface | USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10% (AC adapter) or USB bus power |
| Power Consumption | Operating 5 W or less (AC) / 6 W or less (USB bus power); Sleep 2 W or less; Auto Standby 0.3 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 145 x 234 x 40 mm |
| Weight | 0.9 kg (1.98 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10 and Windows Server 2025 / 2022 / 2019 / 2016, per Ricoh's fi-70F datasheet.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS) and WIA driver.
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Automatic cropping, automatic rotation and de-skew.
Package Contents & fi Series Flatbed Ordering Information
In the Box (per Ricoh)
fi-70F scanner, AC cable, AC adapter, USB cable, USB bus power cable and setup DVD-ROM.
Ricoh fi Series Flatbed Scanners
| Model | Flatbed Size | Interface | Part No. |
| fi-70F (this listing) | A6 | USB 2.0 | PA03841-B001 |
| fi-8250U (with ADF) | A4 / Letter | USB only | PA03810-B651 |
| fi-8250 (with ADF) | A4 / Letter | USB + Ethernet | PA03810-B601 |
| fi-8270 (with ADF) | A4 / Letter | USB + Ethernet | PA03810-B551 |
| fi-8290 (with ADF) | A4 / Letter | USB + Ethernet | PA03810-B501 |
Need to scan full-size A4 documents as well as IDs? The fi-8250U / fi-8250 / fi-8270 / fi-8290 pair an A4 flatbed with a 100-sheet duplex ADF.
Datasheet & Downloads
| Ricoh datasheet | fi-70F Datasheet (PDF) |
| Ricoh product page | fi-70F on pfu-asia.ricoh.com |
| Drivers & software | fi-70F downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03841-B001.
Frequently Asked Questions — Ricoh fi-70F

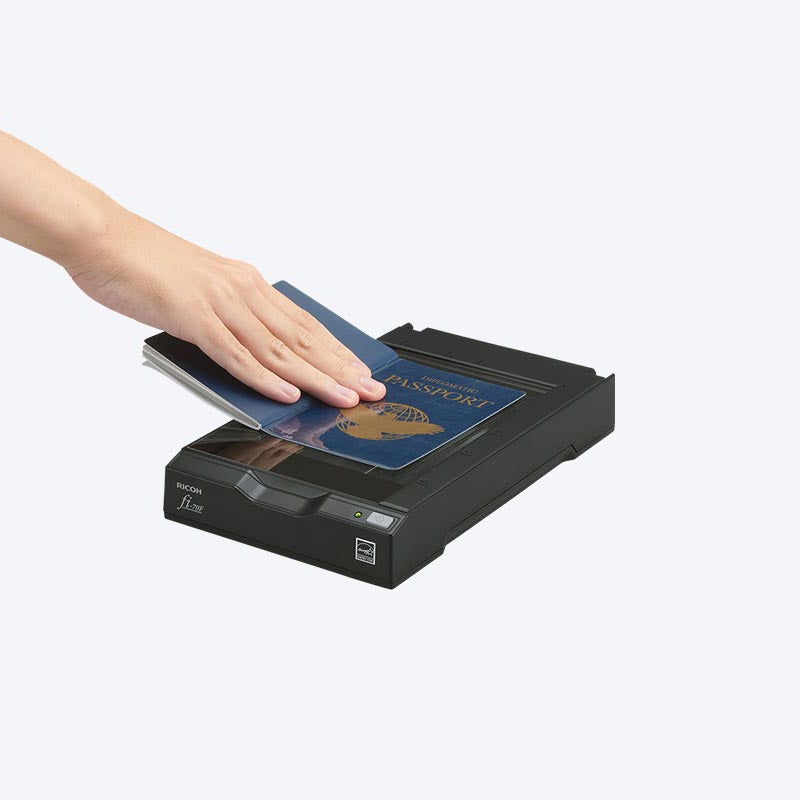

What can the fi-70F scan?
Originals up to A6 (105 x 148 mm), including ID cards, driver's licences, passports, insurance cards and credit cards.
How fast is it?
On AC power, an A6 scan takes 0.9 seconds in grayscale or monochrome and 1.3 seconds in colour at 200 dpi. Scans are a little slower on USB bus power.
Does it need a power socket?
No. It can run from the computer's USB ports with the supplied USB bus power cable, or from the included AC adapter.
Does it work with a Mac?
Ricoh's fi-70F datasheet lists Windows 11, Windows 10 and Windows Server only; macOS is not listed.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
