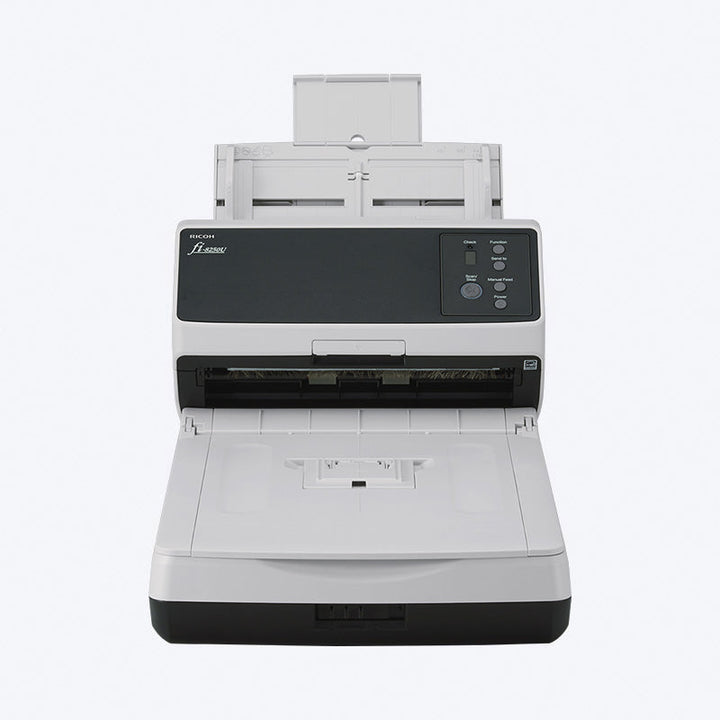

Ricoh fi-8250U A4 Duplex ADF + Flatbed Scanner, USB Only
PRODUCT DESCRIPTION
Ricoh fi-8250U A4 Duplex Document Scanner with Flatbed, 50 ppm / 100 ipm, USB 3.2 (PA03810-B651) - 1 Year Local Warranty
50 ppm ADF and an A4 Flatbed in One Scanner
The Ricoh fi-8250U is the USB-connected entry model of the fi-8000 flatbed range. Its 100-sheet ADF scans at 50 pages per minute simplex and 100 images per minute duplex (A4, 200/300 dpi), while the built-in A4 flatbed takes books, bound files and fragile originals that should not go through a feeder. Ricoh rates it for an expected daily volume of 8,000 sheets.
PFU Clear Image Capture
The ADF uses two CIS sensors with RGB LED light sources to capture both sides in one pass, and the flatbed uses a colour CCD sensor with a white LED, all at 600 dpi optical resolution. A flatbed scan takes 1.7 seconds at 200/300 dpi. Operating power is 21 W or less (Eco mode 17 W).
Handles Mixed Batches, Cards and Booklets
The ADF accepts paper from 20 to 465 g/m², plastic cards up to 1.4 mm and long pages up to 6,096 mm; in Manual Feed Mode it takes booklets less than 7 mm thick. Ultrasonic overlap detection and length detection catch double feeds, and image monitoring helps protect originals from damage.
Simple USB 3.2 Connection
The fi-8250U connects to a single PC over USB 3.2 Gen1x1 (USB 2.0 / 1.1 compatible). If you need to share the scanner on the network, the fi-8250 is the same scanner with a built-in Gigabit Ethernet port. PaperStream IP (TWAIN/ISIS), WIA and Linux (SANE) drivers are supported, and PaperStream Capture and PaperStream ClickScan are supplied.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and connection needs and we will size it for you.
Ricoh fi-8250U Datasheet — Technical Specifications
General
| Product Name | Ricoh fi-8250U Image Scanner |
| Part Number | PA03810-B651 |
| Series | Ricoh fi-8000 series (A4 ADF + Flatbed) |
| Scanner Type | ADF (Automatic Document Feeder) / Manual Feed / Flatbed, Duplex |
| Local Warranty (Singapore) | 1 year on-site, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | ADF: CIS x 2 (front x 1, back x 1); Flatbed: Colour CCD x 1 |
| Light Source | ADF: RGB LED x 2 (front x 1, back x 1); Flatbed: White LED |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| ADF Scanning Speed (A4 Portrait) | Simplex 50 ppm / Duplex 100 ipm (200/300 dpi) |
| Flatbed Scanning Speed | 1.7 seconds (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | ADF: White / Black (selectable); Flatbed: White (optional black) |
Paper Handling
| Maximum Document Size | ADF: 215.9 x 355.6 mm (8.5 x 14 in); Flatbed: 215.9 x 297 mm (8.5 x 11.7 in) |
| Minimum Document Size (ADF) | 48 x 50 mm (1.9 x 2 in) |
| Long Page Scanning | Up to 6,096 mm (240 in) |
| Paper Weight (ADF) | 20 to 465 g/m² (5.3 to 124 lb) |
| Plastic Cards | 1.4 mm or less |
| Booklets | Less than 7 mm (Manual Feed Mode) |
| ADF Capacity | 100 sheets (A4 80 g/m²) |
| Expected Daily Volume | 8,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor), length detection |
| Paper Protection | Image monitoring |
Connectivity & Power
| Interface | USB 3.2 Gen1x1 / USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V, 50/60 Hz |
| Power Consumption | Operating 21 W or less (Eco mode 17 W); Sleep 1.4 W or less (USB); Auto Standby (Off) 0.2 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 300 x 577 x 234 mm |
| Weight | 8.8 kg (19.4 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 15 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016 and Linux (Ubuntu), per Ricoh's fi-8250U datasheet.
Drivers
PaperStream IP driver (TWAIN / TWAIN x64 / ISIS), WIA driver and Image Scanner Driver for Linux (SANE).
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide and PaperStream Central Admin. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, blank page detection, iDTC / Advanced DTC / SDTC, de-screen, dropout colour, sRGB output, hole-punch removal, index-tab cropping, split image, de-skew, edge filler, vertical streak reduction, background pattern removal and cropping.
Package Contents & fi-8000 Series Ordering Information
In the Box (per Ricoh)
fi-8250U scanner, ADF paper chute, AC cable, AC adapter, USB cable and setup DVD-ROM.
fi-8000 A4 ADF + Flatbed Models
| Model | Speed (ppm / ipm) | Interface | Part No. |
| fi-8250U (this listing) | 50 / 100 | USB only | PA03810-B651 |
| fi-8250 | 50 / 100 | USB + Ethernet | PA03810-B601 |
| fi-8270 | 70 / 140 | USB + Ethernet | PA03810-B551 |
| fi-8290 | 90 / 180 | USB + Ethernet | PA03810-B501 |
No flatbed needed? See the fi-8150 / fi-8170 / fi-8190, which use the same ADF in a compact desktop body.
Datasheet & Downloads
| Ricoh datasheet | fi-8250U Datasheet (PDF) |
| Ricoh product page | fi-8250U on pfu-asia.ricoh.com |
| Drivers & software | fi-8000 series downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03810-B651.
Frequently Asked Questions — Ricoh fi-8250U
How fast is the fi-8250U?
50 ppm simplex and 100 ipm duplex through the ADF on A4 portrait at 200/300 dpi. A flatbed scan takes 1.7 seconds at 200/300 dpi.
What can I scan on the flatbed?
Originals up to 215.9 x 297 mm (A4 / Letter), such as books, bound files and fragile items that should not go through the feeder.
Can it be shared on the network?
No, the fi-8250U is USB only. The fi-8250 offers the same speed with a built-in Gigabit Ethernet port.
Does it work with Linux?
Yes. Ricoh supplies a SANE driver for Linux (Ubuntu) alongside the Windows TWAIN/ISIS and WIA drivers.
What warranty do I get?
1 year on-site local warranty in Singapore, supplied by SourceIT with a GST invoice.
