NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition
PRODUCT DESCRIPTION
NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition 96 GB GDDR7 with ECC (900-5G144-2500-000) - 3 Years Local Warranty
RTX PRO 6000 Blackwell Workstation Edition — 96 GB of GDDR7 for Local AI and Neural Rendering
The NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition is the top of NVIDIA's Blackwell professional desktop range: 24,064 CUDA cores, 96 GB of GDDR7 with ECC on a 512-bit bus, and 1,792 GB/s of memory bandwidth. That memory capacity is the headline for Singapore teams doing local AI — it holds large language models, diffusion pipelines and multi-billion-parameter fine-tuning jobs entirely in VRAM, without the round trips to system memory or the cloud that turn an experiment into an overnight run.
4,000 AI TOPS from Fifth-Generation Tensor Cores
Fifth-generation Tensor Cores deliver up to 4,000 AI TOPS (effective FP4 with sparsity) alongside 126 TFLOPS of FP32 for classic compute. Fourth-generation RT Cores add 382 TFLOPS of ray tracing throughput for neural rendering, real-time visualisation and physically accurate lighting. Ninth-generation NVENC and sixth-generation NVDEC engines — four of each, with 4:2:2 support — make this equally credible as a broadcast and post-production card.
Multi-Instance GPU: One Card, Up to Four Isolated Workspaces
MIG partitions the card into up to four fully isolated 24 GB instances (or two at 48 GB, or one at 96 GB), each with its own memory and compute. For a design studio or research group that means several engineers or several containerised workloads sharing one card with hard resource boundaries rather than fighting over it.
600 W, Double Flow-Through, PCIe 5.0 x16
At 600 W total board power with a double flow-through active cooler in a 5.4in x 12in dual-slot extended-height form factor, this card needs a workstation chassis with real airflow and a PSU with headroom, fed by a single PCIe CEM5 16-pin connector. Confirm chassis clearance and power budget before ordering — our team can check your specific workstation model.
NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition Datasheet — Technical Specifications
General
| Part Number | 900-5G144-2500-000 |
| Model | NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition |
| GPU Architecture | NVIDIA Blackwell |
| Product Family | NVIDIA RTX PRO Blackwell Workstation / Professional Desktop GPUs |
| Warranty | 3 Years Local Warranty (Singapore) |
Memory
| GPU Memory | 96 GB GDDR7 with ECC |
| Memory Interface | 512-bit |
| Memory Bandwidth | 1,792 GB/s |
| ECC | Yes — error-correcting code memory |
Compute & Performance
| CUDA Cores | 24,064 |
| Tensor Cores | Fifth-generation Tensor Cores — 752 (core count per NVIDIA RTX PRO Blackwell architecture whitepaper) |
| RT Cores | Fourth-generation RT Cores — 188 (core count per NVIDIA RTX PRO Blackwell architecture whitepaper) |
| Single-Precision (FP32) Performance | 126 TFLOPS |
| RT Core Performance | 382 TFLOPS |
| AI Performance | 4,000 AI TOPS (effective FP4 TOPS with sparsity, peak rates based on GPU Boost Clock) |
| Multi-Instance GPU (MIG) | Yes — up to 4x 24 GB, up to 2x 48 GB, or 1x 96 GB (maximum 4 instances) |
Media Engines
| Encoders (NVENC) | 4x NVENC (ninth generation) |
| Decoders (NVDEC) | 4x NVDEC (sixth generation), 4:2:2 support |
Display

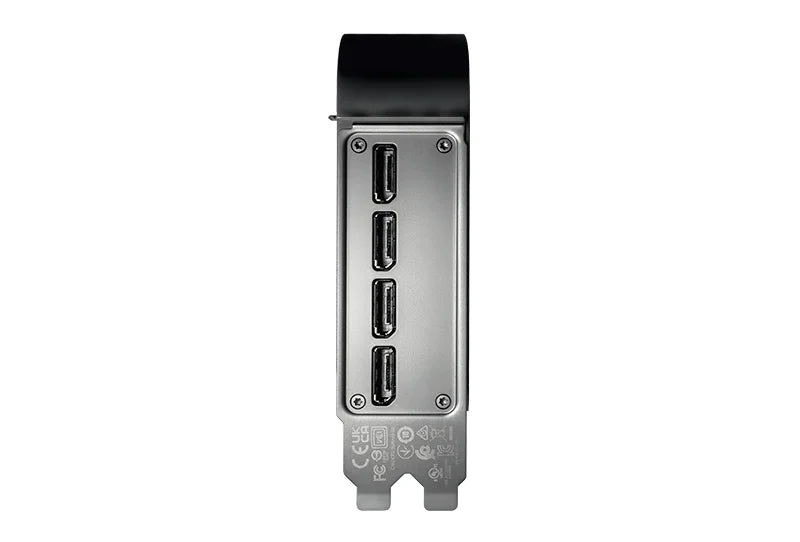

| Display Connectors | 4x DisplayPort 2.1b |
| Maximum Simultaneous Displays | 4x 4096 x 2160 @ 120 Hz; 4x 5120 x 2880 @ 60 Hz; 2x 7680 x 4320 @ 60 Hz |
Power, Form Factor & Interface
| Maximum Power Consumption | 600 W total board power |
| Graphics Bus | PCIe 5.0 x16 |
| Form Factor | 5.4in (H) x 12in (L), dual slot, extended height |
| Thermal Solution | Active — double flow-through |
| Power Connector | 1x PCIe CEM5 16-pin |
Specifications are taken from NVIDIA's published datasheet for this model. Fields NVIDIA does not publish for a given card are shown as such rather than estimated.
Compatibility & Software Support
| Graphics APIs | DirectX 12 (Shader Model 6.6), OpenGL 4.6, Vulkan 1.4 |
| Compute APIs | CUDA 12.8, OpenCL 3.0, DirectCompute |
| Operating Systems | Windows 10/11 64-bit; Linux — RHEL 8.10, SUSE Linux Enterprise Desktop 15.6, OpenSUSE 15.6, Fedora 41, Ubuntu 22.04; FreeBSD 14.2; Solaris 11 U4 (per NVIDIA RTX PRO Blackwell Quick Start Guide) |
| Drivers | NVIDIA RTX Enterprise Driver — Production Branch and New Feature Branch |
| Professional Applications | Certified across leading CAD, DCC, BIM, medical imaging and simulation ISV applications |
| AI Frameworks | CUDA, cuDNN, TensorRT, PyTorch, TensorFlow, NVIDIA NIM and NGC containers |
| Omniverse / Digital Twin | Supported via NVIDIA Omniverse and OpenUSD workflows |
| Chassis Check | 5.4in (H) x 12in (L), dual slot, extended height — confirm slot clearance, power headroom and airflow before ordering |
SourceIT can verify fit against your specific workstation or server model before you order. For ISV certification status on a named application version, check the NVIDIA professional product literature library.
Package Contents & NVIDIA RTX PRO Blackwell Ordering Information

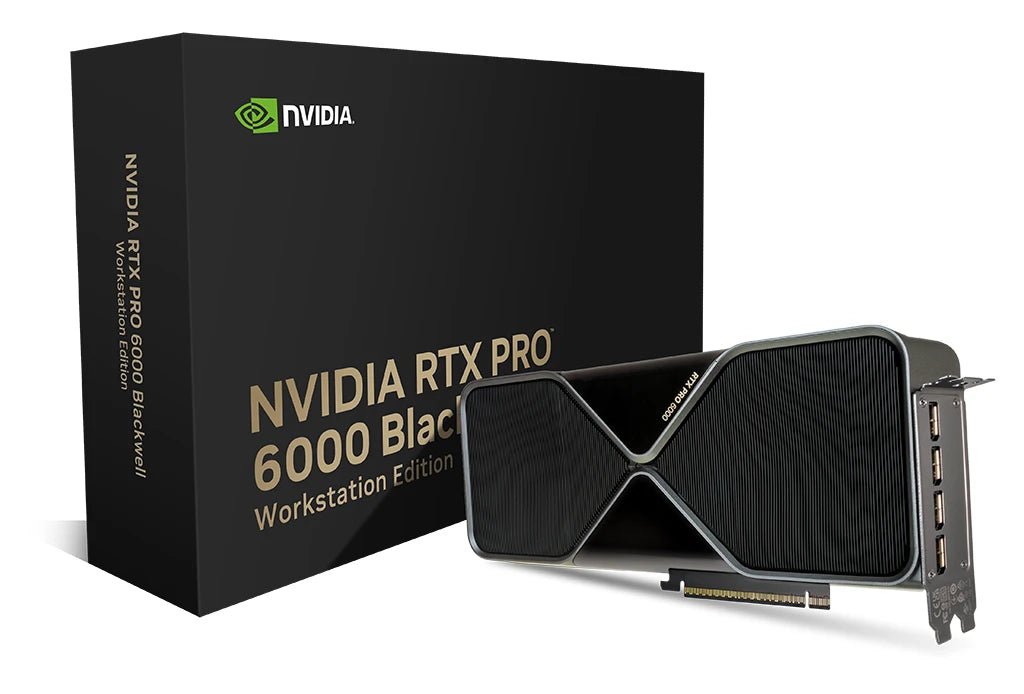

What is in the box: NVIDIA's RTX PRO Blackwell Quick Start Guide lists a Quick Start Card and an auxiliary power cable (2x PCIe 8-pin PSU to 1x PCIe Gen5 16-pin GPU adapter). NVIDIA does not publish a per-SKU box-contents list on the datasheet.
NVIDIA RTX PRO Blackwell range available from SourceIT:
| Part Number | Model & Memory |
| 900-5G144-2500-000 | RTX PRO 6000 Blackwell Workstation Edition — 96 GB GDDR7 with ECC (this item) |
| 900-5G153-2500-000 | RTX PRO 6000 Blackwell Max-Q Workstation Edition — 96 GB GDDR7 with ECC |
| 900-2G153-0000-000 | RTX PRO 6000 Blackwell Server Edition — 96 GB GDDR7 with ECC |
| 900-5G153-2570-000 | RTX PRO 5000 Blackwell 72 GB — 72 GB GDDR7 with ECC |
| 900-5G153-2550-000 | RTX PRO 5000 Blackwell 48 GB — 48 GB GDDR7 with ECC |
| 900-5G147-2550-000 | RTX PRO 4500 Blackwell — 32 GB GDDR7 with ECC |
| 900-5G147-2570-000 | RTX PRO 4000 Blackwell — 24 GB GDDR7 with ECC |
| 900-5G195-2501-000 | RTX PRO 4000 Blackwell SFF Edition — 24 GB GDDR7 with ECC |
| 900-5G195-2551-000 | RTX PRO 2000 Blackwell — 16 GB GDDR7 with ECC |
Choosing between them: memory capacity is usually the deciding factor for AI work and scene size, while form factor and power decide what will physically fit. The Max-Q variant exists to give full 96 GB capacity at 300 W for chassis that cannot take a 600 W card or that need more than one GPU. The Server Edition is passively cooled and belongs in a server, not a workstation. The SFF Edition trades bandwidth and PCIe lanes for a 70 W low-profile board.
Datasheet & Downloads
- NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition official NVIDIA datasheet
- NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition product page on NVIDIA.com
- NVIDIA RTX PRO Blackwell GPU Architecture Whitepaper (PDF)
- NVIDIA RTX PRO Blackwell Quick Start Guide (PDF)
- NVIDIA professional workstation product literature library
Frequently Asked Questions — RTX PRO 6000 Blackwell Workstation Edition
How much GPU memory does it have, and why does that matter?
96 GB GDDR7 with ECC. For AI work, VRAM capacity decides which models fit on the card at all — a model that does not fit runs an order of magnitude slower or not at all. For visualisation it decides scene and texture budget. ECC means single-bit memory errors are corrected rather than silently corrupting a long job.
What is the difference between the Workstation Edition and the Max-Q version?
Same 96 GB of GDDR7 with ECC and the same 24,064 CUDA cores. The Workstation Edition runs at 600 W for 4,000 AI TOPS and 126 TFLOPS FP32; the Max-Q runs at 300 W for 3,511 AI TOPS and 110 TFLOPS. Choose the Workstation Edition for maximum single-card performance, Max-Q when chassis power or multi-GPU density is the constraint.
What power supply and chassis clearance do I need?
This card is 600 w total board power in a 5.4in (H) x 12in (L), dual slot, extended height form factor with active cooling, powered via 1x PCIe CEM5 16-pin. Check both physical clearance and PSU headroom against your workstation before ordering — send us your machine model and we will confirm fit.
Does it support Multi-Instance GPU?
Yes — up to 4x 24 GB, up to 2x 48 GB, or 1x 96 GB (maximum 4 instances). Each instance gets isolated memory and compute, so several users, containers or services can share one card with hard boundaries instead of contending for it.
Is this a professional card or a gaming card?
Professional. RTX PRO Blackwell cards carry ECC memory, NVIDIA RTX Enterprise drivers with ISV application certification, longer driver support branches and a professional warranty. Consumer GeForce cards have none of these, which is why they are not accepted in most enterprise and regulated deployments regardless of raw frame rate.
Does it come with local warranty in Singapore?
Yes. Every RTX PRO 6000 Blackwell Workstation Edition sold by SourceIT comes with 3 years local Singapore warranty and a GST invoice.
