NVIDIA RTX PRO™ 6000 Blackwell Server Edition
PRODUCT DESCRIPTION
NVIDIA RTX PRO™ 6000 Blackwell Server Edition 96 GB GDDR7 with ECC (900-2G153-0000-000) - 3 Years Local Warranty
RTX PRO 6000 Blackwell Server Edition — Passive 96 GB Accelerator for NVIDIA-Certified Servers

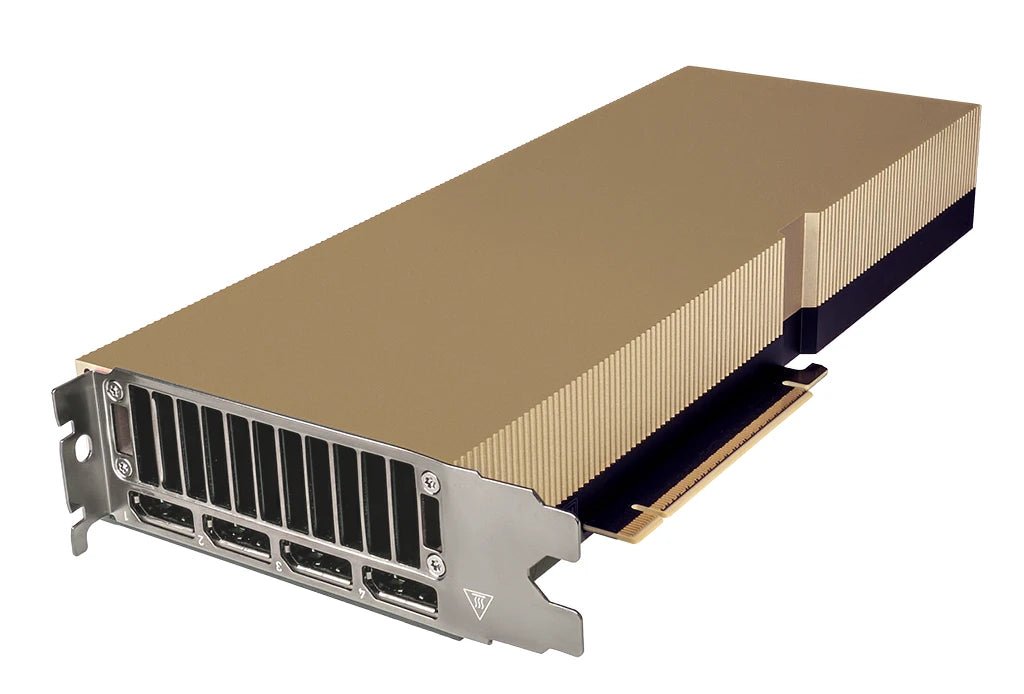

The NVIDIA RTX PRO™ 6000 Blackwell Server Edition brings 96 GB of GDDR7 with ECC and 24,064 CUDA cores into a passively cooled, dual-slot FHFL server card designed to be driven by chassis airflow rather than its own fans. It is the data-centre member of the RTX PRO Blackwell family, intended for NVIDIA-Certified servers running AI inference, virtual workstations, rendering and digital twin workloads.
4 PFLOPS of Peak FP4 AI Performance
NVIDIA rates the Server Edition at 4 PFLOPS peak FP4 AI, with 120 TFLOPS FP32 and 355 TFLOPS of RT Core throughput across 752 fifth-generation Tensor Cores and 188 fourth-generation RT Cores. Memory bandwidth is 1,597 GB/s across a 512-bit interface, and four NVENC, four NVDEC and four JPEG engines handle high-density video and imaging pipelines.
Confidential Computing, Secure Boot and MIG
Unlike the workstation cards, the Server Edition publishes the enterprise security features that regulated Singapore workloads need: Confidential Computing support and secure boot with hardware root of trust. Multi-Instance GPU partitions the card into up to four isolated 24 GB instances so a single accelerator can serve multiple tenants or services with hard separation.
Configurable to 600 W, PCIe 5.0 x16
Power is configurable up to 600 W through a single PCIe CEM5 16-pin connector on a PCIe 5.0 x16 interface. Because the cooler is passive, this card must be installed in a server designed for it — talk to us about NVIDIA-Certified platforms before ordering. NVIDIA AI Enterprise support is available for this product.
NVIDIA RTX PRO™ 6000 Blackwell Server Edition Datasheet — Technical Specifications
General
| Part Number | 900-2G153-0000-000 |
| Model | NVIDIA RTX PRO™ 6000 Blackwell Server Edition |
| GPU Architecture | NVIDIA Blackwell |
| Product Family | NVIDIA RTX PRO Blackwell Server Edition |
| Warranty | 3 Years Local Warranty (Singapore) |
Memory
| GPU Memory | 96 GB GDDR7 with ECC |
| Memory Interface | 512-bit |
| Memory Bandwidth | 1,597 GB/s |
| ECC | Yes — error-correcting code memory |
Compute & Performance
| CUDA Cores | 24,064 |
| Tensor Cores | Fifth-generation Tensor Cores — 752 |
| RT Cores | Fourth-generation RT Cores — 188 |
| Single-Precision (FP32) Performance | 120 TFLOPS |
| RT Core Performance | 355 TFLOPS |
| AI Performance | 4 PFLOPS peak FP4 AI |
| Multi-Instance GPU (MIG) | Yes — up to 4 MIG instances @ 24 GB |
Media Engines
| Encoders (NVENC) | 4x NVENC (ninth generation) |
| Decoders (NVDEC) | 4x NVDEC (sixth generation); 4x JPEG |
Display

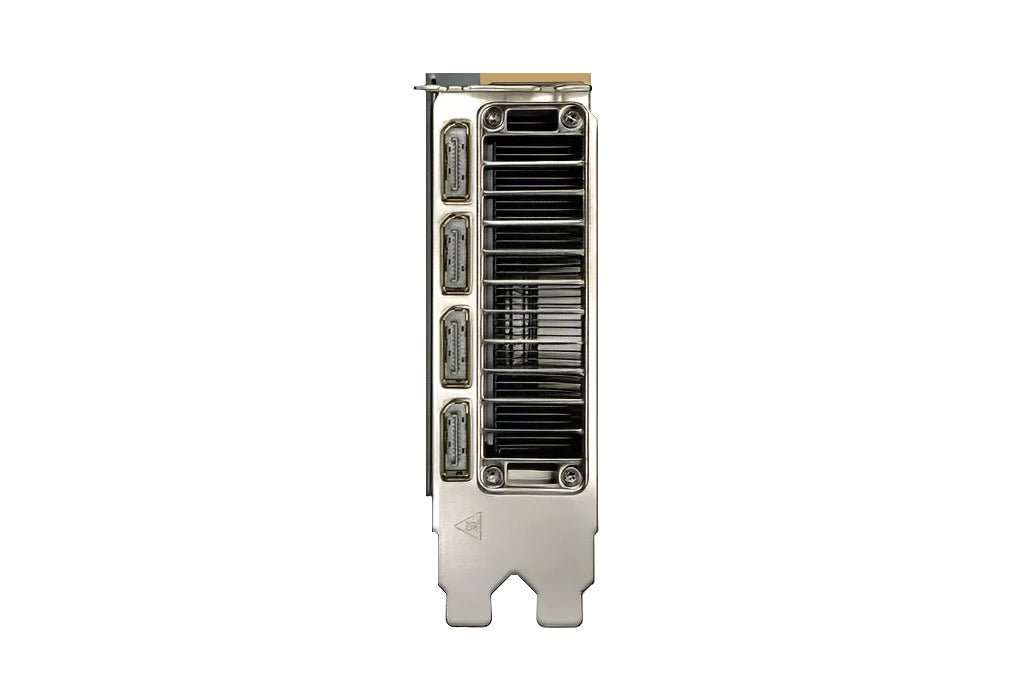

| Display Connectors | 4x DisplayPort 2.1 |
| Maximum Simultaneous Displays | Not published by NVIDIA for this model |
Power, Form Factor & Interface
| Maximum Power Consumption | Up to 600 W (configurable) |
| Graphics Bus | PCI Express 5.0 x16 |

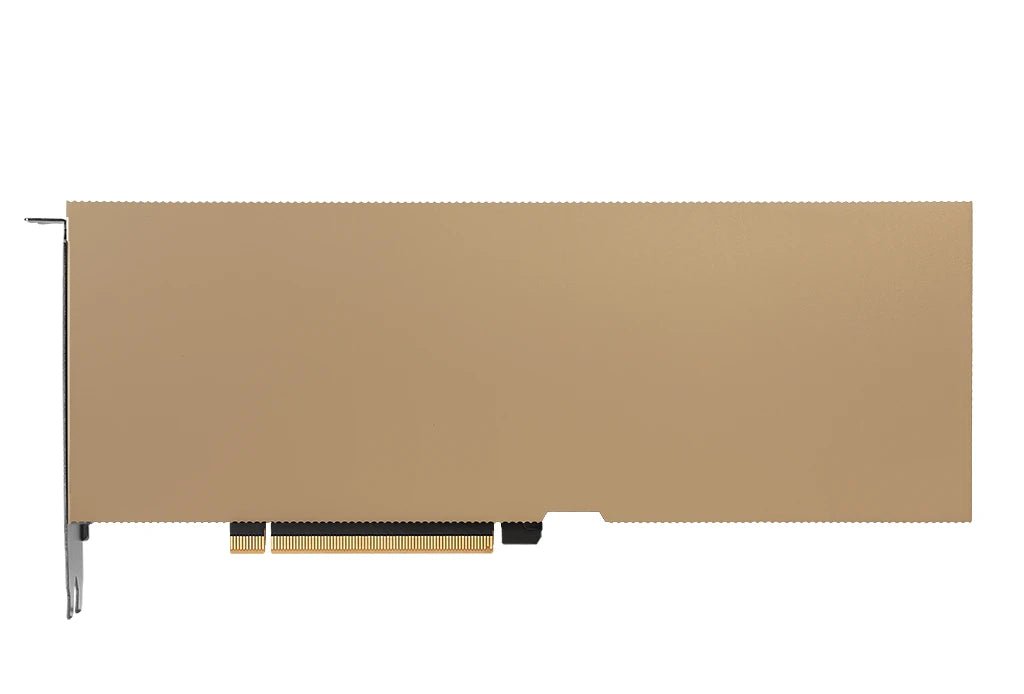

| Form Factor | 4.4in (H) x 10.5in (L), dual slot (air-cooled, FHFL) |
| Thermal Solution | Passive — server chassis airflow required |
| Power Connector | 1x PCIe CEM5 16-pin |
Enterprise Security
| Confidential Computing | Supported |
| Secure Boot | Yes — secure boot with hardware root of trust |
| NVIDIA AI Enterprise | Supported |
Specifications are taken from NVIDIA's published datasheet for this model. Fields NVIDIA does not publish for a given card are shown as such rather than estimated.
Compatibility & Software Support
| Graphics APIs | DirectX 12 (Shader Model 6.6), OpenGL 4.6, Vulkan 1.4 |
| Compute APIs | CUDA 12.8, OpenCL 3.0, DirectCompute |
| Platforms | NVIDIA-Certified servers and leading cloud / data-centre partners |
| Software Stack | NVIDIA AI Enterprise, CUDA-X libraries, NVIDIA NIM microservices, Omniverse |
| Virtualisation | Multi-Instance GPU (up to 4 instances @ 24 GB); Confidential Computing supported |
| Cooling Requirement | Passive card — requires a server chassis rated for passive GPU airflow |
| Chassis Check | 4.4in (H) x 10.5in (L), dual slot (air-cooled, FHFL) — confirm slot clearance, power headroom and airflow before ordering |
SourceIT can verify fit against your specific workstation or server model before you order. For ISV certification status on a named application version, check the NVIDIA professional product literature library.
Package Contents & NVIDIA RTX PRO Blackwell Ordering Information
What is in the box: NVIDIA does not publish a box-contents list for the Server Edition. This is a passively cooled OEM server card and is normally supplied as the board with documentation; contact SourceIT if you need a specific bracket or accessory confirmed for your chassis.
NVIDIA RTX PRO Blackwell range available from SourceIT:
| Part Number | Model & Memory |
| 900-5G144-2500-000 | RTX PRO 6000 Blackwell Workstation Edition — 96 GB GDDR7 with ECC |
| 900-5G153-2500-000 | RTX PRO 6000 Blackwell Max-Q Workstation Edition — 96 GB GDDR7 with ECC |
| 900-2G153-0000-000 | RTX PRO 6000 Blackwell Server Edition — 96 GB GDDR7 with ECC (this item) |
| 900-5G153-2570-000 | RTX PRO 5000 Blackwell 72 GB — 72 GB GDDR7 with ECC |
| 900-5G153-2550-000 | RTX PRO 5000 Blackwell 48 GB — 48 GB GDDR7 with ECC |
| 900-5G147-2550-000 | RTX PRO 4500 Blackwell — 32 GB GDDR7 with ECC |
| 900-5G147-2570-000 | RTX PRO 4000 Blackwell — 24 GB GDDR7 with ECC |
| 900-5G195-2501-000 | RTX PRO 4000 Blackwell SFF Edition — 24 GB GDDR7 with ECC |
| 900-5G195-2551-000 | RTX PRO 2000 Blackwell — 16 GB GDDR7 with ECC |
Choosing between them: memory capacity is usually the deciding factor for AI work and scene size, while form factor and power decide what will physically fit. The Max-Q variant exists to give full 96 GB capacity at 300 W for chassis that cannot take a 600 W card or that need more than one GPU. The Server Edition is passively cooled and belongs in a server, not a workstation. The SFF Edition trades bandwidth and PCIe lanes for a 70 W low-profile board.
Datasheet & Downloads
Frequently Asked Questions — RTX PRO 6000 Blackwell Server Edition
How much GPU memory does it have, and why does that matter?
96 GB GDDR7 with ECC. For AI work, VRAM capacity decides which models fit on the card at all — a model that does not fit runs an order of magnitude slower or not at all. For visualisation it decides scene and texture budget. ECC means single-bit memory errors are corrected rather than silently corrupting a long job.
Can I put the Server Edition in a workstation?
No. It is passively cooled with no fans of its own and depends entirely on server chassis airflow. Installing it in a desktop workstation will overheat it. For workstations use the RTX PRO 6000 Blackwell Workstation Edition or the Max-Q Workstation Edition.
What power supply and chassis clearance do I need?
This card is up to 600 w (configurable) in a 4.4in (H) x 10.5in (L), dual slot (air-cooled, FHFL) form factor with passive cooling, powered via 1x PCIe CEM5 16-pin. Check both physical clearance and PSU headroom against your workstation before ordering — send us your machine model and we will confirm fit.
Does it support Multi-Instance GPU?
Yes — up to 4 MIG instances @ 24 GB. Each instance gets isolated memory and compute, so several users, containers or services can share one card with hard boundaries instead of contending for it.
Is this a professional card or a gaming card?
Professional. RTX PRO Blackwell cards carry ECC memory, NVIDIA RTX Enterprise drivers with ISV application certification, longer driver support branches and a professional warranty. Consumer GeForce cards have none of these, which is why they are not accepted in most enterprise and regulated deployments regardless of raw frame rate.
Does it come with local warranty in Singapore?
Yes. Every RTX PRO 6000 Blackwell Server Edition sold by SourceIT comes with 3 years local Singapore warranty and a GST invoice.
