NVIDIA RTX PRO™ 4000 Blackwell Generation SFF Edition
PRODUCT DESCRIPTION
NVIDIA RTX PRO™ 4000 Blackwell SFF Edition 24 GB GDDR7 with ECC (900-5G195-2501-000) - 3 Years Local Warranty
RTX PRO 4000 Blackwell SFF Edition — 24 GB ECC in a 70 W Low-Profile Card
The NVIDIA RTX PRO™ 4000 Blackwell SFF Edition is the card for small-form-factor workstations, edge nodes and rack-dense deployments where a full-height GPU is not an option. It carries the same 24 GB of GDDR7 with ECC and 8,960 CUDA cores as the full-size RTX PRO 4000, inside a 2.7in x 6.6in half-height, low-profile board drawing just 70 W — with no auxiliary power connector required.
770 AI TOPS Without a Power Cable
NVIDIA's product page rates the SFF Edition at 770 AI TOPS (theoretical FP4 using sparsity), 24 TFLOPS FP32 and 73 TFLOPS RT Core performance. These figures come from NVIDIA's product page rather than the datasheet, which omits them — we flag the source rather than presenting them as datasheet-verified. Two ninth-generation NVENC and two sixth-generation NVDEC engines handle video workloads.
Know the Trade-Offs Against the Full-Size RTX PRO 4000
Same memory, different envelope. The SFF runs at 432 GB/s rather than 672 GB/s, connects over PCIe 5.0 x8 rather than x16, uses four Mini DisplayPort 2.1b outputs rather than full-size DP, and occupies two low-profile slots. If your chassis takes the full-height card, the standard RTX PRO 4000 Blackwell is faster for the same VRAM.
Ideal for SFF Workstations and Edge AI in Singapore
A 70 W, slot-powered, low-profile card with 24 GB of ECC VRAM is a rare combination, and it is what makes local AI inference practical in compact chassis and edge cabinets. Supplied by SourceIT Pte Ltd with a GST invoice and 3 years local warranty.
NVIDIA RTX PRO™ 4000 Blackwell SFF Edition Datasheet — Technical Specifications
General
| Part Number | 900-5G195-2501-000 |
| Model | NVIDIA RTX PRO™ 4000 Blackwell SFF Edition |
| GPU Architecture | NVIDIA Blackwell |
| Product Family | NVIDIA RTX PRO Blackwell Workstation / Professional Desktop GPUs |
| Warranty | 3 Years Local Warranty (Singapore) |
Memory
| GPU Memory | 24 GB GDDR7 with ECC |
| Memory Interface | 192-bit |
| Memory Bandwidth | 432 GB/s |
| ECC | Yes — error-correcting code memory |
Compute & Performance
| CUDA Cores | 8,960 |
| Tensor Cores | Fifth-generation Tensor Cores |
| RT Cores | Fourth-generation RT Cores |
| Single-Precision (FP32) Performance | 24 TFLOPS (NVIDIA product page — not stated on the datasheet) |
| RT Core Performance | 73 TFLOPS (NVIDIA product page — not stated on the datasheet) |
| AI Performance | 770 AI TOPS (NVIDIA product page, theoretical FP4 TOPS using sparsity — not stated on the datasheet) |
| Multi-Instance GPU (MIG) | Not published by NVIDIA for this model |
Media Engines
| Encoders (NVENC) | 2x NVENC (ninth generation) |
| Decoders (NVDEC) | 2x NVDEC (sixth generation) |
Display

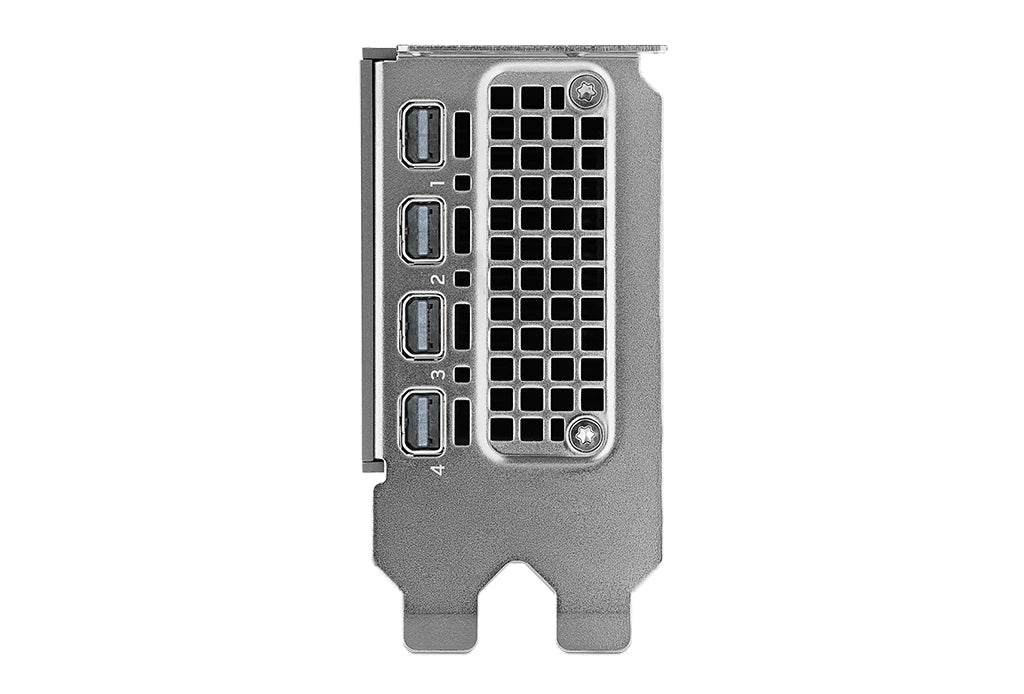

| Display Connectors | 4x Mini DisplayPort 2.1b |
| Maximum Simultaneous Displays | 4x 3840 x 2160 @ 165 Hz; 2x 7680 x 4320 @ 100 Hz |
Power, Form Factor & Interface
| Maximum Power Consumption | 70 W total board power |
| Graphics Bus | PCIe 5.0 x8 (uses a full-length PCIe interface) |

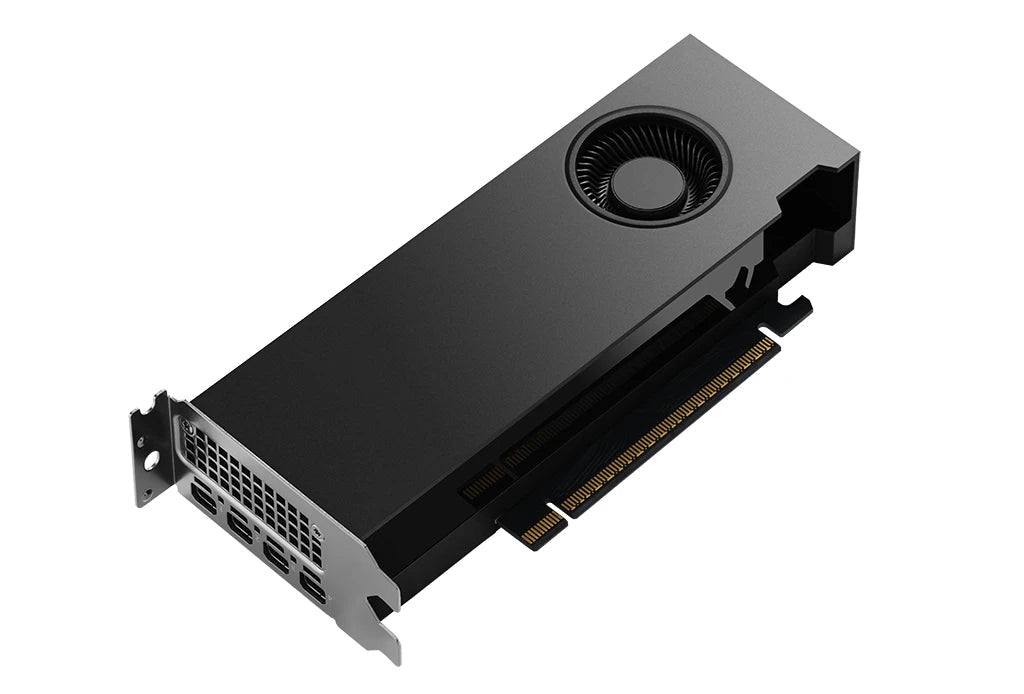

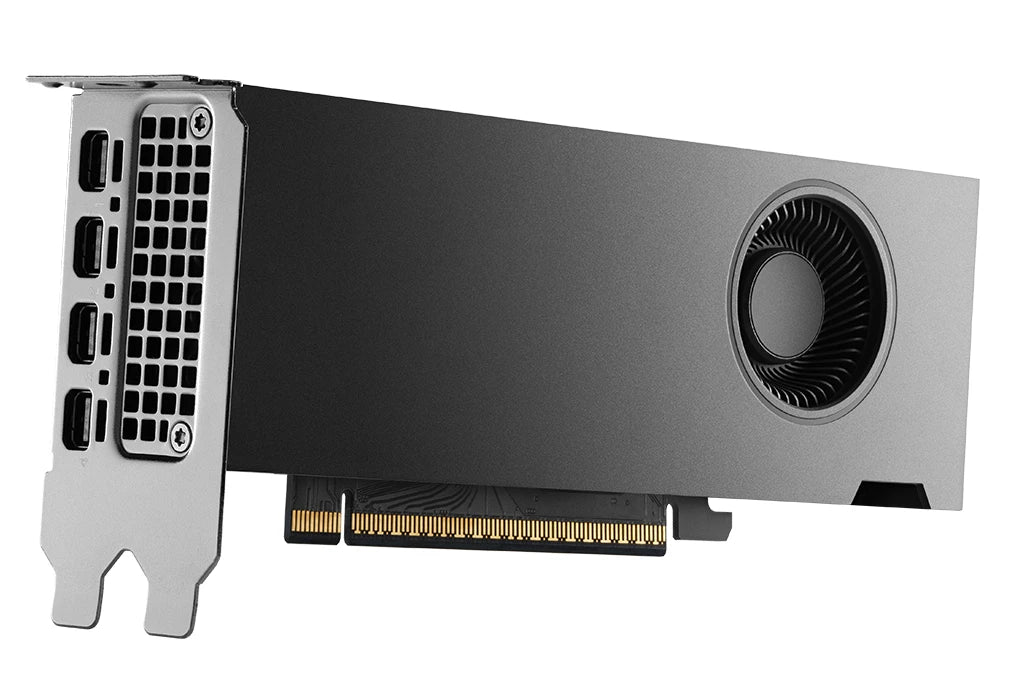

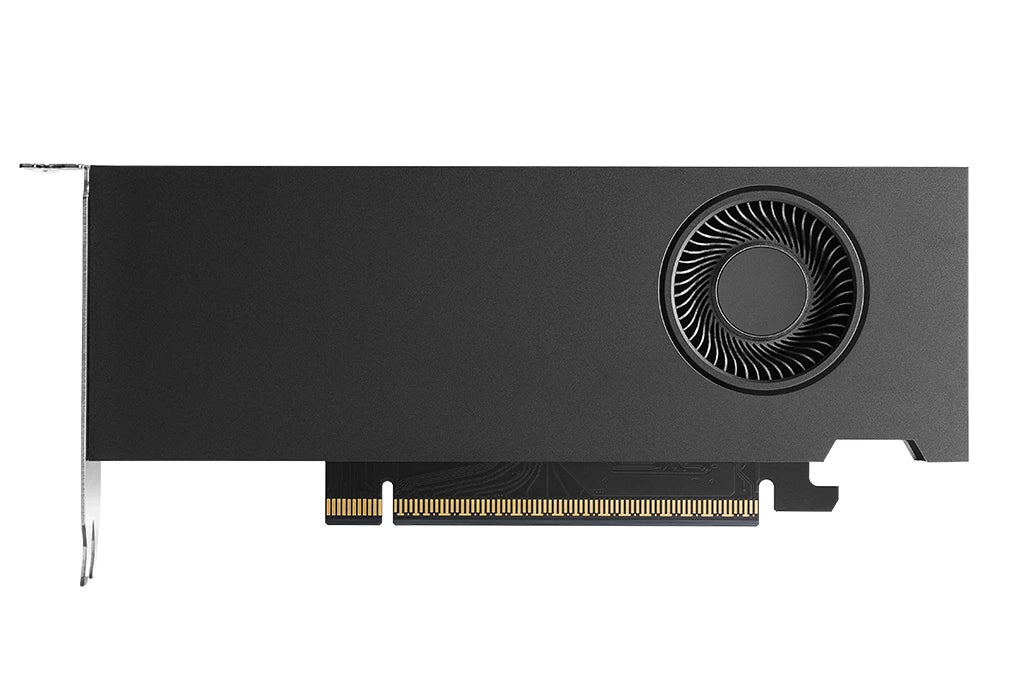

| Form Factor | 2.7in (H) x 6.6in (L), dual slot, half height / low profile |
| Thermal Solution | Active |
| Power Connector | None — 70 W drawn from the PCIe slot, no auxiliary power connector published |
Specifications are taken from NVIDIA's published datasheet for this model. Fields NVIDIA does not publish for a given card are shown as such rather than estimated.
Compatibility & Software Support
| Graphics APIs | DirectX 12 (Shader Model 6.6), OpenGL 4.6, Vulkan 1.4 |
| Compute APIs | CUDA 12.8, OpenCL 3.0, DirectCompute |
| Operating Systems | Windows 10/11 64-bit; Linux — RHEL 8.10, SUSE Linux Enterprise Desktop 15.6, OpenSUSE 15.6, Fedora 41, Ubuntu 22.04; FreeBSD 14.2; Solaris 11 U4 (per NVIDIA RTX PRO Blackwell Quick Start Guide) |
| Drivers | NVIDIA RTX Enterprise Driver — Production Branch and New Feature Branch |
| Professional Applications | Certified across leading CAD, DCC, BIM, medical imaging and simulation ISV applications |
| AI Frameworks | CUDA, cuDNN, TensorRT, PyTorch, TensorFlow, NVIDIA NIM and NGC containers |
| Omniverse / Digital Twin | Supported via NVIDIA Omniverse and OpenUSD workflows |
| Chassis Check | 2.7in (H) x 6.6in (L), dual slot, half height / low profile — confirm slot clearance, power headroom and airflow before ordering |
SourceIT can verify fit against your specific workstation or server model before you order. For ISV certification status on a named application version, check the NVIDIA professional product literature library.
Package Contents & NVIDIA RTX PRO Blackwell Ordering Information
What is in the box: NVIDIA does not publish a formal box-contents list for this model. As a 70 W slot-powered card it requires no auxiliary power cable. If you need a specific bracket height confirmed for your chassis, contact SourceIT before ordering.
NVIDIA RTX PRO Blackwell range available from SourceIT:
| Part Number | Model & Memory |
| 900-5G144-2500-000 | RTX PRO 6000 Blackwell Workstation Edition — 96 GB GDDR7 with ECC |
| 900-5G153-2500-000 | RTX PRO 6000 Blackwell Max-Q Workstation Edition — 96 GB GDDR7 with ECC |
| 900-2G153-0000-000 | RTX PRO 6000 Blackwell Server Edition — 96 GB GDDR7 with ECC |
| 900-5G153-2570-000 | RTX PRO 5000 Blackwell 72 GB — 72 GB GDDR7 with ECC |
| 900-5G153-2550-000 | RTX PRO 5000 Blackwell 48 GB — 48 GB GDDR7 with ECC |
| 900-5G147-2550-000 | RTX PRO 4500 Blackwell — 32 GB GDDR7 with ECC |
| 900-5G147-2570-000 | RTX PRO 4000 Blackwell — 24 GB GDDR7 with ECC |
| 900-5G195-2501-000 | RTX PRO 4000 Blackwell SFF Edition — 24 GB GDDR7 with ECC (this item) |
| 900-5G195-2551-000 | RTX PRO 2000 Blackwell — 16 GB GDDR7 with ECC |
Choosing between them: memory capacity is usually the deciding factor for AI work and scene size, while form factor and power decide what will physically fit. The Max-Q variant exists to give full 96 GB capacity at 300 W for chassis that cannot take a 600 W card or that need more than one GPU. The Server Edition is passively cooled and belongs in a server, not a workstation. The SFF Edition trades bandwidth and PCIe lanes for a 70 W low-profile board.
Datasheet & Downloads
- NVIDIA RTX PRO™ 4000 Blackwell SFF Edition official NVIDIA datasheet
- NVIDIA RTX PRO™ 4000 Blackwell SFF Edition product page on NVIDIA.com
- NVIDIA RTX PRO Blackwell GPU Architecture Whitepaper (PDF)
- NVIDIA RTX PRO Blackwell Quick Start Guide (PDF)
- NVIDIA professional workstation product literature library
Frequently Asked Questions — RTX PRO 4000 Blackwell SFF Edition
How much GPU memory does it have, and why does that matter?
24 GB GDDR7 with ECC. For AI work, VRAM capacity decides which models fit on the card at all — a model that does not fit runs an order of magnitude slower or not at all. For visualisation it decides scene and texture budget. ECC means single-bit memory errors are corrected rather than silently corrupting a long job.
How does the SFF Edition differ from the standard RTX PRO 4000 Blackwell?
Same 24 GB GDDR7 with ECC and 8,960 CUDA cores, but the SFF runs at 70 W with 432 GB/s bandwidth over PCIe 5.0 x8 on a half-height low-profile board with Mini DisplayPort outputs. The standard RTX PRO 4000 runs at 145 W with 672 GB/s over PCIe 5.0 x16, single slot full height, with full-size DisplayPort. Take the SFF only if your chassis requires low profile.
What power supply and chassis clearance do I need?
This card is 70 w total board power in a 2.7in (H) x 6.6in (L), dual slot, half height / low profile form factor with active cooling, powered via None. Check both physical clearance and PSU headroom against your workstation before ordering — send us your machine model and we will confirm fit.
Does it support Multi-Instance GPU or vGPU?
NVIDIA does not publish MIG or vGPU support for this model on its datasheet, so we do not claim it. If GPU partitioning or virtualisation is a requirement, the RTX PRO 6000 Blackwell Server Edition and the RTX PRO 6000 and 5000 workstation cards are the models with published MIG support.
Is this a professional card or a gaming card?
Professional. RTX PRO Blackwell cards carry ECC memory, NVIDIA RTX Enterprise drivers with ISV application certification, longer driver support branches and a professional warranty. Consumer GeForce cards have none of these, which is why they are not accepted in most enterprise and regulated deployments regardless of raw frame rate.
Does it come with local warranty in Singapore?
Yes. Every RTX PRO 4000 Blackwell SFF Edition sold by SourceIT comes with 3 years local Singapore warranty and a GST invoice.
