NVIDIA RTX PRO™ 4000 Blackwell Generation
PRODUCT DESCRIPTION
NVIDIA RTX PRO™ 4000 Blackwell Generation 24 GB GDDR7 with ECC (900-5G147-2570-000) - 3 Years Local Warranty

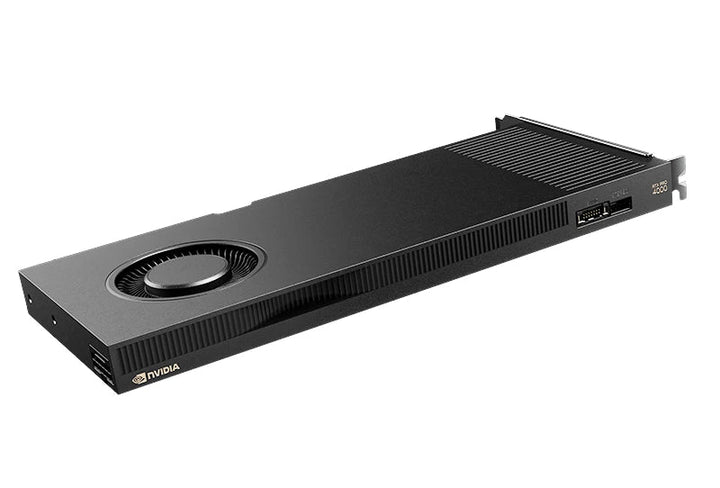

RTX PRO 4000 Blackwell — 24 GB ECC in a Single-Slot Card
The NVIDIA RTX PRO™ 4000 Blackwell is the most useful card in the range for the largest number of desks: 24 GB of GDDR7 with ECC, 8,960 CUDA cores and 672 GB/s of bandwidth, all in a single-slot, full-height, 145 W card. Single-slot matters — it fits workstations where a dual-slot card simply will not go, and it leaves the adjacent slot free.
Blackwell AI Performance at 145 W
Fifth-generation Tensor Cores deliver 1,178 AI TOPS on the NVIDIA datasheet (theoretical FP4 using sparsity), with 37 TFLOPS FP32 and 112 TFLOPS of RT Core throughput. Note that NVIDIA's product web page quotes slightly higher figures (1,290 TOPS, 40 TFLOPS, 122 TFLOPS); we quote the datasheet numbers here and flag the difference rather than picking the flattering one.
Four DisplayPort 2.1b Outputs for Multi-Monitor Desks
Four full-size DisplayPort 2.1b connectors drive up to four 3840 x 2160 displays at 165 Hz, or two 7680 x 4320 displays at 100 Hz. For CAD, GIS, trading floors and control rooms that is a complete multi-monitor solution from one single-slot card.
Deploys Into Existing Workstations
PCIe 5.0 x16, 4.4in x 9.5in, single slot, active cooling, one PCIe CEM5 16-pin power connector. Supplied by SourceIT Pte Ltd with a GST invoice and 3 years local warranty.
NVIDIA RTX PRO™ 4000 Blackwell Datasheet — Technical Specifications
General
| Part Number | 900-5G147-2570-000 |
| Model | NVIDIA RTX PRO™ 4000 Blackwell |
| GPU Architecture | NVIDIA Blackwell |
| Product Family | NVIDIA RTX PRO Blackwell Workstation / Professional Desktop GPUs |
| Warranty | 3 Years Local Warranty (Singapore) |
Memory
| GPU Memory | 24 GB GDDR7 with ECC |
| Memory Interface | 192-bit |
| Memory Bandwidth | 672 GB/s |
| ECC | Yes — error-correcting code memory |
Compute & Performance
| CUDA Cores | 8,960 |
| Tensor Cores | Fifth-generation Tensor Cores |
| RT Cores | Fourth-generation RT Cores |
| Single-Precision (FP32) Performance | 37 TFLOPS (datasheet; NVIDIA product page lists 40 TFLOPS) |
| RT Core Performance | 112 TFLOPS (datasheet; NVIDIA product page lists 122 TFLOPS) |
| AI Performance | 1,178 AI TOPS (datasheet, theoretical FP4 TOPS using sparsity; NVIDIA product page lists 1,290 TOPS) |
| Multi-Instance GPU (MIG) | Not published by NVIDIA for this model |
Media Engines
| Encoders (NVENC) | 2x NVENC (ninth generation) |
| Decoders (NVDEC) | 2x NVDEC (sixth generation) |
Display
| Display Connectors | 4x DisplayPort 2.1b (full-size) |
| Maximum Simultaneous Displays | 4x 3840 x 2160 @ 165 Hz; 2x 7680 x 4320 @ 100 Hz |
Power, Form Factor & Interface
| Maximum Power Consumption | 145 W total board power |
| Graphics Bus | PCIe 5.0 x16 |
| Form Factor | 4.4in (H) x 9.5in (L), single slot, full height |
| Thermal Solution | Active |
| Power Connector | 1x PCIe CEM5 16-pin |
Specifications are taken from NVIDIA's published datasheet for this model. Fields NVIDIA does not publish for a given card are shown as such rather than estimated.
Compatibility & Software Support
| Graphics APIs | DirectX 12 (Shader Model 6.6), OpenGL 4.6, Vulkan 1.4 |
| Compute APIs | CUDA 12.8, OpenCL 3.0, DirectCompute |
| Operating Systems | Windows 10/11 64-bit; Linux — RHEL 8.10, SUSE Linux Enterprise Desktop 15.6, OpenSUSE 15.6, Fedora 41, Ubuntu 22.04; FreeBSD 14.2; Solaris 11 U4 (per NVIDIA RTX PRO Blackwell Quick Start Guide) |
| Drivers | NVIDIA RTX Enterprise Driver — Production Branch and New Feature Branch |
| Professional Applications | Certified across leading CAD, DCC, BIM, medical imaging and simulation ISV applications |
| AI Frameworks | CUDA, cuDNN, TensorRT, PyTorch, TensorFlow, NVIDIA NIM and NGC containers |
| Omniverse / Digital Twin | Supported via NVIDIA Omniverse and OpenUSD workflows |
| Chassis Check | 4.4in (H) x 9.5in (L), single slot, full height — confirm slot clearance, power headroom and airflow before ordering |
SourceIT can verify fit against your specific workstation or server model before you order. For ISV certification status on a named application version, check the NVIDIA professional product literature library.
Package Contents & NVIDIA RTX PRO Blackwell Ordering Information
What is in the box: NVIDIA's RTX PRO Blackwell Quick Start Guide lists a Quick Start Card and an auxiliary power cable (2x PCIe 8-pin PSU to 1x PCIe Gen5 16-pin GPU adapter). NVIDIA does not publish a per-SKU box-contents list on the datasheet.
NVIDIA RTX PRO Blackwell range available from SourceIT:
| Part Number | Model & Memory |
| 900-5G144-2500-000 | RTX PRO 6000 Blackwell Workstation Edition — 96 GB GDDR7 with ECC |
| 900-5G153-2500-000 | RTX PRO 6000 Blackwell Max-Q Workstation Edition — 96 GB GDDR7 with ECC |
| 900-2G153-0000-000 | RTX PRO 6000 Blackwell Server Edition — 96 GB GDDR7 with ECC |
| 900-5G153-2570-000 | RTX PRO 5000 Blackwell 72 GB — 72 GB GDDR7 with ECC |
| 900-5G153-2550-000 | RTX PRO 5000 Blackwell 48 GB — 48 GB GDDR7 with ECC |
| 900-5G147-2550-000 | RTX PRO 4500 Blackwell — 32 GB GDDR7 with ECC |
| 900-5G147-2570-000 | RTX PRO 4000 Blackwell — 24 GB GDDR7 with ECC (this item) |
| 900-5G195-2501-000 | RTX PRO 4000 Blackwell SFF Edition — 24 GB GDDR7 with ECC |
| 900-5G195-2551-000 | RTX PRO 2000 Blackwell — 16 GB GDDR7 with ECC |
Choosing between them: memory capacity is usually the deciding factor for AI work and scene size, while form factor and power decide what will physically fit. The Max-Q variant exists to give full 96 GB capacity at 300 W for chassis that cannot take a 600 W card or that need more than one GPU. The Server Edition is passively cooled and belongs in a server, not a workstation. The SFF Edition trades bandwidth and PCIe lanes for a 70 W low-profile board.
Datasheet & Downloads
Frequently Asked Questions — RTX PRO 4000 Blackwell
How much GPU memory does it have, and why does that matter?
24 GB GDDR7 with ECC. For AI work, VRAM capacity decides which models fit on the card at all — a model that does not fit runs an order of magnitude slower or not at all. For visualisation it decides scene and texture budget. ECC means single-bit memory errors are corrected rather than silently corrupting a long job.
Is there a low-profile version?
Yes — the RTX PRO 4000 Blackwell SFF Edition has the same 24 GB of GDDR7 with ECC and the same 8,960 CUDA cores in a 70 W half-height board, at the cost of bandwidth (432 GB/s vs 672 GB/s), PCIe lanes (x8 vs x16) and Mini DisplayPort instead of full-size connectors.
What power supply and chassis clearance do I need?
This card is 145 w total board power in a 4.4in (H) x 9.5in (L), single slot, full height form factor with active cooling, powered via 1x PCIe CEM5 16-pin. Check both physical clearance and PSU headroom against your workstation before ordering — send us your machine model and we will confirm fit.
Does it support Multi-Instance GPU or vGPU?
NVIDIA does not publish MIG or vGPU support for this model on its datasheet, so we do not claim it. If GPU partitioning or virtualisation is a requirement, the RTX PRO 6000 Blackwell Server Edition and the RTX PRO 6000 and 5000 workstation cards are the models with published MIG support.
Is this a professional card or a gaming card?
Professional. RTX PRO Blackwell cards carry ECC memory, NVIDIA RTX Enterprise drivers with ISV application certification, longer driver support branches and a professional warranty. Consumer GeForce cards have none of these, which is why they are not accepted in most enterprise and regulated deployments regardless of raw frame rate.
Does it come with local warranty in Singapore?
Yes. Every RTX PRO 4000 Blackwell sold by SourceIT comes with 3 years local Singapore warranty and a GST invoice.
