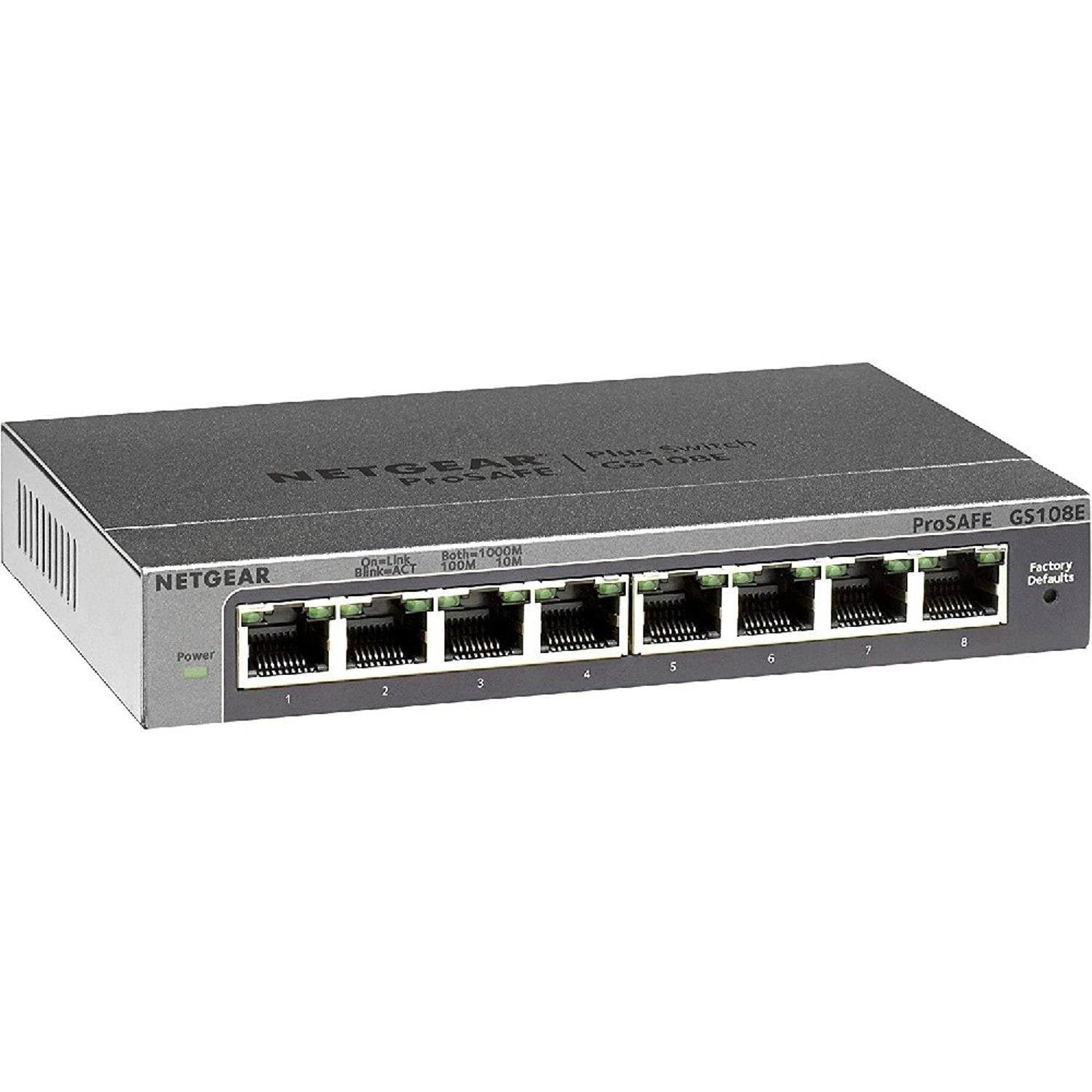

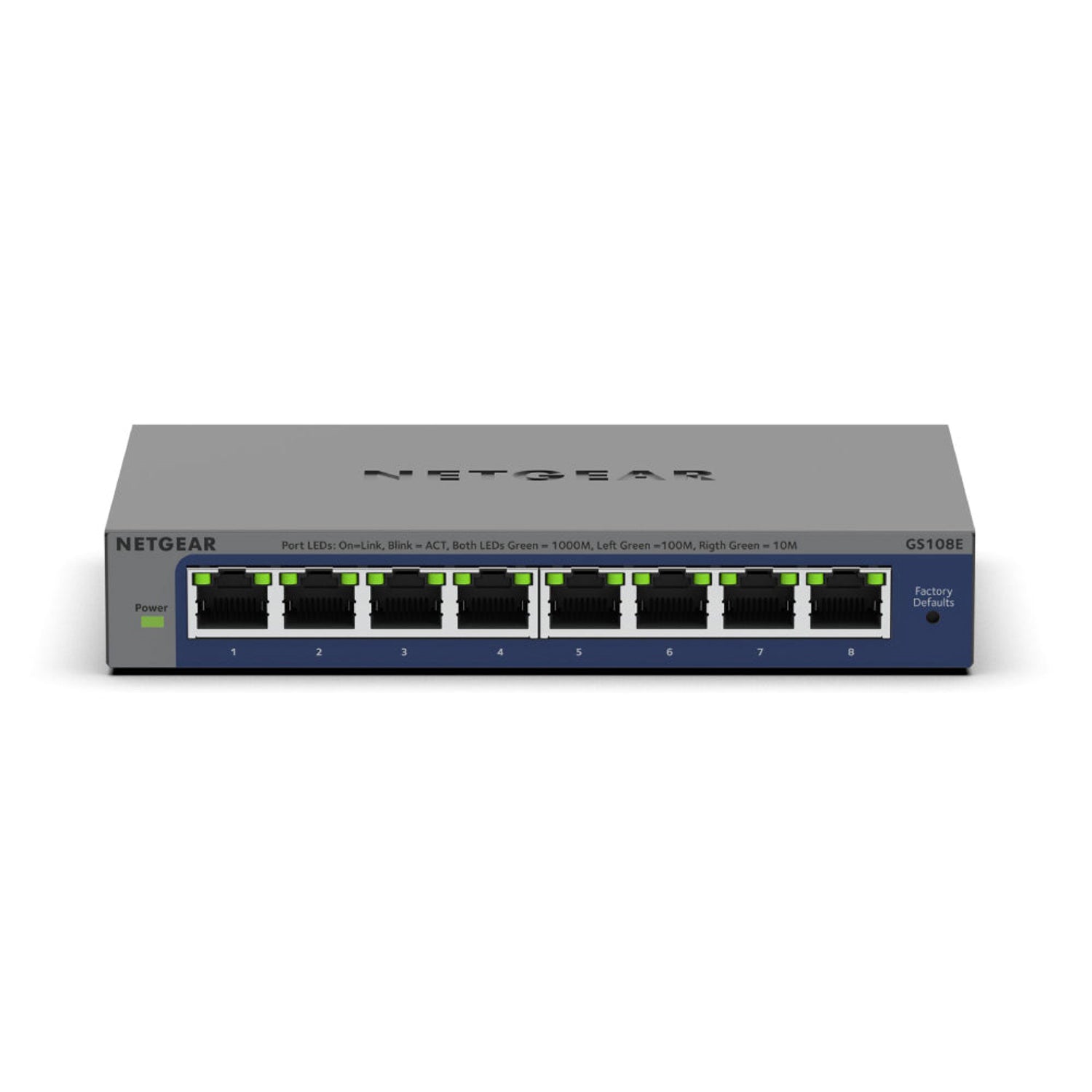

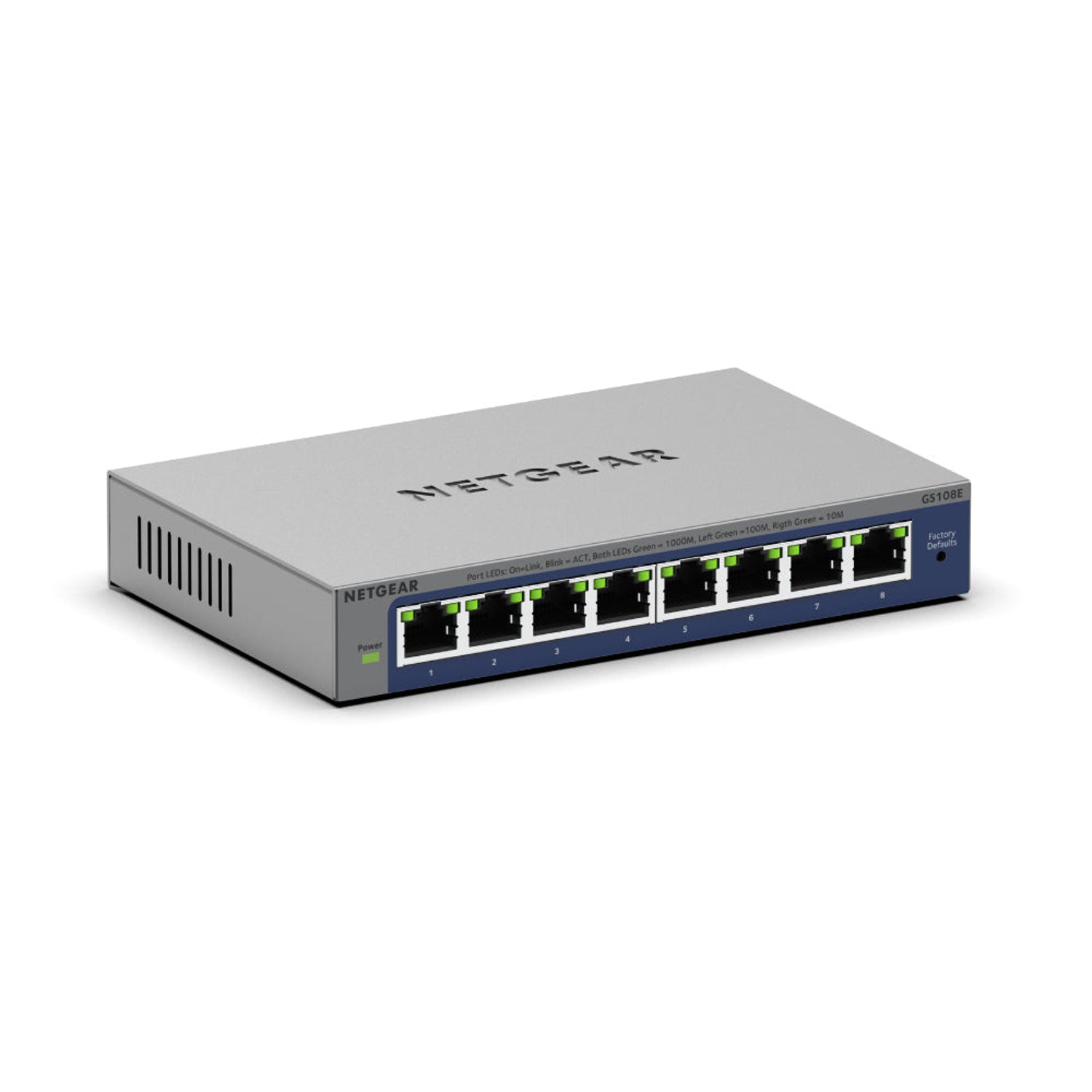

NETGEAR GS108E 8-Port Gigabit Ethernet Plus Switch, Easy Smart Managed, Fanless
PRODUCT DESCRIPTION
NETGEAR GS108E 8-Port Gigabit Ethernet Plus Switch (GS108E-300UKS) - Limited Lifetime Local Warranty
More Control Than an Unmanaged Switch
The NETGEAR GS108E is an 8-port Gigabit Ethernet Plus switch that adds essential management to a simple desktop switch. Set up port-based or 802.1Q VLANs, prioritise voice and video with QoS, and monitor the network — without the cost or complexity of a fully managed switch.
Traffic Control and Troubleshooting
IGMP snooping (v1/v2/v3) keeps multicast video efficient, rate limiting and broadcast storm control protect bandwidth, and loop detection, cable test and port mirroring make troubleshooting quick.
Silent, Compact and Efficient
The fanless metal case runs silently on a desk, draws just 4.5 W maximum and delivers 16 Gbps of switching bandwidth across all eight Gigabit ports.
Need help choosing? Email sales@sourceit.com.sg with your port count and VLAN needs and we will size it for you.
NETGEAR GS108E Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS108E 8-Port Gigabit Ethernet Plus Switch |
| Part Number | GS108E-300UKS |
| Series | NETGEAR Gigabit Ethernet Plus Switches (GS108Ev3) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 8 x 10/100/1000BASE-T RJ-45 |
Performance
| Switching Bandwidth | 16 Gbps |
| Forwarding Mode | Store-and-forward |
| MAC Address Table | 4K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 9,720 bytes |
Management Features
| VLANs | Port-based and IEEE 802.1Q tagged; 32 VLANs |
| QoS | Port-based, IEEE 802.1p CoS, DSCP/TOS, WRR, rate limiting |
| Multicast | IGMP snooping v1/v2/v3; 128 multicast groups |
| Network Control | Loop detection, DoS prevention, broadcast storm control |
| Diagnostics | Cable test, port mirroring (up to 7 source ports) |
| Management Tools | Web browser GUI and NETGEAR PC utility |
Power & Environmental
| Power Supply | External power adapter |
| Power Consumption | 4.5 W max |
| Cooling | Fanless (0 dB) |
| Operating Temperature | 0 to 40 °C |
| Operating Humidity | 90% max RH, non-condensing |
| MTBF | 2,525,259 hours |
Physical
| Dimensions (W x D x H) | 158 x 101 x 29 mm |
| Weight | 0.50 kg |
Certifications
| Emissions | Class B |
| Safety | CB, CE LVD, CCC, EAC |
Compatibility & Software Support
Management
Configure through the built-in web browser interface or NETGEAR's PC utility. No link aggregation — for LACP and advanced features see NETGEAR's Smart Managed Pro range (e.g. GS108T).
Typical Use
Small offices, home labs and AV setups that need to separate voice, video or guest traffic with VLANs and QoS. Not a PoE switch — for powered devices see NETGEAR's GS308EP / GS308EPP.
Package Contents & 8-Port Gigabit Switch Ordering Information
In the Box
GS108E switch, power adapter, installation guide.
NETGEAR 8-Port Gigabit Desktop Switches
| Model | Management | Part No. |
| GS308 | Unmanaged | GS308-300UKS |
| GS108E (this listing) | Plus / Easy Smart (VLAN, QoS, IGMP) | GS108E-300UKS |
Datasheet & Downloads
| NETGEAR datasheet | Gigabit Ethernet Plus Switches Datasheet (PDF) |
| Installation guide | GS108Ev3 Installation Guide (PDF) |
| NETGEAR support page | GS108Ev3 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS108E-300UKS.
Frequently Asked Questions — NETGEAR GS108E
Is the GS108E managed?
It is a Plus (Easy Smart) switch: it supports VLANs, QoS, IGMP snooping and port mirroring through a web interface, but not advanced features such as link aggregation.
Is it fanless?
Yes. It runs silently with no fan.
Does it supply PoE?
No. For PoE see NETGEAR's GS308EP or GS308EPP.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
