NETGEAR M4500-48XF8C 48-Port 25G SFP28 Fully Managed Switch with 8 x 100G QSFP28
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4500-48XF8C 48x 25G SFP28 and 8x 100G Fully Managed Switch (XSM4556-100EUS) - Limited Lifetime Local Warranty
48 SFP28 Ports with 100G Uplinks

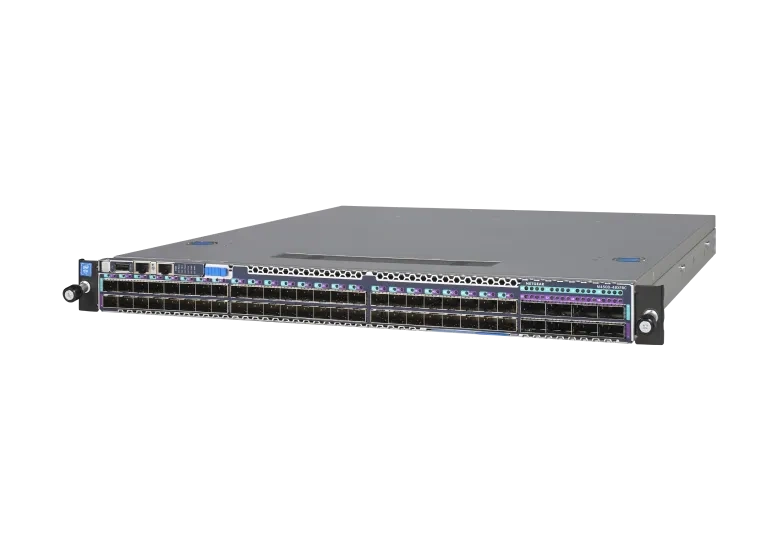

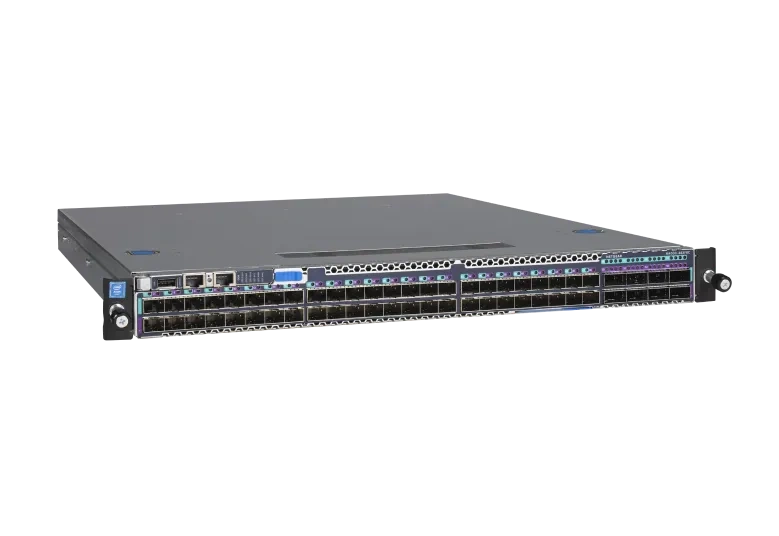

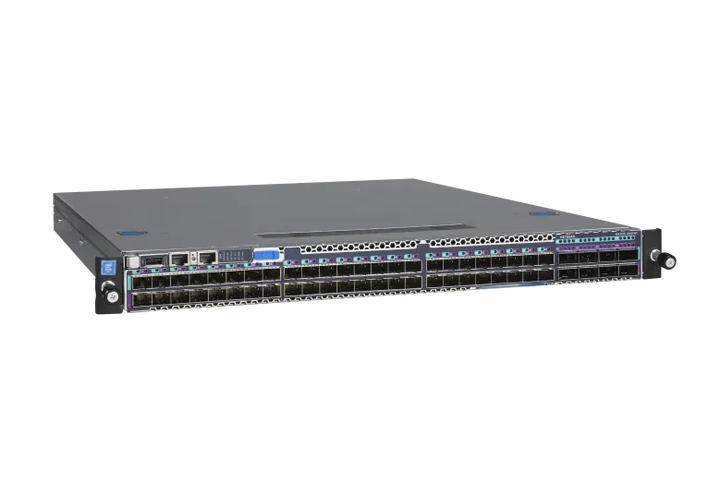

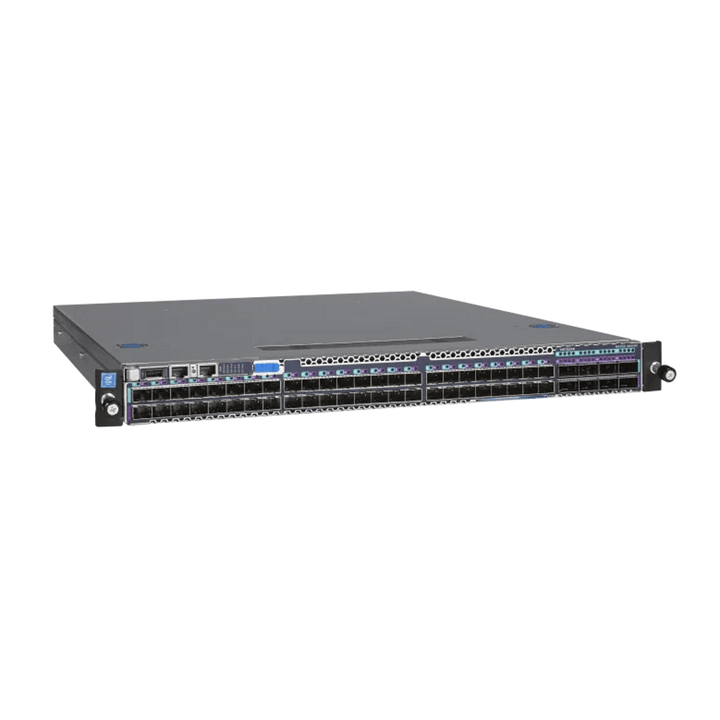

The NETGEAR M4500-48XF8C is a full-width 1U fully managed switch with forty-eight 10G/25G SFP28 ports (1G also supported, set in groups of four) and eight 100G QSFP28 ports. A 4 Tbps non-blocking switching fabric and 2 Bpps throughput make it suited to leaf and aggregation roles in large AV-over-IP and campus networks.
Low Latency and Redundant Hardware
Latency is 0.119µs at 10G, 0.117µs at 25G and 0.129µs at 100G with 64-byte frames. Two APS750W power supplies (1+1) and six AFT402 fan trays (4+2) come pre-installed with front-to-back airflow.
Built for AV over IP
NETGEAR IGMP Plus is pre-configured so multicast works out of the box, and the series supports up to 320 TX / 320 RX 10G SDVoE nodes at line rate in a redundant spine-and-leaf design. Colour-coded AV profiles and the NETGEAR Engage Controller simplify setup.
Full Layer 3 Routing
Static routing, OSPF, BGP4, VRRP, VRF-Lite, PIM multicast routing, MLAG and a VXLAN gateway are supported for data-centre and campus designs.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4500-48XF8C Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4500-48XF8C Fully Managed Switch |
| Part Number | XSM4556-100EUS |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| SFP28 Ports | 48x 10G/25G SFP28 (preconfigured for 10G; 25G, 10G or 1G, set in groups of 4 ports) |
| QSFP28 Ports | 8x 100G QSFP28 (preconfigured for 100G; also 50G, 40G, 4x 25G or 4x 10G breakout) |
| Total Ports | 56 |

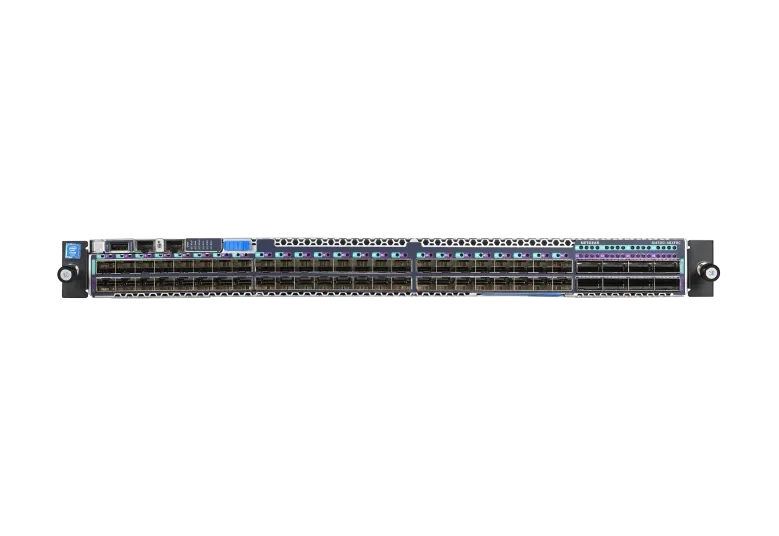

| Management Ports | RJ45 RS232 console, 1G out-of-band port and USB port (all front) |
Performance
| Switching Fabric | 4 Tbps, non-blocking |
| Throughput | 2 Bpps |
| Latency (64-byte frames) | 0.119µs at 10G, 0.117µs at 25G, 0.144µs at 40G, 0.129µs at 100G |
| Packet Buffer | 256Mb, dynamically shared |
| CPU | Intel Atom C3558 (x86) |
| Memory | 8GB DDR3L ECC |
| Storage | 128GB M.2 SSD (dual firmware image) |
| MAC Address Table | 32K |
| ARP / NDP Entries | 8K / 2.5K |
| Unicast Routes | 32K IPv4 / 24K IPv6 |
| VLANs | 4,093 |
| Multicast Groups (IGMP / MLD) | 2,048 IPv4 / 2,048 IPv6 |
| Jumbo Frames | Up to 9KB |
Software Features
| Layer 2 | 64 LAGs (up to 32 ports per LAG), MLAG, 4,093 VLANs, QinQ, STP/RSTP/MSTP, IGMP/MLD snooping, IGMP Plus |
| Layer 3 Routing | Static, OSPF / OSPFv3, BGP4, VRRP, VRF-Lite, policy-based routing, BFD |
| Multicast Routing | PIM-SM, PIM-SSM, PIM IPv6, MLDv2 |
| Data Centre | VXLAN gateway (VTEP), PFC, DCBX, ETS |
| Timing | IEEE 1588 PTPv2 Transparent Clock (end-to-end, 1-step) |
| Security | 802.1X, MAC Authentication Bypass, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, CoPP, RADIUS, TACACS+, SSH, ACLs |
| QoS | 8 queues per port; WRR, Strict Priority and hybrid scheduling; 802.1p, DSCP, DiffServ |
Power & Cooling
| Power Supply | 2x APS750W modular PSUs pre-installed (1+1 redundancy) |
| Fans | 6x AFT402 modular fan trays pre-installed (4+2 redundancy) |
| Airflow | Front-to-back |
| Power Consumption | Max: 394W |
| Heat Dissipation | 1,344.4 Btu/hr |
| PoE | Not supported |
Physical & Acoustics
| Form Factor | Full-width, 1U rack mount (508mm depth) |
| Dimensions (W x D x H) | 440 x 508 x 43.2 mm |
| Weight | 9.78 kg (21.54 lb) |
| Acoustic Noise | 68 dB at 25°C |
| MTBF | 289,052 hours (33.0 years) |
Compatibility & Software Support
Fibre Modules and DAC Cables
NETGEAR lists the following compatible modules for the M4500 series: 100G QSFP28 ACM761 (100GBASE-SR4) and ACM762 (100GBASE-LR4); 40G QSFP+ AXLM761 (40GBASE-MR4) and AXLM762 (40GBASE-LR4); 10G SFP+ AXM761 (SR), AXM762 (LR), AXM763 (LRM), AXM764 (LR Lite) and AXM765 (10GBASE-T); 1G SFP AGM731F (SX), AGM732F (LX) and AGM734 (1000BASE-T). Direct attach cables: ACC761 / ACC763 (100G QSFP28, 1m / 3m), AXLC761 / AXLC763 (40G QSFP+, 1m / 3m) and AXC761, AXC763, AXC765, AXC767, AXC7610, AXC7615, AXC7620 (10G SFP+, 1m to 20m).
Power Supplies and Fans

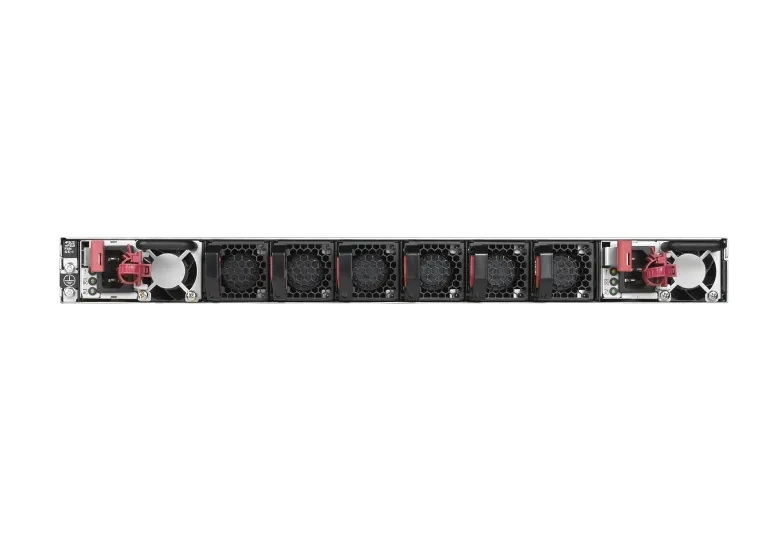

The switch ships with two APS750W power supplies (1+1 redundancy) and six AFT402 fan trays (4+2 redundancy) pre-installed, all front-to-back airflow. NETGEAR sells spares as APS750W-10000S and AFT402-10000S.
Management
Industry-standard CLI via the RJ45 RS232 console, Telnet or SSH; SNMP v1/v2c/v3, RMON, sFlow and LLDP; TFTP, SFTP and SCP file transfer. A 1G out-of-band management port and a USB port are on the front panel. An AV web user interface with colour-coded AV profiles (Dante, Q-SYS, AES67, NDI, SDVoE and others) is provided for AV installers.
NETGEAR Engage Controller
NETGEAR Engage Controller manages M4250, M4300, M4350 and M4500 switches together in AV-over-IP deployments. Auto-LAG and Auto-Trunk configure uplinks automatically between the M4500 and M4250, M4300 and M4350 switches.
AV Protocols
NETGEAR IGMP Plus multicast is pre-configured on VLAN 1 so AV-over-IP multicast works out of the box. The series is SDVoE-ready, with up to 320 TX / 320 RX 10G nodes at line rate in a spine-and-leaf design. NETGEAR lists PTPv2 Transparent Clock only; SMPTE ST 2110 Grandmaster/Boundary Clock and switch stacking are not listed for the M4500 series.
Package Contents & M4500 Series Ordering Information
In the Box
1x M4500-48XF8C (XSM4556) switch with two APS750W power supplies and six AFT402 fan trays pre-installed, 1x console cable (DB9 female to RJ45 serial), power cord(s), 2x front mounting ears with screws, 1x rail kit set (rear rack mount), 1x installation guide.
NETGEAR M4500 Series
| Model | Ports |
| M4500-32C (CSM4532-100EUS) | 32x 100G QSFP28 |
| M4500-48XF8C (XSM4556-100EUS) (this listing) | 48x 25G SFP28, 8x 100G QSFP28 |
Datasheet & Downloads
| Datasheet | NETGEAR M4500 Series Datasheet (PDF) |
| Product Brief | NETGEAR M4500 Series Product Brief (PDF) |
| Installation Guide | NETGEAR M4500 Series Installation Guide (PDF) |
| CLI Manual | NETGEAR M4500 Series CLI Manual (PDF) |
| AV User Manual | NETGEAR M4500 Series Audio Video User Manual (PDF) |
| NETGEAR product page | M4500-48XF8C (XSM4556) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4556-100EUS.
Frequently Asked Questions — NETGEAR M4500-48XF8C
Can the SFP28 ports run at 1G or 10G?
Yes. The 48 SFP28 ports run at 25G, 10G or 1G, configured in groups of four ports. They ship preconfigured for 10G.
Can the 100G ports be broken out?
Yes. Each of the eight QSFP28 ports runs at 100G, 50G or 40G, or breaks out to 4x 25G or 4x 10G.
Does it have redundant power and cooling?
Yes. Two APS750W power supplies (1+1) and six AFT402 fan trays (4+2) come pre-installed, with front-to-back airflow.
What does the -100EUS suffix mean?
NETGEAR's ordering table lists XSM4556-100EUS as the Europe SKU of the M4500-48XF8C. Other regions use -100NAS, -100AJS and -100PRS. Email us if you need to confirm the power cord supplied.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
