NETGEAR M4500-32C 32-Port 100G QSFP28 Fully Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4500-32C 32x 100G QSFP28 Fully Managed Switch (CSM4532-100EUS) - Limited Lifetime Local Warranty
32 Ports of 100G in 1U

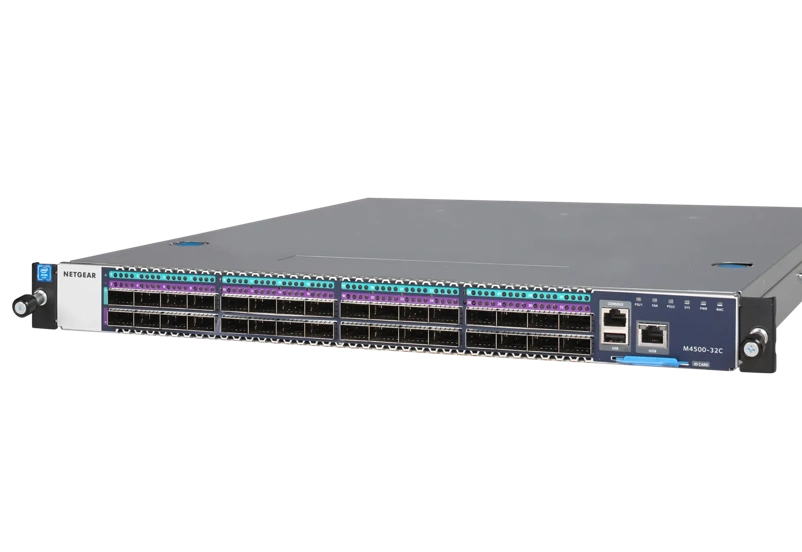

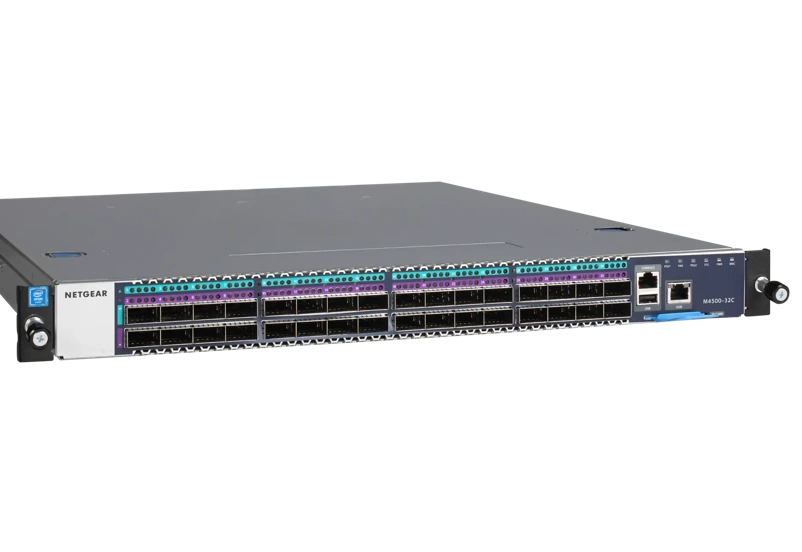

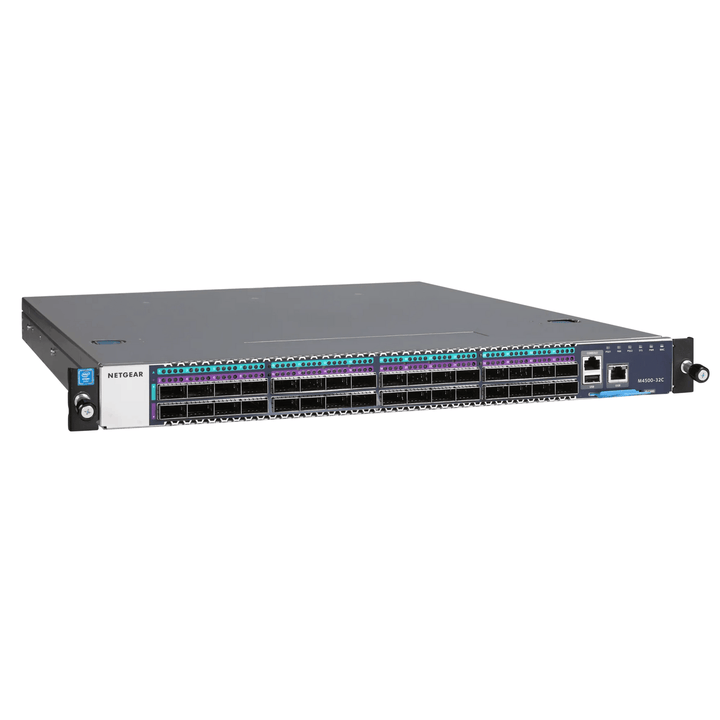

The NETGEAR M4500-32C is a full-width 1U fully managed switch with thirty-two 100G QSFP28 ports. Each port runs at 100G, 50G or 40G, or breaks out to 4x 25G or 4x 10G. A 6.4 Tbps non-blocking switching fabric and 2 Bpps throughput make it suited to spine and core roles in large AV-over-IP and campus networks.
Low Latency and Redundant Hardware
Latency is 0.13µs at 100G with 64-byte frames. Two APS750W power supplies (1+1) and six AFT402 fan trays (4+2) come pre-installed with front-to-back airflow, and the switch keeps dual firmware images on a 128GB SSD.
Built for AV over IP
NETGEAR IGMP Plus is pre-configured so multicast works out of the box, and the series supports up to 320 TX / 320 RX 10G SDVoE nodes at line rate in a redundant spine-and-leaf design. Colour-coded AV profiles and the NETGEAR Engage Controller simplify setup.
Full Layer 3 Routing
Static routing, OSPF, BGP4, VRRP, VRF-Lite, PIM multicast routing, MLAG and a VXLAN gateway are supported for data-centre and campus designs.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4500-32C Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4500-32C Fully Managed Switch |
| Part Number | CSM4532-100EUS |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| QSFP28 Ports | 32x 100G QSFP28 (preconfigured for 100G; also 50G, 40G, 4x 25G or 4x 10G breakout) |
| Total Ports | 32 |

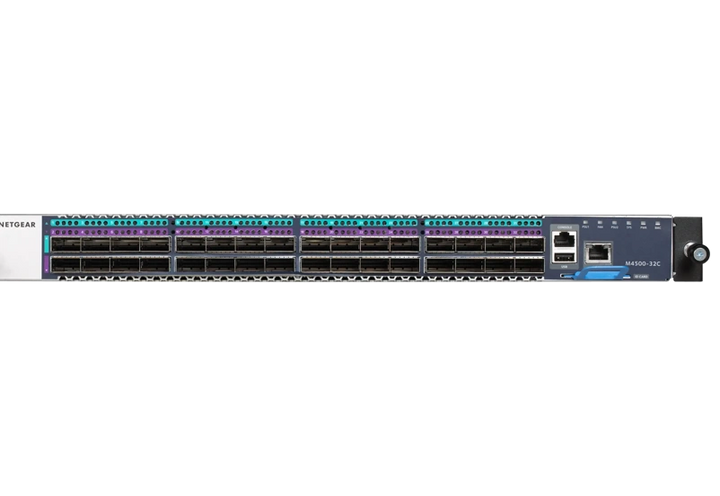

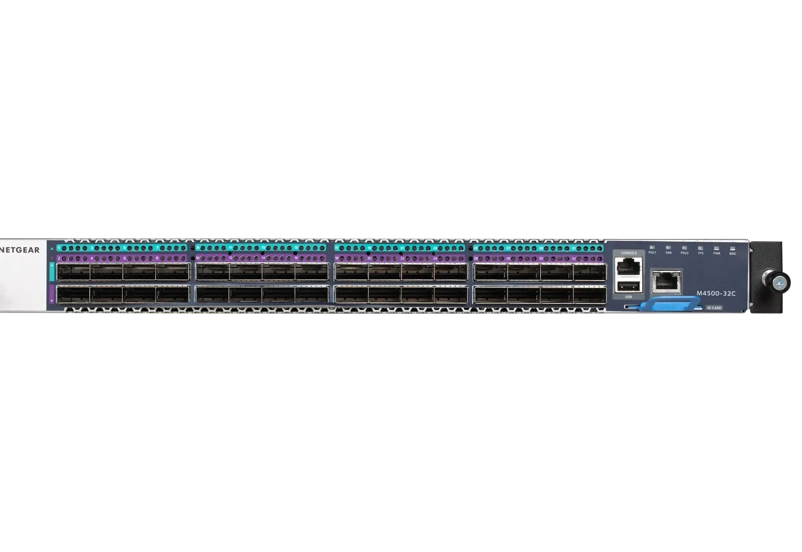

| Management Ports | RJ45 RS232 console, 1G out-of-band port and USB port (all front) |
Performance
| Switching Fabric | 6.4 Tbps, non-blocking |
| Throughput | 2 Bpps |
| Latency (64-byte frames) | 0.13µs at 100G, 0.417µs at 50G, 0.15µs at 40G, 0.125µs at 25G, 0.766µs at 10G |
| Packet Buffer | 256Mb, dynamically shared |
| CPU | Intel Atom C3558 (x86) |
| Memory | 8GB DDR3L ECC |
| Storage | 128GB M.2 SSD (dual firmware image) |
| MAC Address Table | 32K |
| ARP / NDP Entries | 8K / 2.5K |
| Unicast Routes | 32K IPv4 / 24K IPv6 |
| VLANs | 4,093 |
| Multicast Groups (IGMP / MLD) | 2,048 IPv4 / 2,048 IPv6 |
| Jumbo Frames | Up to 9KB |
Software Features
| Layer 2 | 64 LAGs (up to 32 ports per LAG), MLAG, 4,093 VLANs, QinQ, STP/RSTP/MSTP, IGMP/MLD snooping, IGMP Plus |
| Layer 3 Routing | Static, OSPF / OSPFv3, BGP4, VRRP, VRF-Lite, policy-based routing, BFD |
| Multicast Routing | PIM-SM, PIM-SSM, PIM IPv6, MLDv2 |
| Data Centre | VXLAN gateway (VTEP), PFC, DCBX, ETS |
| Timing | IEEE 1588 PTPv2 Transparent Clock (end-to-end, 1-step) |
| Security | 802.1X, MAC Authentication Bypass, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, CoPP, RADIUS, TACACS+, SSH, ACLs |
| QoS | 8 queues per port; WRR, Strict Priority and hybrid scheduling; 802.1p, DSCP, DiffServ |
Power & Cooling
| Power Supply | 2x APS750W modular PSUs pre-installed (1+1 redundancy) |
| Fans | 6x AFT402 modular fan trays pre-installed (4+2 redundancy) |
| Airflow | Front-to-back |
| Power Consumption | Max: 426W |
| Heat Dissipation | 1,453.6 Btu/hr |
| PoE | Not supported |
Physical & Acoustics
| Form Factor | Full-width, 1U rack mount (508mm depth) |
| Dimensions (W x D x H) | 440 x 508 x 43.2 mm |
| Weight | 9.78 kg (21.54 lb) |
| Acoustic Noise | 64 dB at 25°C |
| MTBF | 281,359 hours (32.1 years) |
Compatibility & Software Support
Fibre Modules and DAC Cables
NETGEAR lists the following compatible modules for the M4500 series: 100G QSFP28 ACM761 (100GBASE-SR4) and ACM762 (100GBASE-LR4); 40G QSFP+ AXLM761 (40GBASE-MR4) and AXLM762 (40GBASE-LR4); 10G SFP+ AXM761 (SR), AXM762 (LR), AXM763 (LRM), AXM764 (LR Lite) and AXM765 (10GBASE-T); 1G SFP AGM731F (SX), AGM732F (LX) and AGM734 (1000BASE-T). Direct attach cables: ACC761 / ACC763 (100G QSFP28, 1m / 3m), AXLC761 / AXLC763 (40G QSFP+, 1m / 3m) and AXC761, AXC763, AXC765, AXC767, AXC7610, AXC7615, AXC7620 (10G SFP+, 1m to 20m).
Power Supplies and Fans

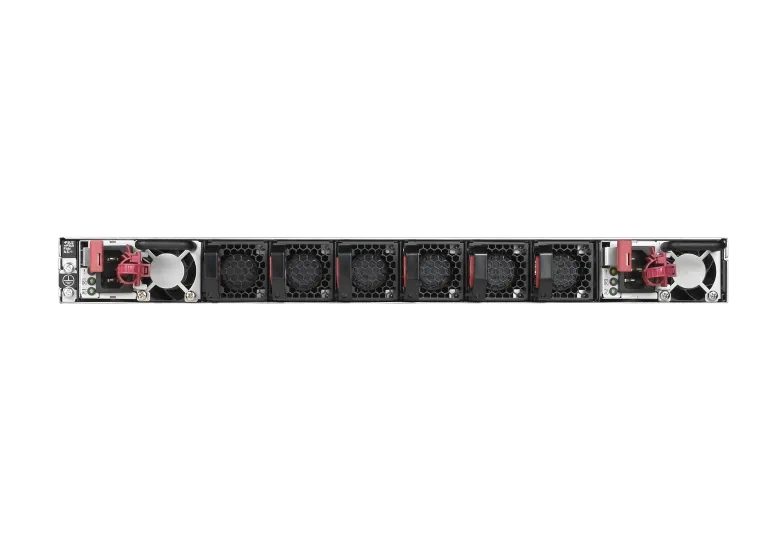

The switch ships with two APS750W power supplies (1+1 redundancy) and six AFT402 fan trays (4+2 redundancy) pre-installed, all front-to-back airflow. NETGEAR sells spares as APS750W-10000S and AFT402-10000S.
Management
Industry-standard CLI via the RJ45 RS232 console, Telnet or SSH; SNMP v1/v2c/v3, RMON, sFlow and LLDP; TFTP, SFTP and SCP file transfer. A 1G out-of-band management port and a USB port are on the front panel. An AV web user interface with colour-coded AV profiles (Dante, Q-SYS, AES67, NDI, SDVoE and others) is provided for AV installers.
NETGEAR Engage Controller
NETGEAR Engage Controller manages M4250, M4300, M4350 and M4500 switches together in AV-over-IP deployments. Auto-LAG and Auto-Trunk configure uplinks automatically between the M4500 and M4250, M4300 and M4350 switches.
AV Protocols
NETGEAR IGMP Plus multicast is pre-configured on VLAN 1 so AV-over-IP multicast works out of the box. The series is SDVoE-ready, with up to 320 TX / 320 RX 10G nodes at line rate in a spine-and-leaf design. NETGEAR lists PTPv2 Transparent Clock only; SMPTE ST 2110 Grandmaster/Boundary Clock and switch stacking are not listed for the M4500 series.
Package Contents & M4500 Series Ordering Information
In the Box
1x M4500-32C (CSM4532) switch with two APS750W power supplies and six AFT402 fan trays pre-installed, 1x console cable (DB9 female to RJ45 serial), power cord(s), 2x front mounting ears with screws, 1x rail kit set (rear rack mount), 1x installation guide.
NETGEAR M4500 Series
| Model | Ports |
| M4500-32C (CSM4532-100EUS) (this listing) | 32x 100G QSFP28 |
| M4500-48XF8C (XSM4556-100EUS) | 48x 25G SFP28, 8x 100G QSFP28 |
Datasheet & Downloads
| Datasheet | NETGEAR M4500 Series Datasheet (PDF) |
| Product Brief | NETGEAR M4500 Series Product Brief (PDF) |
| Installation Guide | NETGEAR M4500 Series Installation Guide (PDF) |
| CLI Manual | NETGEAR M4500 Series CLI Manual (PDF) |
| AV User Manual | NETGEAR M4500 Series Audio Video User Manual (PDF) |
| NETGEAR product page | M4500-32C (CSM4532) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CSM4532-100EUS.
Frequently Asked Questions — NETGEAR M4500-32C
Can the QSFP28 ports run at speeds other than 100G?
Yes. Each QSFP28 port runs at 100G, 50G or 40G, or breaks out to 4x 25G or 4x 10G.
Does it have redundant power and cooling?
Yes. Two APS750W power supplies (1+1) and six AFT402 fan trays (4+2) come pre-installed, with front-to-back airflow.
Is there a web interface?
The M4500 is managed mainly through the industry-standard CLI (console, Telnet or SSH) and SNMP. An AV web user interface is provided for AV setup, and the switch can also be managed with the NETGEAR Engage Controller.
What does the -100EUS suffix mean?
NETGEAR's ordering table lists CSM4532-100EUS as the Europe SKU of the M4500-32C. Other regions use -100NAS, -100AJS and -100PRS. Email us if you need to confirm the power cord supplied.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
