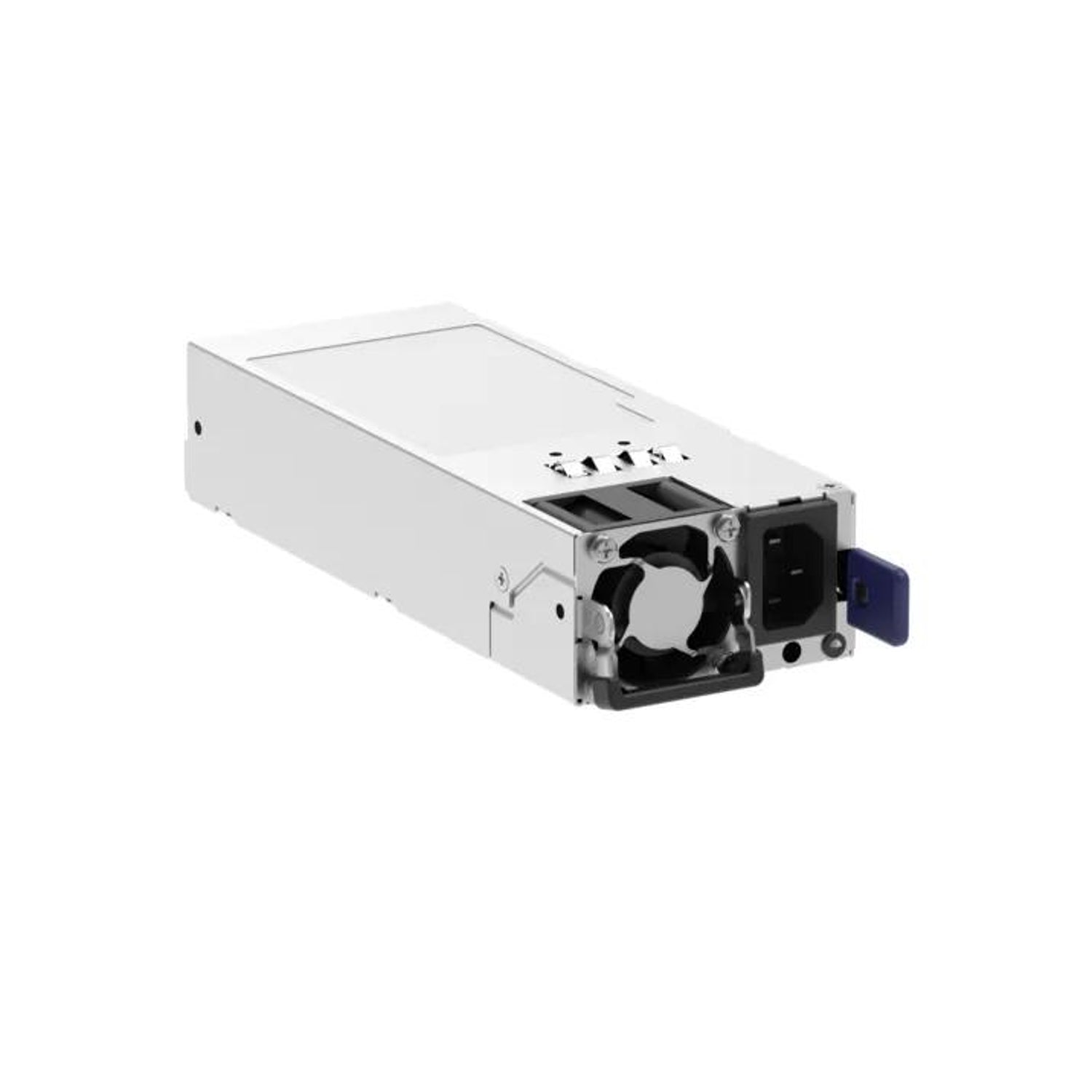

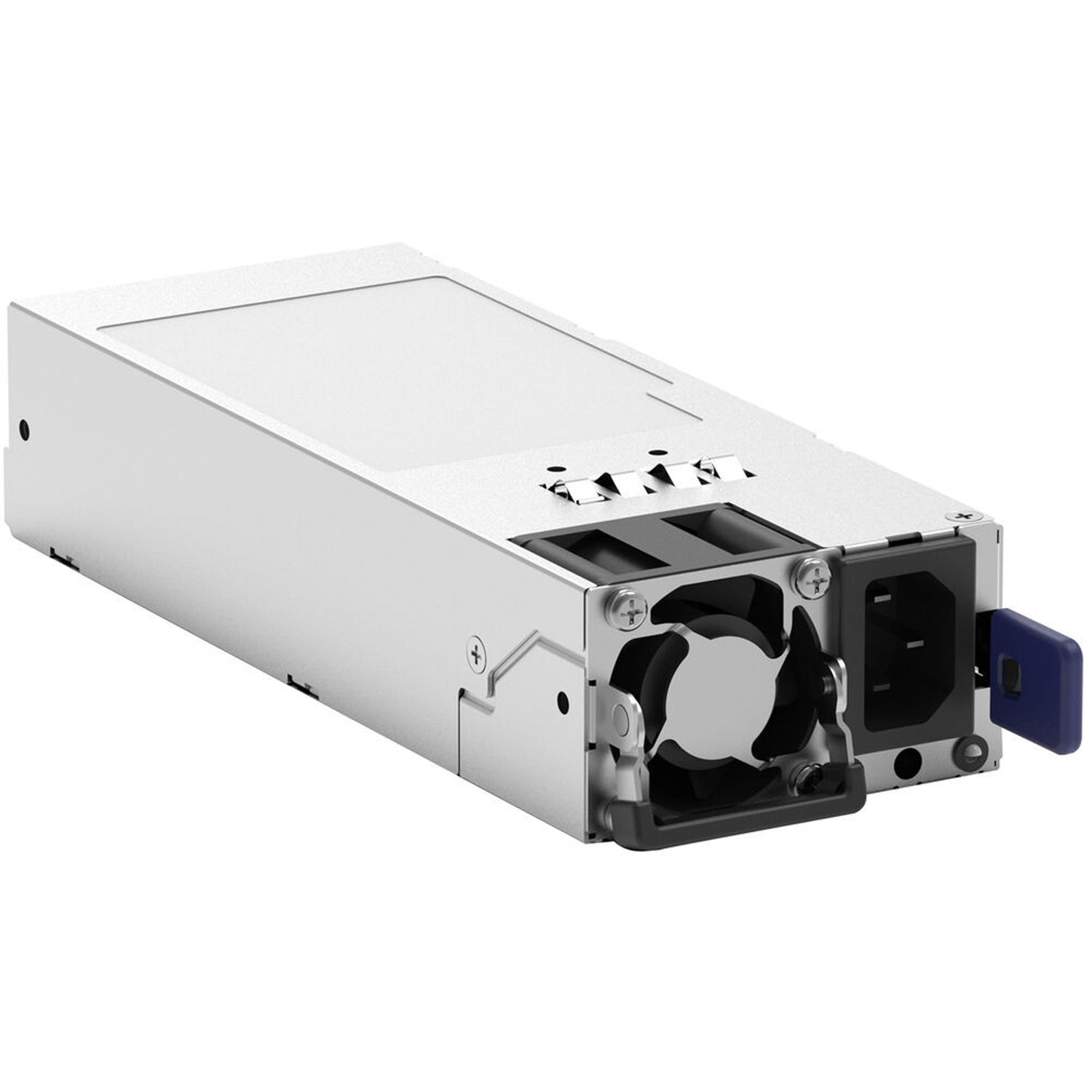

NETGEAR APS2000W 2000W Modular Power Supply Unit for M4350 Switches (v1)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR APS2000W 2000W Modular Power Supply Unit for M4350 Switches (APS2000W-100NES) - 2 Years Local Warranty
Maximum Auxiliary Power for Five M4350 Models
The NETGEAR APS2000W (v1) is the highest-output auxiliary power supply (APS) for the NETGEAR M4350 fully managed switches in its group. NETGEAR lists it for the M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V and M4350-24F4V. It takes 110–240V AC input through a C14 connector; per the NETGEAR installation guide it delivers +54.5VDC at up to 36.7A on 220–240V AC (about 2000W) and 18.35A on 100–127V AC.
Hot-Pluggable in Multi-PSU Switches
NETGEAR states that in models with more than one APS the power supplies are hot-pluggable, so a unit can be replaced without powering down the switch. In a switch with a single APS, power the switch down before replacing it.
Choose the Right Version
M4350 power supplies come in versions for different switch groups. The APS2000W (v1, APS2000W-100NES) is part of the group APS350W, APS600Wv2 (APS600W-200NES), APS920W and APS2000W. The APS2000Wv2 (APS2000W-200NES) looks similar but serves the other M4350 models together with the APS600Wv3 and APS1200Wv2 — check the Compatibility section before ordering.
Not sure which PSU your switch needs? Email sales@sourceit.com.sg with your switch model and SKU and we will confirm it for you.
NETGEAR APS2000W Datasheet — Technical Specifications
General
| Product Name | NETGEAR APS2000W 2000W Modular Power Supply Unit |
| Part Number | APS2000W-100NES |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Electrical
| AC input | 100–127VAC, 12A / 220–240VAC, 10A, 50–60 Hz |
| DC output | +54.5VDC, 18.35A @ 100–127VAC; +54.5VDC, 36.7A @ 220–240VAC |
| Output power | Up to 2000W at 220–240V AC (see DC output for 110V) |
| AC connector (per netgear.com) | C14 |
Physical
| Form factor | Modular, slide-in auxiliary power supply (APS) |
| Hot-swap | Supported in models with more than one APS |
| Dimensions (per installation guide) | 40 x 73 x 185 mm (1.6 x 2.9 x 7.3 in) |
| Weight (per netgear.com) | 0.937 kg |
Environmental
| Operating temperature | –5°C to +55°C (23°F to 131°F) |
| Operating humidity | 5% to 90% relative humidity |
| MTBF | Minimum 200,000 hours at continuous operation |
LED Indicators
| DC OK solid green, AC OK solid green | DC output is present and voltage is good |
| DC OK blinking green, AC OK solid green | AC power is present but DC output is for standby only |
| DC OK solid red, AC OK solid green | A power supply failure occurred |
| DC OK solid green, AC OK blinking red | Loss of AC power occurred or AC power is not present |
Compatibility & Software Support
Compatible NETGEAR switches
Per the NETGEAR installation guide and product page: M4350-24G4XF (GSM4328), M4350-48G4XF (GSM4352), M4350-44M4X4V (MSM4352), M4350-24X4V (XSM4328CV), M4350-24F4V (XSM4328FV).
Not for these models
The APS2000W is not listed for M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C. Those models use the APS600Wv3, APS1200Wv2 or APS2000Wv2.
PoE budget
The PoE budget available depends on the switch model and its power supply combination. See the PoE power tables in the NETGEAR M4350 Series Datasheet (see Datasheet & Downloads).
Package Contents & M4350 Power Supply Ordering Information
In the Box
Auxiliary power supply, power cord (varies by region) and installation guide.
NETGEAR M4350 Auxiliary Power Supplies
| PSU | Used in (M4350) |
| APS350W (APS350W-100NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS600Wv2 (APS600W-200NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS920W (APS920W-100NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS2000W (v1) (APS2000W-100NES) (this listing) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS600Wv3 (APS600W-300NES) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
| APS1200Wv2 (APS1200W-200NES) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
| APS2000Wv2 (APS2000W-200NES) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
Datasheet & Downloads
| Installation guide | NETGEAR Auxiliary Power Supplies APS350W / APS600Wv2 / APS920W / APS2000W Installation Guide (PDF) |
| M4350 datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| NETGEAR product page | APS2000W on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting APS2000W-100NES.
Frequently Asked Questions — NETGEAR APS2000W
Which switches use the APS2000W?
M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V.
Can I replace it while the switch is running?
Yes, in switches running on more than one APS — NETGEAR states the power supplies are hot-pluggable. With a single APS, power the switch down first.
How much power does it deliver on 110V?
Per the NETGEAR installation guide the DC output on 100–127V AC is +54.5VDC at 18.35A (about 1000W); the full 36.7A (about 2000W) applies on 220–240V AC, which is the standard supply in Singapore.
What is the difference between APS2000W and the other versions?
NETGEAR splits M4350 power supplies into two groups. APS350W, APS600Wv2, APS920W and APS2000W (v1) fit the M4350-24G4XF, 48G4XF, 44M4X4V, 24X4V and 24F4V. APS600Wv3, APS1200Wv2 and APS2000Wv2 fit the M4350-36X4V, 24X8F8V, 32F8V, 16V4C, 40X4C, 24M4X4V, 24F4X and 40F4C (per the APS600Wv3/APS1200Wv2/APS2000Wv2 installation guide).
Is a power cord included?
Yes. Per the NETGEAR installation guide, a power cord (varies by region) is included.
What warranty do I get?
2 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
