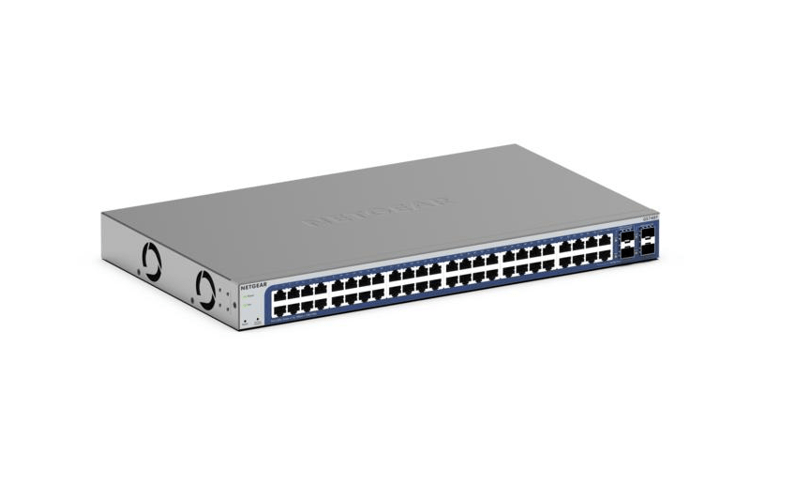

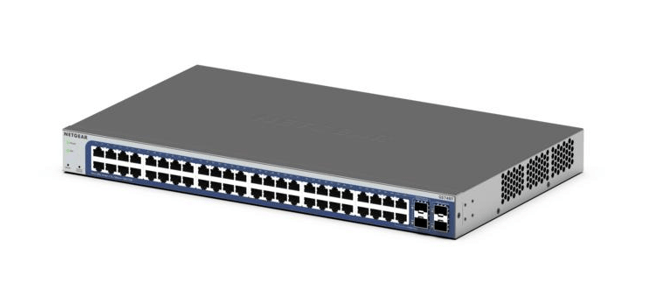

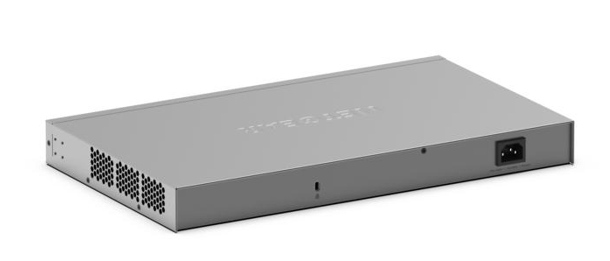

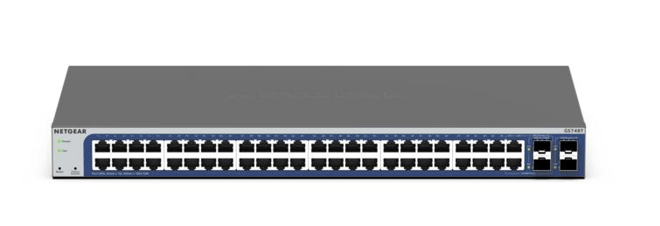

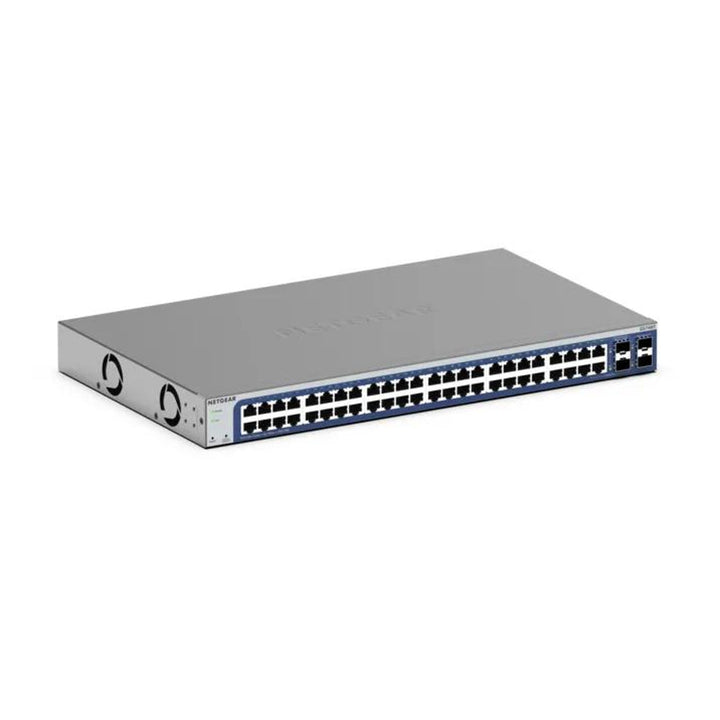

NETGEAR GS748T 48-Port Gigabit Smart Managed Switch with 2 SFP + 2 Combo Ports, Cloud Management
PRODUCT DESCRIPTION
NETGEAR GS748T 48-Port Gigabit Ethernet Smart Switch with 2 Combo and 2 SFP Ports (GS748T-600UKS) - Limited Lifetime Local Warranty
48 Gigabit Ports with Four Fiber Options
The NETGEAR GS748T (GS748Tv6) is a 48-port Gigabit Ethernet smart switch with 2 dedicated 1G SFP ports and 2 copper/SFP combo ports, giving flexible fiber uplinks. NETGEAR rates it at 100 Gbps switching fabric and 74.4 Mpps forwarding.
L2+ / Layer 3 Lite Features
VLANs (up to 256), QoS with 802.1p and DSCP, IGMP/MLD snooping, up to 26 link aggregation groups, 100 shared ACLs, 802.1x and static routing (up to 32 routes) give growing businesses real network control at an SMB price point.
Manage Locally or From the Cloud
Set it up through the local web interface or manage remotely with NETGEAR Insight — the app and cloud portal give a single view across sites.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR GS748T Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS748T 48-Port Gigabit Ethernet Smart Switch with 2 Copper/SFP Combo Ports and 2 Dedicated SFP Ports |
| Part Number | GS748T-600UKS |
| Hardware Version | GS748Tv6 |
| Series | NETGEAR Smart Cloud Switches (Insight Managed) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 48 x 10/100/1000BASE-T RJ-45 |
| Fiber Ports | 2 x dedicated 1000 Mbps SFP + 2 x 1000 Mbps copper/SFP combo |
Performance
| Switching Fabric | 100 Gbps |
| Forwarding Rate | 74.4 Mpps (64-byte packets) |
| MAC Address Table | 16K |
| Packet Buffer | 2 MB |
| Jumbo Frames | Up to 9K |
| VLANs | Up to 256 |
Software Features
| Layer 2 / L3 Lite | Static routing (32 routes); protocol- and MAC-based VLANs; link aggregation (26 LAGs, 8 members each) |
| QoS & Multicast | Port-based or 802.1p prioritisation, Layer 3 DSCP; IGMP and MLD snooping |
| Security | 802.1x with RADIUS, ACLs (100 shared for MAC, IP and IPv6), DoS prevention |
| Management | Local web GUI, NETGEAR Insight app and cloud portal |
Power & Environmental
| Power Supply | Internal |
| Power Consumption | 41.1 W max |
| Acoustic Noise | 37.2 dBA |
| Operating Temperature | 0 to 45 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 440 x 257 x 43 mm |
| Weight | 3.46 kg |
| Mounting | 19-inch rack (rack-mount kit included) |
Certifications
| EMC | CE, FCC Part 15 Class A, VCCI, ICES-003, KC, UKCA, BSMI, RCM |
| Safety | CB, CSA |
Compatibility & Software Support
Management
Local web browser interface or NETGEAR Insight remote/cloud management (app and portal). SFP and combo ports accept NETGEAR 1G SFP modules such as the AGM731F and AGM732F, sold separately.
Typical Use
Access switch for larger offices, schools and retail with up to 48 wired devices, fiber uplinks and VLAN routing. Not a PoE switch — for PoE+ see NETGEAR's Smart Managed Pro PoE range.
Package Contents & Smart Cloud Switch Ordering Information
In the Box
GS748T switch, power cord, rack-mount kit, installation guide.
NETGEAR Smart Cloud Switch Models
| Model | Ports | Part No. |
| GS108T | 8 x GE, desktop/wall, fanless | GS108T-300UKS |
| GS110TP | 8 x GE PoE+ + 2 x SFP | GS110TP-300EUS |
| GS724T | 24 x GE + 2 x SFP, rack, fanless | GS724T-600UKS |
| GS748T (this listing) | 48 x GE + 2 x SFP + 2 x combo, rack | GS748T-600UKS |
Datasheet & Downloads
| NETGEAR datasheet | GS748Tv6 Datasheet (PDF) |
| Installation guide | GS724Tv6 / GS748Tv6 Installation Guide (PDF) |
| Hardware installation guide | GS724Tv6 / GS748Tv6 Hardware Installation Guide (PDF) |
| User manual | GS724Tv6 / GS748Tv6 User Manual (PDF) |
| NETGEAR product page | GS748T on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS748T-600UKS.
Frequently Asked Questions — NETGEAR GS748T
How many fiber ports does the GS748T have?
Four in total: 2 dedicated 1G SFP ports and 2 copper/SFP combo ports.
Does it support routing?
Yes, static routing with up to 32 routes.
Is it fanless?
No. NETGEAR lists an acoustic level of 37.2 dBA, so it is best placed in a rack or comms cabinet.
Can it be managed remotely?
Yes, with NETGEAR Insight cloud management, or locally via the web GUI.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
