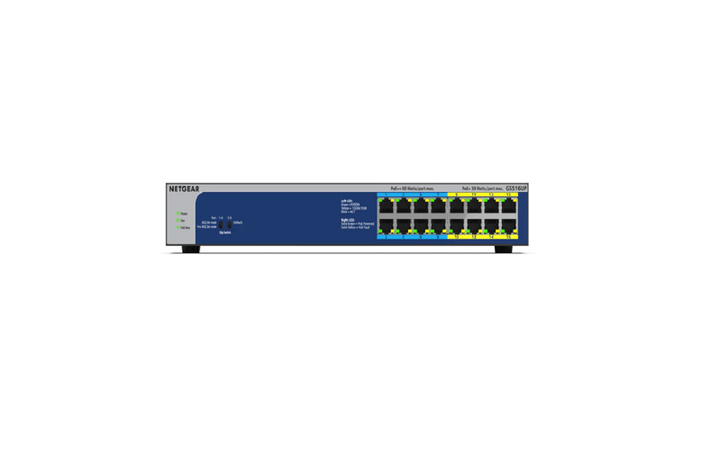

NETGEAR GS516UP 16-Port Gigabit Ultra60 PoE++ Unmanaged Switch, 380W, Rackmount
PRODUCT DESCRIPTION
NETGEAR GS516UP 16-Port Gigabit Ethernet Unmanaged Ultra60 PoE++ Switch, 380W (GS516UP-100EUS) - Limited Lifetime Local Warranty
Ultra60 PoE++ for High-Draw Devices
The NETGEAR GS516UP combines eight 802.3bt Ultra60 PoE++ ports (up to 60 W each) with eight 802.3at PoE+ ports and a 380 W total budget — power for PTZ cameras, multi-radio access points and other demanding PoE devices from a single cable.
Instant, Plug-and-Play Networking
No software or configuration: connect and go. Power auto-balancing delivers what each device needs, and the non-blocking architecture keeps all 16 Gigabit ports at wire speed.
Built for the Rack
A 1U metal chassis with internal power supply mounts in a 19-inch rack or sits on a desktop, with energy-efficient design for 24/7 operation.
Need help choosing? Email sales@sourceit.com.sg with your device list and PoE power needs and we will size it for you.
NETGEAR GS516UP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS516UP 16-Port Gigabit Ethernet Unmanaged Ultra60 PoE++ Switch, 380W |
| Part Number | GS516UP-100EUS |
| Series | NETGEAR High-Power PoE+/PoE++ Unmanaged Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 16 x 10/100/1000BASE-T RJ-45 |
| PoE Ports | 8 x 802.3bt PoE++ Type 3 (Ultra60, up to 60 W) + 8 x 802.3at PoE+ (up to 30 W) |
| PoE Budget | 380 W |
Performance
| Switching Capacity | 32 Gbps, non-blocking |
| MAC Address Table | 8K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | IEEE 802.1p (CoS) and DSCP |
Power & Environmental
| Power Supply | Internal, 100–240 V AC, 50–60 Hz |
| Power Consumption | 456.8 W max; 14.9 W standby |
| Heat Dissipation | 1,559.5 BTU/hr max |
| Cooling | 3 fans |
| Acoustic Noise | 34.0 dBA @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 10%–90% RH, non-condensing |
| MTBF | 1,213,791 hours @ 25 °C |
Physical
| Dimensions (W x D x H) | 330 x 207 x 43 mm |
| Weight | 2.60 kg |
| Mounting | Desktop or 19-inch rack (1U) |
Certifications
| EMC | FCC, ICES-003, EN 55032, EN 55035, EN 55024, AS/NZS CISPR 32, VCCI, BSMI, KC |
| Safety | UL 62368-1, CB, LVD, AS/NZS |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate and power is allocated automatically to each connected device.
PoE Compatibility
Standards-based IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt Type 3 (Ultra60 PoE++, up to 60 W) — powers IP cameras including PTZ models, WiFi 6/6E/7 access points, VoIP phones, displays and other high-draw PoE devices.
Typical Use
Offices, retail and campus deployments mixing standard PoE+ devices with high-draw Ultra60 endpoints such as PTZ cameras and multi-radio access points.
Package Contents & High-Power PoE Unmanaged Ordering Information
In the Box
Switch, power cord, rack-mount kit, desktop feet, installation guide.
NETGEAR High-Power PoE Unmanaged Models
| Model | Ports / PoE | Part No. |
| GS516PP | 16 x GE, 16 x PoE+, 260W | GS516PP |
| GS516UP (this listing) | 16 x GE, 8 x PoE+ + 8 x Ultra60 PoE++, 380W | GS516UP-100EUS |
| GS524PP | 24 x GE, 24 x PoE+, 300W | GS524PP-100AJS |
| GS524UP | 24 x GE, 8 x PoE+ + 16 x Ultra60 PoE++, 480W | GS524UP-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | GS516UP / GS516PP / GS524UP / GS524PP Datasheet (PDF) |
| Installation guide | GS516UP / GS524UP Installation Guide (PDF) |
| NETGEAR product page | GS516UP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS516UP-100EUS.
Frequently Asked Questions — NETGEAR GS516UP
Does the GS516UP need configuring?
No. It is unmanaged and plug-and-play; power is allocated automatically to each device.
How many ports deliver 60 W?
Eight ports are 802.3bt Ultra60 PoE++ (up to 60 W); the other eight are PoE+ (up to 30 W). The total budget is 380 W.
Is it fanless?
No. NETGEAR's datasheet lists 3 fans with 34.0 dBA acoustic noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
