NETGEAR GS524UP 24-Port Gigabit Ultra60 PoE++ Unmanaged Switch, 480W, Rackmount
PRODUCT DESCRIPTION
NETGEAR GS524UP 24-Port Gigabit Ethernet Unmanaged Ultra60 PoE++ Switch, 480W (GS524UP-100AJS) - Limited Lifetime Local Warranty

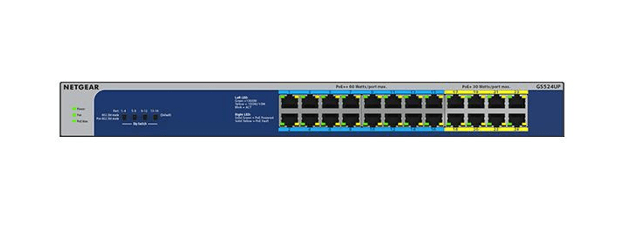

Sixteen Ultra60 PoE++ Ports
The NETGEAR GS524UP delivers sixteen 802.3bt Ultra60 PoE++ ports (up to 60 W each) plus eight 802.3at PoE+ ports, with a 480 W total budget — the most power in NETGEAR's unmanaged PoE line-up.
Instant, Plug-and-Play Networking
No software or configuration: connect and go. Power auto-balancing and allocation deliver exactly what each device needs, and the non-blocking architecture keeps all 24 Gigabit ports at wire speed.

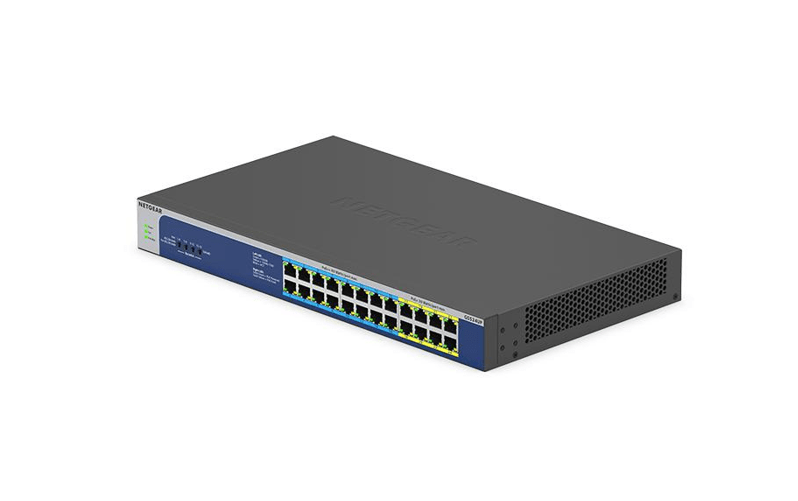

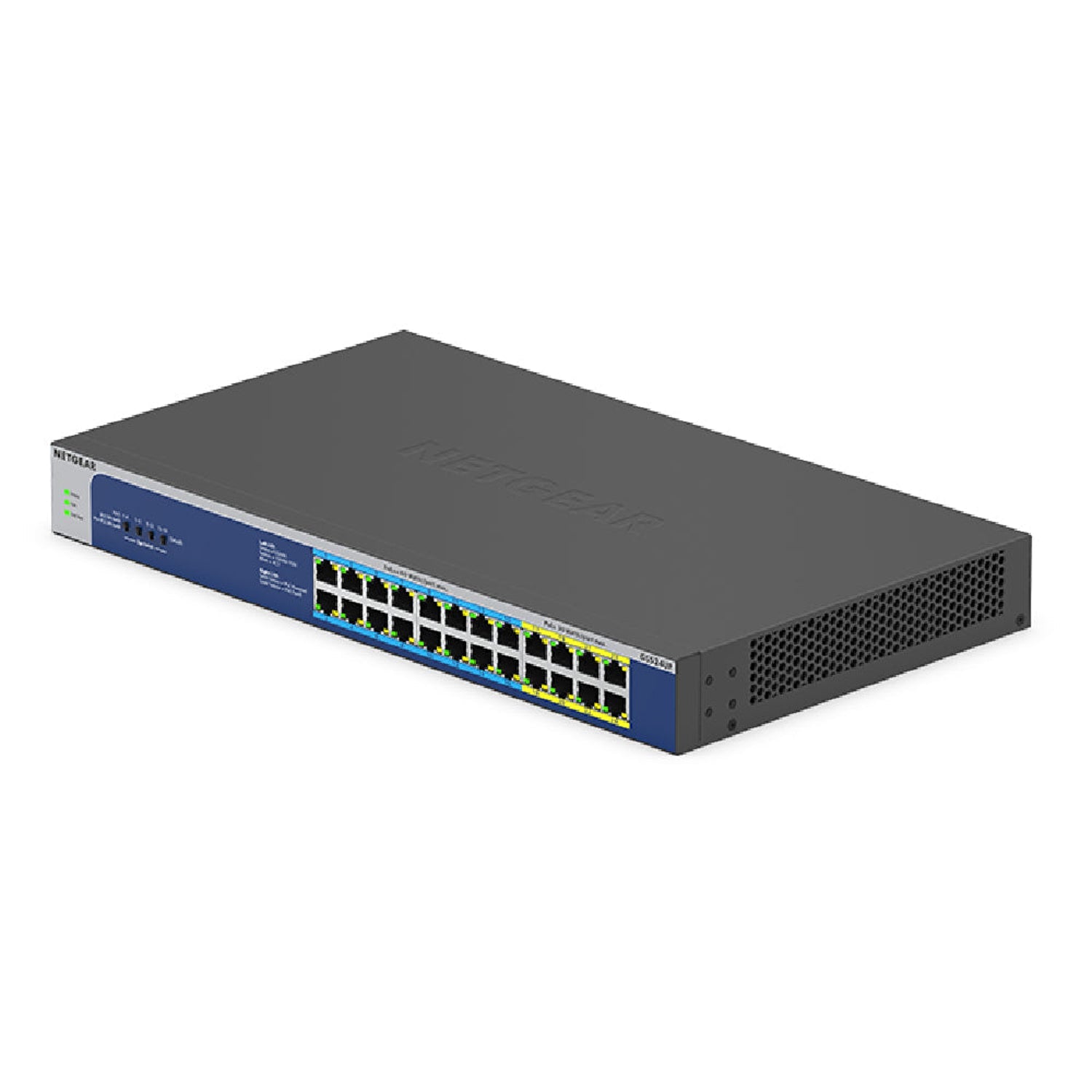

Built for the Rack
A 1U metal chassis with internal power supply mounts in a 19-inch rack or sits on a desktop, with energy-efficient design for 24/7 operation.
Need help choosing? Email sales@sourceit.com.sg with your device list and PoE power needs and we will size it for you.
NETGEAR GS524UP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS524UP 24-Port Gigabit Ethernet Unmanaged Ultra60 PoE++ Switch, 480W |
| Part Number | GS524UP-100AJS |
| Series | NETGEAR High-Power PoE+/PoE++ Unmanaged Switches |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces & PoE
| Ethernet Ports | 24 x 10/100/1000BASE-T RJ-45 |
| PoE Ports | 16 x 802.3bt PoE++ Type 3 (Ultra60, up to 60 W) + 8 x 802.3at PoE+ (up to 30 W) |
| PoE Budget | 480 W |
Performance
| Switching Capacity | 48 Gbps, non-blocking |
| MAC Address Table | 8K |
| Packet Buffer | 192 KB |
| Jumbo Frames | Up to 9,216 bytes |
| QoS | IEEE 802.1p (CoS) and DSCP |
Power & Environmental
| Power Supply | Internal, 100–240 V AC, 50–60 Hz |
| Power Consumption | 578.8 W max; 24.4 W standby |
| Heat Dissipation | 1,976.0 BTU/hr max |

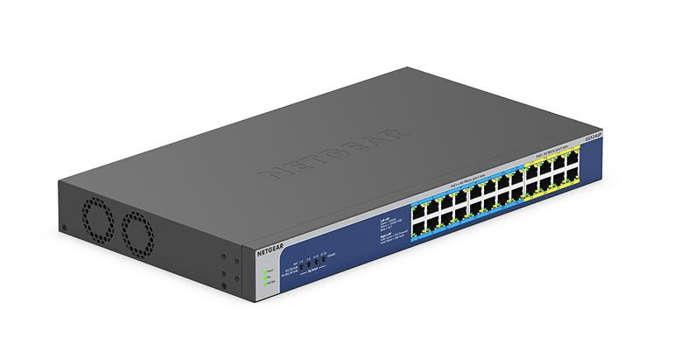

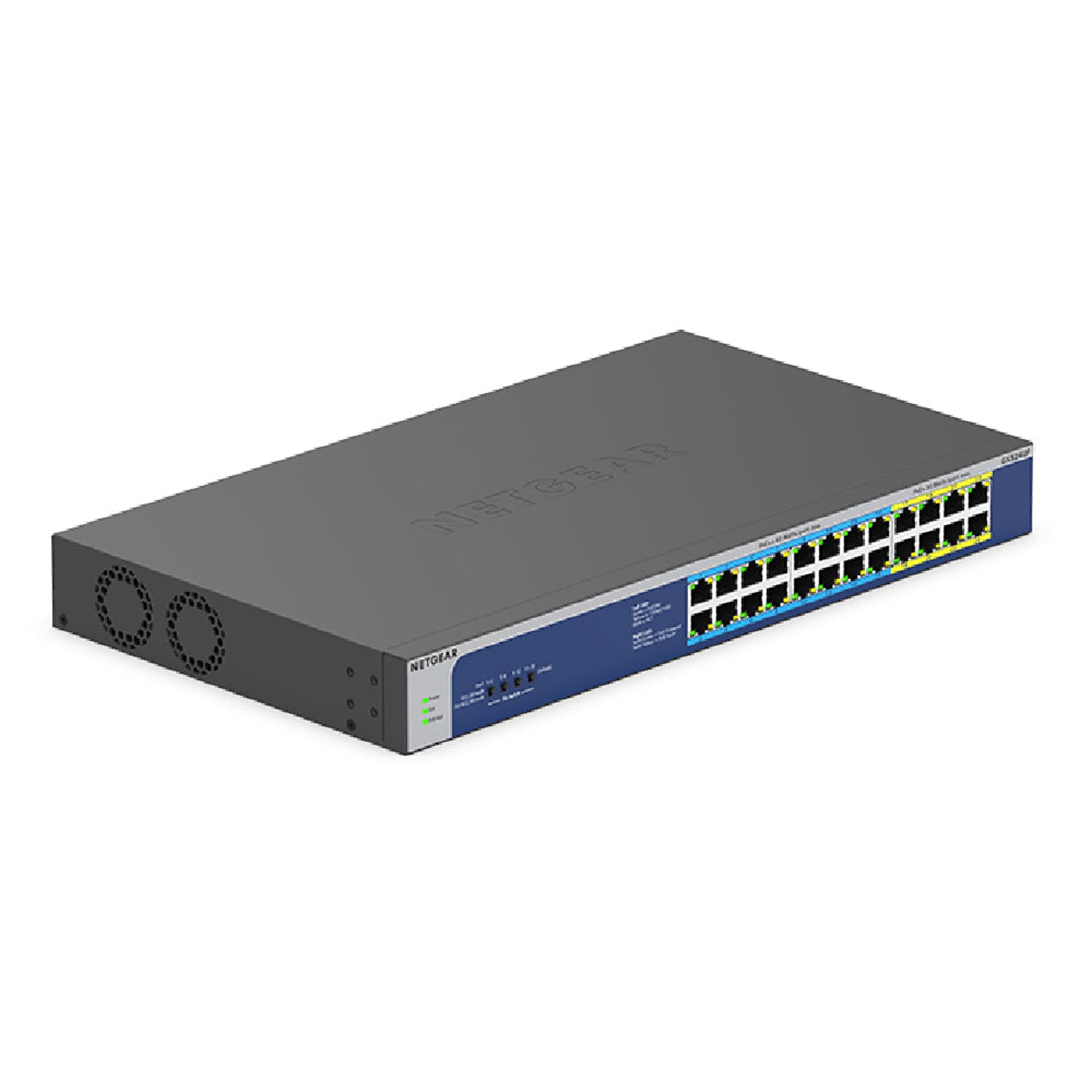

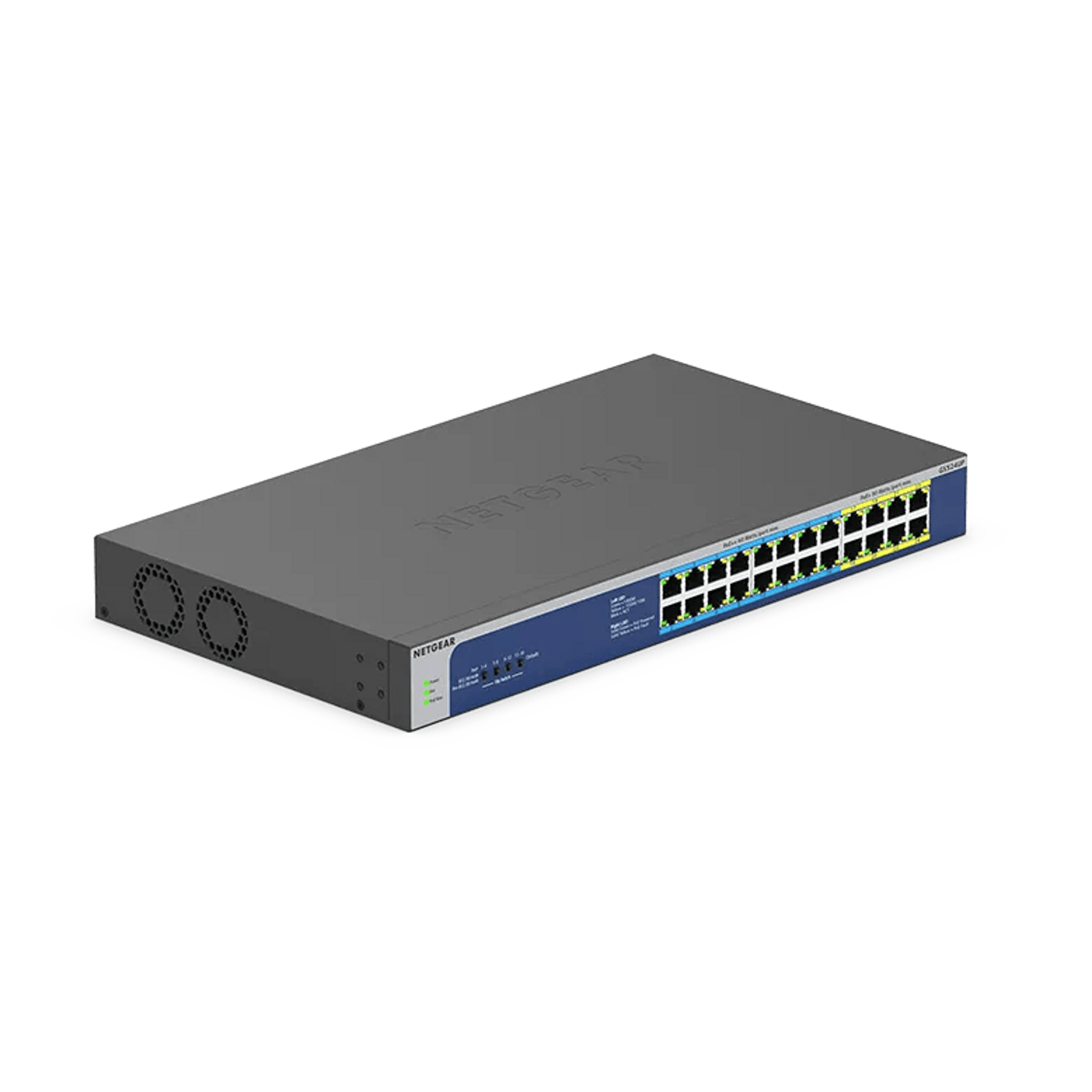

| Cooling | 2 fans |
| Acoustic Noise | 35.0 dBA @ 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 10%–90% RH, non-condensing |
| MTBF | 809,853 hours @ 25 °C |
Physical
| Dimensions (W x D x H) | 390 x 220 x 43 mm |
| Weight | 3.10 kg |
| Mounting | Desktop or 19-inch rack (1U) |
Certifications
| EMC | FCC, ICES-003, EN 55032, EN 55035, EN 55024, AS/NZS CISPR 32, VCCI, BSMI, KC |
| Safety | UL 62368-1, CB, LVD, AS/NZS |
Compatibility & Software Support
Management
Unmanaged — no software, web interface or configuration is required. Ports auto-negotiate and power is allocated automatically to each connected device.
PoE Compatibility
Standards-based IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt Type 3 (Ultra60 PoE++, up to 60 W) — powers IP cameras including PTZ models, WiFi 6/6E/7 access points, VoIP phones, displays and other high-draw PoE devices.
Typical Use
Larger deployments of high-draw PoE devices — PTZ cameras, WiFi 6E/7 access points, displays and lighting — on one plug-and-play switch.
Package Contents & High-Power PoE Unmanaged Ordering Information
In the Box
Switch, power cord, rack-mount kit, desktop feet, installation guide.
NETGEAR High-Power PoE Unmanaged Models
| Model | Ports / PoE | Part No. |
| GS516PP | 16 x GE, 16 x PoE+, 260W | GS516PP |
| GS516UP | 16 x GE, 8 x PoE+ + 8 x Ultra60 PoE++, 380W | GS516UP-100EUS |
| GS524PP | 24 x GE, 24 x PoE+, 300W | GS524PP-100AJS |
| GS524UP (this listing) | 24 x GE, 8 x PoE+ + 16 x Ultra60 PoE++, 480W | GS524UP-100AJS |
Datasheet & Downloads
| NETGEAR datasheet | GS516UP / GS516PP / GS524UP / GS524PP Datasheet (PDF) |
| Installation guide | GS516UP / GS524UP Installation Guide (PDF) |
| NETGEAR product page | GS524UP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS524UP-100AJS.
Frequently Asked Questions — NETGEAR GS524UP
Does the GS524UP need configuring?
No. It is unmanaged and plug-and-play; power is allocated automatically to each device.
How many ports deliver 60 W?
Sixteen ports are 802.3bt Ultra60 PoE++ (up to 60 W); the other eight are PoE+ (up to 30 W). The total budget is 480 W.
Is it fanless?
No. NETGEAR's datasheet lists 2 fans with 35.0 dBA acoustic noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
