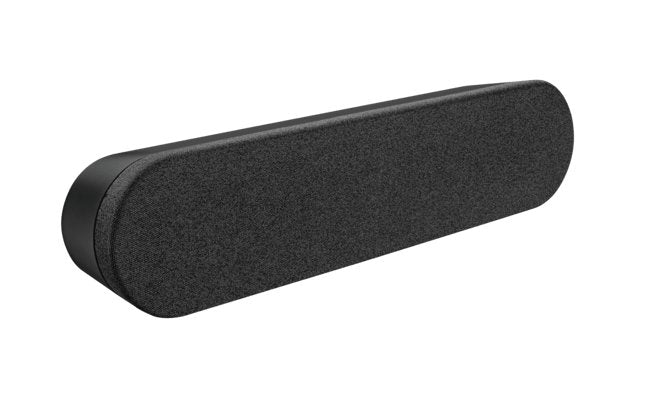

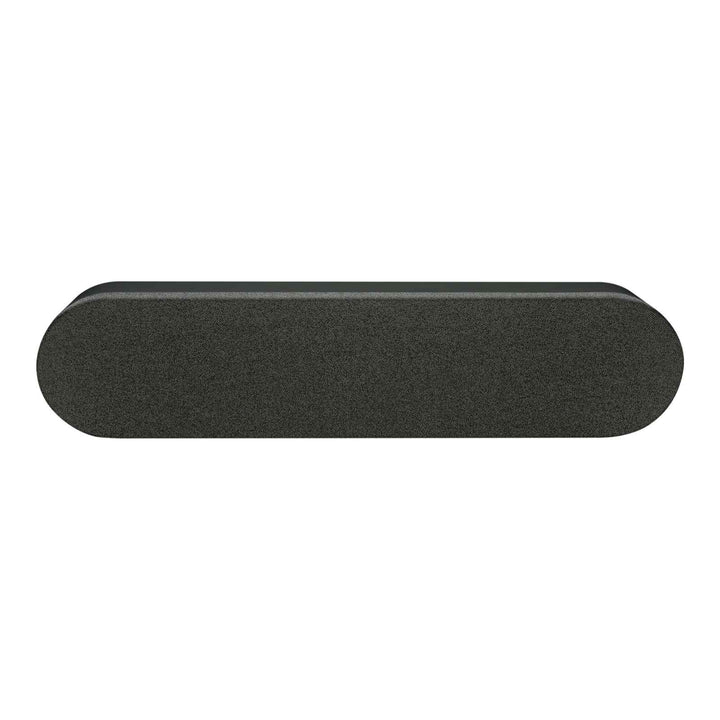

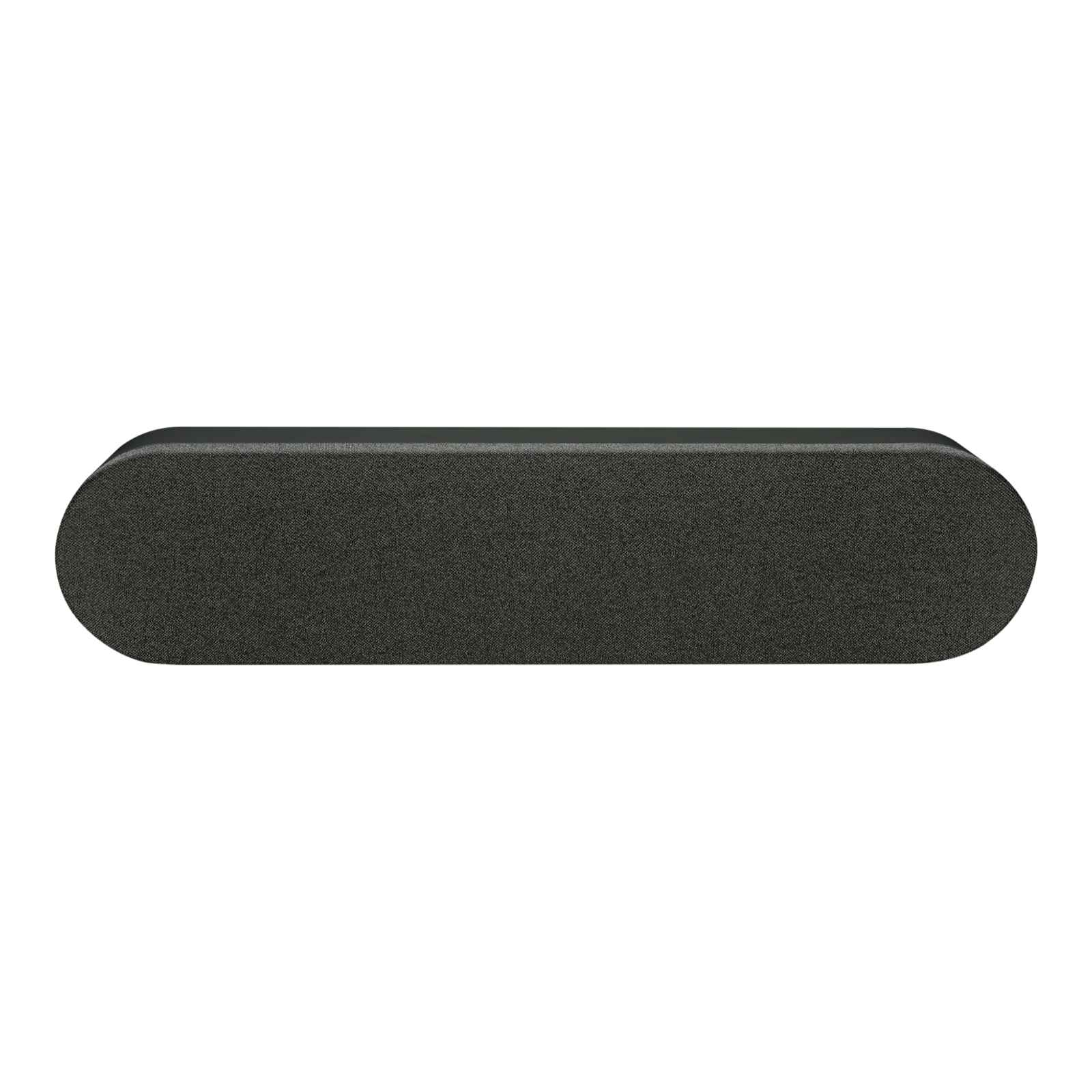

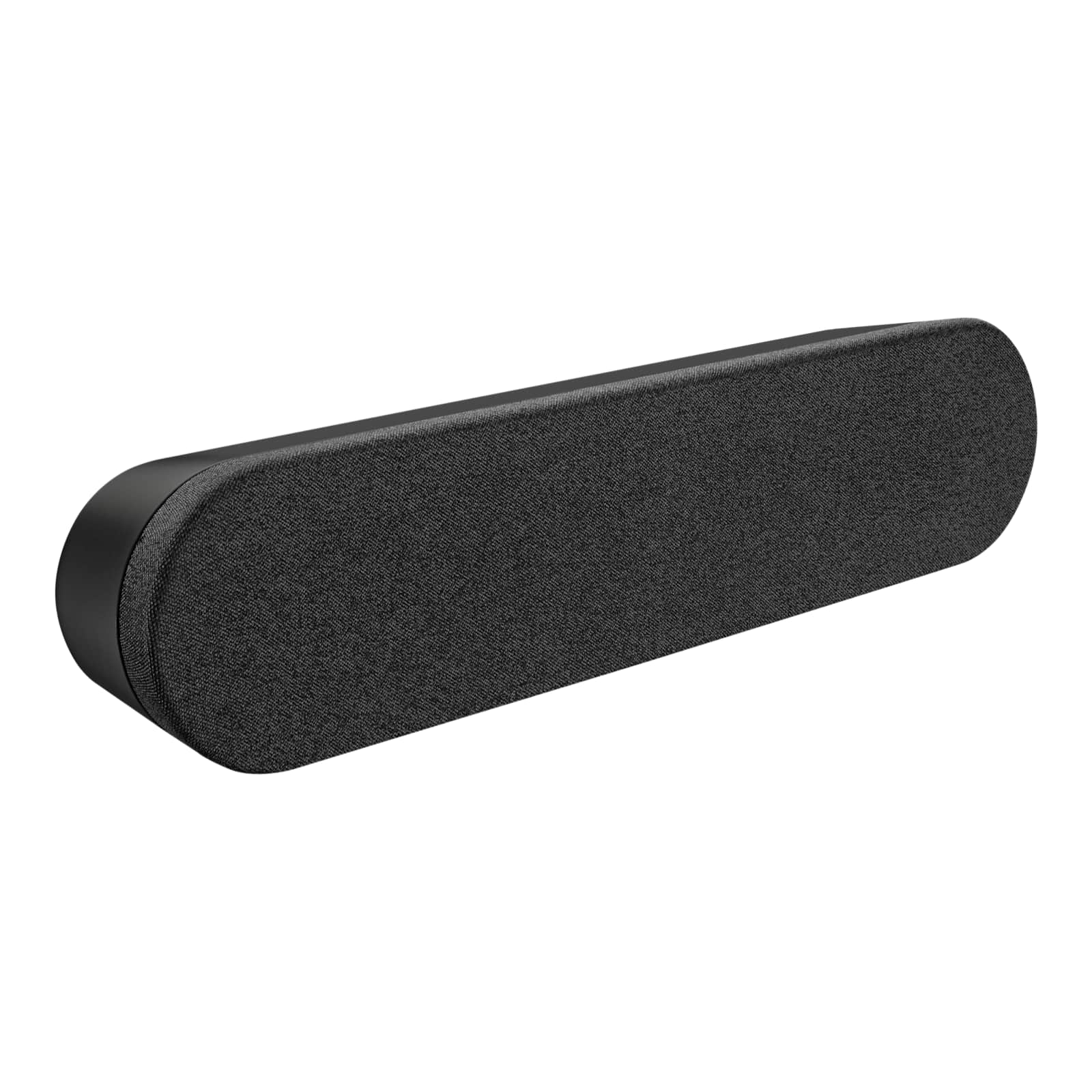

Logitech Rally Speaker for Logitech Rally Set
PRODUCT DESCRIPTION
Logitech Rally Speaker (960-001230) - 2 Years Local Warranty
Expansion Speaker for Logitech Rally and Rally Plus Conference Room Systems
The Logitech Rally Speaker is the dedicated speaker component of the modular Rally conferencing system. It is not a standalone USB speaker β it connects by captive Mini XLR cable to a Rally Display Hub, which supplies both signal and power. Buy it to add a second speaker to a Rally system, or as a spare or replacement for an existing Rally deployment.
76 mm Rare-Earth Driver Tuned for Speech Clarity in Meeting Rooms
A single 76 mm (3-inch) high-performance driver with a rare-earth magnet delivers 95 dB SPL at 1 W and 100 dB SPL at 7.5 W, measured at half a metre. Frequency response runs from 200 Hz to 20 kHz at a 48 kHz sampling rate, with distortion held under 2.5% in the 200β300 Hz band and under 1% from 300 Hz to 10 kHz. The result is intelligible speech at the far end of a boardroom rather than the boomy, indistinct sound of a displayβs built-in speakers.

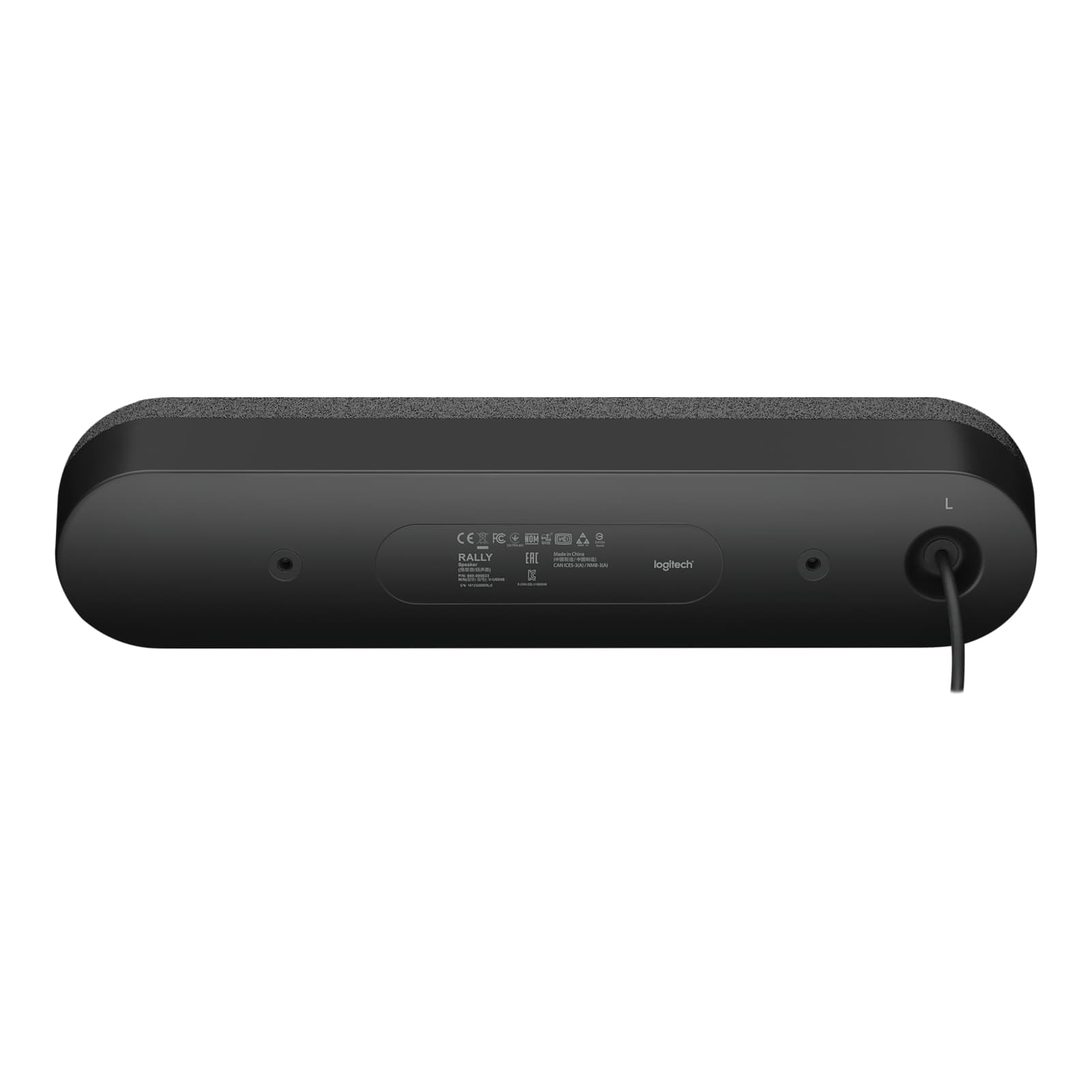

Simple Mini XLR Connection, No Separate Power Supply
The captive Mini XLR cable is 2.95 m (9.6 ft) and carries both audio and power from the Rally Display Hub, so there is no power brick to hide and no extra outlet to find. If the speaker needs to sit further from the hub, Logitech supports a customer-supplied Mini XLR extension of up to 3 m. A Rally system supports a maximum of two speakers in total.
Slim Under-Display Form Factor
At 103 x 449 x 80 mm and 1,645 g, the Rally Speaker is designed to sit discreetly beneath a display or on a credenza in a meeting room. In a stereo pair the two speakers are labelled left and right at the Display Hub, giving you proper stereo separation across a wide room β which is exactly what Rally Plus ships with as standard.
Logitech Rally Speaker Datasheet β Technical Specifications
General
| Product | Logitech Rally Speaker, expansion speaker for Rally conferencing systems |
| Model number | V-U0048 |
| Part number | 960-001230 (UPC 097855142962) |
| Host requirement | Requires a Logitech Rally or Rally Plus system with a Rally Display Hub |
| Maximum per system | 2 speakers per Rally system |
| Warranty | 2 Years Local Warranty (Singapore) |
Audio
| Driver | One 76 mm (3 in) high-performance driver with rare-earth magnet |
| Output | 95 dB SPL at 1 W; 100 dB SPL at 7.5 W (Β±2 dB at 0.5 m) |
| Distortion | Less than 2.5% at 200β300 Hz; less than 1% from 300 Hz to 10 kHz at 7.5 W |
| Frequency response | 200 Hz β 20 kHz; 48 kHz sampling |
| Connection | Captive Mini XLR cable, 2.95 m (9.6 ft), carrying signal and power from the Rally Display Hub |
| Maximum per system | 2 speakers per Rally system |
Connectivity
| Connector | Captive Mini XLR cable, 2.95 m (9.6 ft), carrying audio signal and power |
| Power | Powered by the Rally Display Hub; no separate power supply |
| Extension | Supports a customer-supplied Mini XLR extension up to 3 m (9.8 ft) |
Design
| Dimensions | 103 mm (H) x 449 mm (W) x 80 mm (D) |
| Weight | 1,645 g |
| Placement | Under-display or credenza placement; left/right labelled at the Display Hub in a stereo pair |
Compatibility & Software Support
Rally Speaker has no platform certification of its own β it is a passive component of a Rally system and inherits whatever certification the host system holds. It is compatible only with the modular Rally family.
| Logitech Rally (960-001237) | Compatible β ships with 1 speaker, supports a second |
| Logitech Rally Plus (960-001242) | Compatible β already ships with the maximum of 2 speakers |
| Logitech Rally Bar / Rally Bar Mini / Rally Bar Huddle | Not compatible. These are all-in-one video bars with integrated speakers and no Mini XLR speaker input. |
| Logitech MeetUp / MeetUp 2 | Not compatible |
| Standalone USB / Bluetooth use | Not supported β there is no USB or Bluetooth input |
| Device management | Managed as part of the host Rally system in Logitech Sync |
Package Contents & Rally Series Ordering Information
In the box
Rally Speaker with captive Mini XLR cable, and documentation.
Rally series ordering information
| Rally β medium room system β 960-001237 | View listing |
| Rally Plus β large room system β 960-001242 | View listing |
| Rally Camera β standalone 4K PTZ camera β 960-001226 | View listing |
| Rally Speaker β additional speaker β 960-001230 (this listing) | View listing |
| Rally Mic Pod, Graphite β 989-000430 | View listing |
| Rally Mic Pod, White β 952-000038 | View listing |
| Rally Mic Pod Hub β 939-001647 | View listing |
| Rally Mounting Kit β 939-001644 | View listing |
| Rally Mic Pod Extension Cable β 952-000047 | View listing |
| Rally Camera Power Adaptor β 993-001900 | View listing |
| Rally Camera Power Splitter β 993-001903 | View listing |
Datasheet & Downloads
Frequently Asked Questions β Logitech Rally Speaker
Can I use the Rally Speaker with a Rally Bar or as a standalone USB speaker?
No. The Rally Speaker has only a captive Mini XLR connection that must plug into a Rally Display Hub, and it takes its power from that hub. It will not work with Rally Bar, Rally Bar Mini, Rally Bar Huddle or MeetUp, which are all-in-one bars with integrated speakers, and it cannot be connected to a laptop over USB or Bluetooth.
How many Rally Speakers can one system have?
Two. That is the published maximum for a Rally system. Rally ships with one, so you can add a single speaker; Rally Plus already ships with two and cannot take a third.
Does it need its own power supply or a wall socket?
No. The single captive Mini XLR cable carries both the audio signal and power from the Rally Display Hub, which is one of the neater aspects of the Rally design. No power brick, no extra outlet.
What if the speaker needs to sit further than 2.95 m from the hub?
The captive cable is 2.95 m, and Logitech supports a customer-supplied Mini XLR extension of up to a further 3 m. Beyond that you would need to reposition the Display Hub. SourceIT can help plan cable runs before installation.
Is the Rally Speaker certified for Microsoft Teams Rooms or Zoom Rooms?
Not on its own. Certification belongs to the complete Rally or Rally Plus system, which Logitech lists as certified for Microsoft Teams Rooms, Zoom Rooms, Google Meet and Tencent. The speaker inherits that as part of the system; it holds no separate certification, and we would rather say so than overstate it.
Can I add microphone coverage the same way?
Yes, and with far more headroom. A Rally system supports up to seven daisy-chained Rally Mic Pods, each covering a 4.5 m diameter, for up to 46 seats. The Rally Mic Pod Hub helps with larger pod counts.
Is this the same speaker that ships inside a Rally system?
Yes, it is the identical component (Logitech model V-U0048), sold separately so you can expand a Rally room or replace a unit outside warranty without buying a whole system.
Does the Rally Speaker come with a Singapore warranty?
Yes. Every Logitech Rally Speaker sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
