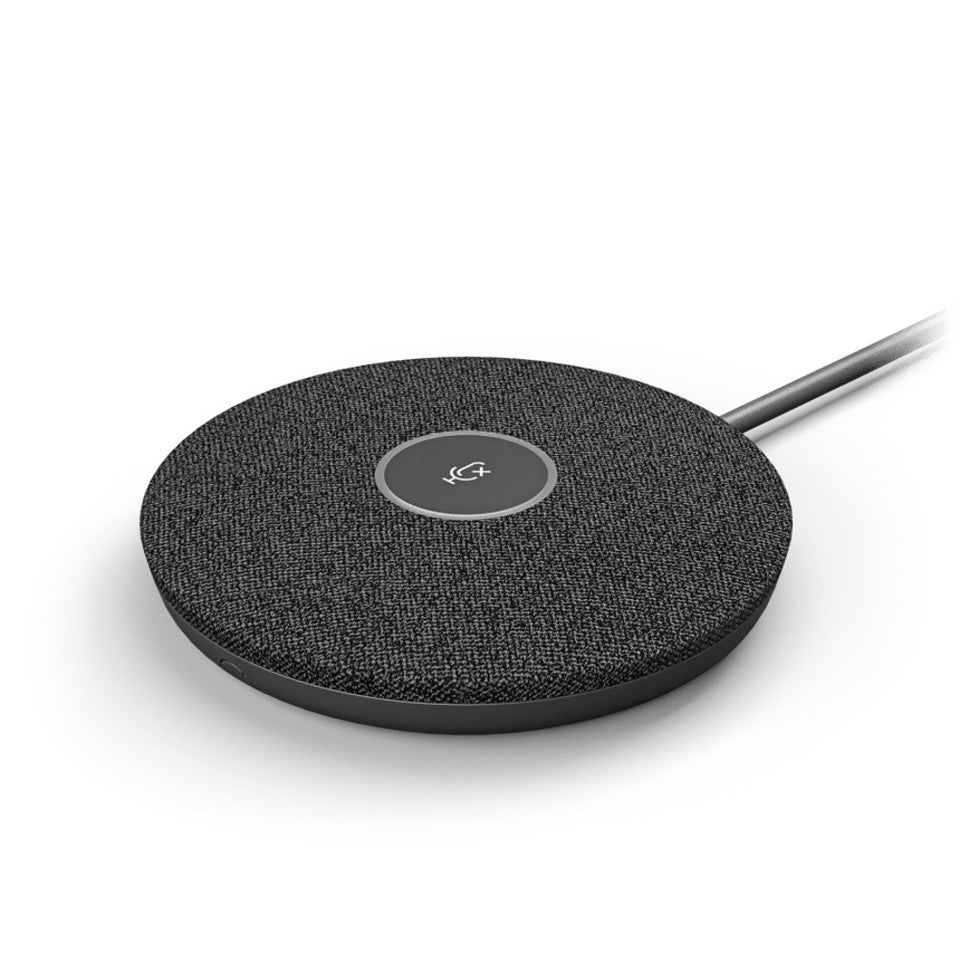

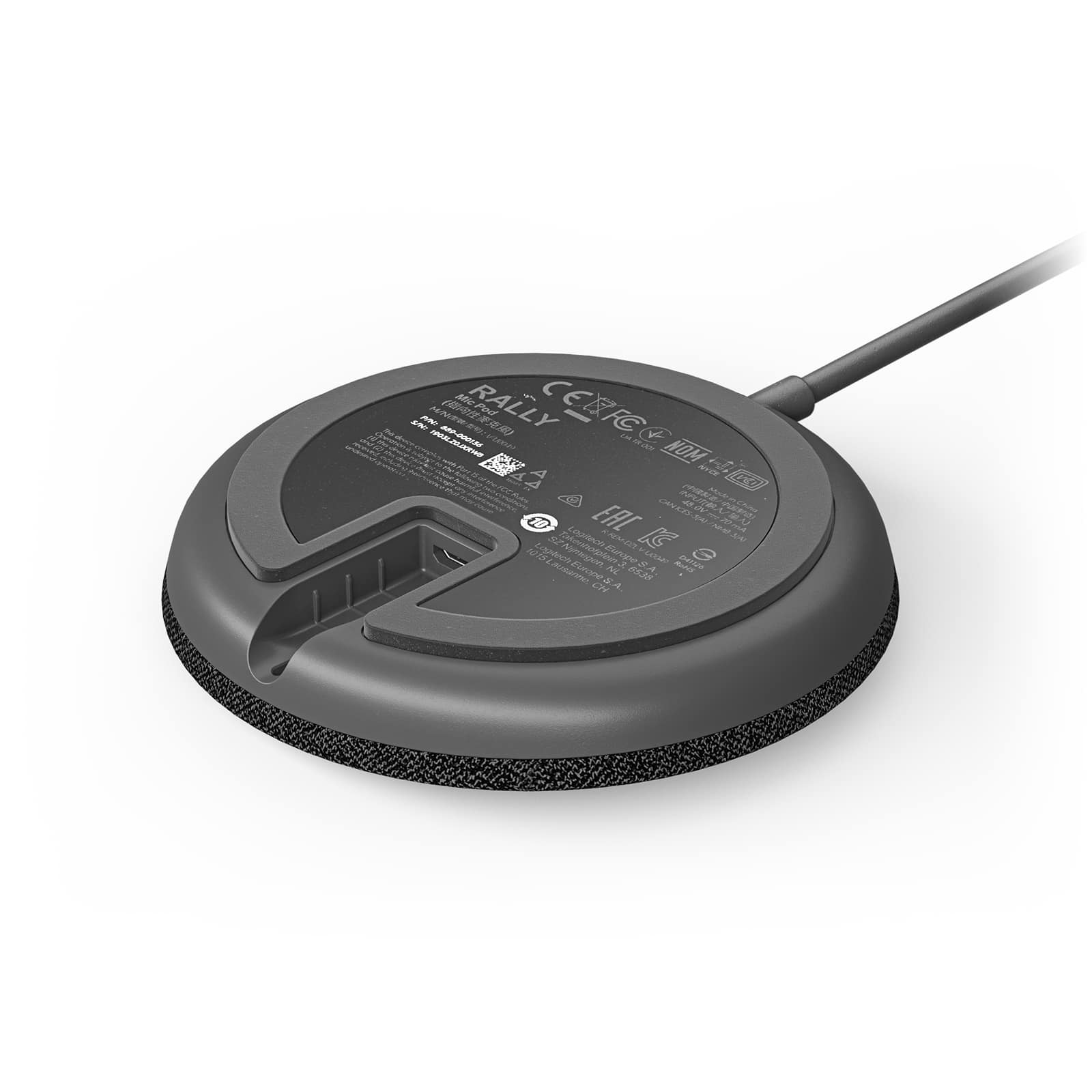

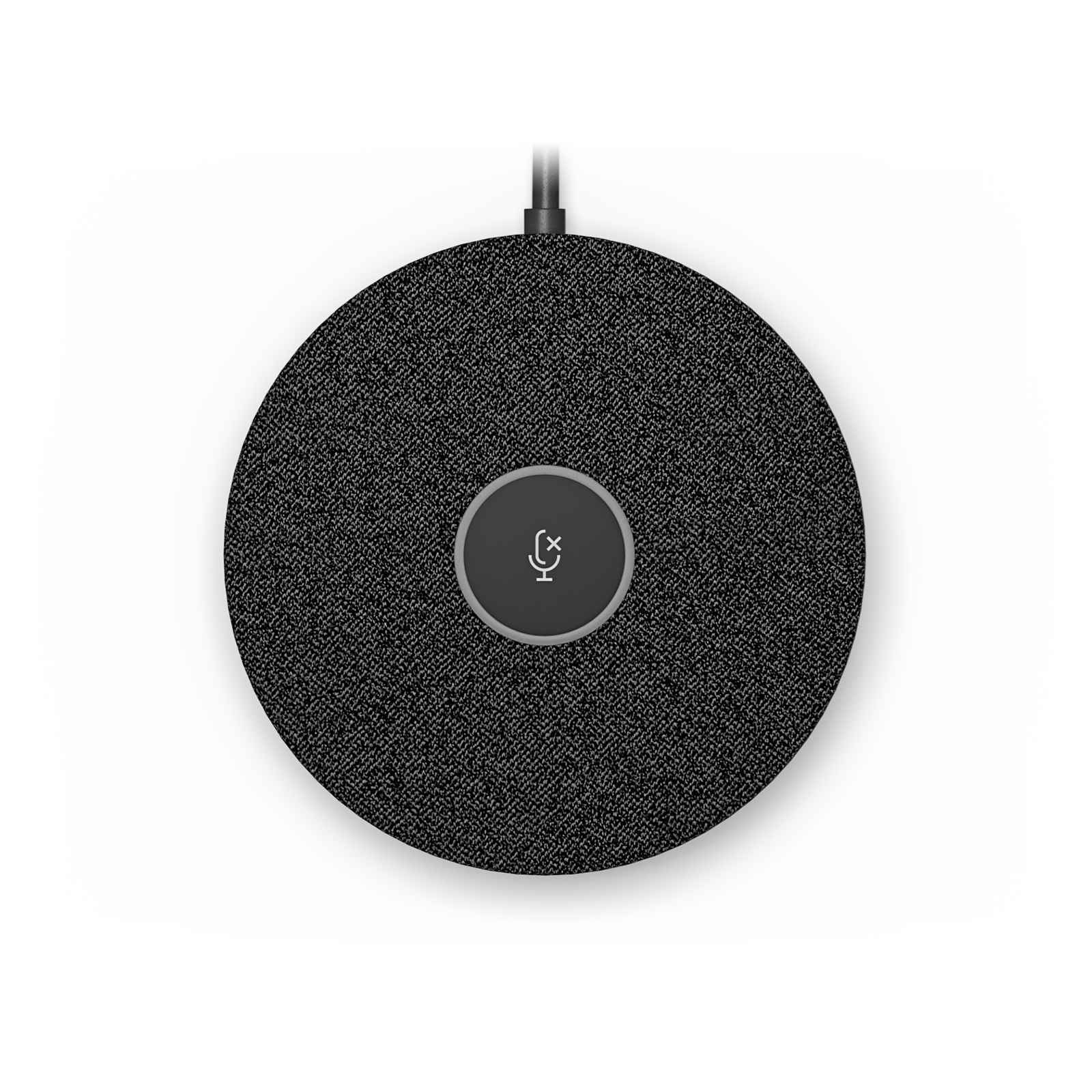

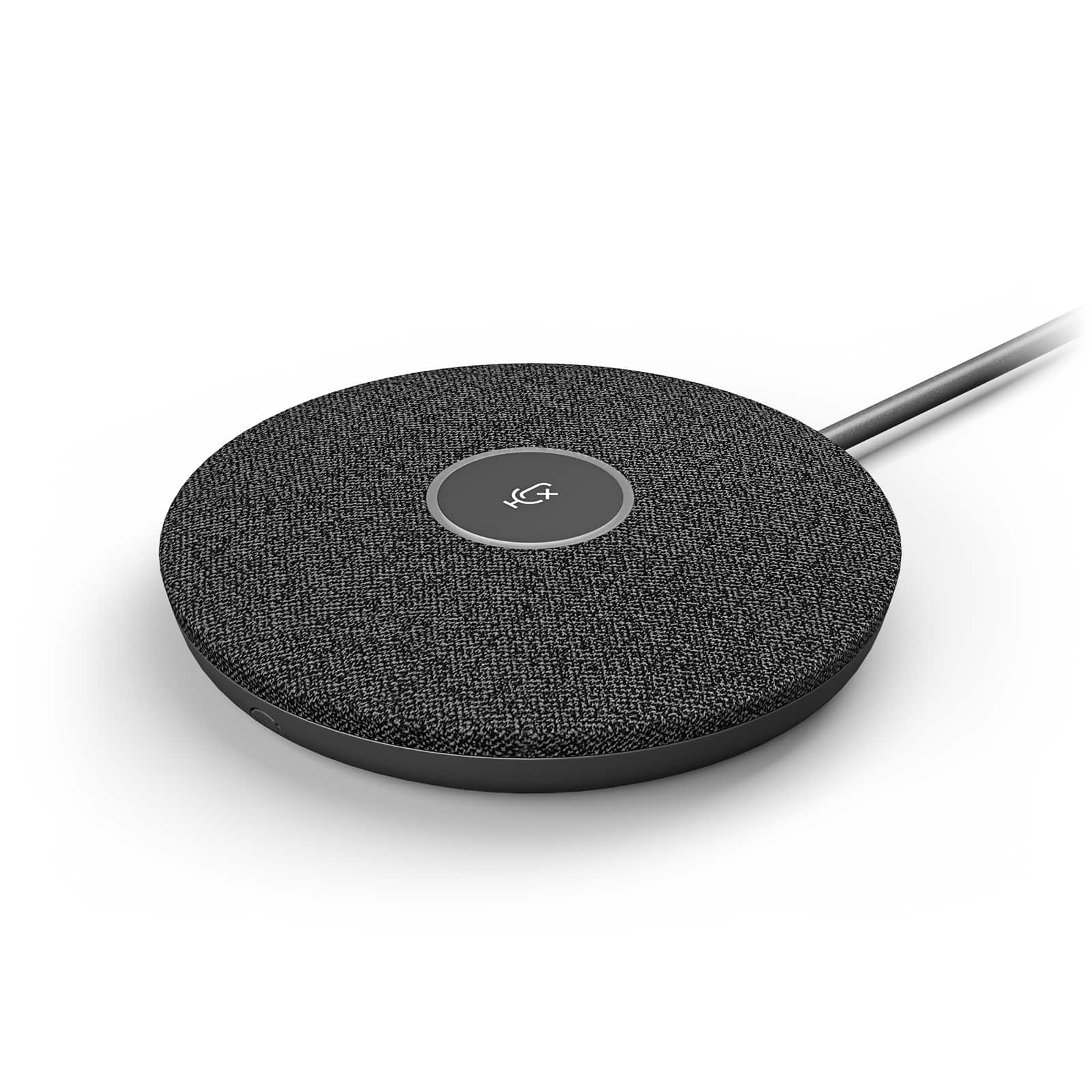

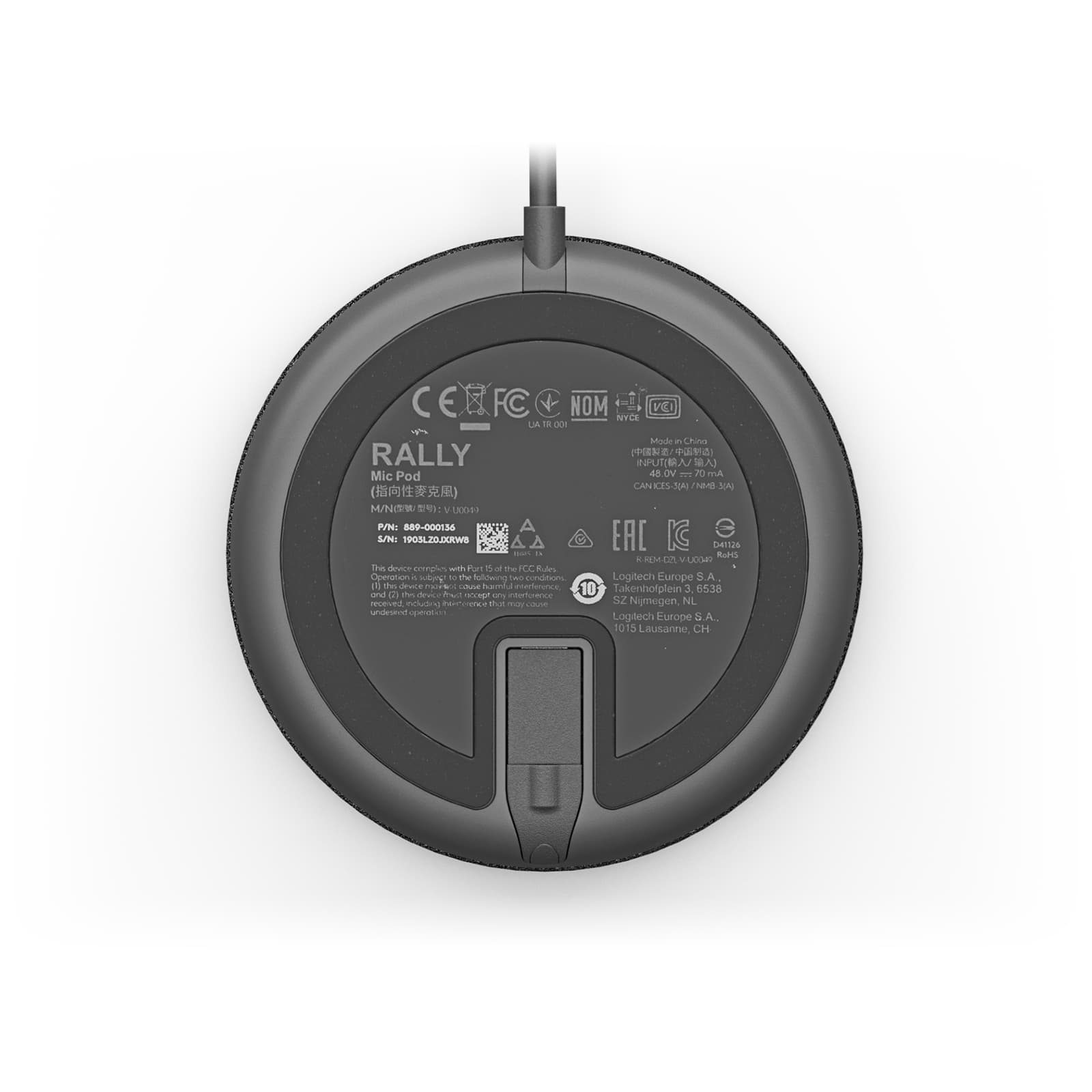

Logitech Rally Mic Pod Expansion Microphone Graphite
PRODUCT DESCRIPTION
Logitech Rally Mic Pod Graphite (989-000430) - 2 Years Local Warranty
Logitech Rally Mic Pod — Modular Expansion Microphone for Rally Systems
The Logitech Rally Mic Pod Graphite (989-000430) adds beamforming voice pickup to Rally Bar, Rally Bar Mini, Rally and Rally Plus rooms. Each low-profile pod carries four omnidirectional microphones forming eight acoustic beams with a 4.5 m pickup range, so extra pods extend clear audio coverage to the far end of long boardroom tables.
RightSound for Natural, Clear Conversation
Logitech RightSound auto-levels voices, suppresses background noise with an AI filter and cancels echo with acoustic echo cancellation and voice activity detection, so remote participants hear speakers at a consistent volume wherever they sit.
Daisy-Chain Cabling and an Easy-Access Mute Button
Pods daisy-chain over their 2.95 m captive 12-pin cable for long tables, while the Rally Mic Pod Hub enables hub-and-spoke layouts for U-shaped or asymmetrical tables. A touch mute button with LED status indicator sits on every pod, and the machined zinc frame dampens vibration.
Logitech Rally Mic Pod Datasheet — Technical Specifications
General
| Part Number | 989-000430 |
| Colour | Graphite |
| Product series | Logitech Rally Mic Pod expansion microphone |
| Compatibility | Logitech Rally Bar, Rally Bar Mini, Rally, Rally Plus |
| Device management | Logitech Sync |
| Warranty | 2 Years Local Warranty (Singapore) |
Audio
| Microphones | Four omnidirectional microphones forming eight acoustic beams |
| Pickup range | 4.5 m (15 ft) |
| Frequency response | 90 Hz – 16 kHz |
| Sensitivity | >-27 dB ±1 dB @ 1 Pa |
| Microphone data rate output | 48 kHz |
| Audio processing | Acoustic Echo Cancellation (AEC), Voice Activity Detector (VAD) |
| Noise suppression | AI filter |
| Mute | Touch mute button with LED status indicator |
Interfaces
| Output | 2.95 m (9.6 ft) 12-pin captive cable |
| Input | 12-pin interface to daisy-chain Mic Pods or connect to Rally Mic Pod Hub |
Design
| Dimensions (H x W x D) | 21 x 102 x 102 mm |
| Frame | Machined zinc frame to dampen vibration |
Compatibility & Mic Pod Capacity
Rally Mic Pod works with Logitech Rally Bar, Rally Bar Mini, Rally and Rally Plus. The maximum number of pods per system is:
| System | Maximum Rally Mic Pods |
| Logitech Rally | Up to 7 (1 included) |
| Logitech Rally Plus | Up to 7 (2 included) |
| Logitech Rally Bar | Up to 3 |
| Logitech Rally Bar Mini | Up to 2 |
Rally Mic Pod is a first-generation pod and is not compatible with Rally Board 65, which uses Logitech Rally Mic Pod 2 instead. The two generations cannot be mixed.
Package Contents & Rally Mic Pod Accessories Ordering Information
In the box: Rally Mic Pod and documentation.
Rally Mic Pod family at SourceIT:
| Model | Part Number |
| Logitech Rally Mic Pod Graphite (this listing) | 989-000430 |
| Logitech Rally Mic Pod Off-white | 952-000038 |
| Logitech Rally Mic Pod Mount Graphite | 952-000002 |
| Logitech Rally Mic Pod Mount Off-white | 952-000020 |
| Logitech Rally Mic Pod Hub | 939-001647 |
| Logitech Rally Mic Pod Extension Cable 10 m | 952-000047 |
| Logitech Rally Mic Pod CAT Coupler Graphite | 952-000181 |
| Logitech Mic Pod Pendant Mount | 952-000123 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Rally Mic Pod
How many Mic Pods can I add?
Rally and Rally Plus support up to seven Mic Pods, Rally Bar supports up to three and Rally Bar Mini supports up to two. Rally ships with one pod and Rally Plus with two.
Does Rally Mic Pod work with Rally Board 65?
No. Rally Board 65 uses the newer Rally Mic Pod 2, and Logitech states the two generations cannot be mixed and matched.
How do I cover a long or U-shaped table?
Daisy-chain pods along a long table, or use the Rally Mic Pod Hub to connect up to three pods or hubs beneath the table. The 10 m Extension Cable and CAT Coupler extend reach where the 2.95 m captive cable is not enough.
Can I fix the pods to the table or ceiling?
Yes. The Rally Mic Pod Mount secures a pod to a table or ceiling and hides the cable, and the Mic Pod Pendant Mount suspends pods from tall ceilings.
Is there an Off-white version?
Yes — Logitech Rally Mic Pod Off-white (952-000038). Only the Off-white model is plenum rated.
Does it come with a local warranty?
Yes. Every Logitech Rally Mic Pod Graphite sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
