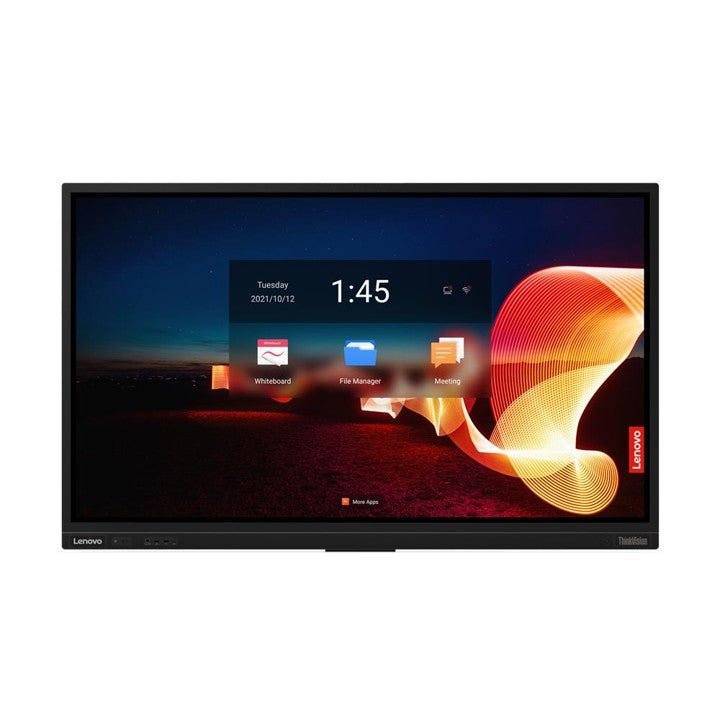

Lenovo ThinkVision T65 with Camera and MD80 65-inch 4K UHD Large Format Display
PRODUCT DESCRIPTION
Lenovo ThinkVision T65 with Camera and MD80 (62F2KNTCMY) - 3 Years Local Warranty
A 65" Interactive 4K Display, Bundled With the Camera and the ThinkPlus MD80
This part number is the -KNT bundle of the ThinkVision T65: the same 65" 4K interactive display, the same 20-point infrared touch, the same Android 9.0 platform and the same detachable 4K 8 MP camera, supplied with the ThinkPlus MD80 added to the box.
The Display Itself Is Fully Documented — the MD80 Is Not
Every panel, port, touch, audio and power figure below comes from Lenovo's PSREF specification sheet for the ThinkVision T65 and applies to this bundle. The MD80 is the exception: Lenovo publishes its name and no specification whatsoever. We have set out exactly what that means in the datasheet below rather than filling the gap with a guess.
A Complete Meeting Room in One Line Item
A detachable 4K 8 MP camera with AI voice tracking, an eight-element microphone array rated for 8 metres, 15 W x 2 speakers, Wi-Fi 5, Bluetooth 5.0 and a W20 wireless casting dongle are all in the box. For most rooms this replaces a separate video bar, a casting appliance and a whiteboard.
Four HDMI Inputs, Ethernet Pass-Through and Room Control
Four HDMI 2.0 inputs, DisplayPort, VGA, an HDMI output for a second screen, two RJ45 ports for Ethernet pass-through and an RS232 port for Crestron, Extron or similar room-control systems. The front bezel carries HDMI, USB-A, USB-C and a USB-B touch port so a visitor can connect without reaching behind the panel.
Lenovo ThinkVision T65 with Camera and MD80 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision T65 with Camera and MD80 Smart Large Format Display |
| Part Number | 62F2KNTCMY |
| Machine Type | 62F2 |
| Type | Interactive large-format display with built-in Android system |
| Colour | Raven black |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 65" |
| Panel Type | In-Plane Switching (IPS), DLED backlight |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1200:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB, 85% NTSC (CIE 1931) |
| Colour Depth | 10-bit, 1.07 billion colours |
| HDR | HDR10 compliance (Lenovo datasheet) |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare. Lenovo publishes no haze percentage |
| Bezel | 28.84 mm side bezel |
Touch
| Touch Technology | Infrared |
| Touch Points | 20 simultaneous |
| Touch Accuracy | 1.0 mm |
| Touch Glass | 3.2 mm, anti-glare |
| Glass Hardness | 8 Mohs |
| Touch Report Rate / Latency | Not published by Lenovo |
Connectivity
| HDMI Inputs | 4 x HDMI 2.0 — 1 on the front panel, 3 on the left side |
| HDMI Output | 1 x HDMI 2.0 out (bottom) — for daisy-chaining a second display |
| DisplayPort | 1 x DisplayPort (left side) |
| VGA | 1 x VGA (left side) |
| Composite | 1 x AV in (bottom) |
| USB Type-A | 5 total — 3 x USB 3.0 (1 front, 2 left) and 2 x USB 2.0 (1 top, 1 bottom) |
| USB Type-C | 2 x USB-C 3.0 (1 front, 1 left). Lenovo publishes no DisplayPort Alt Mode support and no power-delivery wattage for either port |
| USB Type-B (Touch) | 2 x USB-B touch upstream (1 front, 1 left) — carries touch data back to a connected PC |
| Network | 2 x RJ45 — LAN in and LAN out, 10/100/1000 Mbps |
| Audio | 1 x line-in (3.5 mm), 1 x line-out (3.5 mm), 1 x SPDIF out, 1 x PC audio |
| Serial | 1 x RS232 (9-pin) for room-control systems |
| Card Reader | 1 x TF (microSD) card slot |
| OPS Slot | Yes, per Lenovo's product datasheet. Note that Lenovo's PSREF specification sheet contains no OPS row at all — if an OPS module is part of your design, ask us to confirm the slot and module compatibility with Lenovo before ordering |
Built-in Android System
| Operating System | Android 9.0 |
| Processor | Quad-core ARM Cortex-A73 |
| Graphics | ARM Mali-G52 MC2 |
| Memory | 4 GB |
| Storage | 64 GB |
| Wireless | Wi-Fi 5 (802.11ac) 2x2 MIMO, 2.4 GHz and 5 GHz, plus Bluetooth 5.0 |
| Wireless Casting | W20 wireless projection dongle supplied in the box — USB-C, HDMI and USB-A, works with Windows 10, Android 8.0 and iOS 11 and above, no software install required (Lenovo datasheet) |
| Sensors | 1 x ambient light sensor, 1 x human detection sensor |
Audio & Camera
| Speakers | Integrated, 15 W x 2 |
| Microphones | 8-element array. Lenovo's datasheet states pickup within 8 metres |

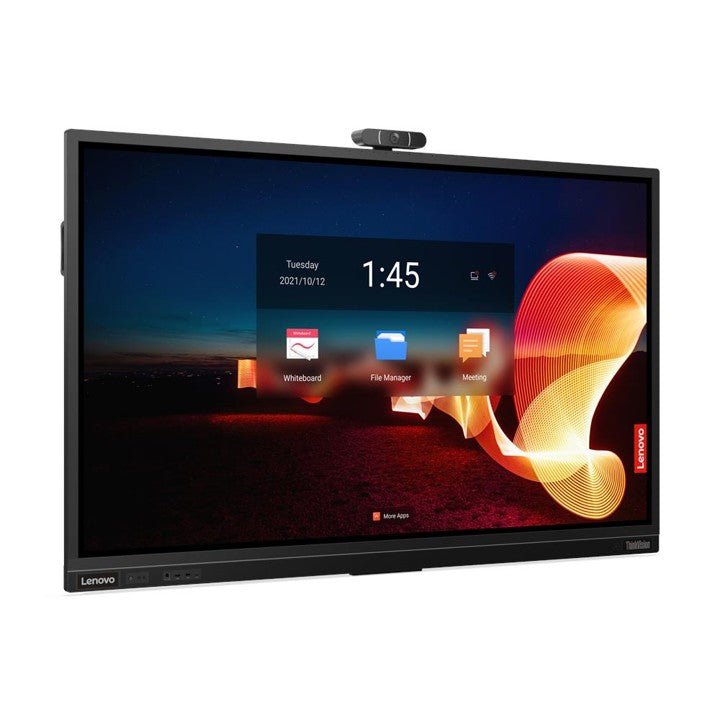

| Camera | Detachable 4K 8 MP camera with AI voice tracking, 1/2.8-inch sensor, swivel and tilt, single USB connector |
| Camera Field of View | 122° with 4x digital zoom, lens shutter and privacy light — these four figures come from Lenovo's press material, not from PSREF or the datasheet |
Power & Certifications
| Power Consumption | 199 W typical / 251 W maximum |
| Sleep / Off Mode | 35 W |
| Switch-off Mode | ≤ 0.5 W |
| Power Supply | Internal, AC 100–240 V, 50–60 Hz |
| Certifications | RoHS compliant; TÜV Rheinland Flicker Free; TÜV Rheinland Low Blue Light |
| ENERGY STAR / EPEAT / TCO | Not published by Lenovo for this model |
Physical

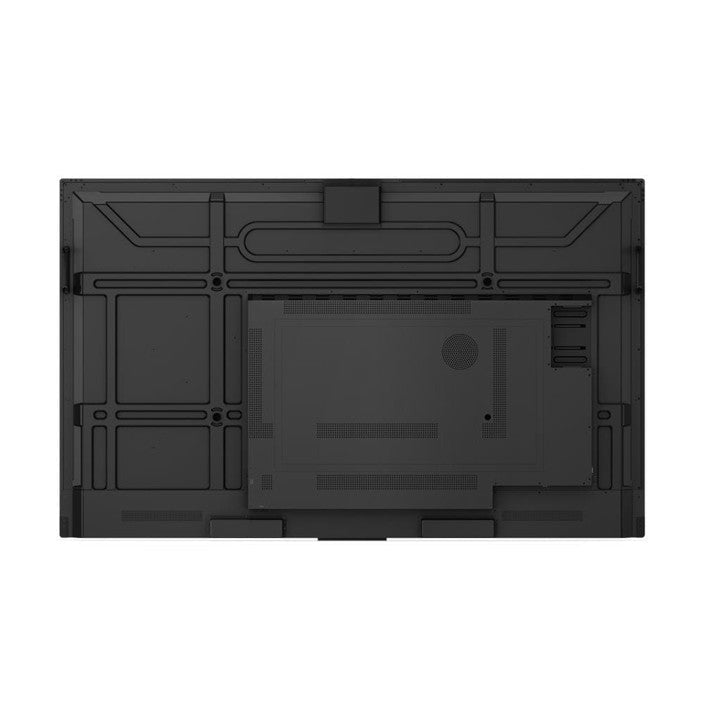

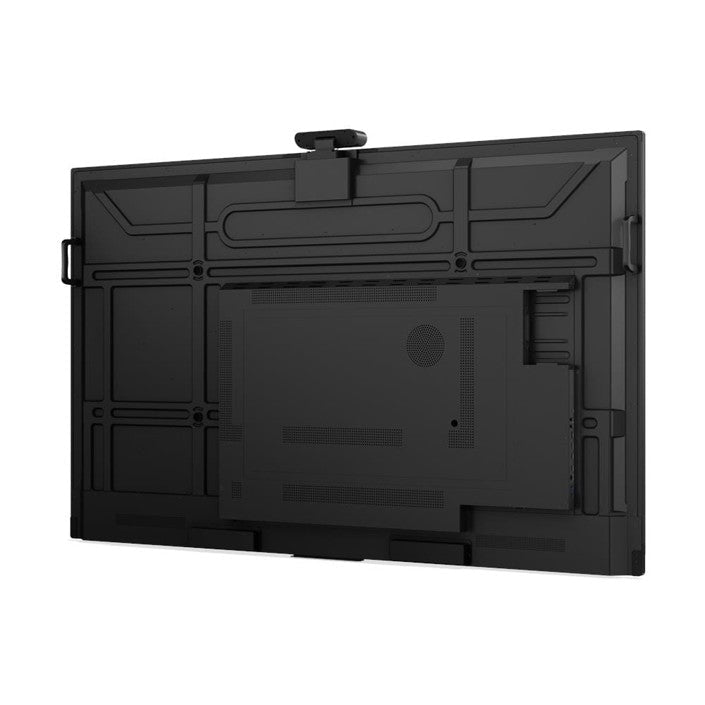

| Mounting | VESA 600 x 400 mm |
| Dimensions (W x D x H) | 1527.5 x 87.8 x 952.0 mm (60.14 x 3.42 x 37.48 in) |
| Weight | 40.5 kg (89.29 lb) |
| Packaged Dimensions | 1660 x 220 x 1045 mm |
| Packaged Weight | 52.5 kg |
| Carry Handles | 2 |
| Operating Environment | 0°C to 40°C, 10–80% relative humidity |
| Storage Environment | -10°C to 60°C, 20–80% relative humidity |
Panel Geometry
| Active Area | 1428.5 x 803.5 mm |
| Pixel Pitch | 0.372 x 0.372 mm |
ThinkPlus MD80
| What Lenovo Publishes | The name. Nothing else. |
| Where It Appears | Lenovo's PSREF specification sheet lists "ThinkPlus MD80" twice — once under Special Features and once in the In-the-Box list — restricted by footnote to the -KNT and -WN1 model stems, which includes this part number |
| Product Category | Not published by Lenovo. Lenovo never states what the MD80 is |
| Camera / Microphone / Speaker Specifications | Not published by Lenovo |
| Connectivity, Mounting, Dimensions, Weight | Not published by Lenovo |
| Certifications and Separate Warranty | Not published by Lenovo |
| What It Is Not | PSREF enumerates the wireless projection dongle and the detachable camera as separate line items alongside the MD80, so the MD80 is neither of those |
| Our Position | We can find no PSREF accessory entry and no Lenovo datasheet for the MD80. Reseller listings describe it as a wireless transmitter, which contradicts PSREF's separate listing of the projection dongle — so we do not repeat it. Ask us and we will request documentation from Lenovo APAC for your project |
Compatibility & Fit
About the MD80 in this bundle. This part number is the -KNT variant of the ThinkVision T65, which Lenovo's PSREF footnotes confirm ships with the ThinkPlus MD80 in addition to the standard contents. Lenovo publishes the MD80's name and nothing more — no category, no specifications, no dimensions, no separate warranty. We have looked through PSREF's accessory database, Lenovo's support documentation, the ThinkVision datasheets and Lenovo's own product pages. Rather than repeat a reseller's guess about what it is, we are telling you plainly that the differentiating item in this bundle is undocumented by its manufacturer. If the MD80 is why you are looking at this SKU, contact us before ordering and we will get its specification confirmed by Lenovo APAC in writing.
The mount is the first decision, not the last. The ThinkVision T65 with Camera and MD80 ships with a wall mount bracket and takes a VESA 600 x 400 mm pattern. At 40.5 kg (89.29 lb) this is a two-person installation into a structural wall — plasterboard alone will not carry it. If the room has no suitable wall, we can quote a mobile trolley or floor stand rated for the weight and pattern; Lenovo mentions floor-stand installation for this family but publishes no stand part number or with-stand dimensions.
Connecting a PC. Touch is carried on a separate USB-B upstream cable, not over the video cable. Run HDMI or DisplayPort for the picture and the supplied USB-B to USB-A cable for touch, otherwise you get an image with no interactivity — the single most common complaint on interactive displays, and entirely avoidable. There are two USB-B touch ports, one front and one on the left side, so a room PC and a guest laptop can each be wired.
USB-C is not a docking port here. Lenovo publishes no DisplayPort Alt Mode support and no power-delivery wattage for either USB-C port on this display. Do not plan on a laptop driving the screen and charging over a single USB-C cable. If that is how your room needs to work, tell us — the answer is usually a small room PC or a dock, and we would rather size it correctly than let you find out on installation day.
Power and network. Budget 199 W typical on the circuit, and note there are two RJ45 ports — LAN in and LAN out — so the display can pass Ethernet through to a room PC or OPS module from a single wall drop. An RS232 port is provided for Crestron, Extron and similar room-control systems.
Access and delivery. A panel this size travels in a crate. Confirm lift dimensions, doorway widths and floor protection before the delivery date. We can arrange delivery, installation and commissioning across Singapore — ask us for a site visit rather than guessing.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Display with wall mount bracket
- Detachable 4K 8 MP camera
- W20 wireless projection dongle
- 2 x stylus
- Remote control with battery
- 1 x HDMI cable, 1 x USB-B to USB-A cable, 1 x power cable
- ThinkPlus MD80 — supplied with this -KNT part number per Lenovo PSREF
- Quick setup guide and warranty booklet
ThinkVision Large Format Display Ordering Information
| 62F2KATCWW | ThinkVision T65 — 65" interactive 4K IPS, 20-point IR touch, Android 9 |
| 62F4KATCWW | ThinkVision T75 — 75" interactive 4K IPS, 20-point IR touch, Android 9 |
| 62F0KATAWW | ThinkVision T86 — 86" interactive 4K VA, 20-point IR touch, Android 9 |
| 62F2KNTCMY (this listing) | ThinkVision T65 with Camera and MD80 — 65" interactive 4K, bundled with ThinkPlus MD80 |
| 62F4KNTCMY | ThinkVision T75 with Camera and MD80 — 75" interactive 4K, bundled with ThinkPlus MD80 |
| 64A9GAT1MY | ThinkVision E55 — 54.6" non-touch 4K VA, USB-C 96 W, GbE |
| 64ACGAT1MY | ThinkVision E65 — 64.5" non-touch 4K VA, USB-C 96 W, GbE |
Datasheet & Downloads
- Lenovo PSREF specification sheet — ThinkVision T65 (PDF)
- Lenovo ThinkVision T65 product datasheet (PDF)
PSREF is Lenovo's own Product Specifications Reference and is the source for every display figure on this page. It is also the only Lenovo document that mentions the ThinkPlus MD80 at all, and it publishes no specification for it — which is why this page says so instead of inventing one.
Frequently Asked Questions — Lenovo ThinkVision T65 with Camera and MD80
What exactly is the ThinkPlus MD80?
We do not know, and neither does any document Lenovo publishes. PSREF names it in the In-the-Box list and under Special Features for this model stem and stops there — no category, no specification, no dimensions. Reseller listings call it a wireless transmitter, but PSREF lists the wireless projection dongle as a separate item on the same page, which contradicts that reading. Ask us and we will get it confirmed by Lenovo APAC before you order.
How does this differ from the plain T65?
The display is identical — same panel, same ports, same touch layer, same Android system, same camera. The -KNT part number adds the ThinkPlus MD80 to the box. If the MD80 is not something your room needs, the plain part number is the cheaper line and is linked in the ordering table above.
Does the camera come with this SKU?
Yes. Lenovo's PSREF In-the-Box list for this model includes the detachable 4K 8 MP camera with AI voice tracking, 1/2.8-inch sensor and swivel-and-tilt mounting.
Does it need a PC connected to work?
No. The display runs Android 9.0 on a quad-core ARM Cortex-A73 with 4 GB of memory and 64 GB of storage, so annotation, casting and the built-in apps work standalone. Connect a PC over HDMI or DisplayPort when you need Windows software, and run the supplied USB-B cable alongside it so touch passes through to the PC.
How does wireless screen sharing work?
A W20 wireless projection dongle ships in the box. Lenovo's datasheet states it presents USB-C, HDMI and USB-A connections, works with Windows 10, Android 8.0 and iOS 11 and above, and needs no software installed on the guest device.
What does the touch layer actually support?
Infrared touch, 20 simultaneous touch points, 1.0 mm touch accuracy, through 3.2 mm anti-glare touch glass. Lenovo publishes no touch report rate or latency figure.
Can I mount it on a trolley or floor stand rather than a wall?
A wall mount bracket is supplied in the box. Lenovo's support documentation for this family mentions floor-stand installation as an option but publishes no stand part number and no with-stand dimensions. Tell us the room and we will quote a trolley or stand rated for the panel's weight and VESA pattern.
Is it certified for Microsoft Teams or Zoom?
Lenovo publishes no Microsoft Teams or Zoom certification for this display, so we do not claim one. It presents its camera, microphones and speakers as standard USB devices to a connected PC, which is how most rooms run Teams or Zoom on it in practice.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells carries local Singapore warranty support with a GST invoice. Onsite response for a display this size is worth discussing before you order — ask us about upgraded service.
