Lenovo ThinkVision T65 65-inch Large Format Display
PRODUCT DESCRIPTION
Lenovo ThinkVision T65 (62F2KATCWW) - 3 Years Local Warranty

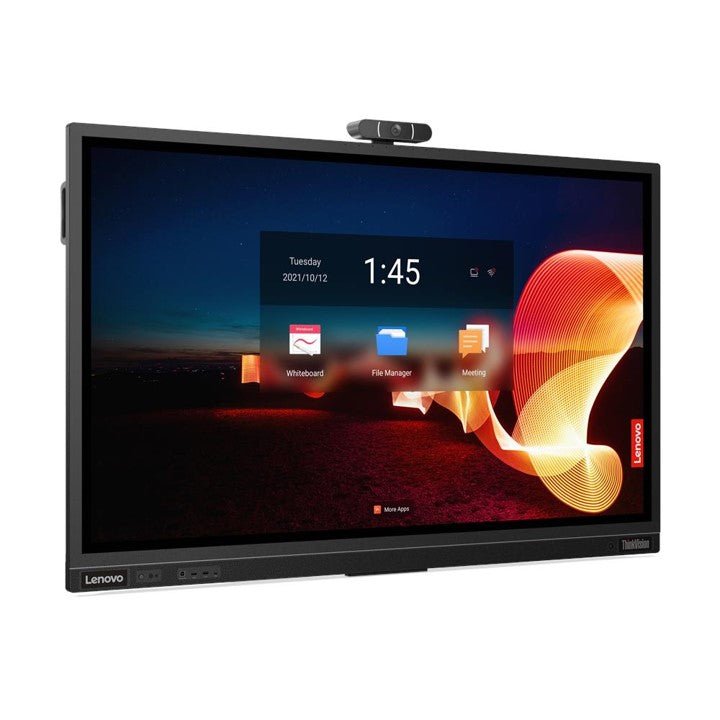

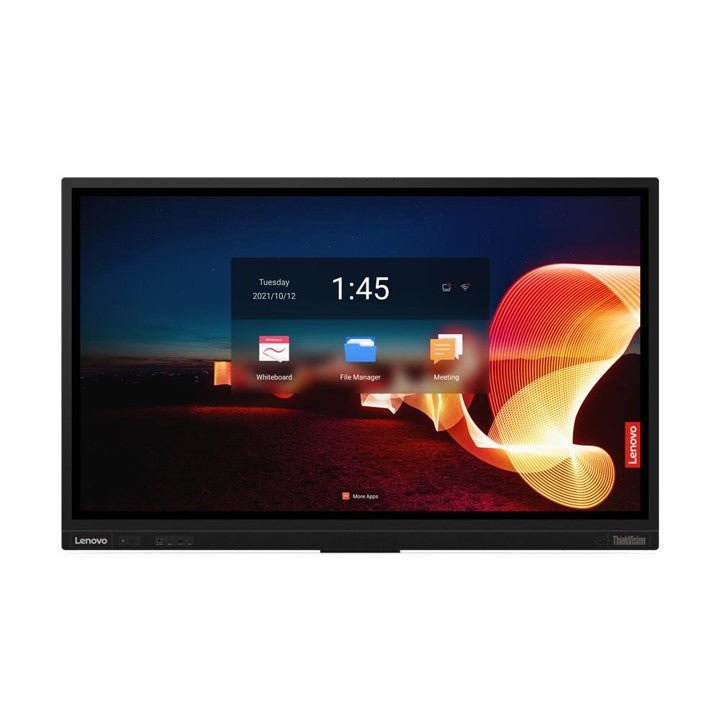

A 65-Inch Interactive 4K Display That Runs Without a PC Attached
The ThinkVision T65 is a 65-inch 4K IPS interactive display with a built-in Android 9.0 system — quad-core ARM Cortex-A73, 4 GB of memory, 64 GB of storage — so annotation, wireless casting and the built-in apps work the moment it is powered on. Connect a room PC when you need Windows software; the display does not depend on one.
20-Point Infrared Touch Through 8 Mohs Glass
Touch is infrared, 20 simultaneous points at 1.0 mm accuracy, through 3.2 mm anti-glare glass rated at 8 Mohs hardness. Twenty points means several people writing at once rather than one person at a time, and 8 Mohs is the specification that matters in a room where a stylus is not always what meets the screen.
A 4K Camera and an Eight-Microphone Array, In the Box
A detachable 4K 8 MP camera with AI voice tracking ships with this part number, alongside an eight-element microphone array that Lenovo's datasheet rates for pickup within 8 metres, and 15 W x 2 integrated speakers. The room does not need a separate video bar to run a call.
Four HDMI Inputs, Ethernet Pass-Through and RS232
Four HDMI 2.0 inputs — one on the front bezel for a visitor's laptop, three on the side for permanent sources — plus DisplayPort, VGA and an HDMI output for a second screen. Two RJ45 ports pass Ethernet through from a single wall drop, and an RS232 port lets Crestron or Extron control the display like any other room device.
Specification note. Every figure on this page is taken from Lenovo's own PSREF specification sheet for the ThinkVision T65, with a small number of items marked as coming from Lenovo's product datasheet where PSREF is silent — those are labelled in the table so you can see which document each figure comes from. Lenovo publishes large-format display specifications per model rather than per part number; the suffix on a part number governs market, packaging and supplied mains cord rather than the panel or the ports. Where Lenovo publishes no figure, this page says so rather than estimating one. A display of this size is a fixed installation — confirm the wall or trolley, the VESA pattern and the delivery access with us before ordering. Specifications and prices are subject to change by Lenovo without notice.
Lenovo ThinkVision T65 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision T65 Smart Large Format Display |
| Part Number | 62F2KATCWW |
| Machine Type | 62F2 |
| Type | Interactive large-format display with built-in Android system |
| Colour | Raven black |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 65" |
| Panel Type | In-Plane Switching (IPS), DLED backlight |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Brightness | 400 cd/m² |
| Contrast Ratio | 1200:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB, 85% NTSC (CIE 1931) |
| Colour Depth | 10-bit, 1.07 billion colours |
| HDR | HDR10 compliance (Lenovo datasheet) |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare. Lenovo publishes no haze percentage |
| Bezel | 28.84 mm side bezel |
Touch
| Touch Technology | Infrared |
| Touch Points | 20 simultaneous |
| Touch Accuracy | 1.0 mm |
| Touch Glass | 3.2 mm, anti-glare |
| Glass Hardness | 8 Mohs |
| Touch Report Rate / Latency | Not published by Lenovo |
Connectivity
| HDMI Inputs | 4 x HDMI 2.0 — 1 on the front panel, 3 on the left side |
| HDMI Output | 1 x HDMI 2.0 out (bottom) — for daisy-chaining a second display |
| DisplayPort | 1 x DisplayPort (left side) |
| VGA | 1 x VGA (left side) |
| Composite | 1 x AV in (bottom) |
| USB Type-A | 5 total — 3 x USB 3.0 (1 front, 2 left) and 2 x USB 2.0 (1 top, 1 bottom) |
| USB Type-C | 2 x USB-C 3.0 (1 front, 1 left). Lenovo publishes no DisplayPort Alt Mode support and no power-delivery wattage for either port |
| USB Type-B (Touch) | 2 x USB-B touch upstream (1 front, 1 left) — carries touch data back to a connected PC |
| Network | 2 x RJ45 — LAN in and LAN out, 10/100/1000 Mbps |
| Audio | 1 x line-in (3.5 mm), 1 x line-out (3.5 mm), 1 x SPDIF out, 1 x PC audio |
| Serial | 1 x RS232 (9-pin) for room-control systems |
| Card Reader | 1 x TF (microSD) card slot |
| OPS Slot | Yes, per Lenovo's product datasheet. Note that Lenovo's PSREF specification sheet contains no OPS row at all — if an OPS module is part of your design, ask us to confirm the slot and module compatibility with Lenovo before ordering |
Built-in Android System
| Operating System | Android 9.0 |
| Processor | Quad-core ARM Cortex-A73 |
| Graphics | ARM Mali-G52 MC2 |
| Memory | 4 GB |
| Storage | 64 GB |
| Wireless | Wi-Fi 5 (802.11ac) 2x2 MIMO, 2.4 GHz and 5 GHz, plus Bluetooth 5.0 |
| Wireless Casting | W20 wireless projection dongle supplied in the box — USB-C, HDMI and USB-A, works with Windows 10, Android 8.0 and iOS 11 and above, no software install required (Lenovo datasheet) |
| Sensors | 1 x ambient light sensor, 1 x human detection sensor |
Audio & Camera
| Speakers | Integrated, 15 W x 2 |
| Microphones | 8-element array. Lenovo's datasheet states pickup within 8 metres |
| Camera | Detachable 4K 8 MP camera with AI voice tracking, 1/2.8-inch sensor, swivel and tilt, single USB connector |
| Camera Field of View | 122° with 4x digital zoom, lens shutter and privacy light — these four figures come from Lenovo's press material, not from PSREF or the datasheet |
Power & Certifications
| Power Consumption | 199 W typical / 251 W maximum |
| Sleep / Off Mode | 35 W |
| Switch-off Mode | ≤ 0.5 W |
| Power Supply | Internal, AC 100–240 V, 50–60 Hz |
| Certifications | RoHS compliant; TÜV Rheinland Flicker Free; TÜV Rheinland Low Blue Light |
| ENERGY STAR / EPEAT / TCO | Not published by Lenovo for this model |
Physical
| Mounting | VESA 600 x 400 mm |
| Dimensions (W x D x H) | 1527.5 x 87.8 x 952.0 mm (60.14 x 3.42 x 37.48 in) |
| Weight | 40.5 kg (89.29 lb) |
| Packaged Dimensions | 1660 x 220 x 1045 mm |
| Packaged Weight | 52.5 kg |
| Carry Handles | 2 |
| Operating Environment | 0°C to 40°C, 10–80% relative humidity |
| Storage Environment | -10°C to 60°C, 20–80% relative humidity |
Compatibility & Fit

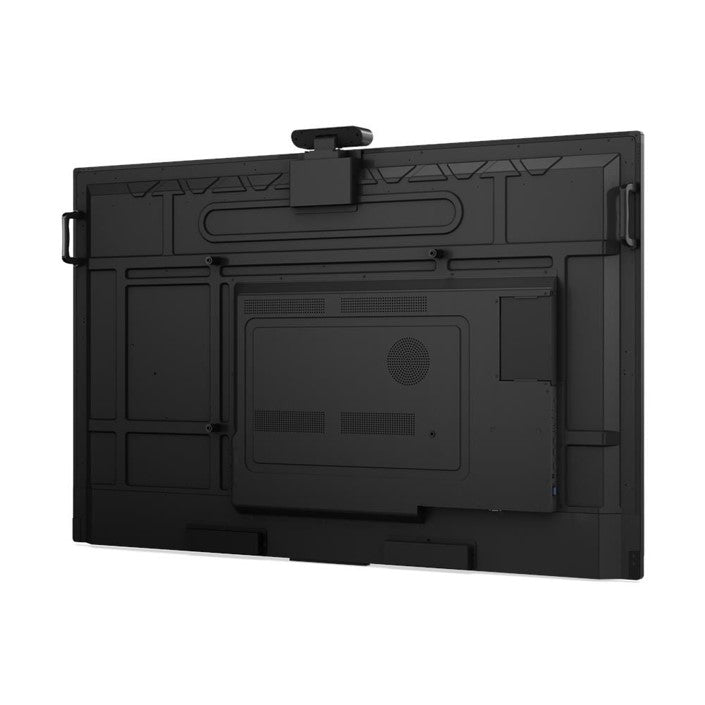

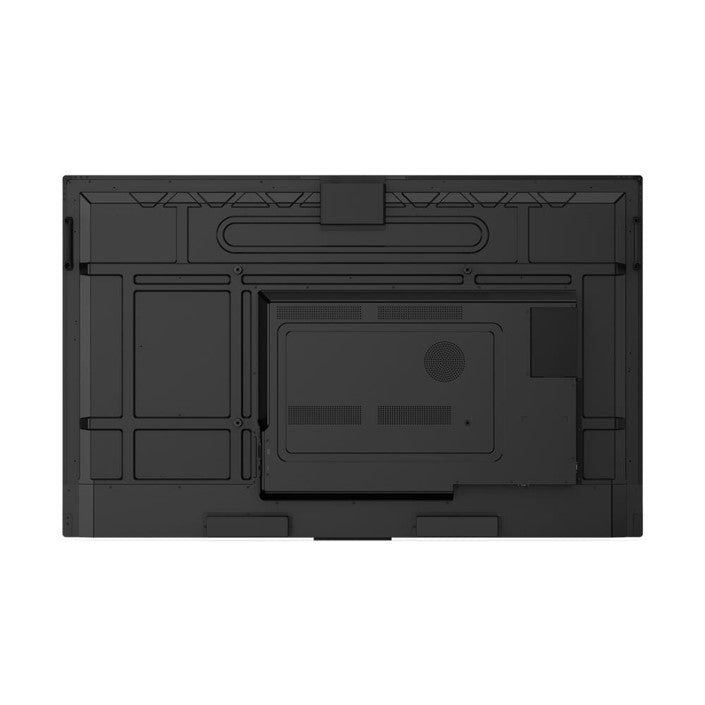

The mount is the first decision, not the last. The ThinkVision T65 ships with a wall mount bracket and takes a VESA 600 x 400 mm pattern. At 40.5 kg this is a two-person installation into a structural wall — plasterboard alone will not carry it. If the room has no suitable wall, we can quote a mobile trolley or floor stand rated for the weight and pattern; Lenovo mentions floor-stand installation for this family but publishes no stand part number or with-stand dimensions.
Connecting a PC. Touch is carried on a separate USB-B upstream cable, not over the video cable. Run HDMI or DisplayPort for the picture and the supplied USB-B to USB-A cable for touch, otherwise you get an image with no interactivity — the single most common complaint on interactive displays, and entirely avoidable. There are two USB-B touch ports, one front and one on the left side, so a room PC and a guest laptop can each be wired.
USB-C is not a docking port here. Lenovo publishes no DisplayPort Alt Mode support and no power-delivery wattage for either USB-C port on this display. Do not plan on a laptop driving the screen and charging over a single USB-C cable. If that is how your room needs to work, tell us — the answer is usually a small room PC or a dock, and we would rather size it correctly than let you find out on installation day.
Power and network. Budget 199 W typical on the circuit, and note there are two RJ45 ports — LAN in and LAN out — so the display can pass Ethernet through to a room PC or OPS module from a single wall drop. An RS232 port is provided for Crestron, Extron and similar room-control systems.
Access and delivery. A panel this size travels in a crate. Confirm lift dimensions, doorway widths and floor protection before the delivery date. We can arrange delivery, installation and commissioning across Singapore — ask us for a site visit rather than guessing.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Display with wall mount bracket
- Detachable 4K 8 MP camera
- W20 wireless projection dongle
- 2 x stylus
- Remote control with battery
- 1 x HDMI cable, 1 x USB-B to USB-A cable, 1 x power cable
- Quick setup guide and warranty booklet
ThinkVision Large Format Display Ordering Information
| 62F2KATCWW (this listing) | ThinkVision T65 — 65" interactive 4K IPS, 20-point IR touch, Android 9 |
| 62F4KATCWW | ThinkVision T75 — 75" interactive 4K IPS, 20-point IR touch, Android 9 |
| 62F0KATAWW | ThinkVision T86 — 86" interactive 4K VA, 20-point IR touch, Android 9 |
| 62F2KNTCMY | ThinkVision T65 with Camera and MD80 — 65" interactive 4K, bundled with ThinkPlus MD80 |
| 62F4KNTCMY | ThinkVision T75 with Camera and MD80 — 75" interactive 4K, bundled with ThinkPlus MD80 |
| 64A9GAT1MY | ThinkVision E55 — 54.6" non-touch 4K VA, USB-C 96 W, GbE |
| 64ACGAT1MY | ThinkVision E65 — 64.5" non-touch 4K VA, USB-C 96 W, GbE |
Datasheet & Downloads
- Lenovo PSREF specification sheet — ThinkVision T65 (PDF)
- Lenovo ThinkVision T65 product datasheet (PDF)
PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page except the four items labelled as coming from Lenovo's datasheet or press material. Where the two Lenovo documents disagree — the OPS slot is the notable case — this page says so rather than picking the more flattering figure.
Frequently Asked Questions — Lenovo ThinkVision T65
Does it need a PC connected to work?
No. The display runs Android 9.0 on a quad-core ARM Cortex-A73 with 4 GB of memory and 64 GB of storage, so annotation, casting and the built-in apps work standalone. Connect a PC over HDMI or DisplayPort when you need Windows software, and run the supplied USB-B cable alongside it so touch passes through to the PC.
How does wireless screen sharing work?
A W20 wireless projection dongle ships in the box. Lenovo's datasheet states it presents USB-C, HDMI and USB-A connections, works with Windows 10, Android 8.0 and iOS 11 and above, and needs no software installed on the guest device.
What does the touch layer actually support?
Infrared touch, 20 simultaneous touch points, 1.0 mm touch accuracy, through 3.2 mm anti-glare touch glass. Lenovo publishes no touch report rate or latency figure.
Can I mount it on a trolley or floor stand rather than a wall?
A wall mount bracket is supplied in the box. Lenovo's support documentation for this family mentions floor-stand installation as an option but publishes no stand part number and no with-stand dimensions. Tell us the room and we will quote a trolley or stand rated for the panel's weight and VESA pattern.
Is it certified for Microsoft Teams or Zoom?
Lenovo publishes no Microsoft Teams or Zoom certification for this display, so we do not claim one. It presents its camera, microphones and speakers as standard USB devices to a connected PC, which is how most rooms run Teams or Zoom on it in practice.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells carries local Singapore warranty support with a GST invoice. Onsite response for a display this size is worth discussing before you order — ask us about upgraded service.
Does this part number include the camera?
Yes. Lenovo's PSREF footnote for the camera row explicitly lists model stem 62F2KAT, which is this part number, so the detachable 4K 8 MP camera is in the box. The ThinkPlus MD80 is not — that is restricted to the 62F2KNT and 62F2WN1 stems, which we sell as a separate listing.
Is the panel IPS or VA?
IPS, with a DLED backlight, giving 178° viewing angles in both axes. The 86-inch T86 in this family uses a VA panel instead — higher static contrast, but a different off-axis behaviour — so do not assume the three sizes behave identically.
