Lenovo ThinkVision E55 55-inch 4K UHD Large Format Display
PRODUCT DESCRIPTION
Lenovo ThinkVision E55 (64A9GAT1MY) - 3 Years Local Warranty
A 54.6" 4K Commercial Display With a 96 W USB-C Dock Built In
The ThinkVision E55 is a 54.6" 4K UHD large-format display for meeting rooms, classrooms and digital signage. Its headline feature is not the panel — it is the connectivity: a single USB-C cable carries video over DisplayPort 1.4 Alt Mode, up to 96 W of charging back to a laptop, gigabit Ethernet and four USB-A ports. One cable turns the room's display into the room's dock.
Read This Before You Order: It Is Not a Touchscreen
The ThinkVision E55 is a non-touch commercial display. Lenovo's specification contains no touch technology and no touch-point count, there is no built-in Android system, and there is no Wi-Fi or Bluetooth. If your room needs an interactive whiteboard, the interactive product in this family is the ThinkVision T65 — a different model with its own documentation, linked in the ordering table below.
A VA Panel at 5000:1 — and the Correction That Goes With It
Lenovo specifies a Vertical Alignment (VA) panel here with a 5000:1 contrast ratio, 400 cd/m² brightness, 178° viewing angles and a 28% anti-glare haze. Our previous listing for this display described the panel as In-Plane Switching. That was wrong against Lenovo's own specification sheet and we have corrected it — a 5000:1 static contrast is a VA characteristic, not an IPS one.
Built to Sit in a Room, Not on a Desk
ENERGY STAR certified and EPEAT Silver registered, with a Core & Tiny cage in the box so a Lenovo Tiny or Core compute module mounts behind the panel and disappears. Picture-by-Picture and a built-in KVM switch let two sources share the screen and one keyboard. VESA 300 x 300 mm, with 0.1° to 5° of tilt on the supplied bracket.
Lenovo ThinkVision E55 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision E55 Large Format Display |
| Part Number | 64A9GAT1MY |
| Machine Type | 64A9 |
| Type | Non-touch commercial large-format display |
| Colour | Black |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 54.6" |
| Panel Type | Vertical Alignment (VA), DLED backlight |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Curvature | Flat |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms per Lenovo's PSREF PDF. Lenovo's HTML rendering of the same document states 6.5 ms — the two disagree, so both are shown here |
| Brightness | 400 cd/m² |
| Contrast Ratio | 5000:1 |
| Colour Gamut | 95% sRGB (CIE 1976); 75% DCI-P3 (CIE 1976); 72% NTSC (CIE 1931) |
| Colour Depth | 10-bit (8-bit + FRC), 1.07 billion colours |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare, 28% haze |
| Active Display Area | 1209.6 x 680.4 mm |
| Pixel Pitch | 0.315 x 0.315 mm (80 dpi) |
| Bezel | 2.6 mm top, 3.3 mm sides, 18.9 mm bottom |
Connectivity
| HDMI | 2 x HDMI 2.1 (TMDS) — 3840 x 2160 at 60 Hz |
| DisplayPort In | 1 x DisplayPort 1.4 |
| DisplayPort Out | 1 x DisplayPort 1.4 — for daisy-chaining a second display |
| USB-C (upstream) | 1 x USB-C, USB 10Gbps (USB 3.2 Gen 2), DisplayPort 1.4 Alt Mode (HBR3), USB Power Delivery 3.1 up to 96 W |
| USB-C (downstream) | 1 x USB-C, USB 5Gbps (USB 3.2 Gen 1), 15 W power delivery, data transfer only — no video |
| USB-B (upstream) | 1 x USB-B, USB 5Gbps (USB 3.2 Gen 1) |
| USB-A (downstream) | 4 x USB-A, USB 5Gbps (USB 3.2 Gen 1) |
| Network | 1 x RJ45, Gigabit Ethernet |
| Serial | 1 x RS232 (9-pin) for room-control systems |
| Audio | 1 x line-out (3.5 mm) |
| Speakers | Integrated, 10 W x 2 |
| Microphone | None — Lenovo states "no microphone" |
| Camera | None. Lenovo lists the MC80L Gen2 webcam as a separate purchase |
| Touch | None. This is a non-touch commercial display |
| OPS Slot | Not published by Lenovo. The box does include a Core & Tiny cage for mounting a Lenovo Tiny or Core compute module, which is a different thing from an OPS slot |
| Wi-Fi / Bluetooth | Not published by Lenovo — neither appears in the specification. Drive this display from a connected PC or Tiny module |
Features
| HDR | HDR10 compliance |
| Multi-Source Viewing | Picture-in-Picture and Picture-by-Picture |
| KVM Switch | Yes — one keyboard and mouse across two connected sources |
| Daisy Chain | Yes, over DisplayPort 1.4 out |
| Software | Lenovo ThinkColour (Accessories and Display Manager); brightness calibration |
| Eye Care | Natural Low Blue Light; TÜV Rheinland Flicker Free; TÜV Rheinland Low Blue Light (hardware solution) |
| Power Management | Smart power management |
| Operating System Support | Windows 11, Windows 10 |
Power & Certifications
| Power Consumption | 100 W typical / 300 W maximum |
| ENERGY STAR Power-On Mode | 84 W |
| Typical Energy Consumption (TEC) | 123 kWh |
| Sleep / Off Mode | < 0.5 W |
| Switch-off Mode | < 0.3 W |
| Power Supply | Internal, AC 100–240 V, 50–60 Hz |
| Green Certifications | ENERGY STAR certified; EPEAT Silver registered |
| EU Energy Label | G class |
| Other Certifications | TÜV Rheinland Flicker Free; TÜV Rheinland Low Blue Light (hardware solution) |
Physical
| Mounting | VESA 300 x 300 mm |
| Tilt | 0.1° to 5° |
| Dimensions (W x D x H) | 1227 x 125.1 x 720.7 mm (48.31 x 4.93 x 28.37 in). Lenovo's PDF states 54.6" for the screen size while its HTML rendering states 54.5" |
| Weight | 17.9 kg (39.5 lb) |
| Packaged Dimensions | 1370 x 185 x 850 mm |
| Packaged Weight | 22.7 kg |
Compatibility & Fit
The single-cable question. The upstream USB-C port carries DisplayPort 1.4 Alt Mode at HBR3 and delivers up to 96 W back to the connected machine, plus gigabit Ethernet and the four downstream USB-A ports. For a modern ThinkPad, ThinkBook or MacBook that is genuinely one cable for picture, power, network and peripherals. Check your laptop's own charging requirement against 96 W before you rely on it — a mobile workstation drawing 135 W or 170 W will still need its own adapter.
The second USB-C port is not a video port. Lenovo specifies it as USB 5Gbps, 15 W, data transfer only. Plugging a laptop into it will charge slowly and display nothing. Label the ports at installation if the room has non-technical users.
What drives the display. There is no built-in Android system, no Wi-Fi and no Bluetooth. Something has to be connected: a room PC over HDMI or DisplayPort, a laptop over USB-C, or a Lenovo Tiny or Core module fitted into the Core & Tiny cage supplied in the box, which mounts behind the panel and keeps the installation clean. The Tiny or Core module is a separate purchase — ask us to quote one alongside the display.
Camera and microphone are not included. Lenovo states "no camera" and "no microphone" for this display, and lists the MC80L Gen2 webcam as a separate accessory. For a room that needs to run Teams or Zoom, budget for a camera and a speakerphone or soundbar — the built-in 10 W x 2 speakers will carry audio playback but are not a conferencing solution on their own. We can quote the full room.
Mounting. VESA 300 x 300 mm, with a wall mount bracket, expansion tubes, screws, screwdriver, cable clips and washers in the box, and 0.1° to 5° of tilt available. At 17.9 kg (39.5 lb) this needs a structural wall or a rated trolley.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Display head and wall mount bracket
- Core & Tiny cage — for mounting a Lenovo Tiny or Core compute module behind the display
- 1 x USB-C to USB-C cable (3 m, 5 Gbps)
- 1 x power cord (2.8 m) and 1 x power cord for adapter (1 m)
- Remote controller with battery
- Screws, screwdriver, 2 x cable clip, 2 x washer, 8 x expansion tubes
- Quick setup guide
One caveat on the box list. Lenovo's PDF and its HTML rendering of the same PSREF document disagree on the screw count (15 against 7) and on whether the Core & Tiny cage, expansion tubes and display head are itemised at all. We have published the PDF's list. If a specific in-box item matters to your installation, ask us to confirm it before ordering.
ThinkVision Large Format Display Ordering Information
| 62F2KATCWW | ThinkVision T65 — 65" interactive 4K IPS, 20-point IR touch, Android 9 |
| 62F4KATCWW | ThinkVision T75 — 75" interactive 4K IPS, 20-point IR touch, Android 9 |
| 62F0KATAWW | ThinkVision T86 — 86" interactive 4K VA, 20-point IR touch, Android 9 |
| 62F2KNTCMY | ThinkVision T65 with Camera and MD80 — 65" interactive 4K, bundled with ThinkPlus MD80 |
| 62F4KNTCMY | ThinkVision T75 with Camera and MD80 — 75" interactive 4K, bundled with ThinkPlus MD80 |
| 64A9GAT1MY (this listing) | ThinkVision E55 — 54.6" non-touch 4K VA, USB-C 96 W, GbE |

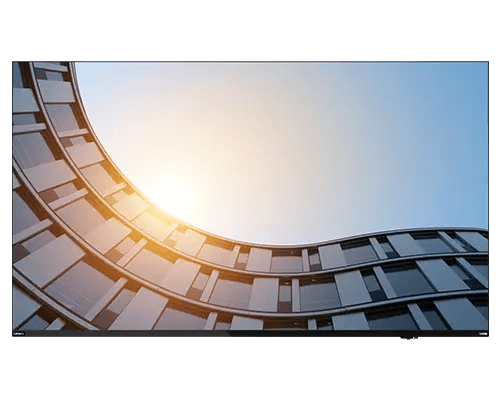

| 64ACGAT1MY | ThinkVision E65 — 64.5" non-touch 4K VA, USB-C 96 W, GbE |
Datasheet & Downloads
- Lenovo PSREF specification sheet — ThinkVision E55 LFD (PDF)
- Lenovo Singapore product page — 64A9GAT1MY
PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page. Note that the PSREF spec sheet is published per model and does not itself list part number 64A9GAT1MY; the per-part-number PSREF Detail page for this SKU exists and will render in a normal browser if you need the exact configuration confirmed before ordering. Ask us and we will pull it for you.
Frequently Asked Questions — Lenovo ThinkVision E55
Is this display a touchscreen?
No. Lenovo's specification for the ThinkVision E55 contains no touch technology and no touch-point count — the words do not appear. It is a non-touch commercial display driven by a connected PC. The interactive display in this ThinkVision family is the T65, which is a separate model with 20-point infrared touch and its own PSREF document.
Is the panel IPS or VA?
VA, per Lenovo's PSREF specification sheet. Our earlier listing for this product said In-Plane Switching; that was incorrect and has been corrected here. The 5000:1 static contrast Lenovo publishes is characteristic of a VA panel — an IPS panel of this class typically sits around 1000:1 to 1200:1.
How much power will it deliver to my laptop over USB-C?
Up to 96 W on the upstream USB-C port, using USB Power Delivery 3.1, alongside DisplayPort 1.4 Alt Mode video. The second USB-C port delivers 15 W and carries data only, with no video.
Does it have Wi-Fi, Bluetooth or a built-in Android system?
No to all three — Lenovo publishes none of them for this model. If you need a display that works standalone without a PC attached, look at the interactive T-series in this family instead.
Can I run a Lenovo Tiny behind it?
Yes. A Core & Tiny cage is supplied in the box for exactly that, so a Lenovo ThinkCentre Tiny or Core module mounts behind the panel out of sight. The compute module itself is a separate purchase — tell us what the room needs to run and we will size it.
What is the response time — 8 ms or 6.5 ms?
Lenovo's own two publications of the same PSREF document disagree: the PDF says 8 ms and the HTML rendering says 6.5 ms. We show both rather than picking one. For meeting-room and signage use the difference is immaterial; if it matters to your application, ask us and we will get it confirmed.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells carries local Singapore warranty support with a GST invoice. For a wall-mounted display, ask us about onsite service before you order.
