Lenovo ThinkVision T32UD-40 31.5-inch 4K UHD Monitor
PRODUCT DESCRIPTION
Lenovo ThinkVision T32UD-40 (64B0GAR1MY) - 3 Years Local Warranty
31.5 Inches of 4K, Docked Over One 10 Gbps USB-C Cable
The ThinkVision T32UD-40 puts 3840 x 2160 on a 31.5-inch panel with 10-bit (8-bit + FRC) colour and 1.07 billion colours, and docks over USB-C at 10 Gbps with DisplayPort 1.4 Alt Mode at HBR3, up to 100 W of charging and gigabit Ethernet.
4K Is Easier to Live With at 31.5 Inches Than at 27
This is the practical argument for the larger panel. At 27 inches, 4K needs display scaling to be readable. At 31.5 inches the same pixels are spread further, so many people run it comfortably at a lower scaling factor and get more genuinely usable desktop space. If you want 4K and have the desk depth, this is the easier size to adopt across a fleet.
The Same Panel Quality as the 27-Inch, With More of It
350 cd/m², 1500:1 contrast, 99% sRGB and 99% BT.709 (CIE 1931), 48–60 Hz, a 4-side ultra-thin chassis and 155 mm of height adjustment with full pivot. Nothing is given up for the size except power: 25.5 W typical and 195 W maximum, with a TEC of 102.8 kWh — the highest in this range.
No DisplayPort Output, and an F-Class Energy Label
Two things to note before a tender. This model has no DisplayPort out, so it cannot chain a second display. And its EU energy label is F class — the panel area and 100 W of outbound charging account for it. If your procurement has an energy-class floor, check it against this figure early.
Lenovo ThinkVision T32UD-40 Datasheet — Technical Specifications
General
| Product | Lenovo ThinkVision T32UD-40 |
| Part Number | 64B0GAR1MY |
| Machine Type | 64B0 |
| Type | 31.5-inch 4K UHD USB-C docking monitor |
| Warranty | 3-Year Limited Warranty (Lenovo, per PSREF) |
| Local Warranty (Singapore) | Included with every SourceIT purchase, with GST invoice |
Panel & Image
| Screen Size | 31.5" — Lenovo markets this model as 32"; the engineering figure is 31.5" |
| Panel Type | 4-side Ultra Thin In-Plane Switching (IPS), WLED backlight. Flat panel |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 48 Hz to 60 Hz |
| Response Time | 4 ms GtG Extreme mode / 6 ms GtG Normal mode |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1500:1 typical; 3,000,000:1 dynamic |
| Colour Gamut | 99% sRGB (CIE 1931); 99% BT.709 (CIE 1931) |
| Colour Depth | 10-bit (8-bit + FRC), 1.07 billion colours |
| Factory Calibration / Delta E | Not published by Lenovo for this model |
| Viewing Angles | 178° horizontal / 178° vertical |
| Surface | Anti-glare |
| Bezel | 2.0 mm sides, 2.0 mm top, 11.4 mm bottom |
Connectivity
| USB-C (docking) | 1 x USB-C upstream, USB 10 Gbps (3.2 Gen 2) — DisplayPort 1.4 Alt Mode at HBR3 and USB Power Delivery 3.0 up to 100 W, plus data and Ethernet |
| Video Inputs | 1 x HDMI 2.1 TMDS (supports 3840 x 2160 at 60 Hz), 1 x DisplayPort 1.4 (HBR3), plus video over USB-C |
| DisplayPort Out | None. This model cannot chain a second display |
| USB Hub | 3 x USB-A downstream (5 Gbps), one with BC 1.2; 1 x USB-C downstream (5 Gbps, 15 W, data only) |
| Network | 1 x RJ45 gigabit Ethernet |
| Audio Out | Not published by Lenovo. No 3.5 mm jack appears in this model's connector list, so plan on audio coming from the PC rather than the monitor |
| Speakers | None built in. Lenovo offers the MS30 Monitor Soundbar as a separately-sold accessory that clips to the display |
| Camera | None with this part number. Lenovo's box-contents list mentions the ThinkVision VoIP Stack MC60 webcam, but footnotes it to different model codes than this SKU. The MC60 is available separately — ask us to quote one |
| KVM Switch | Not published by Lenovo for this model |
| Picture-in-Picture / Picture-by-Picture | Not published by Lenovo for this model |

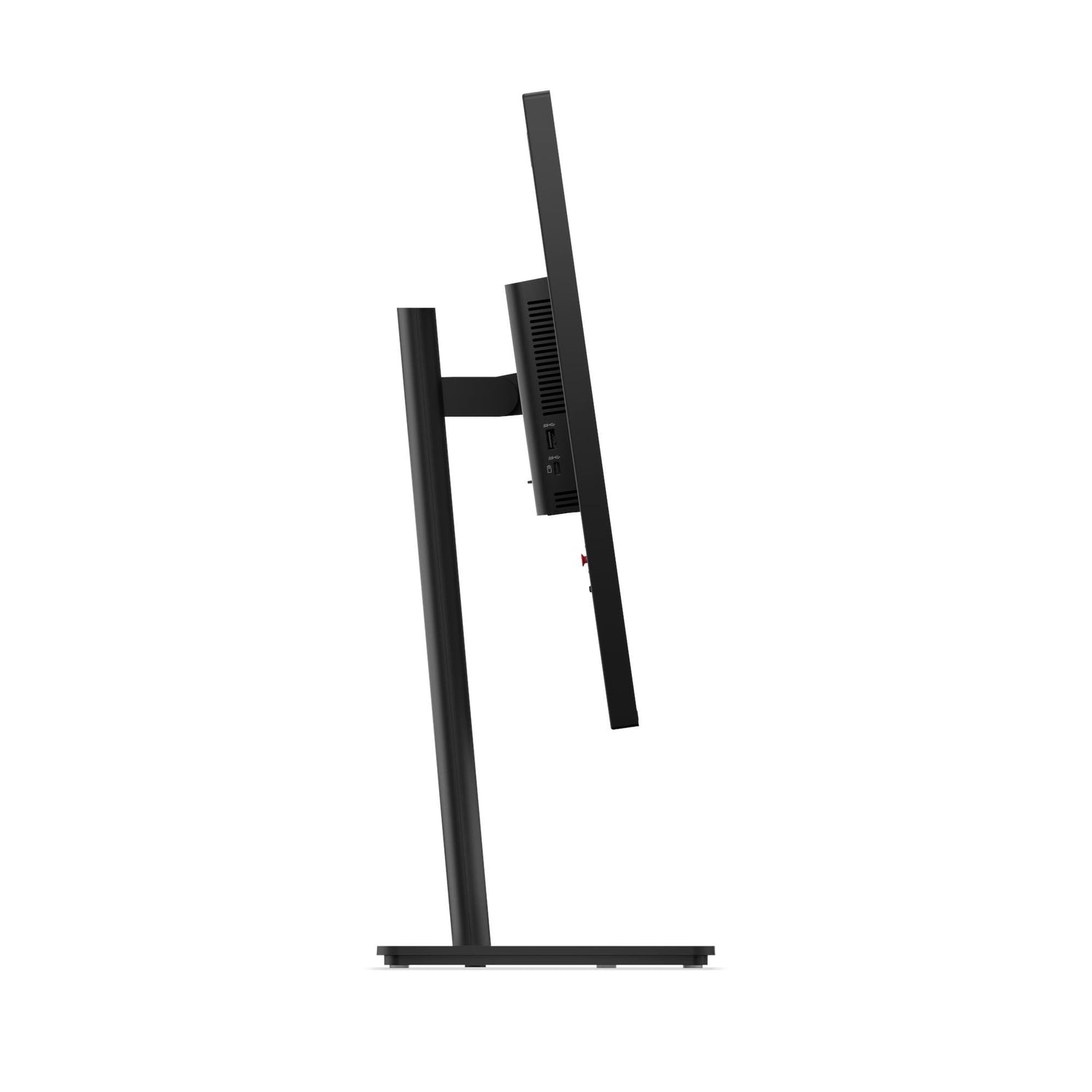

Stand & Ergonomics
| Tilt | -5° to +23.5° |
| Swivel | 45° left and right |
| Pivot | -90° to +90° |
| Height Adjustment | Up to 155 mm |
| VESA | 100 x 100 mm |
Power & Certifications
| Power Consumption | 25.5 W typical / 195 W maximum |
| ENERGY STAR Power-On | 25.2 W; TEC 102.8 kWh |
| Sleep / Off Mode | < 0.5 W |
| Switch-off Mode | < 0.3 W |
| Power Supply | Internal — no external brick |
| Certifications | ENERGY STAR certified; EPEAT Gold registered; RoHS; TCO Certified generation 10; TCO Edge 2.1; Volatile Organic Compound certification; Eyesafe Certified 2.0; TÜV Rheinland Eye Comfort (4-star); TÜV Rheinland Low Blue Light |
| EU Energy Label | F class |
Physical
| Dimensions with Stand | 714.2 x 218.0 x 439.3 mm at lowest; 594.3 mm high at highest |
| Head Only | 714.2 x 46.5 x 413.0 mm |
| Weight | 9.2 kg with stand; 6.3 kg head only |
| Packaged | 950.0 x 139.0 x 520.0 mm; 13.5 kg |
Compatibility & Fit
What "docking" means on this monitor, precisely. One USB-C cable from the laptop carries the picture, up to 100 W of charging, gigabit-class Ethernet from the monitor's RJ45 port, and the downstream USB ports. Close the laptop lid, plug in one cable, and the desk is live. Check your machine's own power requirement against that figure first — it covers the great majority of business ultrabooks, but a mobile workstation with a 170 W adapter should keep using it.
Check HBR3 support on the laptop. 4K at 60 Hz over a single USB-C cable requires DisplayPort Alt Mode at HBR3. Most business laptops from the last several years support it; an older machine limited to HBR2 will run this panel at 4K 30 Hz, which is workable for reading and poor for anything that moves. Tell us the laptop model and we will confirm before you order.
Why 31.5 inches is the easier 4K. The same 3840 x 2160 spread over a larger panel means larger physical pixels and therefore more comfortable reading at a lower display-scaling factor. Many people run a 31.5-inch 4K at 100% or 125% where they would need 150% on a 27-inch — and the lower the scaling, the more actual working space you keep. If 4K is the target, this size is the friendlier way to get there.
Decoding the model names in this range, because the letters do real work and Lenovo does not publish a key. D means USB-C docking — a 100 W upstream port with DisplayPort Alt Mode, Ethernet and usually a DisplayPort output. v means video conferencing — a built-in 5-megapixel IR and RGB camera with Windows Hello and a microphone. t means touch. Q means QHD, UD means 4K UHD and WD means an ultrawide. So a T24-4v has the camera but no dock, while a T24D-4v has both. These are read off Lenovo's own product titles rather than from a naming document, because Lenovo publishes none.
Power, honestly. At 25.5 W typical and 195 W maximum with a TEC of 102.8 kWh, this is the heaviest consumer in the range — panel area plus 100 W going out to the laptop. The EU energy label is F class. If a tender sets an energy-class floor, check it against this figure before specifying.
No DisplayPort output. Two screens from one laptop will need two cables to the laptop, or a separate dock. Only the T24D-40, T27QD-40 and T27QD-4v in this range have a DisplayPort out.
Cables. A DisplayPort 1.4 cable and a USB-C to USB-C Gen 2 cable (1.5 m) are supplied. Keep the Gen 2 cable with the monitor — a lower-specification replacement may not carry 4K at 60 Hz.
Package Contents & ThinkVision Ordering Information
In the box, per Lenovo PSREF:
- Monitor with stand
- 1 x DisplayPort 1.4 cable (1.8 m)
- 1 x USB-C to USB-C Gen 2 cable (1.5 m)
- 1 x power cable (1.8 m)
- Quick setup guide
Keep the supplied USB-C cable with the monitor — it is a Gen 2 cable rated for this panel's bandwidth. No HDMI cable and no webcam are included.
ThinkVision T-Series Ordering Information
| 64A4MARXMY | ThinkVision T24-40 — 23.8" FHD, 48–120 Hz, USB hub — not a dock |
| 64B9GAR1MY | ThinkVision T24D-40 — 23.8" FHD dock — USB-C 100 W, GbE, speakers |
| 64B6MAR1MY | ThinkVision T24-4v — 23.8" FHD, 5 MP IR camera, 3 W speakers — not a dock |
| 64B7UAR1MY | ThinkVision T24D-4v — 23.8" FHD dock, 5 MP IR camera, Teams certified |
| 64D2GAR2MY | ThinkVision T24D-4t — 23.8" FHD 20-point touch dock, 350 nits |
| 64A5MAR6MY | ThinkVision T27-40 — 27" FHD, 48–120 Hz, USB hub — not a dock |
| 64A6GAR6MY | ThinkVision T27Q-40 — 27" QHD, 48–120 Hz, USB hub — not a dock |
| 64AAGAR2MY | ThinkVision T27QD-40 — 27" QHD dock — USB-C 100 W, GbE, DP out |
| 64B8UAR1MY | ThinkVision T27QD-4v — 27" QHD dock, 5 MP IR camera, 5 W speakers, Teams |
| 64AFGAR2MY | ThinkVision T27UD-40 — 27" 4K dock — USB-C 10 Gbps, 100 W, GbE |
| 64B0GAR1MY (this listing) | ThinkVision T32UD-40 — 31.5" 4K dock — USB-C 10 Gbps, 100 W, GbE |
| 64AEGAR1MY | ThinkVision T34WD-40 — 34" 21:9 curved 1500R VA dock — 100 W, GbE |
Datasheet & Downloads
PSREF is Lenovo's own Product Specifications Reference and is the source for every figure on this page unless the table says otherwise. PSREF publishes its spec sheets per model rather than per part number, so this SKU does not appear inside the PDF itself; a per-part-number detail page also exists at psref.lenovo.com and will render in a normal browser if you need this exact configuration confirmed before ordering. Ask us and we will pull it for you.
Frequently Asked Questions — Lenovo ThinkVision T32UD-40
Is it 31.5 inches or 32?
Both, depending which Lenovo page you read. Lenovo's engineering specification says 31.5 inches; Lenovo's own Singapore product title rounds it to 32. We publish the engineering figure in the specification table and note the marketing name here, so the two never quietly contradict each other.
Is 4K easier to read at this size than at 27 inches?
Yes. The same 3840 x 2160 pixels spread over 31.5 inches are physically larger, so many people run this comfortably at 100% or 125% display scaling where a 27-inch 4K needs 150%. Lower scaling means more usable desktop space, so you actually keep more of the resolution you paid for.
Will my laptop drive it at 4K 60 Hz over USB-C?
It needs DisplayPort Alt Mode at HBR3. Most business laptops from the last several years have it; older machines limited to HBR2 will manage 4K at 30 Hz. Send us the laptop model and we will check before you commit.
Can I chain a second display from it?
No — this model has no DisplayPort output. Only the T24D-40, T27QD-40 and T27QD-4v in this range do. Two screens from one laptop here means two cables to the laptop or a separate dock.
Is the F-class energy label a problem?
Only if your procurement sets a floor. The rating reflects a large 4K panel that also delivers up to 100 W of charging to a laptop — energy the monitor is passing on rather than consuming itself. If a tender specifies a minimum energy class, tell us early and we will help you find something that clears it.
What warranty applies in Singapore?
Lenovo PSREF states a 3-year limited warranty as the base warranty for this model, and every unit SourceIT sells comes with local Singapore warranty support and a GST invoice.
