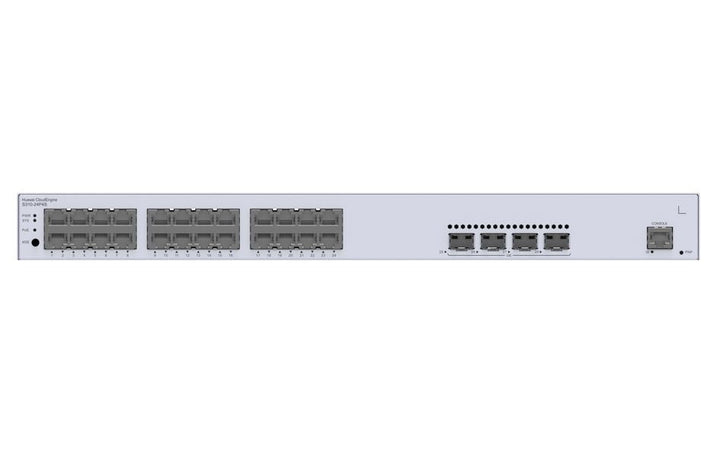

Huawei eKitEngine S310-24T4S 24-Port Gigabit L2+ Managed Switch, 4 x SFP
PRODUCT DESCRIPTION
Huawei eKitEngine S310-24T4S 24-Port Gigabit L2+ Managed Switch (S310-24T4S) - 1 Year Local Warranty
24 Gigabit Ports and 4 SFP Uplinks
The Huawei eKitEngine S310-24T4S is a Layer 2+ managed switch with 24 Gigabit RJ45 ports and 4 Gigabit SFP uplinks — the non-PoE member of the S310 family.
Performance
Per Huawei's S310 series datasheet the switch delivers 56 Gbit/s switching capacity and a 42 Mpps forwarding rate, with a 16K MAC address table.
Managed Your Way
Web, CLI and SNMP management, static routing and policy-based routing, and cloud configuration and monitoring through the HUAWEI eKit app.
Compact 1U Design
A 1U 442 mm chassis with a built-in AC power supply and intelligent fan-speed cooling.
Need help choosing? Email sales@sourceit.com.sg with your port count and uplink needs and we will size it for you.
Huawei S310-24T4S Datasheet — Technical Specifications
General
| Product Name | Huawei eKitEngine S310-24T4S Gigabit Switch |
| Model | S310-24T4S |
| Part Number | 98012202 |
| Switch Type | Layer 2+ managed (static routing) |
| Local Warranty (Singapore) | 1 year carry-in warranty, supplied by SourceIT with a GST invoice |
Interfaces
| GE RJ45 Ports | 24 x 10/100/1000BASE-T |
| GE SFP Ports | 4 x GE SFP |
| PoE | No |
Performance
| Switching Capacity | 56 Gbit/s |
| Forwarding Rate | 42 Mpps |
| MAC Address Table | 16K entries |
Power & Physical
| Power Supply | Built-in AC, rated 100–240 V AC |
| Max. Power Consumption | 34.04 W |
| Cooling | Air cooling with intelligent fan speed |
| Dimensions (H x W x D) | 43.6 x 442 x 220 mm, 1U |
| Operating Temperature | -5 to +50 °C |
Huawei's eKit site does not publish a product page for the S310-24T4S; figures are from Huawei's eKitEngine S310 Series Switches datasheet. Weight is not listed here — ask us if you need it.
Compatibility & Software Support
Management
Per Huawei's S310 series datasheet: web, CLI and SNMP v1/v2/v3 management, plus cloud configuration, monitoring and inspection through the HUAWEI eKit app.
Layer 2+ Features
L2 switching with static routing and policy-based routing (PBR), 4,094 VLANs and L2–L4 ACLs per Huawei's S310 series datasheet.
Typical Use
Access switching for SME offices, shops and branches, uplinked by SFP to a core switch or an eKitEngine S380 / NetEngine AR gateway.
Package Contents & Huawei eKitEngine S310 Ordering Information
Huawei eKitEngine S310 Models
| Model | Ports | PoE | Part No. |
| S310-24T4S (this listing) | 24 x GE + 4 x GE SFP | — | S310-24T4S |
| S310-24P4S | 24 x GE PoE+ + 4 x GE SFP | 400 W | S310-24P4S |
| S310-48T4S | 48 x GE + 4 x GE SFP | — | S310-48T4S |
Package contents are not listed on Huawei's eKit product page — ask us if you need confirmation of the included power cord and mounting kit.
Datasheet & Downloads
| Huawei datasheet | eKitEngine S310 Series Switches Datasheet (e.huawei.com) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting S310-24T4S.
Frequently Asked Questions — Huawei S310-24T4S
Does the S310-24T4S support PoE?
No. For PoE choose the S310-24P4S (24 x PoE+, 400 W).
Is it a Layer 3 switch?
Huawei's S310 series datasheet lists static routing and policy-based routing; dynamic routing protocols such as OSPF are not listed. Ask us before planning dynamic routing on it.
How is it managed?
Web, CLI, SNMP v1/v2/v3 and the HUAWEI eKit app (cloud), per Huawei's S310 series datasheet.
What warranty do I get?
1 year local carry-in warranty in Singapore, supplied by SourceIT with a GST invoice.
